KP61-PHMDS (1978)

Toyota Starlet

Production Feb 1978 - May 1980
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)SED..S,SE,XL ; (8108-8208)5D..DLX

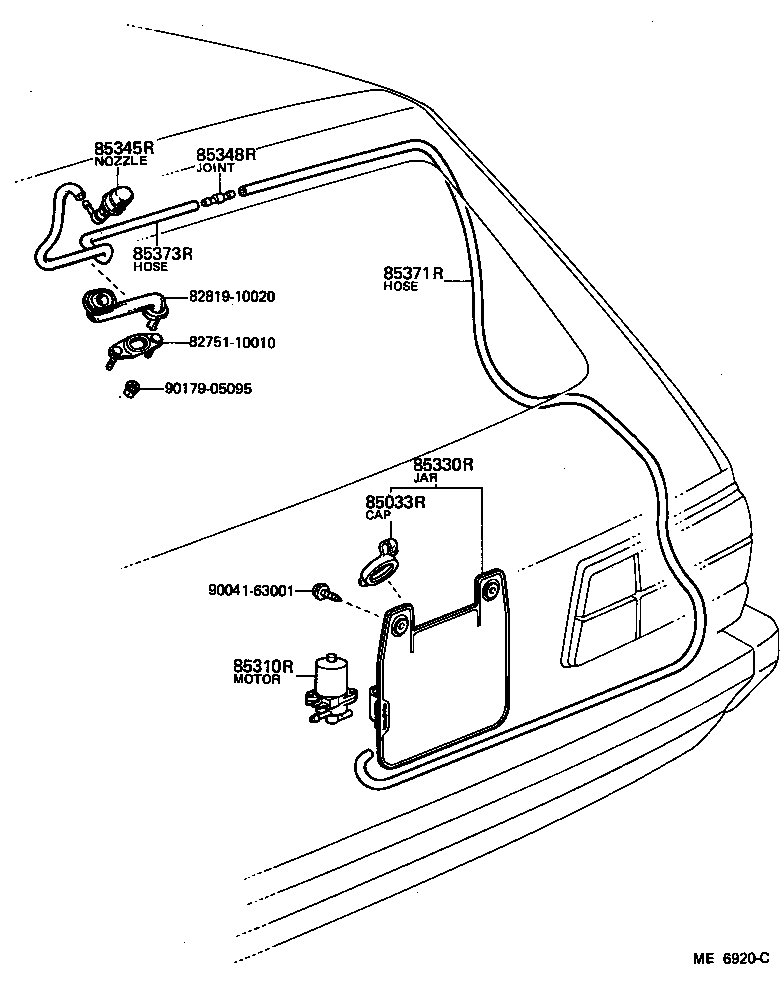

Click highlighted areas on diagram

diagram 8275110010 8281910020 85033R 85310R 85330R 85345R 85348R 85371R 85373R 9004163001 9017905095
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-10080

KP61..S,SE,XL

 1
85310R - MOTOR ASSY, REAR WASHER
85310-10070

KP61..S,SE,XL

 1
85330R - JAR ASSY, REAR WASHER
85330-10100

KP61..S,SE,XL

 1
85345R - NOZZLE, REAR WASHER
85035-10140

KP61..S,SE,XL

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-10060

KP61..SED..(S,SE,XL)

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

KP61..S,SE,XL

*H,L=1040

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

KP61..S,SE,XL

長さ=450,*H,L=360

 1
Common parts
82751-10010
82819-10020
90041-63001
90179-05095
