KP61-PHMDS (1978)

Toyota Starlet

Production Feb 1978 - May 1980
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

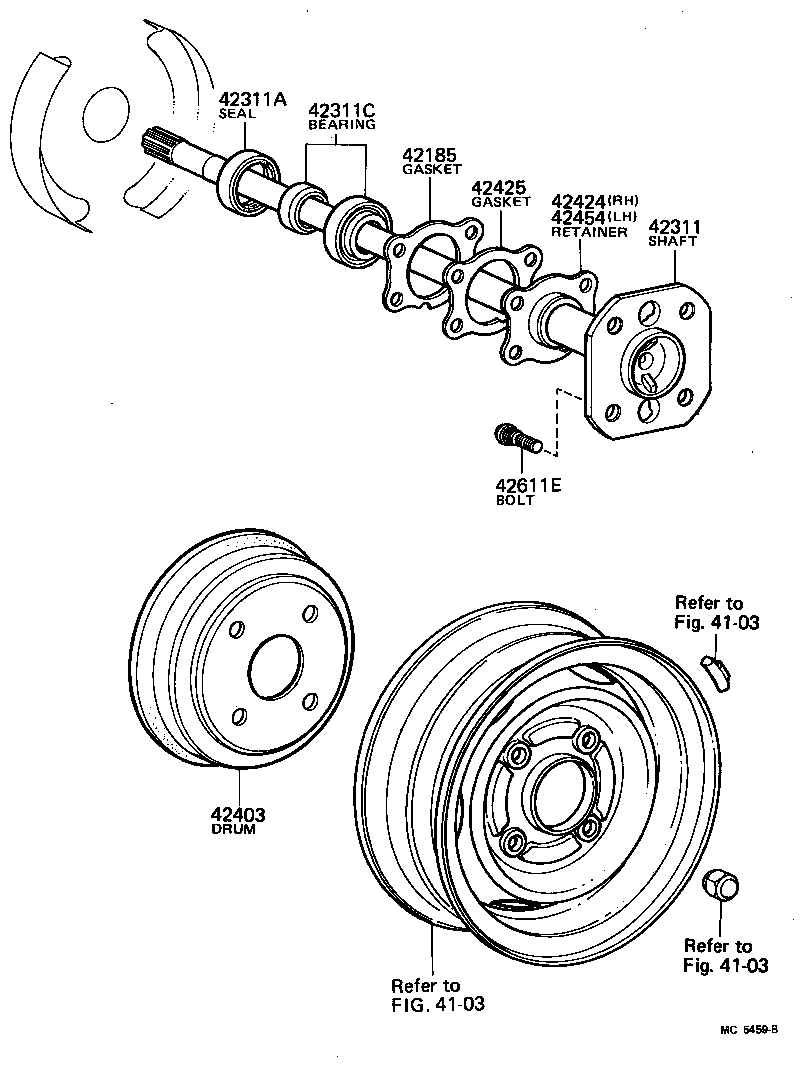

Click highlighted areas on diagram

diagram 4103 4103 4103 42185 42311 42311A 42311C 42403 42424 42425 42454 42611E
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42185-10010

KP6#

T=0.3

 2
42185-10020

KP6#

T=0.6

 2
42311 - SHAFT, REAR AXLE
42311-10040

KP61..SED

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42055

KP6#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
04421-12010

KP6#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-10030

KP61..SED

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-10030

KP6#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-10020

KP6#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-10010

KP6#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02035

KP6#

 8
Linked diagrams
4103
