KP61-PHKSS (1978)
Toyota Starlet

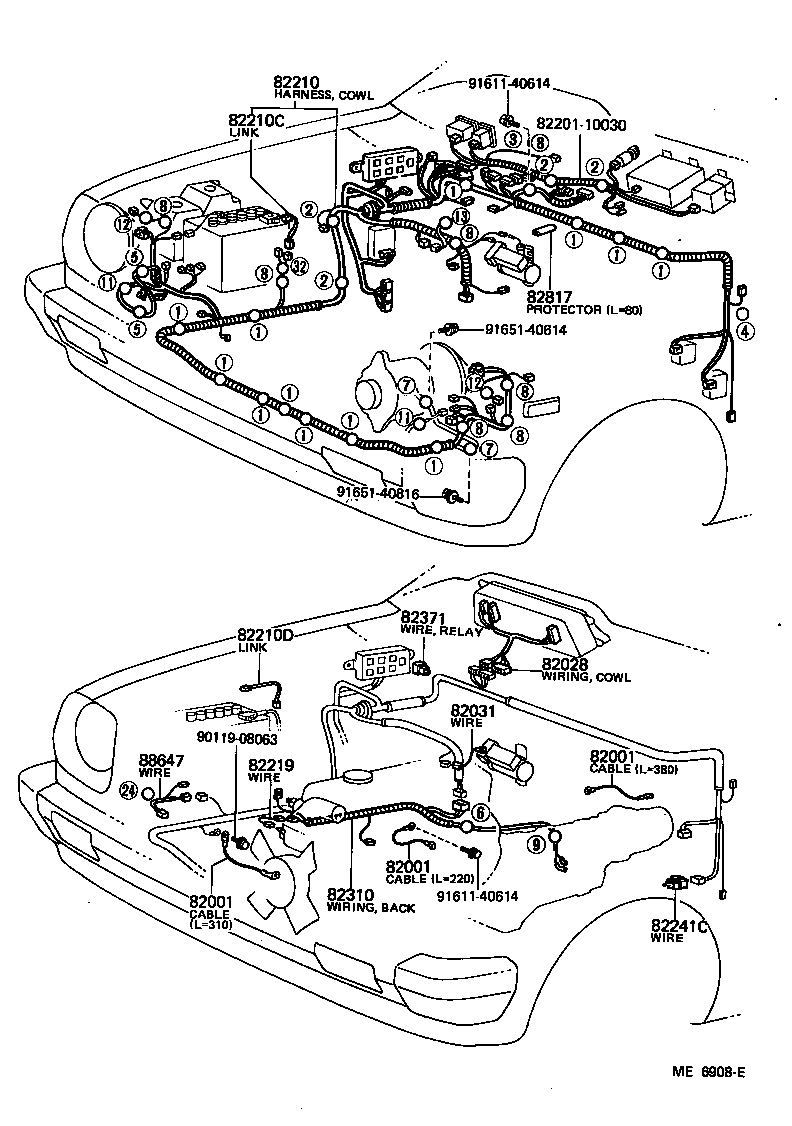

ILLUST NO. 1 OF 3(7802-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07137 |
KP6# L=220 |
1 | ||
| 90980-07138 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07112 |
KP6# L=310 |
1 | ||
| 90980-07201 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07201 |
KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP62;KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07138 |
KP6# L=380 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07137 |
KP6# L=220 |
1 | ||
| 90980-07138 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07112 |
KP6# L=310 |
1 | ||
| 90980-07201 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07201 |
KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP62;KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07138 |
KP6# L=380 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07137 |
KP6# L=220 |
1 | ||
| 90980-07138 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07112 |
KP6# L=310 |
1 | ||
| 90980-07201 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07201 |
KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP62;KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07138 |
KP6# L=380 |
1 | ||
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-10020 |
KP61..S,SE,XL 4-METER |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
KP61..4F..DXA;KP61..SED..(DLX,S,SE,STD,XL) |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-10850 |
KP61..S |
1 | ||
| 82210-1C020 |
KP61..MTM..(S,SE) W/*OM,*HC & *RCM |
1 | ||
| 82210-1C100 |
KP61..S W/*HC |
1 | ||
| 82210-10851 |
KP61..S |
1 | ||
| 82210-1C101 |
KP61..S W/*HC & *RCM;W/*HC OR *RCM |
1 | ||
| 82210-10861 |
KP61..MTM..SE W/*OM |
1 | ||
| 82210-10860 |
KP61..MTM..(S,SE) W/*OM |
1 | ||
| 82210-1C021 |
KP61..S W/*OM,W/*OM & *HC,W/*OM & *RCM |
1 | ||
| 82210-10852 |
KP61..S |
1 | ||
| 82210-10862 |
KP61..MTM..SE |
1 | ||
| 82210-1C102 |
KP61..S W/*HC & *RCM;W/*HC OR *RCM |
1 | ||
| 82210-10853 |
KP61..S |
1 | ||
| 82210-10863 |
KP61..MTM..(S,SE) W/*OM,*RCM |
1 | ||
| 82210-1C103 |
KP61..S W/*RCM |
1 | ||
| 82210-1C022 |
KP61..S W/*OM,W/*OM & *HC,W/*OM & *RCM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08072 |
KP6# |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08091 |
KP6# L=110,RED |
1 | ||
| 90982-08131 |
KP6# L=110,BATTERY,RED & GREEN |
1 | ||
| 90982-08180 |
KP61 L=110,BATTERY,YELLOW & GREEN |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-12040 |
KP61..CBR |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-10010 |
KP61..S |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-10131 |
KP61..4F |
1 | ||
| 82310-10133 |
KP61..SED..4F |
1 | ||
| 82310-10130 |
KP61..4F |
1 | ||
| 82310-10132 |
KP61..4F |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10090 |
KP6# L=80 |
1 | ||
| 82817-22170 |
KP61 L=100X200 |
1 | ||
| 82817-10080 |
KP6# L=35 |
2 | ||
| 82817-14020 |
KP61 L=100X250 |
1 | ||
| 88647 - WIRE SUB-ASSY, COOLER | ||||
| 88648-10040 |
KP61 |
1 | ||
| Common parts | ||||
| 82201-10030 | ||||
| 90119-08063 | ||||
| 91611-40614 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||

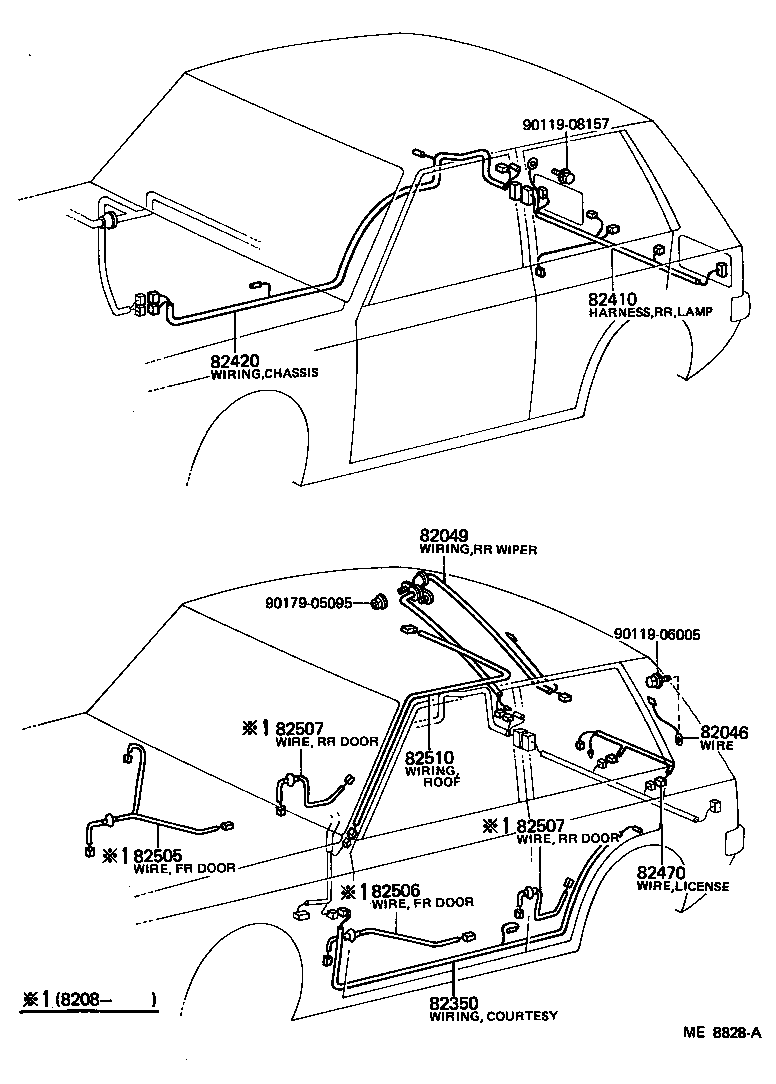

ILLUST NO. 2 OF 3(7802-8005)KP61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-10041 |
KP61..DLX,DXA,S,SE,XL |
1 | ||
| 82046-10041 |
KP61..5D;KP61..3D..4F..DLX;KP61..3D..5F..(S,SE,XL);KP61..3D..(3FC,4F)..(DXA,S,SE,XL) |
1 | ||
| 82046-10040 |
KP61..DLX,S,SE,XL |
1 | ||
| 82049 - WIRING SUB-ASSY, REAR WIPER | ||||
| 82049-10010 |
KP61..S,SE,XL W/*RW |
1 | ||
| 82049-10011 |
KP61..S,SE,XL W/*RW |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 84203-10010 |
KP61..5D |
1 | ||
| 84203-10011 |
KP61..5D |
1 | ||
| 82351-10020 |
KP61..5D |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10200 |
KP61..S,SE,XL W/4-METER,FUEL WARNING & *OM;W/*RW |
1 | ||
| 82410-10201 |
KP61..S |
1 | ||
| 82410-10280 |
KP61..S,SE W/URETAN BUMPER |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-10050 |
KP61..MTM..(S,XL) W/*RW |
1 | ||
| 82420-10051 |
KP61..S,SE |
1 | ||
| 82420-10060 |
KP61..MTM..(S,SE,XL) W/4-METER,FUEL WARNING & *OM |
1 | ||
| 82420-10052 |
KP61..SED..(S,SE,XL) W/*RW |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-10010 |
KP61 |
1 | ||
| 82470-10011 |
KP61..SED..(DLX,DXA,S,STD,XL) |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-10010 |
KP6# |
1 | ||
| 82510-10010 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 82510-10010 |
KP6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10090 |
KP6# L=80 |
1 | ||
| 82817-22170 |
KP61 L=100X200 |
1 | ||
| 82817-10080 |
KP6# L=35 |
2 | ||
| 82817-14020 |
KP61 L=100X250 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10090 |
KP6# L=80 |
1 | ||
| 82817-22170 |
KP61 L=100X200 |
1 | ||
| 82817-10080 |
KP6# L=35 |
2 | ||
| 82817-14020 |
KP61 L=100X250 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10090 |
KP6# L=80 |
1 | ||
| 82817-22170 |
KP61 L=100X200 |
1 | ||
| 82817-10080 |
KP6# L=35 |
2 | ||
| 82817-14020 |
KP61 L=100X250 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08157 | ||||
| 90179-05095 | ||||

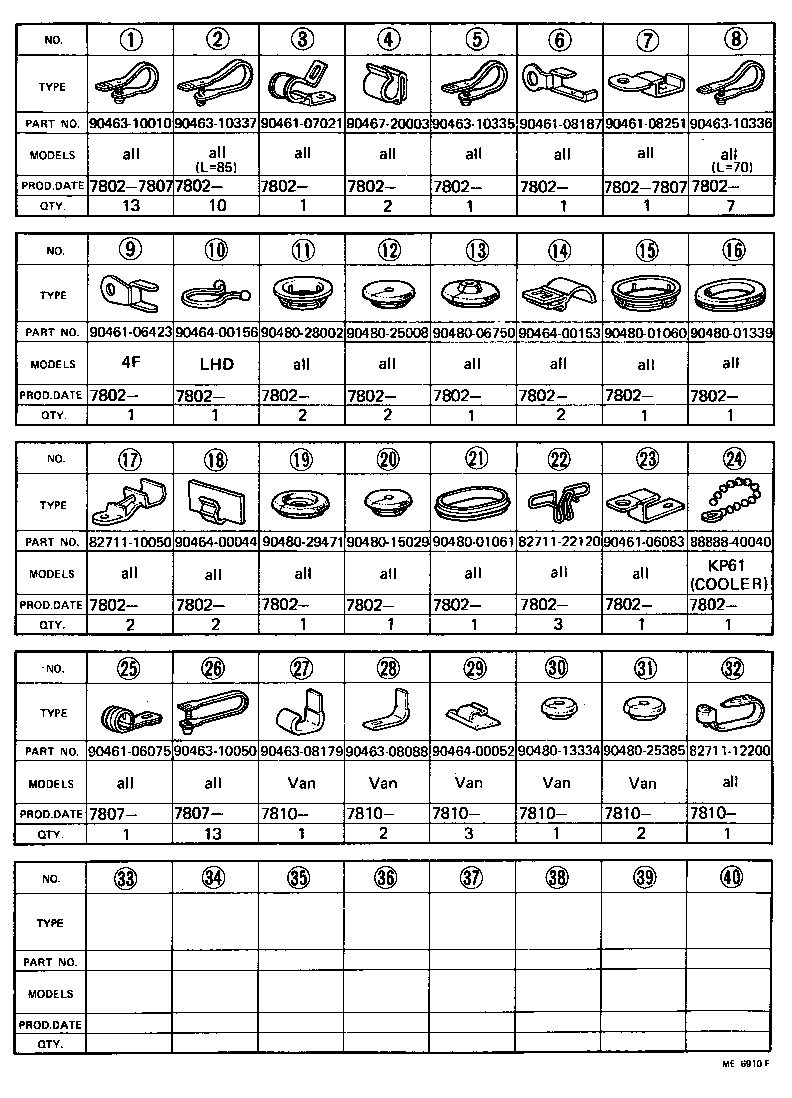

ILLUST NO. 3 OF 3(7802-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

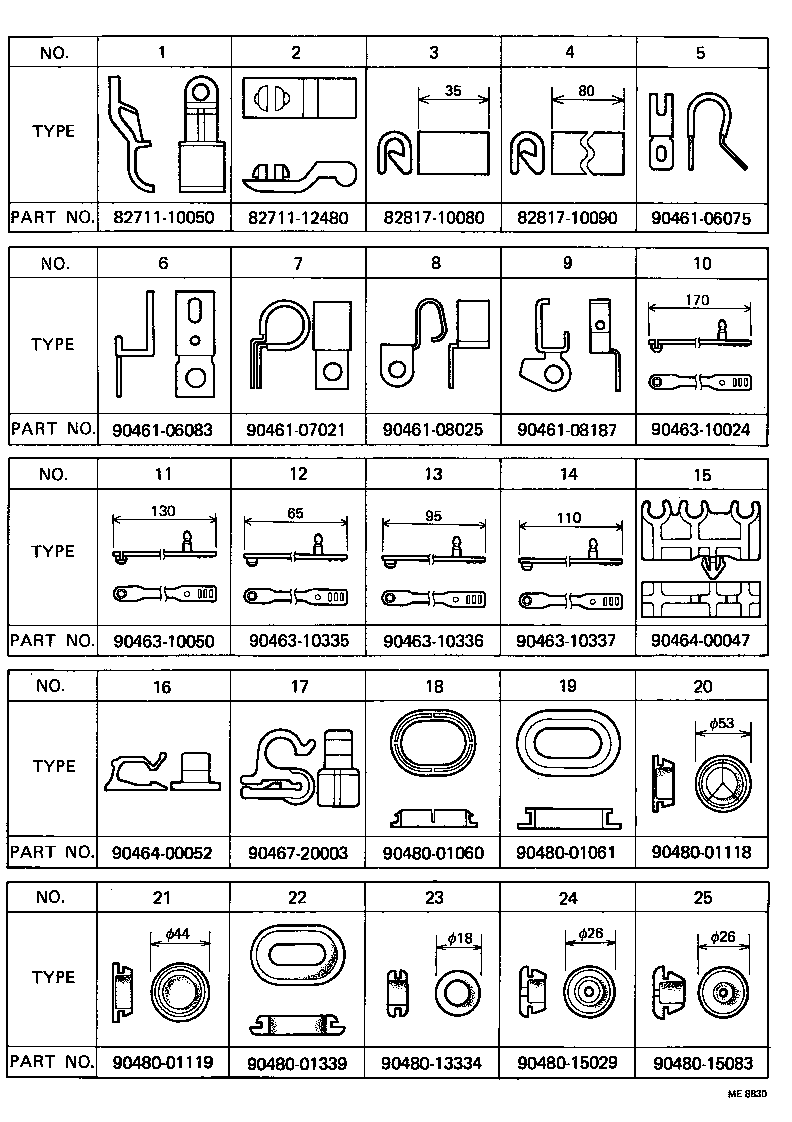

| Common parts | ||||
| 82711-10050 | ||||
| 82711-12200 | ||||
| 82711-22120 | ||||
| 88888-40040 | ||||
| 90461-06075 | ||||
| 90461-06083 | ||||
| 90461-06423 | ||||
| 90461-07021 | ||||
| 90461-08187 | ||||
| 90461-08251 | ||||
| 90463-08088 | ||||
| 90463-08179 | ||||
| 90463-10010 | ||||
| 90463-10050 | ||||
| 90463-10335 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90464-00044 | ||||
| 90464-00052 | ||||
| 90464-00153 | ||||
| 90464-00156 | ||||
| 90467-20003 | ||||
| 90480-01060 | ||||
| 90480-01061 | ||||
| 90480-01339 | ||||
| 90480-06750 | ||||
| 90480-13334 | ||||
| 90480-15029 | ||||
| 90480-25008 | ||||
| 90480-25385 | ||||
| 90480-28002 | ||||
| 90480-29471 | ||||

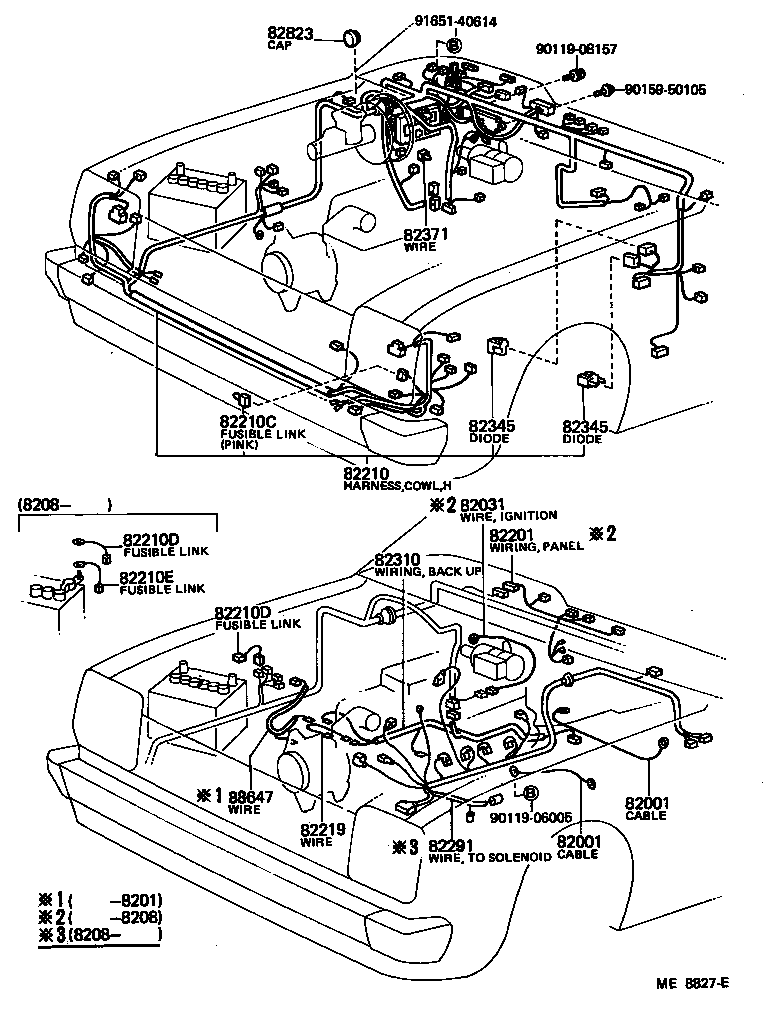

ILLUST NO. 1 OF 5(8005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07137 |
KP6# L=220 |
1 | ||
| 90980-07138 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07112 |
KP6# L=310 |
1 | ||
| 90980-07201 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07201 |
KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP62;KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07138 |
KP6# L=380 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07137 |
KP6# L=220 |
1 | ||
| 90980-07138 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07112 |
KP6# L=310 |
1 | ||
| 90980-07201 |
KP62;KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07201 |
KP61..DLX,DXA,S,SE,XL L=380 |
1 | ||
| 90980-07137 |
KP62;KP61..DLX,DXA,S,SE,XL L=220 |
1 | ||
| 90980-07138 |
KP6# L=380 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
KP61..4F..DXA;KP61..SED..(DLX,S,SE,STD,XL) |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-10021 |
KP61..S,SE |
1 | ||
| 82201-10030 |
KP61..S,SE,XL W/*RW & 4-METER |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-10850 |
KP61..S |
1 | ||
| 82210-1C020 |
KP61..MTM..(S,SE) W/*OM,*HC & *RCM |
1 | ||
| 82210-1C100 |
KP61..S W/*HC |
1 | ||
| 82210-10851 |
KP61..S |
1 | ||
| 82210-1C101 |
KP61..S W/*HC & *RCM;W/*HC OR *RCM |
1 | ||
| 82210-10861 |
KP61..MTM..SE W/*OM |
1 | ||
| 82210-10860 |
KP61..MTM..(S,SE) W/*OM |
1 | ||
| 82210-1C021 |
KP61..S W/*OM,W/*OM & *HC,W/*OM & *RCM |
1 | ||
| 82210-10852 |
KP61..S |
1 | ||
| 82210-10862 |
KP61..MTM..SE |
1 | ||
| 82210-1C102 |
KP61..S W/*HC & *RCM;W/*HC OR *RCM |
1 | ||
| 82210-10853 |
KP61..S |
1 | ||
| 82210-10863 |
KP61..MTM..(S,SE) W/*OM,*RCM |
1 | ||
| 82210-1C103 |
KP61..S W/*RCM |
1 | ||
| 82210-1C022 |
KP61..S W/*OM,W/*OM & *HC,W/*OM & *RCM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08072 |
KP6# |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08091 |
KP6# L=110,RED |
1 | ||
| 90982-08131 |
KP6# L=110,BATTERY,RED & GREEN |
1 | ||
| 90982-08180 |
KP61 L=110,BATTERY,YELLOW & GREEN |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08091 |
KP6# L=110,RED |
1 | ||
| 90982-08131 |
KP6# L=110,BATTERY,RED & GREEN |
1 | ||
| 90982-08180 |
KP61 L=110,BATTERY,YELLOW & GREEN |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-12040 |
KP61..CBR |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-10131 |
KP61..4F |
1 | ||
| 82310-10133 |
KP61..SED..4F |
1 | ||
| 82310-10130 |
KP61..4F |
1 | ||
| 82310-10132 |
KP61..4F |
1 | ||
| 88647 - WIRE SUB-ASSY, COOLER | ||||
| 88648-10040 |
KP61 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08157 | ||||
| 90159-50105 | ||||
| 91651-40614 | ||||

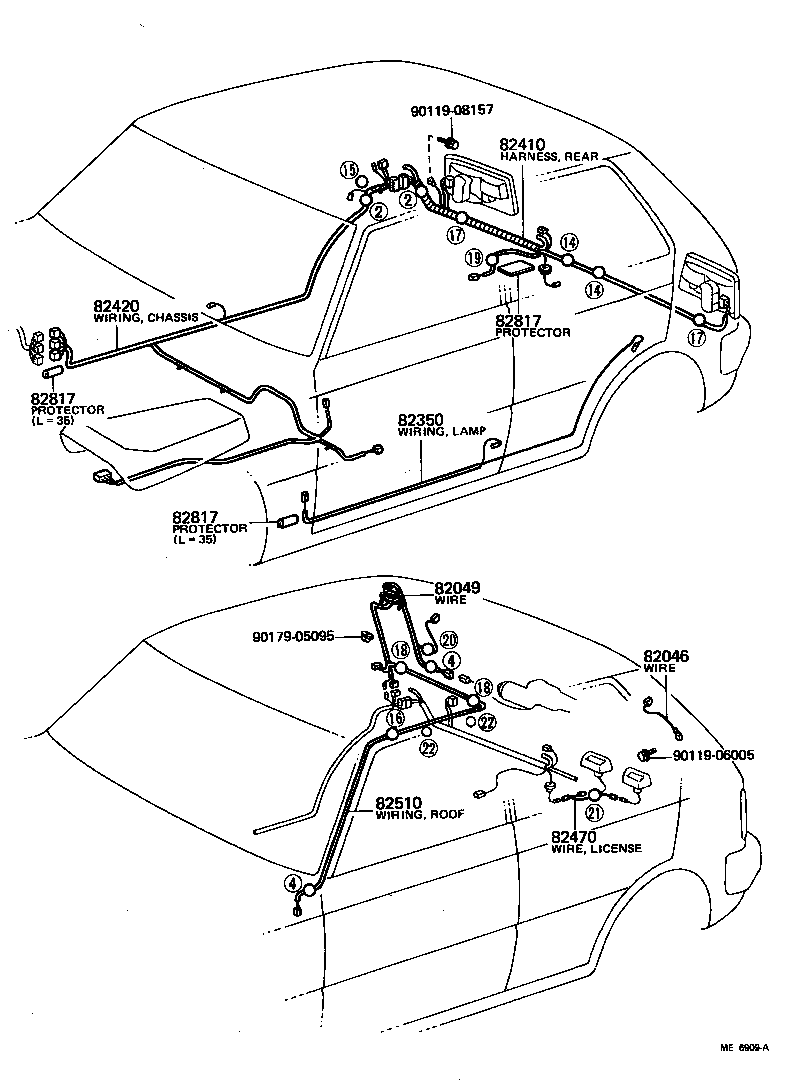

ILLUST NO. 2 OF 5(8005- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-10041 |
KP61..DLX,DXA,S,SE,XL |
1 | ||
| 82046-10041 |
KP61..5D;KP61..3D..4F..DLX;KP61..3D..5F..(S,SE,XL);KP61..3D..(3FC,4F)..(DXA,S,SE,XL) |
1 | ||
| 82046-10040 |
KP61..DLX,S,SE,XL |
1 | ||
| 82049 - WIRING SUB-ASSY, REAR WIPER | ||||
| 82049-10010 |
KP61..S,SE,XL W/*RW |
1 | ||
| 82049-10011 |
KP61..S,SE,XL W/*RW |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 84203-10010 |
KP61..5D |
1 | ||
| 84203-10011 |
KP61..5D |
1 | ||
| 82351-10020 |
KP61..5D |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10200 |
KP61..S,SE,XL W/4-METER,FUEL WARNING & *OM;W/*RW |
1 | ||
| 82410-10201 |
KP61..S |
1 | ||
| 82410-10280 |
KP61..S,SE W/URETAN BUMPER |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-10050 |
KP61..MTM..(S,XL) W/*RW |
1 | ||
| 82420-10051 |
KP61..S,SE |
1 | ||
| 82420-10060 |
KP61..MTM..(S,SE,XL) W/4-METER,FUEL WARNING & *OM |
1 | ||
| 82420-10052 |
KP61..SED..(S,SE,XL) W/*RW |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-10010 |
KP61 |
1 | ||
| 82470-10011 |
KP61..SED..(DLX,DXA,S,STD,XL) |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-10010 |
KP6# |
1 | ||
| 82510-10010 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 82510-10010 |
KP6# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08157 | ||||
| 90179-05095 | ||||
ILLUST NO. 3 OF 5(8005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10050 | ||||
| 82711-12480 | ||||
| 82817-10080 | ||||
| 82817-10090 | ||||
| 90461-06075 | ||||
| 90461-06083 | ||||
| 90461-07021 | ||||
| 90461-08025 | ||||
| 90461-08187 | ||||
| 90463-10024 | ||||
| 90463-10050 | ||||
| 90463-10335 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90464-00047 | ||||
| 90464-00052 | ||||
| 90467-20003 | ||||
| 90480-01060 | ||||
| 90480-01061 | ||||
| 90480-01118 | ||||
| 90480-01119 | ||||
| 90480-01339 | ||||
| 90480-13334 | ||||
| 90480-15029 | ||||
| 90480-15083 | ||||
ILLUST NO. 4 OF 5(8005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10170 | ||||
| 82711-12200 | ||||
| 82817-22170 | ||||
| 90462-06008 | ||||
| 90463-10012 | ||||
| 90464-00044 | ||||
| 90464-00056 | ||||
| 90480-06750 | ||||
| 90480-19027 | ||||
| 90480-25385 | ||||
| 90480-30004 | ||||
| 90950-01056 | ||||

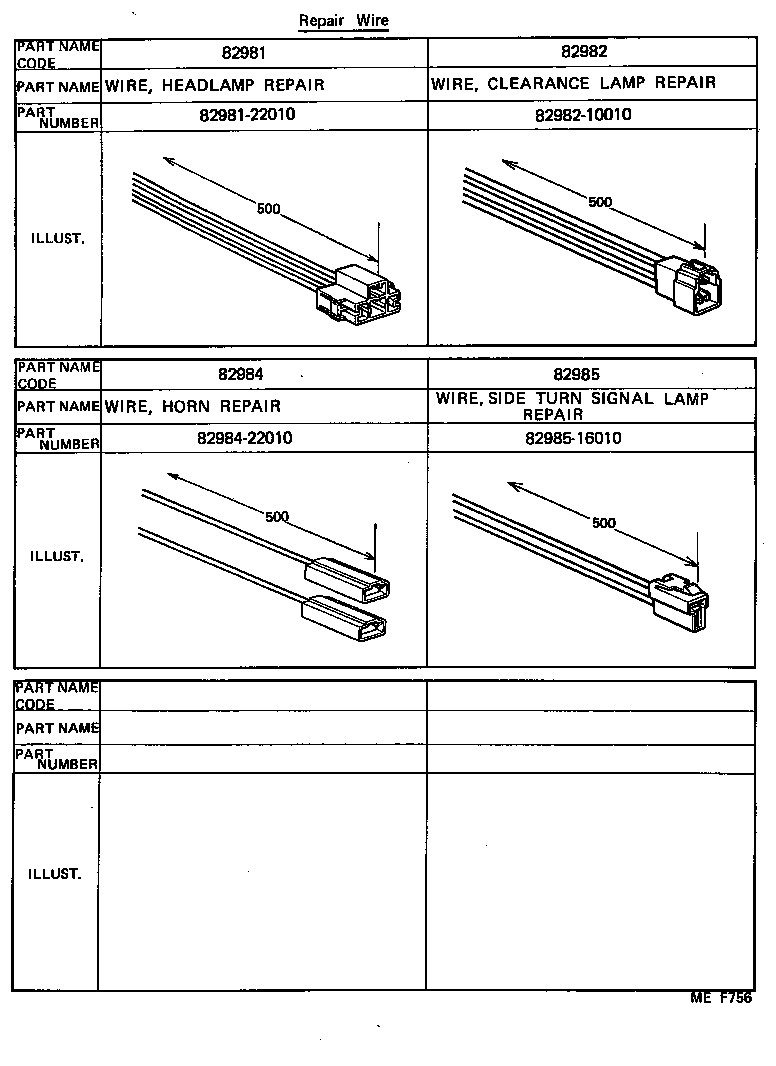

ILLUST NO. 5 OF 5(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-22010 | ||||
| 82982-10010 | ||||
| 82984-22010 | ||||
| 82985-16010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
