KP61-PHKSS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
4KU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7810-7903)3KHJ ; (8304- )4KU

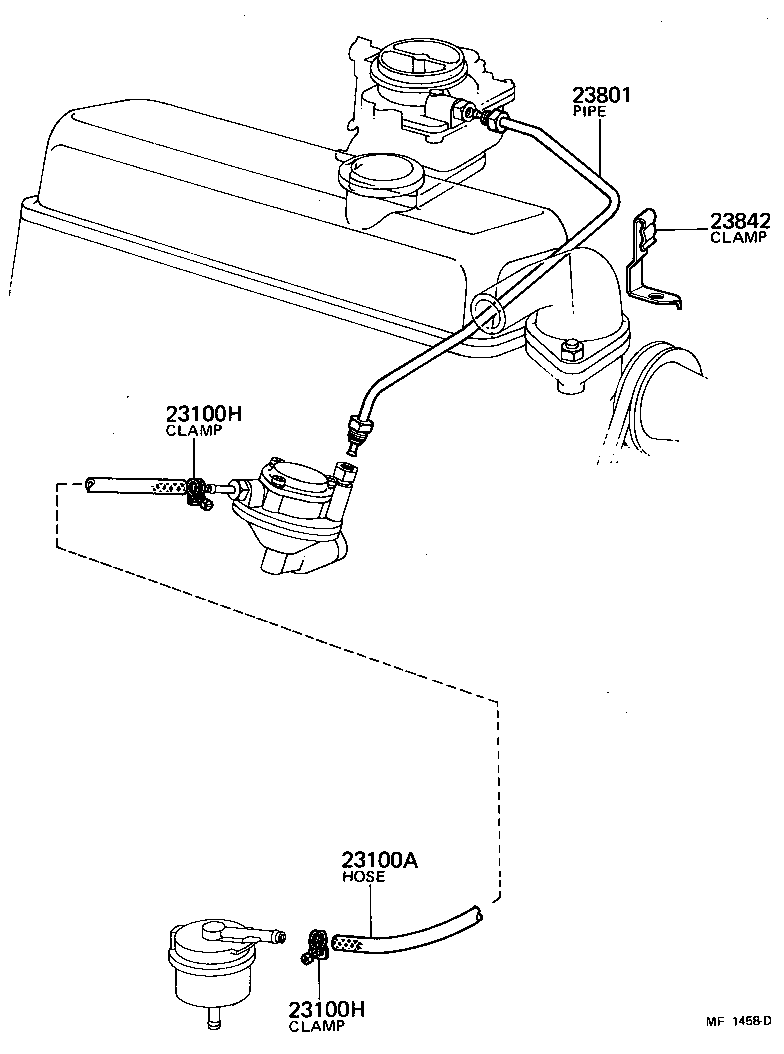

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06034 |
4KU..KP61 L=340 |
1 | ||
| 95332-06032 |
4KU..KP61 L=320 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3KHJ,4KU,4KJ..KP6# |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3KHJ,4KU,4KJ..KP6# |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-13010 |
4KU..KP61 |
1 | ||
| 23801-13030 |
4K#..KP61 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 90461-08532 |
3KHJ,4KU..KP6# |
1 | ||
(7903- )3KHJ,4KU,4KJ

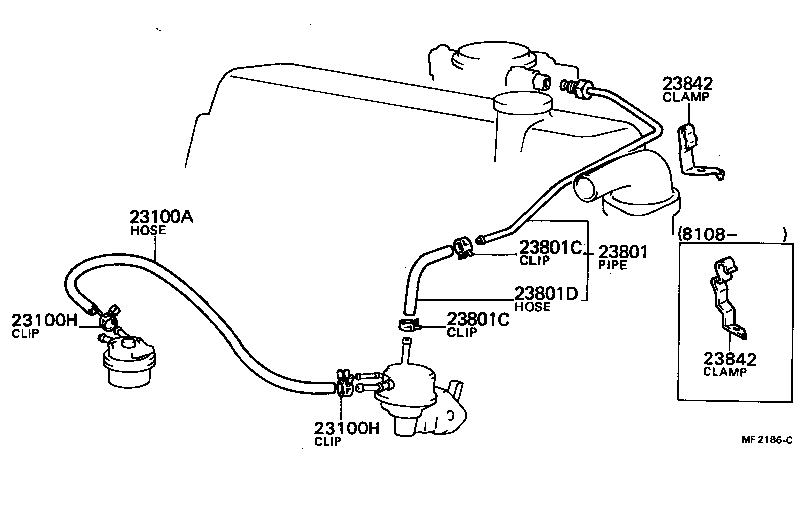

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06034 |
4KU..KP61 L=340 |
1 | ||
| 95332-06032 |
4KU..KP61 L=320 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3KHJ,4KU,4KJ..KP6# |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3KHJ,4KU,4KJ..KP6# |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-13010 |
4KU..KP61 |
1 | ||
| 23801-13030 |
4K#..KP61 |
1 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95331-06007 |
4KU..KP61 *H,L=70 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 90461-08532 |
3KHJ,4KU..KP6# |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 90461-08532 |
3KHJ,4KU..KP6# |
1 | ||
