KP61-PHKSS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8108) ; (8108- )3KHJ,4KJ

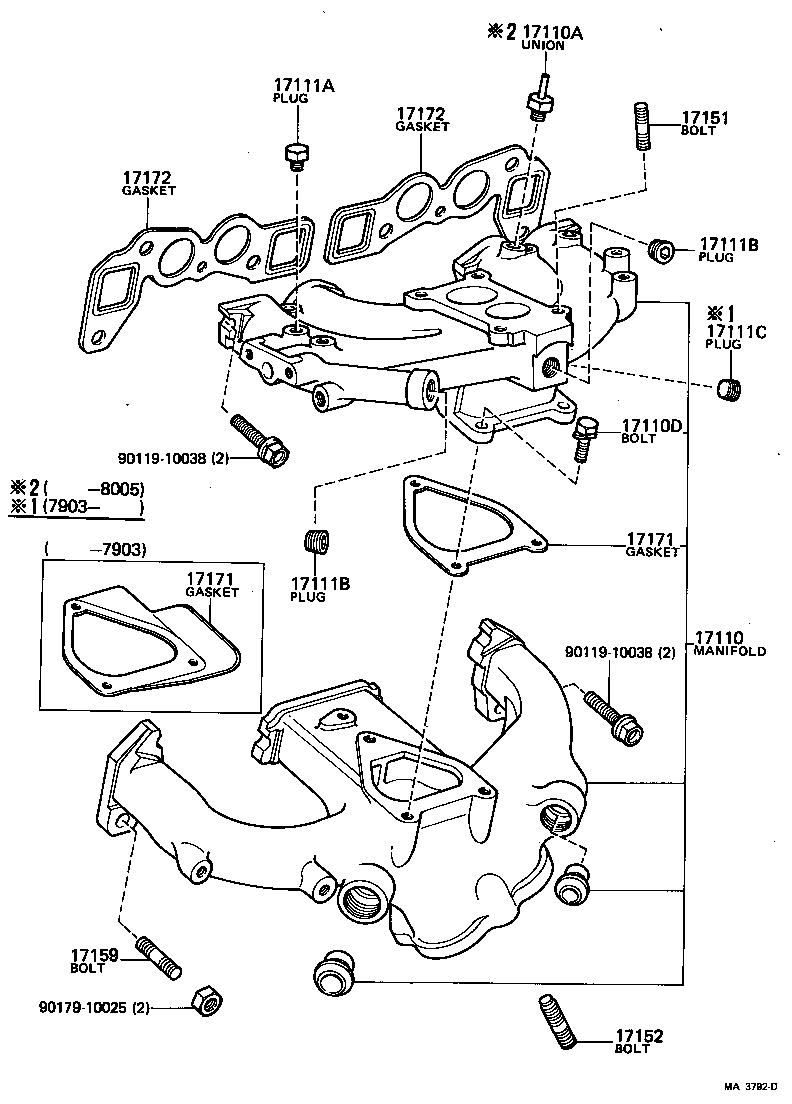

Click highlighted areas on diagram

diagram 17110 17110A 17110D 17111A 17111B 17111B 17111C 17151 17152 17159 17171 17171 17172 17172 9011910038 9011910038 9017910025
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-13040

4KU..KP61

 1
17110-13090

4KU..KP61

 1
17110-13010

4KU..KP61

 1
17110A - UNION, VACUUM HOSE
90404-51010

4KU..KP61

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-40820

4KU..KP61

 3
17111A - PLUG, NO.1
90345-51005

4KU..KP61

 2
90345-51025

3KHJ,4KU..KP6#

 2
17111B - PLUG, NO.2
90344-52013

4KJ,4KU..KP61

 2
17111B - PLUG, NO.2
90344-52013

4KJ,4KU..KP61

 2
17111C - PLUG, NO.3
90344-53008

4K#..KP61

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

3KHJ,4KU,4KJ..KP6#

L=39,S=13&13

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

3KHJ,4K#..KP6#

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-41028

3KHJ,4K#..KP6#

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-13010

4KU..KP61

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-13010

4KU..KP61

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24011

3KHJ,4KU..KP6#

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24011

3KHJ,4KU..KP6#

 2
Common parts
90119-10038
90179-10025

(8108- )4KU

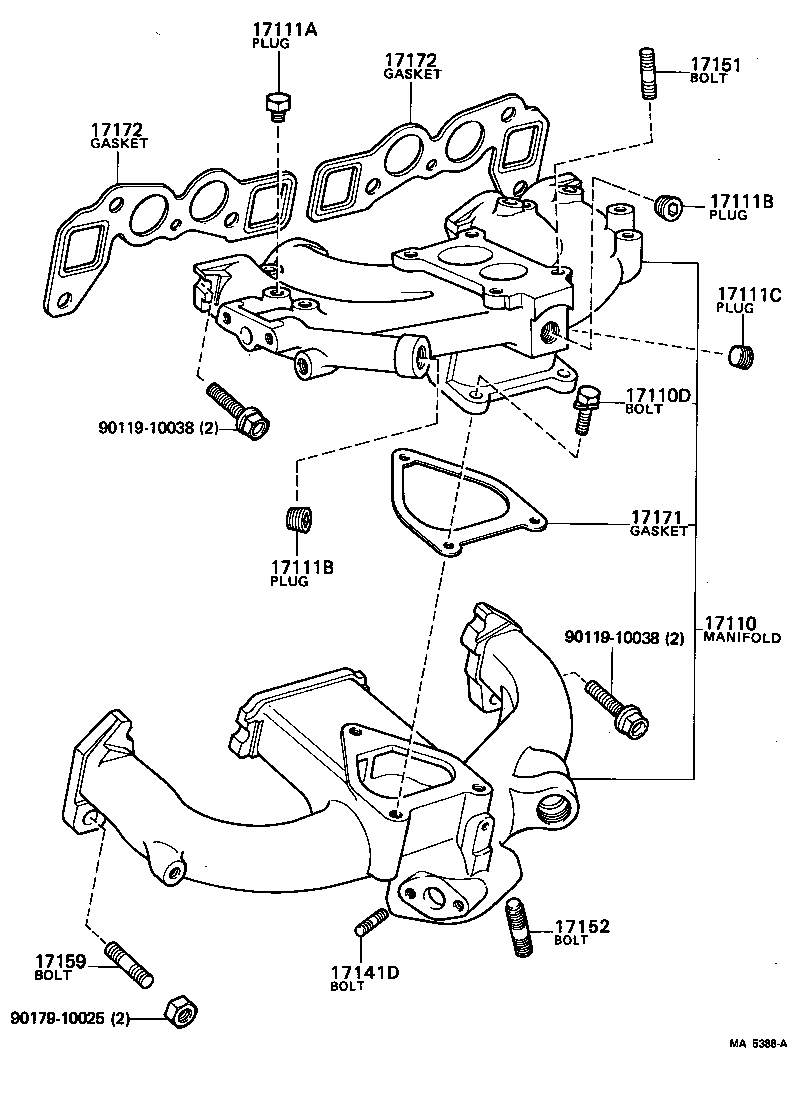

Click highlighted areas on diagram

diagram 17110 17110D 17111A 17111B 17111B 17111C 17141D 17151 17152 17159 17171 17172 17172 9011910038 9011910038 9017910025
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-13040

4KU..KP61

 1
17110-13090

4KU..KP61

 1
17110-13010

4KU..KP61

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-40820

4KU..KP61

 3
17111A - PLUG, NO.1
90345-51005

4KU..KP61

 2
90345-51025

3KHJ,4KU..KP6#

 2
17111B - PLUG, NO.2
90344-52013

4KJ,4KU..KP61

 2
17111B - PLUG, NO.2
90344-52013

4KJ,4KU..KP61

 2
17111C - PLUG, NO.3
90344-53008

4K#..KP61

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

3KHJ,4KU,4KJ..KP6#

L=39,S=13&13

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

3KHJ,4K#..KP6#

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-41028

3KHJ,4K#..KP6#

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-13010

4KU..KP61

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24011

3KHJ,4KU..KP6#

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24011

3KHJ,4KU..KP6#

 2
Common parts
90119-10038
90179-10025
