KP61-PHKNS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

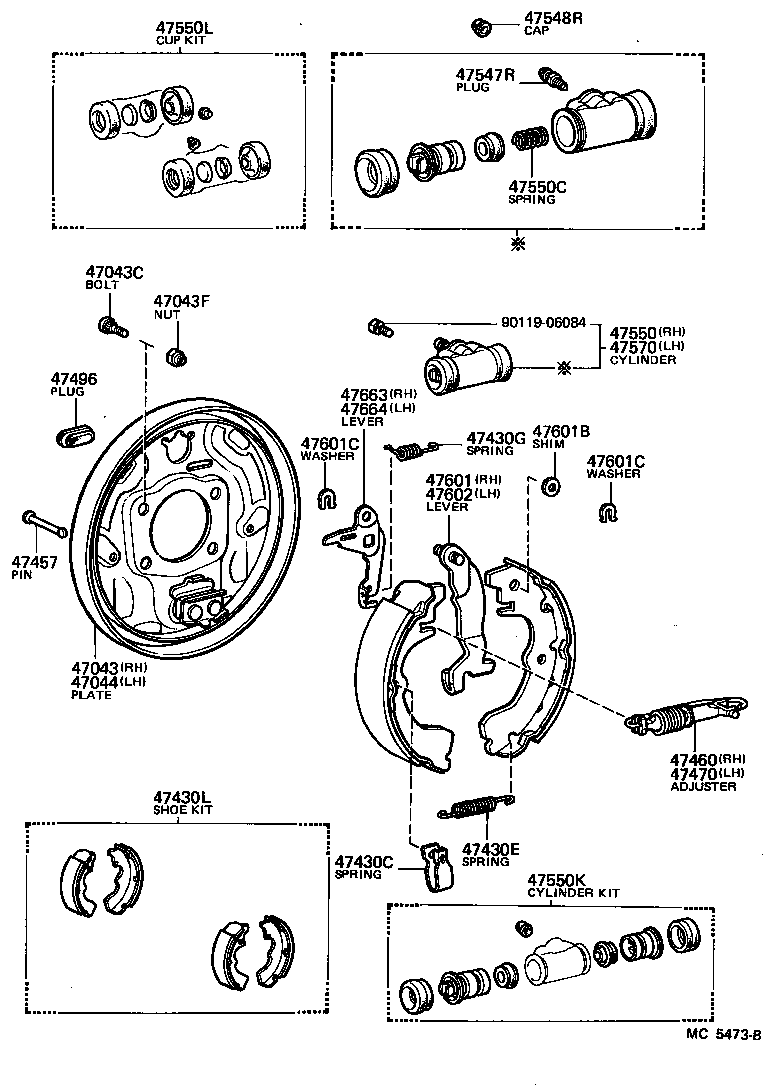

Click highlighted areas on diagram

diagram 47043 47043C 47043F 47044 47430C 47430E 47430G 47430L 47457 47460 47470 47496 47547R 47548R 47550 47550C 47550K 47550L 47570 47601 47601B 47601C 47601C 47602 47663 47664 9011906084
Part # Description Qty Price
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-10020

KP61..SED

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-10010

KP6#

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94181-11000

KP6#

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-10020

KP61..SED

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47446-10020

KP61..SED

 4
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-18014

KP61..SED

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12014

KP61..SED

 2
47430L - SHOE KIT, REAR BRAKE
04495-10050

KP61..SED

 1
04495-10060

KP61..SED

 1
04497-10060

KP61..SED

REBUILT

 1
04497-10040

KP61..SED

REBUILT

 1
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-10010

KP6#

 4
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-10010

KP61..SED

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-10010

KP61..SED

 1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

KP6#

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

KP6#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

KP6#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-19096

KP61

ID=19.05

 1
47550-19095

KP61

ID=19.05

 1
47550-19097

KP61..SED

ID=19.05

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-07006

KP6#

 2
47550K - CYLINDER KIT, REAR WHEEL
04474-10031

KP61

 2
04474-10032

KP61..SED

 2
04474-10030

KP61

 2
47550L - CUP KIT, REAR WHEEL CYLINDER
04906-10021

KP61..SED

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-19097

KP61..SED

ID=19.05

 1
47550-19095

KP61

ID=19.05

 1
47550-19096

KP61

ID=19.05

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-10011

KP61..SED

 1
47611-10010

KP61

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08151

KP6#

厚さ=0.6,T=0.57-0.63

 4
90564-08150

KP6#

厚さ=0.3,T=0.285-0.315

 4
90564-08172

KP6#

厚さ=0.2,T=0.19-0.21

 4
90564-08152

KP6#

厚さ=0.9,T=0.855-0.945

 4
90564-08173

KP6#

厚さ=0.4,T=0.380-0.420

 4
90564-08174

KP6#

厚さ=0.5,T=0.475-0.525

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

KP6#

厚さ=1.2

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

KP6#

厚さ=1.2

 4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-10010

KP61

 1
47612-10011

KP61..SED

 1
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-10011

KP61..SED

 1
47643-10010

KP61

 1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-10011

KP61..SED

 1
47644-10010

KP61

 1
Common parts
90119-06084
