KP61-PHKNS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )3KHJ,4KU,4KJ

Click highlighted areas on diagram

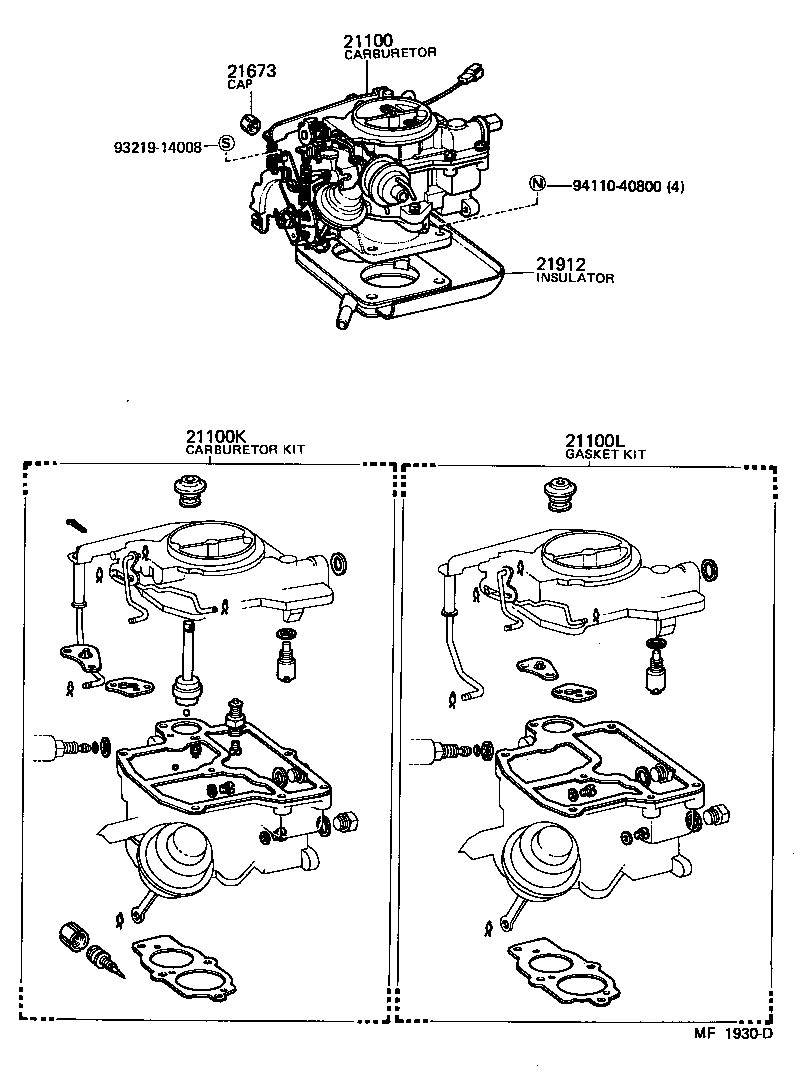

diagram 21100 21100K 21100L 21673 21912 9321914008 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-13280

4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)

 1
21100-13010

4KU..KP61..MTM

 1
21100-13190

4KU..KP61..MTM

 1
21100-13281

4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)

 1
21100-13080

4KU..KP61..MTM

 1
21100K - CARBURETOR KIT
04211-13010

4KU..KP61

 1
04211-13190

4KU..KP61..4F..DXA;4KU..KP61..DLX,S,SE,STD,XL

 1
04211-13192

4KU..KP61

 1
04211-13070

4KU..KP61

 1
04211-13011

4KU..KP61

 1
04211-13191

4KU..KP61..4F..DXA;4KU..KP61..DLX,S,SE,STD,XL

 1
21100L - GASKET KIT, CARBURETOR
04212-24032

3KHJ,4KU..KP6#

 1
04212-13022

4KU..KP61

 1
04212-24031

3KHJ,4KU..KP6#

 1
04212-24030

3KHJ,4KU..KP6#

 1
04212-13040

4KJ,4KU..KP61

 1
21673 - CAP, IDLE LIMIT
21673-38020

3KHJ,4K#..KP6#

 1
21673-13280

4KJ,4KU..KP61

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-13030

3KHJ,4KU..KP6#

 1
21912-13031

3KHJ,4KU,4KJ..KP6#

 1
21912-24090

3KHJ,4KU..KP6#

 1
Common parts
93219-14008
94110-40800
