KP61-PHKGS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

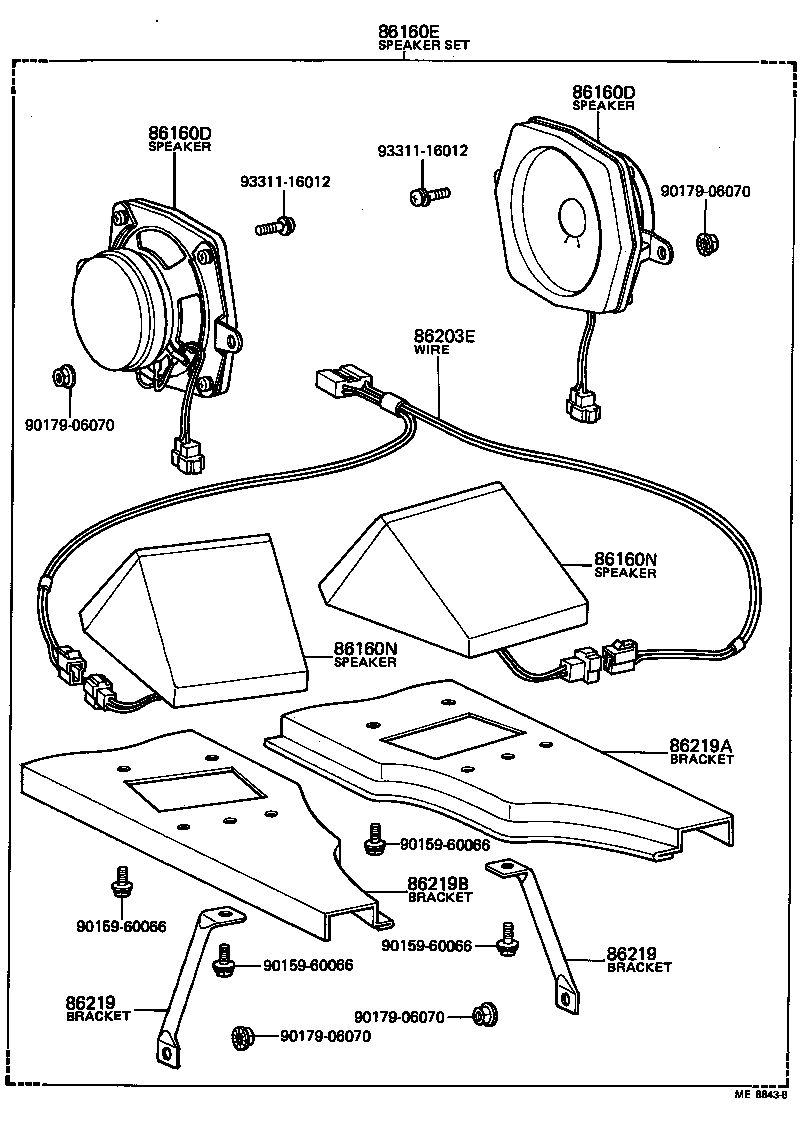

ILLUST NO. 2 OF 2(8005-8108)DLX,S,SE,XL ; (8108-8208)SED..S,SE,XL

Click highlighted areas on diagram

diagram 86160D 86160D 86160E 86160N 86160N 86203E 86219 86219 86219A 86219B 9015960066 9015960066 9015960066 9015960066 9017906070 9017906070 9017906070 9017906070 9331116012 9331116012
Part # Description Qty Price
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-10090

KP61..SED..(DLX,S,SE,XL)

 2
86160-10090

KP61..S,SE,XL

 2
86160-10090

KP61..DLX,S,SE,XL

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-10090

KP61..SED..(DLX,S,SE,XL)

 2
86160-10090

KP61..S,SE,XL

 2
86160-10090

KP61..DLX,S,SE,XL

 2
86160E - SPEAKER SET, STEREO COMPONENT
86160-19205

KP61..SED..(DLX,S,SE,XL)

 1
86160-19205

KP61..DLX,S,SE,XL

 1
86160-19205

KP61..S,SE,XL

 1
86150-19015

KP61..SED..(DLX,S,SE,SI,XL)

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-10030

KP61..S,SE,XL

 2
86150-10030

KP61..SED..(DLX,S,SE,XL)

 2
86150-10030

KP61..DLX,S,SE,XL

 2
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-10030

KP61..S,SE,XL

 2
86150-10030

KP61..SED..(DLX,S,SE,XL)

 2
86150-10030

KP61..DLX,S,SE,XL

 2
86203E - WIRE, STEREO COMPONENT SPEAKER, NO.1
86205-10010

KP61..SED..(DLX,S,SE,XL)

 1
86205-10010

KP61..DLX,S,SE,XL

 1
86205-10010

KP61..S,SE,XL

 1
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-10020

KP61..S,SE,XL

RR

 2
86219-10020

KP61..DLX,S,SE,XL

RR

 2
86219-10020

KP61..SED..(DLX,S,SE,XL)

RR

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-10020

KP61..S,SE,XL

RR

 2
86219-10020

KP61..DLX,S,SE,XL

RR

 2
86219-10020

KP61..SED..(DLX,S,SE,XL)

RR

 2
86219A - BRACKET, STEREO COMPONENT SPEAKER, NO.2
86219-10010

KP61..DLX,S,SE,XL

RR,RH

 1
86219-10010

KP61..S,SE,XL

RR,RH

 1
86219-10010

KP61..SED..(DLX,S,SE,XL)

RR,RH

 1
86219B - BRACKET, STEREO COMPONENT SPEAKER, NO.3
86229-10010

KP61..SED..(DLX,S,SE,XL)

RR,LH

 1
86229-10010

KP61..DLX,S,SE,XL

RR,LH

 1
86229-10010

KP61..S,SE,XL

RR,LH

 1
Common parts
90159-60066
90179-06070
93311-16012

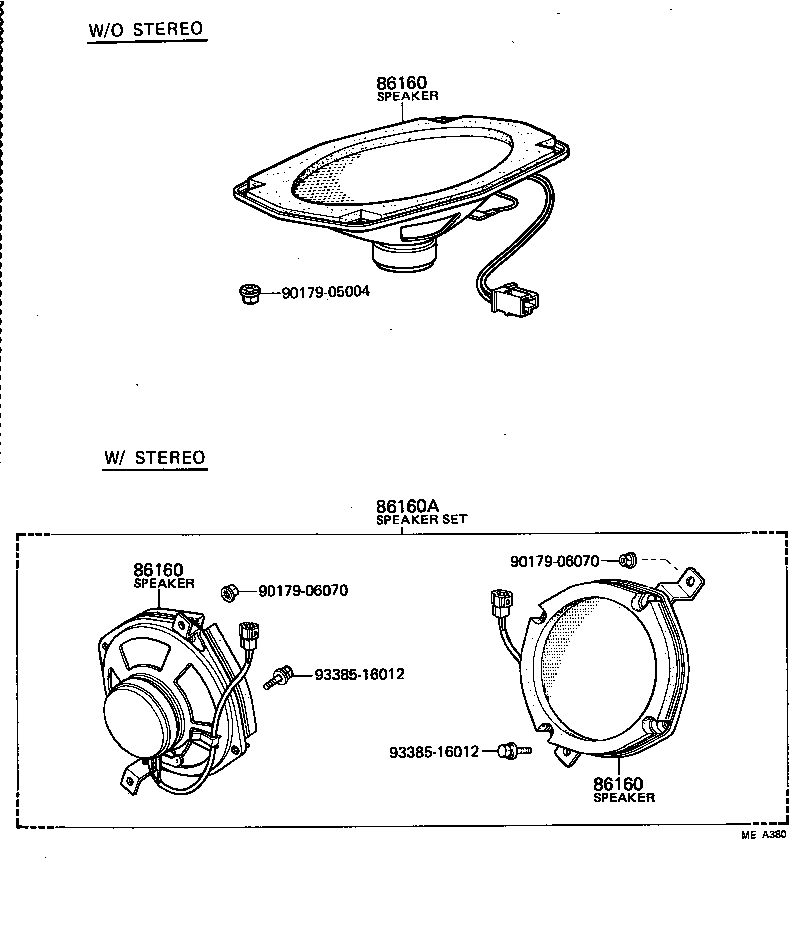

ILLUST NO. 1 OF 2(7802-8208)

Click highlighted areas on diagram

diagram 86160 86160 86160 86160A 9017905004 9017906070 9017906070 9338516012 9338516012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-10080

KP6#

AM

 1
86160-10060

KP6#

TAPE PLAYER

 2
86160-10060

KP62;KP61..S,SE,XL

TAPE PLAYER

 2
86160-10120

KP61

LH,W/2 OR 4-SPEAKER

 1
86160-10080

KP61..DLX,DXA,S,SE,XL

AM

 1
86160-10060

KP61..S,SE,XL

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-10060

KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL

TAPE PLAYER

 2
86160-10060

KP61

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-19635

KP61

LH,W/1-SPEAKER

 1
86160-10140

KP61

RH,W/2 OR 4-SPEAKER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-10080

KP6#

AM

 1
86160-10060

KP6#

TAPE PLAYER

 2
86160-10060

KP62;KP61..S,SE,XL

TAPE PLAYER

 2
86160-10120

KP61

LH,W/2 OR 4-SPEAKER

 1
86160-10080

KP61..DLX,DXA,S,SE,XL

AM

 1
86160-10060

KP61..S,SE,XL

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-10060

KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL

TAPE PLAYER

 2
86160-10060

KP61

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-19635

KP61

LH,W/1-SPEAKER

 1
86160-10140

KP61

RH,W/2 OR 4-SPEAKER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-10080

KP6#

AM

 1
86160-10060

KP6#

TAPE PLAYER

 2
86160-10060

KP62;KP61..S,SE,XL

TAPE PLAYER

 2
86160-10120

KP61

LH,W/2 OR 4-SPEAKER

 1
86160-10080

KP61..DLX,DXA,S,SE,XL

AM

 1
86160-10060

KP61..S,SE,XL

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-10060

KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL

TAPE PLAYER

 2
86160-10060

KP61

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-19635

KP61

LH,W/1-SPEAKER

 1
86160-10140

KP61

RH,W/2 OR 4-SPEAKER

 2
86160A - SPEAKER SET, FRONT
86160-19645

KP61

W/2 OR 4-SPEAKER

 1
86160-19105

KP6#

 1
Common parts
90179-05004
90179-06070
93385-16012

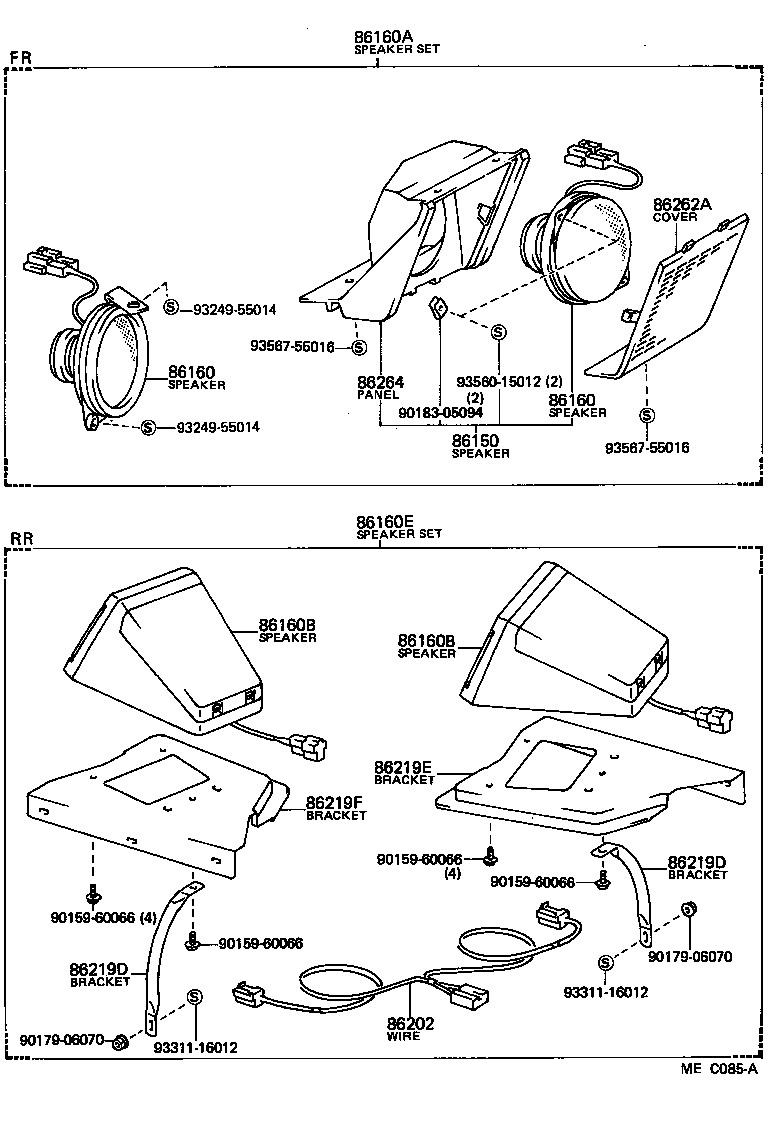

(8208- )

Click highlighted areas on diagram

diagram 86150 86160 86160 86160A 86160B 86160B 86160E 86202 86219D 86219D 86219E 86219F 86262A 86264 9015960066 9015960066 9015960066 9015960066 9017906070 9017906070 9018305094 9324955014 9324955014 9331116012 9331116012 9356015012 9356755016 9356755016
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-10040

KP61

W/2 OR 4-SPEAKER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-10080

KP6#

AM

 1
86160-10060

KP6#

TAPE PLAYER

 2
86160-10060

KP62;KP61..S,SE,XL

TAPE PLAYER

 2
86160-10120

KP61

LH,W/2 OR 4-SPEAKER

 1
86160-10080

KP61..DLX,DXA,S,SE,XL

AM

 1
86160-10060

KP61..S,SE,XL

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-10060

KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL

TAPE PLAYER

 2
86160-10060

KP61

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-19635

KP61

LH,W/1-SPEAKER

 1
86160-10140

KP61

RH,W/2 OR 4-SPEAKER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-10080

KP6#

AM

 1
86160-10060

KP6#

TAPE PLAYER

 2
86160-10060

KP62;KP61..S,SE,XL

TAPE PLAYER

 2
86160-10120

KP61

LH,W/2 OR 4-SPEAKER

 1
86160-10080

KP61..DLX,DXA,S,SE,XL

AM

 1
86160-10060

KP61..S,SE,XL

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-10060

KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL

TAPE PLAYER

 2
86160-10060

KP61

AM/FM,AM/FM&CASSETTE TAPE,TEN

 2
86160-19635

KP61

LH,W/1-SPEAKER

 1
86160-10140

KP61

RH,W/2 OR 4-SPEAKER

 2
86160A - SPEAKER SET, FRONT
86160-19645

KP61

W/2 OR 4-SPEAKER

 1
86160-19105

KP6#

 1
86160B - SPEAKER ASSY, REAR
86150-10030

KP61..SED..(DLX,S,SE,SI,XL)

W/4-SPEAKER

 2
86160B - SPEAKER ASSY, REAR
86150-10030

KP61..SED..(DLX,S,SE,SI,XL)

W/4-SPEAKER

 2
86160E - SPEAKER SET, STEREO COMPONENT
86160-19205

KP61..SED..(DLX,S,SE,XL)

 1
86160-19205

KP61..DLX,S,SE,XL

 1
86160-19205

KP61..S,SE,XL

 1
86150-19015

KP61..SED..(DLX,S,SE,SI,XL)

 1
86202 - WIRE, SPEAKER, NO.1
86205-10020

KP61..SED..(DLX,S,SE,SI,XL)

 1
86219D - BRACKET, SPEAKER, REAR NO.1
86219-10020

KP61..SED..(DLX,S,SE,SI,XL)

 2
86219D - BRACKET, SPEAKER, REAR NO.1
86219-10020

KP61..SED..(DLX,S,SE,SI,XL)

 2
86219E - BRACKET, SPEAKER, REAR NO.2
86219-10010

KP61..SED..(DLX,S,SE,SI,XL)

 1
86219F - BRACKET, SPEAKER, REAR NO.3
86229-10010

KP61..SED..(DLX,S,SE,SI,XL)

 1
86262A - COVER, SPEAKER, FRONT
55525-10020

KP61

 1
86264 - GRILLE, SPEAKER, FRONT
55409-10020

KP61

 1
Common parts
90159-60066
90179-06070
90183-05094
93249-55014
93311-16012
93560-15012
93567-55016
