KP61-PHKGS (1978)
Toyota Starlet

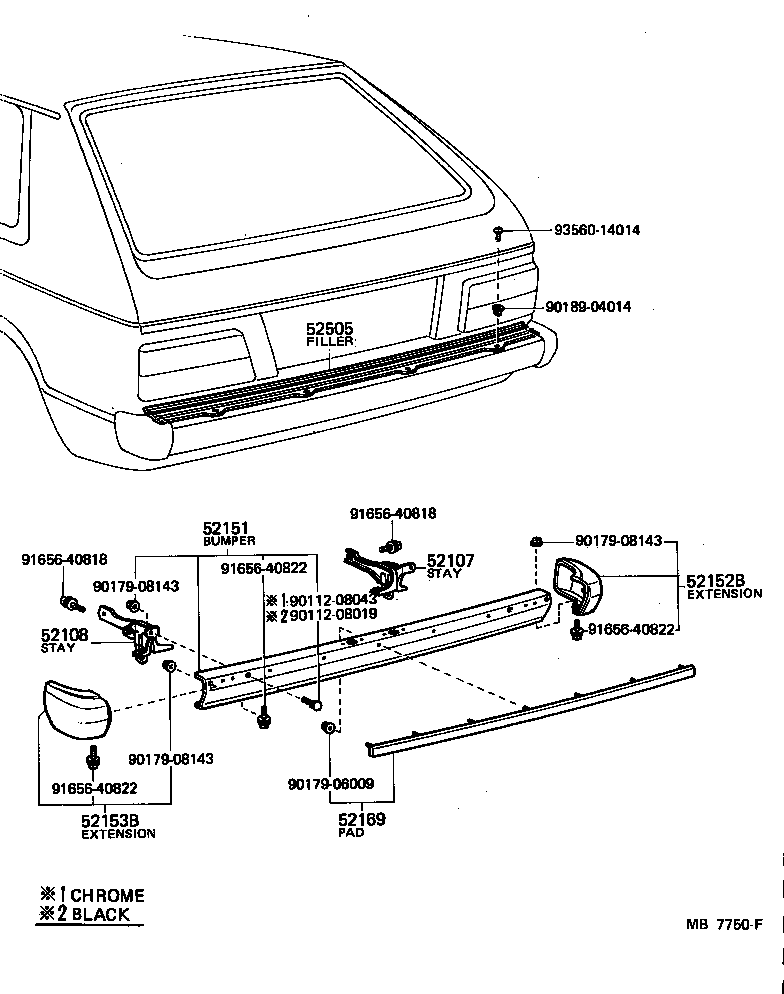

(7802-8005)KP61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-10020 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52015-10021 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-10020 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52016-10021 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-19475 |
KP61..SE,XL BIG TYPE,W/PAD |
1 | ||
| 52019-19035 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52151-19465 |
KP61..S |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-19095 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52106-19096 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-19125 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52107-19126 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52169 - PAD, REAR BUMPER | ||||
| 52055-19085 |
KP61..SE,XL BIG TYPE |
1 | ||
| 52505 - FILLER SUB-ASSY, REAR BUMPER | ||||
| 52505-10011 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52505-10010 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52551-10020 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52551-10020 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| Common parts | ||||
| 90112-08019 | ||||
| 90112-08043 | ||||
| 90179-06009 | ||||
| 90179-08143 | ||||
| 90189-04014 | ||||
| 91656-40818 | ||||
| 91656-40822 | ||||
| 93560-14014 | ||||

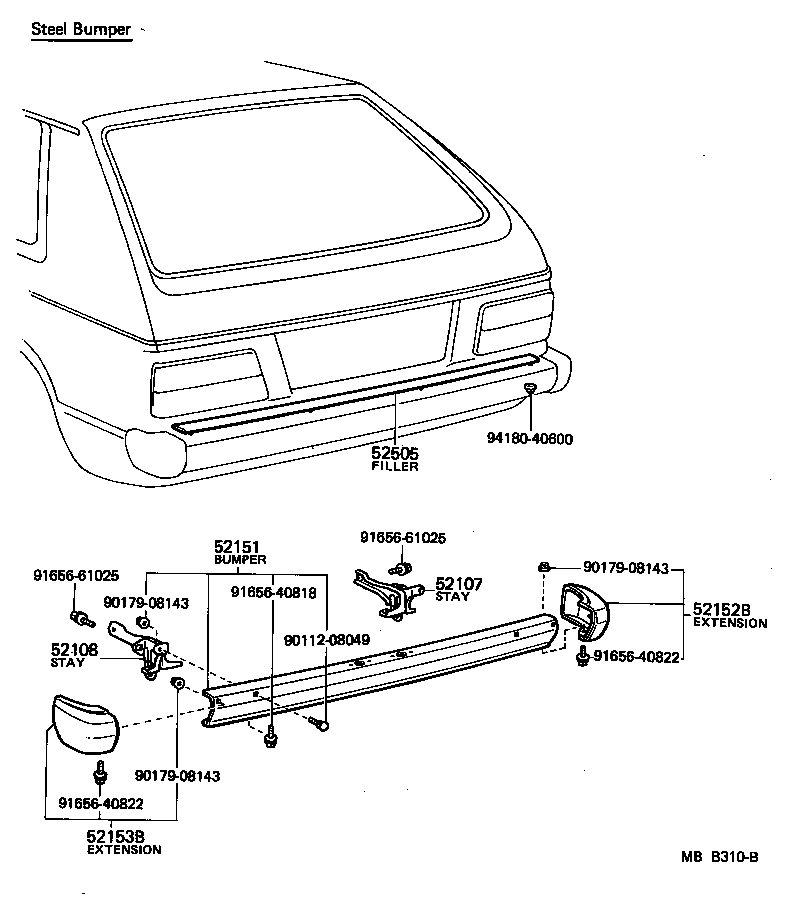

(8005-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-10020 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52015-10021 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-10020 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52016-10021 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-19475 |
KP61..SE,XL BIG TYPE,W/PAD |
1 | ||
| 52019-19035 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52151-19465 |
KP61..S |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-19095 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52106-19096 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-19125 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52107-19126 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52505 - FILLER SUB-ASSY, REAR BUMPER | ||||
| 52505-10011 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52505-10010 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52551-10020 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52551-10020 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| Common parts | ||||
| 90112-08049 | ||||
| 90179-08143 | ||||
| 91656-40818 | ||||
| 91656-40822 | ||||
| 91656-61025 | ||||
| 94180-40600 | ||||

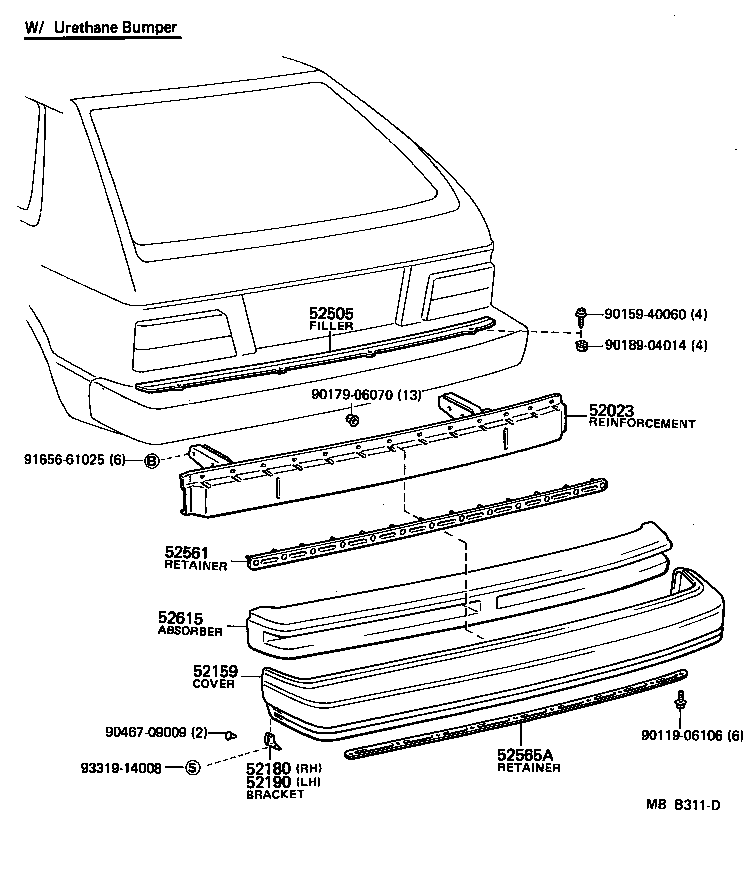

(8005-8208)SED ; (8301- )S,SI ; (8304- )XL; (8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-10010 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52023-10010 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-10040 |
KP61..SED |
1 | ||
| 52159-10020 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52159-10020 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52180 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-10010 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52185-10010 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52190 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52186-10010 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52186-10010 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52505 - FILLER SUB-ASSY, REAR BUMPER | ||||
| 52505-10011 |
KP61..SED..(DLX,DXA,S,XL) BIG TYPE |
1 | ||
| 52505-10010 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52551-10020 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52551-10020 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-16010 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52561-16010 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16010 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52565-16010 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-10010 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52615-10010 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90159-40060 | ||||
| 90179-06070 | ||||
| 90189-04014 | ||||
| 90467-09009 | ||||
| 91656-61025 | ||||
| 93319-14008 | ||||

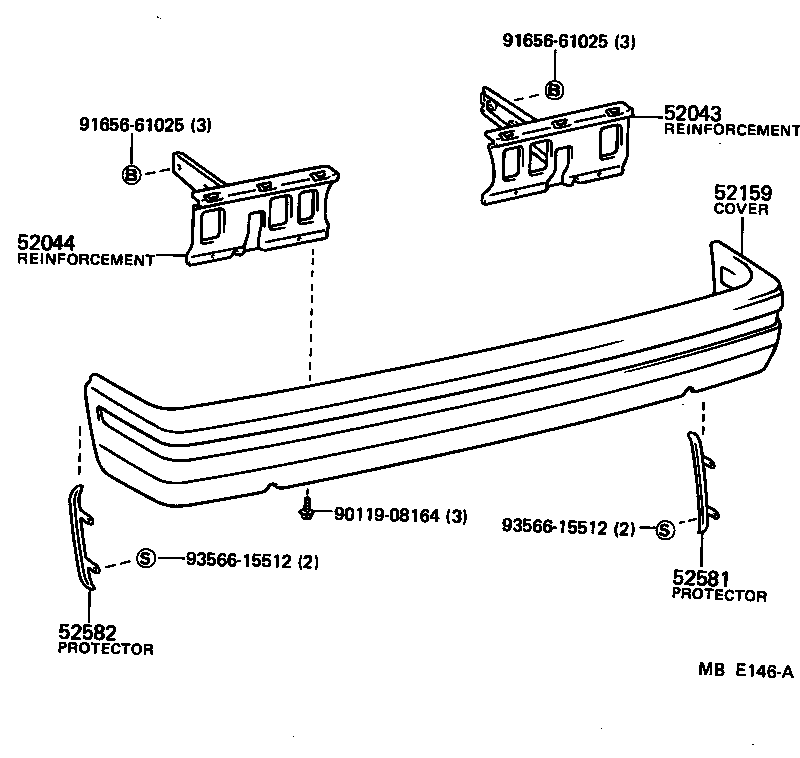

(8208- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52043 - REINFORCEMENT SUB-ASSY, REAR BUMPER, RH | ||||
| 52043-10011 |
KP61..SED PLANT NO.B11 |
1 | ||
| 52043-10010 |
KP61..SED PLANT NO.K21 |
1 | ||
| 52043-10011 |
KP61..SED |
1 | ||
| 52044 - REINFORCEMENT SUB-ASSY, REAR BUMPER, LH | ||||
| 52044-10010 |
KP61..SED PLANT NO.K21 |
1 | ||
| 52044-10011 |
KP61..SED PLANT NO.B11 |
1 | ||
| 52044-10011 |
KP61..SED |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-10040 |
KP61..SED |
1 | ||
| 52159-10020 |
KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
1 | ||
| 52159-10020 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-10020 |
KP61..SED |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52582-10010 |
KP61..SED |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 91656-61025 | ||||
| 93566-15512 | ||||
