KP61-PHKGS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

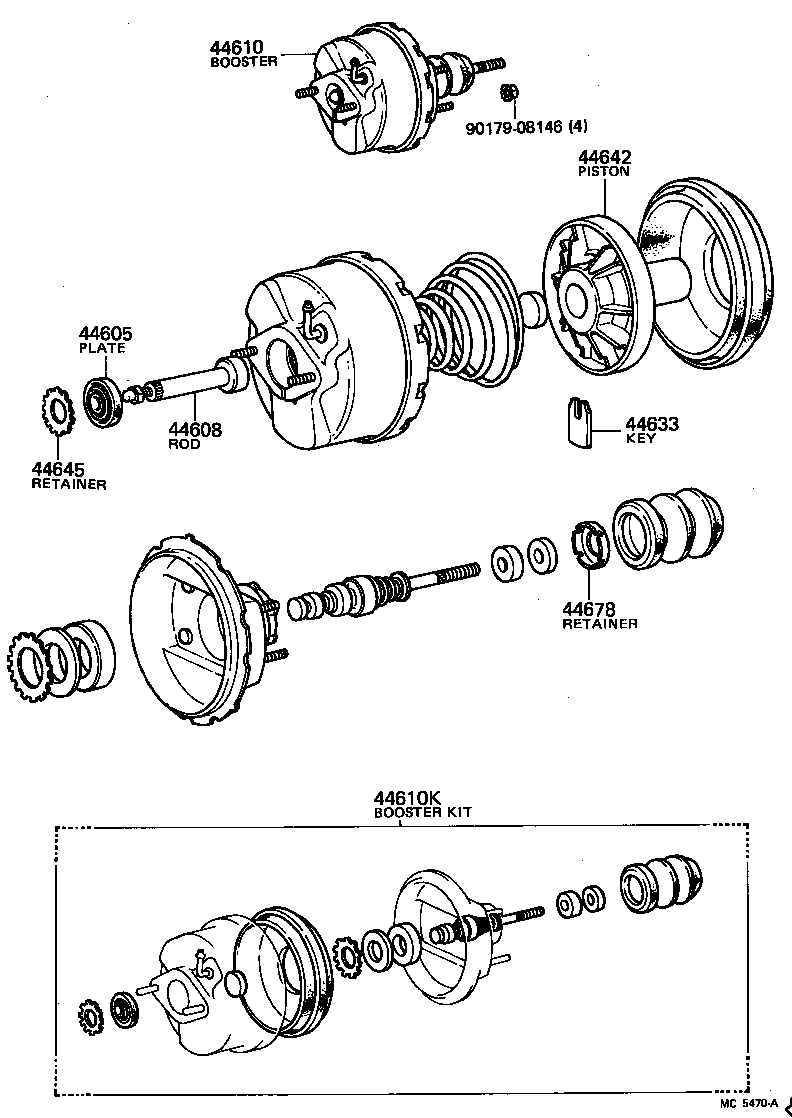

ILLUST NO. 1 OF 2(7802- )

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 9017908146
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

KP6#

 1
44605-22021

KP61..SED..(DLX,S,SE,XL)

 1
44605-22021

KP61..DLX,S,SE,SI,XL

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-10011

KP6#

 1
44608-10011

KP61..SED..(DLX,S,SE,XL)

 1
44608-10011

KP61..DLX,S,SE,SI,XL

 1
44610 - BOOSTER ASSY, BRAKE
44610-10040

KP6#

 1
44610-10040

KP61..SED..(DLX,S,SE,XL)

 1
44610-10040

KP61..DLX,S,SE,SI,XL

 1
44610K - BOOSTER KIT, BRAKE
04443-10040

KP61..SED..(DLX,S,SE,XL)

 1
04443-10040

KP6#

 1
04443-10040

KP61..DLX,S,SE,SI,XL

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

KP61..SED..(DLX,S,SE,XL)

 1
44633-22020

KP61..DLX,S,SE,SI,XL

 1
44633-22020

KP6#

 1
44642 - PISTON, BRAKE BOOSTER
44642-10030

KP6#

 1
44642-10030

KP61..SED..(DLX,S,SE,XL)

 1
44642-10030

KP61..DLX,S,SE,SI,XL

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

KP61..SED..(DLX,S,SE,XL)

 1
44645-22020

KP61..DLX,S,SE,SI,XL

 1
44645-22020

KP6#

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

KP6#

 1
44678-22020

KP61..SED..(DLX,S,SE,XL)

 1
44678-22020

KP61..DLX,S,SE,SI,XL

 1
Common parts
90179-08146

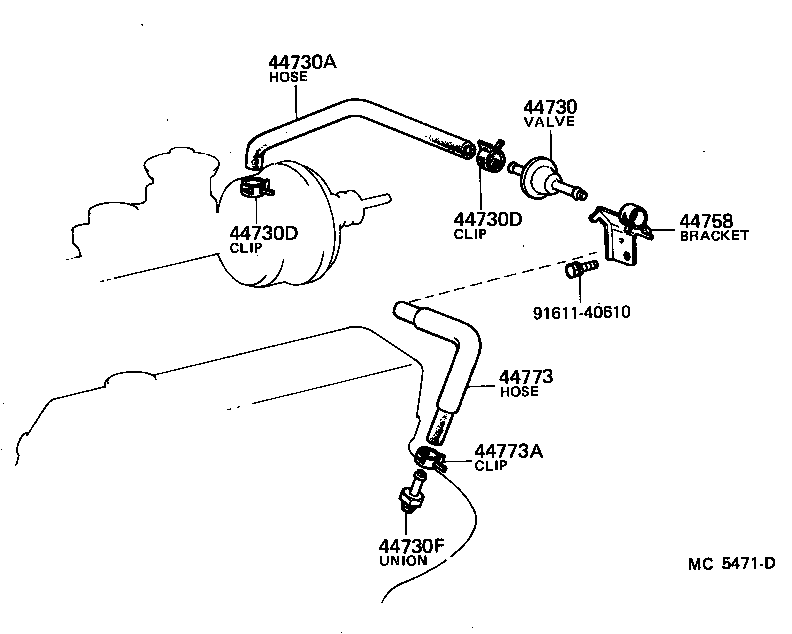

ILLUST NO. 2 OF 2(7802- )

Click highlighted areas on diagram

diagram 44730 44730A 44730D 44730D 44730F 44758 44773 44773A 9161140610
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

KP61..DLX,S,SE,SI,XL

 1
44730-10010

KP6#

 1
44730-10010

KP61..SED..(DLX,S,SE,XL)

 1
44730A - HOSE, VACUUM, NO.1
44772-10040

KP61..SED..(DLX,S,SE,XL)

 1
44772-10040

KP6#

 1
44772-10080

KP61..DLX,S,SE,SI,XL

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KP61..DLX,S,SE,SI,XL

 2
90467-16141

KP6#

 2
90467-16141

KP61..SED..(DLX,S,SE,XL)

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KP61..DLX,S,SE,SI,XL

 2
90467-16141

KP6#

 2
90467-16141

KP61..SED..(DLX,S,SE,XL)

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

KP61

 1
90404-51237

KP6#

 1
90404-51007

KP61..(DLX,S,SE,XL)..CBR

 1
90404-51007

KP61..SED..(DLX,S,SE,XL)

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-10020

KP6#

 1
44758-10050

KP61..DLX,S,SE,SI,XL

 1
44758-10020

KP61..SED..(DLX,S,SE,XL)

 1
44773 - HOSE, VACUUM, NO.2
44773-10040

KP6#

 1
44773-10050

KP61..SED..(DLX,S,SE,XL)

 1
44773-10050

KP61

 1
44773-10090

KP61..(DLX,S,SE,XL)..CBR

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KP6#

 1
90467-16141

KP61..SED..(DLX,S,SE,XL)

 1
90467-16141

KP61..DLX,S,SE,SI,XL

 1
Common parts
91611-40610
