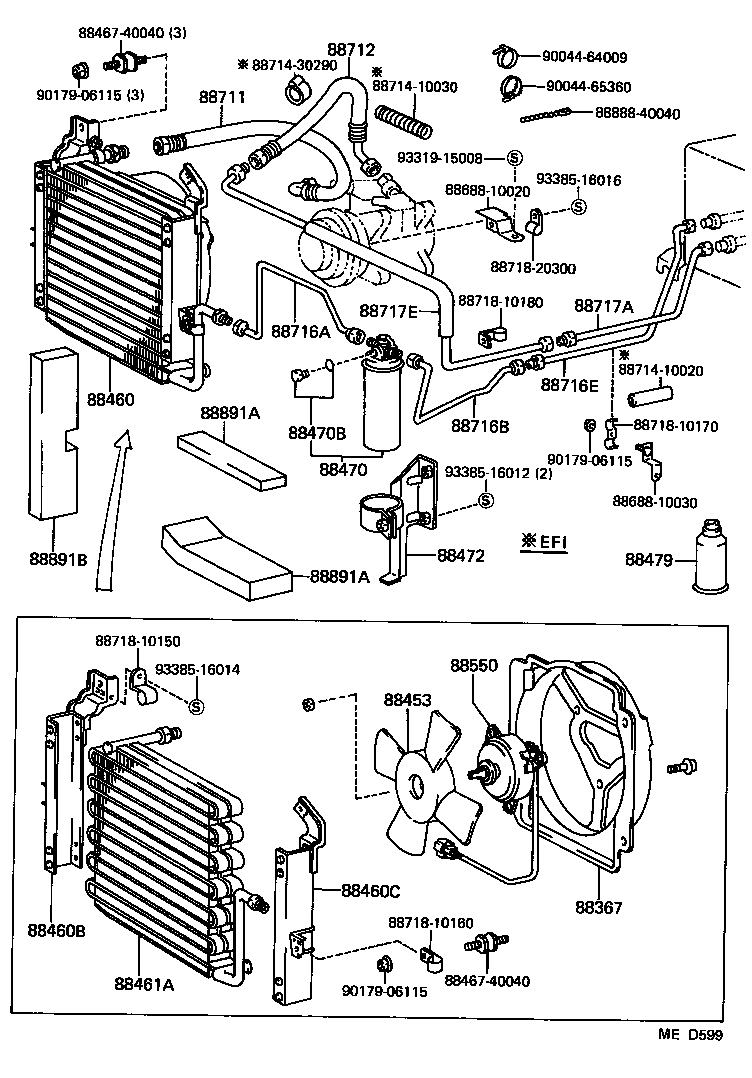

KP61-PHKDS (1978)
Toyota Starlet
(7802-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-10030 |
KP6# |
1 | ||
| 88454-10040 |
KP61 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
KP6# |
1 | ||
| 88453-16010 |
KP61 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10031 |
KP6# |
1 | ||
| 88460-10090 |
KP61..SED..CBR COMPRESSOR TYPE:TV10 |
1 | ||
| 88460-10080 |
KP61 COMPRESSOR TYPE:6P127 |
1 | ||
| 88460-10030 |
KP6# |
1 | ||
| 88460-10050 |
KP6# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-10011 |
KP6# |
1 | ||
| 88463-10060 |
KP61 |
1 | ||
| 88463-10030 |
KP6# |
1 | ||
| 88463-10010 |
KP6# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-10021 |
KP6# |
1 | ||
| 88463-10020 |
KP6# |
1 | ||
| 88463-10040 |
KP6# |
1 | ||
| 88463-10050 |
KP61 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-10030 |
KP61 COMPRESSOR TYPE:6P127 |
1 | ||
| 88461-10011 |
KP6# |
1 | ||
| 88461-10040 |
KP61..SED..CBR COMPRESSOR TYPE:TV10 |
1 | ||
| 88461-10010 |
KP6# |
1 | ||
| 88461-10020 |
KP6# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95400 |
KP6# |
1 | ||
| 88470-10010 |
KP6# |
1 | ||
| 88470-12070 |
KP6# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
KP6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-10100 |
KP6# |
1 | ||
| 88472-10120 |
KP61 |
1 | ||
| 88472-10070 |
KP6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
KP6# 400G |
2 | ||
| 88434-30010 |
KP6# |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10020 |
KP6# |
1 | ||
| 88550-10020 |
KP61 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10050 |
KP61 |
1 | ||
| 88711-10030 |
KP6# |
1 | ||
| 88711-10040 |
KP6# |
1 | ||
| 88711-10070 |
KP61 COMPRESSOR TYPE:6P127 |
1 | ||
| 88711-10080 |
KP61..SED..CBR COMPRESSOR TYPE:TV10 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10060 |
KP6# |
1 | ||
| 88712-10030 |
KP6# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10330 |
KP61 |
1 | ||
| 88716-10240 |
KP6# |
1 | ||
| 88716-10140 |
KP6# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-10120 |
KP6# |
1 | ||
| 88716-10250 |
KP6# |
1 | ||
| 88716-10340 |
KP61 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-10130 |
KP6# |
1 | ||
| 88716-10350 |
KP61 |
1 | ||
| 88716-10260 |
KP6# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-10060 |
KP6# |
1 | ||
| 88717-10150 |
KP61 |
1 | ||
| 88717-10050 |
KP6# |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-10040 |
KP6# |
1 | ||
| 88717-10130 |
KP61 |
1 | ||
| 88717-10070 |
KP6# |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-10040 |
KP6# L=160 |
2 | ||
| 88578-10070 |
KP61 L=270 |
1 | ||
| 88578-10050 |
KP6# L=230 |
2 | ||
| 88578-10030 |
KP6# L=80 |
1 | ||
| 88578-10060 |
KP61 L=300 |
1 | ||
| Common parts | ||||
| 88467-40040 | ||||
| 88688-10010 | ||||
| 88714-22030 | ||||
| 88718-10040 | ||||
| 88718-10050 | ||||
| 88718-10060 | ||||
| 88718-10070 | ||||
| 88718-10080 | ||||
| 88718-10090 | ||||
| 90093-00519 | ||||
| 90099-21010 | ||||
| 90099-21011 | ||||
| 90179-06115 | ||||
| 90480-25125 | ||||
| 90480-36003 | ||||
| 91112-40660 | ||||
| 93385-16012 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 94110-40600 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94612-10608 | ||||
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-10030 |
KP6# |
1 | ||
| 88454-10040 |
KP61 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
KP6# |
1 | ||
| 88453-16010 |
KP61 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10031 |
KP6# |
1 | ||
| 88460-10090 |
KP61..SED..CBR COMPRESSOR TYPE:TV10 |
1 | ||
| 88460-10080 |
KP61 COMPRESSOR TYPE:6P127 |
1 | ||
| 88460-10030 |
KP6# |
1 | ||
| 88460-10050 |
KP6# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-10011 |
KP6# |
1 | ||
| 88463-10060 |
KP61 |
1 | ||
| 88463-10030 |
KP6# |
1 | ||
| 88463-10010 |
KP6# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-10021 |
KP6# |
1 | ||
| 88463-10020 |
KP6# |
1 | ||
| 88463-10040 |
KP6# |
1 | ||
| 88463-10050 |
KP61 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-10030 |
KP61 COMPRESSOR TYPE:6P127 |
1 | ||
| 88461-10011 |
KP6# |
1 | ||
| 88461-10040 |
KP61..SED..CBR COMPRESSOR TYPE:TV10 |
1 | ||
| 88461-10010 |
KP6# |
1 | ||
| 88461-10020 |
KP6# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95400 |
KP6# |
1 | ||
| 88470-10010 |
KP6# |
1 | ||
| 88470-12070 |
KP6# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
KP6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-10100 |
KP6# |
1 | ||
| 88472-10120 |
KP61 |
1 | ||
| 88472-10070 |
KP6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
KP6# 400G |
2 | ||
| 88434-30010 |
KP6# |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10020 |
KP6# |
1 | ||
| 88550-10020 |
KP61 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10050 |
KP61 |
1 | ||
| 88711-10030 |
KP6# |
1 | ||
| 88711-10040 |
KP6# |
1 | ||
| 88711-10070 |
KP61 COMPRESSOR TYPE:6P127 |
1 | ||
| 88711-10080 |
KP61..SED..CBR COMPRESSOR TYPE:TV10 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10060 |
KP6# |
1 | ||
| 88712-10030 |
KP6# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10330 |
KP61 |
1 | ||
| 88716-10240 |
KP6# |
1 | ||
| 88716-10140 |
KP6# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-10120 |
KP6# |
1 | ||
| 88716-10250 |
KP6# |
1 | ||
| 88716-10340 |
KP61 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-10130 |
KP6# |
1 | ||
| 88716-10350 |
KP61 |
1 | ||
| 88716-10260 |
KP6# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-10060 |
KP6# |
1 | ||
| 88717-10150 |
KP61 |
1 | ||
| 88717-10050 |
KP6# |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-10040 |
KP6# |
1 | ||
| 88717-10130 |
KP61 |
1 | ||
| 88717-10070 |
KP6# |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-10040 |
KP6# L=160 |
2 | ||
| 88578-10070 |
KP61 L=270 |
1 | ||
| 88578-10050 |
KP6# L=230 |
2 | ||
| 88578-10030 |
KP6# L=80 |
1 | ||
| 88578-10060 |
KP61 L=300 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-10040 |
KP6# L=160 |
2 | ||
| 88578-10070 |
KP61 L=270 |
1 | ||
| 88578-10050 |
KP6# L=230 |
2 | ||
| 88578-10030 |
KP6# L=80 |
1 | ||
| 88578-10060 |
KP61 L=300 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-10080 |
KP61 |
1 | ||
| Common parts | ||||
| 88467-40040 | ||||
| 88688-10020 | ||||
| 88688-10030 | ||||
| 88714-10020 | ||||
| 88714-10030 | ||||
| 88714-30290 | ||||
| 88718-10150 | ||||
| 88718-10160 | ||||
| 88718-10170 | ||||
| 88718-10180 | ||||
| 88718-20300 | ||||
| 88888-40040 | ||||
| 90044-64009 | ||||
| 90044-65360 | ||||
| 90179-06115 | ||||
| 93319-15008 | ||||
| 93385-16012 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
