KP61-PHKDS (1978)
Toyota Starlet

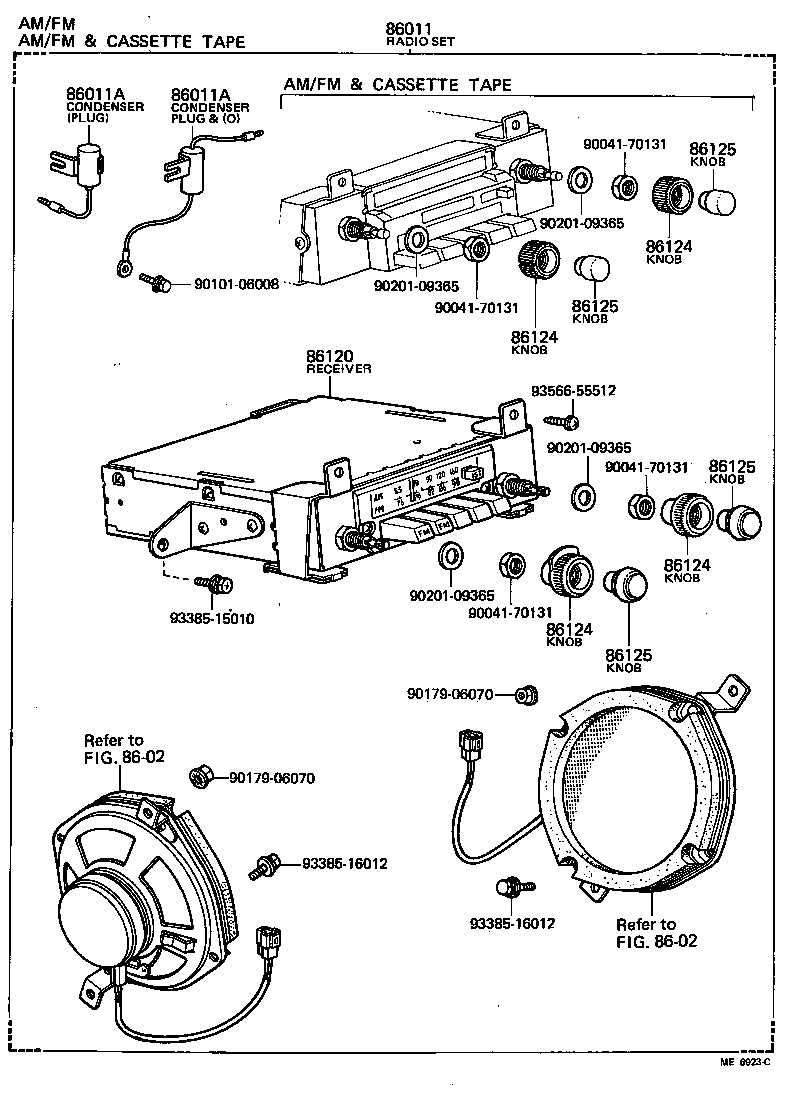

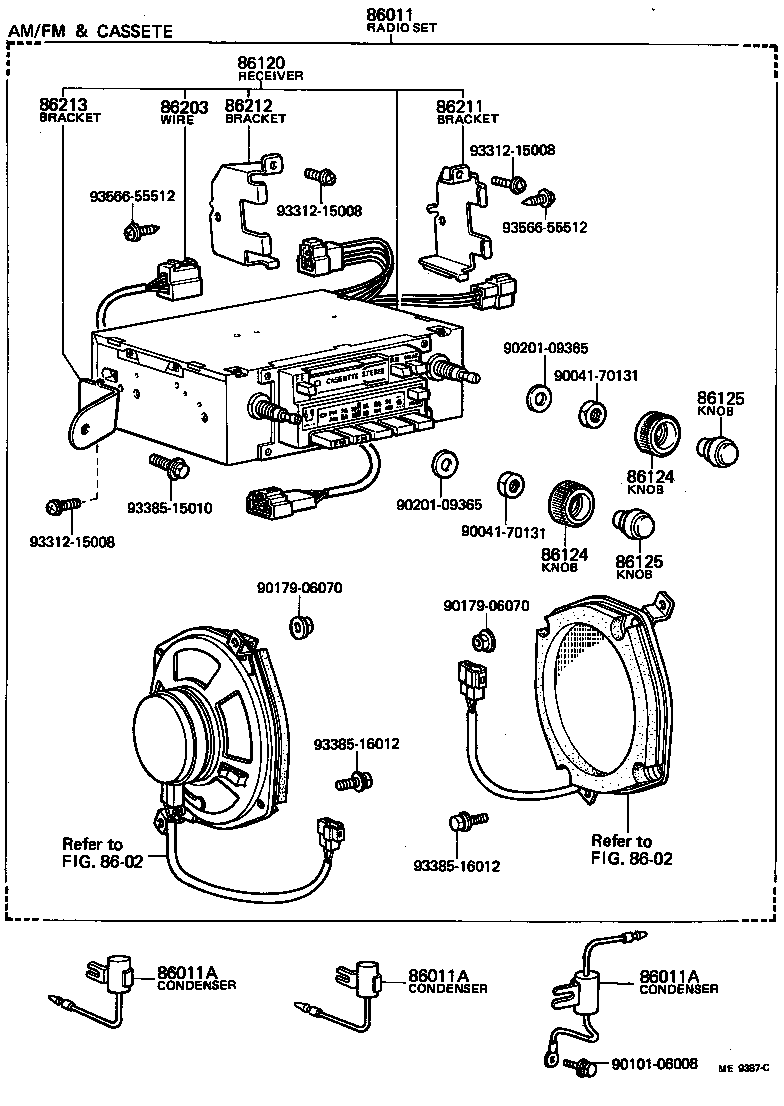

ILLUST NO. 1 OF 4(7802-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-10090 |
KP6# AM |
1 | ||
| 86011-10100 |
KP61 AM/FM |
1 | ||
| 86011-10181 |
KP61..SED..(DLX,DXA,S,SE,XL) AM |
1 | ||
| 86011-10170 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011-10180 |
KP6# AM |
1 | ||
| 86011-10102 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86011-10172 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10140 |
KP6# AM |
1 | ||
| 86120-10180 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-16140 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86120-10190 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| Common parts | ||||
| 90041-70131 | ||||
| 90101-06008 | ||||
| 90179-05004 | ||||
| 90201-09365 | ||||
| 93385-15010 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 1 OF 4(7802-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-10090 |
KP6# AM |
1 | ||
| 86011-10100 |
KP61 AM/FM |
1 | ||
| 86011-10181 |
KP61..SED..(DLX,DXA,S,SE,XL) AM |
1 | ||
| 86011-10170 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011-10180 |
KP6# AM |
1 | ||
| 86011-10102 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86011-10172 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10140 |
KP6# AM |
1 | ||
| 86120-10180 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-16140 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86120-10190 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| Common parts | ||||
| 90041-70131 | ||||
| 90101-06008 | ||||
| 90179-06070 | ||||
| 90201-09365 | ||||
| 93385-15010 | ||||
| 93385-16012 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8602 | ||||

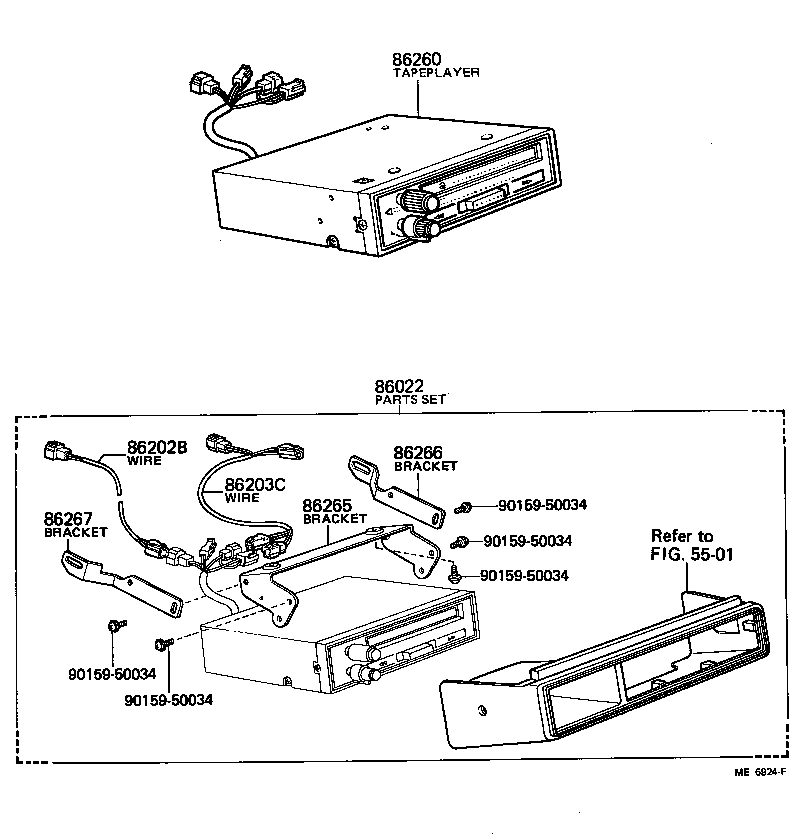

ILLUST NO. 2 OF 4(7802-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022 - PARTS SET, TAPE PLAYER SETTING | ||||
| 86022-19036 |
KP61..SED..(S,SE,XL) TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19035 |
KP6# |
1 | ||
| 86022-19036 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP6# TYPE 2 |
1 | ||
| 86022-19205 |
KP61..DLX,DXA,STD |
1 | ||
| 86022-19145 |
KP61..SED..(S,SE,XL) TYPE 2 |
1 | ||
| 86022-19036 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86022-19215 |
KP61..S,SE,SI,XL |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86202-10051 |
KP6# TYPE 1 |
1 | ||
| 86203-10050 |
KP6# XL-L,TYPE2 |
1 | ||
| 86202-10050 |
KP6# |
1 | ||
| 86203-10050 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL XL-L,TYPE2 |
1 | ||
| 86202-10051 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1 |
1 | ||
| 86203-10050 |
KP62;KP61..S,SE,XL XL-L,TYPE2 |
1 | ||
| 86202-10051 |
KP62;KP61..S,SE,XL TYPE 1 |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 82061-10010 |
KP62;KP61..S,SE,XL TYPE 2,W/STEREO COMPONENT |
1 | ||
| 86203-10010 |
KP61 |
1 | ||
| 82061-10010 |
KP6# TYPE 2,W/STEREO COMPONENT |
1 | ||
| 82061-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,W/STEREO COMPONENT |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16020 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86260-16020 |
KP6# |
1 | ||
| 86260-16020 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86260-95700 |
KP6# TYPE 2 |
1 | ||
| 86260-95700 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86260-14180 |
KP61..SED..(DLX,S,SE,SI,XL) W/4-SPEAKER |
1 | ||
| 86260-95700 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86260-14170 |
KP61 W/2-SPEAKER |
1 | ||
| 86260-16020 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10090 |
KP6# TYPE 2 |
1 | ||
| 86265-10081 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP6# |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 58998-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86266-10121 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP6# |
1 | ||
| 86266-10120 |
KP61 |
1 | ||
| 86266-10130 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 58999-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86266-10130 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86266-10130 |
KP6# TYPE 2 |
1 | ||
| 86266-10121 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86201-10010 |
KP6# TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP62;KP61..S,SE,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86268-10010 |
KP61 |
1 | ||
| 86268-10020 |
KP61 |
1 | ||
| Common parts | ||||
| 90159-50034 | ||||
| Linked diagrams | ||||
| 5501 | ||||

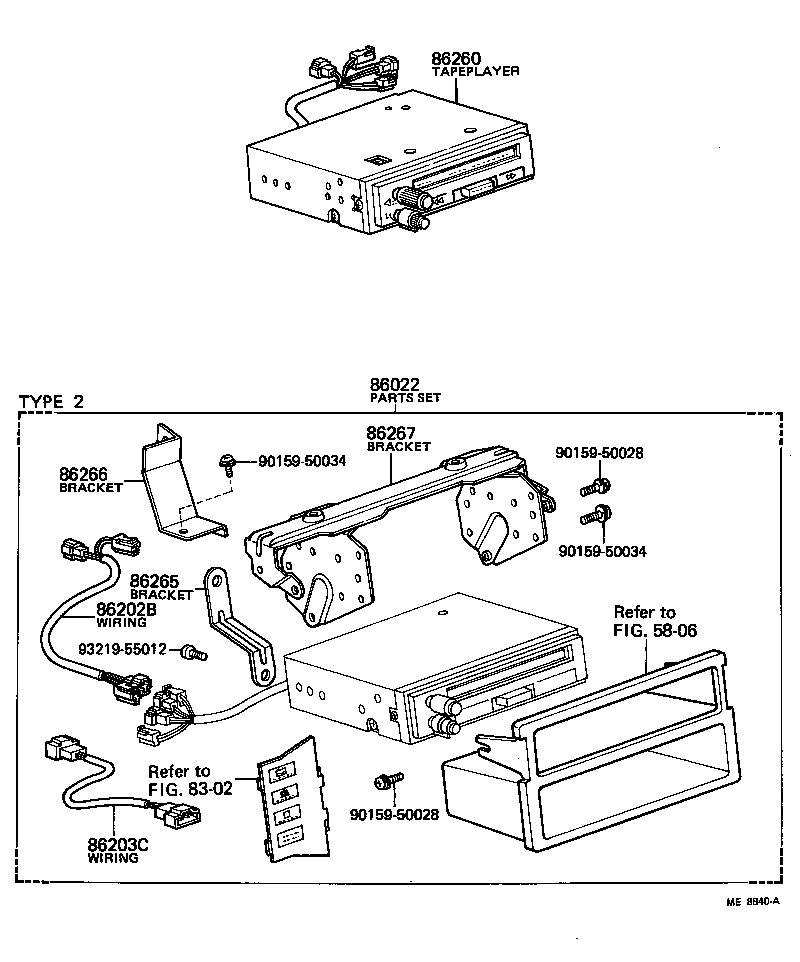

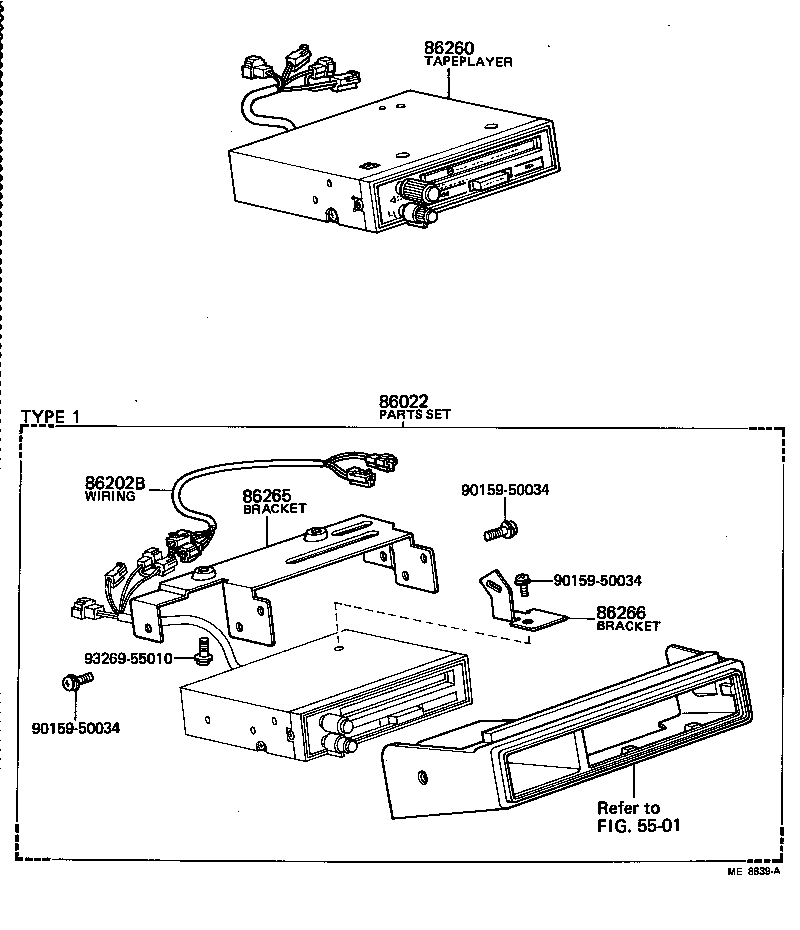

ILLUST NO. 2 OF 4(8005-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022 - PARTS SET, TAPE PLAYER SETTING | ||||
| 86022-19035 |
KP6# |
1 | ||
| 86022-19036 |
KP61..SED..(S,SE,XL) TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19036 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP6# TYPE 2 |
1 | ||
| 86022-19205 |
KP61..DLX,DXA,STD |
1 | ||
| 86022-19145 |
KP61..SED..(S,SE,XL) TYPE 2 |
1 | ||
| 86022-19036 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86022-19215 |
KP61..S,SE,SI,XL |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86202-10051 |
KP6# TYPE 1 |
1 | ||
| 86203-10050 |
KP6# XL-L,TYPE2 |
1 | ||
| 86202-10050 |
KP6# |
1 | ||
| 86203-10050 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL XL-L,TYPE2 |
1 | ||
| 86202-10051 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1 |
1 | ||
| 86203-10050 |
KP62;KP61..S,SE,XL XL-L,TYPE2 |
1 | ||
| 86202-10051 |
KP62;KP61..S,SE,XL TYPE 1 |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16020 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86260-16020 |
KP6# |
1 | ||
| 86260-16020 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86260-95700 |
KP6# TYPE 2 |
1 | ||
| 86260-95700 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86260-14180 |
KP61..SED..(DLX,S,SE,SI,XL) W/4-SPEAKER |
1 | ||
| 86260-95700 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86260-14170 |
KP61 W/2-SPEAKER |
1 | ||
| 86260-16020 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10090 |
KP6# TYPE 2 |
1 | ||
| 86265-10081 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP6# |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 58998-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86266-10121 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP6# |
1 | ||
| 86266-10120 |
KP61 |
1 | ||
| 86266-10130 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 58999-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86266-10130 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86266-10130 |
KP6# TYPE 2 |
1 | ||
| 86266-10121 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| Common parts | ||||
| 90159-50034 | ||||
| 93269-55010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 4(8005-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022 - PARTS SET, TAPE PLAYER SETTING | ||||
| 86022-19035 |
KP6# |
1 | ||
| 86022-19036 |
KP61..SED..(S,SE,XL) TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19036 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP6# TYPE 2 |
1 | ||
| 86022-19205 |
KP61..DLX,DXA,STD |
1 | ||
| 86022-19145 |
KP61..SED..(S,SE,XL) TYPE 2 |
1 | ||
| 86022-19036 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86022-19215 |
KP61..S,SE,SI,XL |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86202-10051 |
KP6# TYPE 1 |
1 | ||
| 86203-10050 |
KP6# XL-L,TYPE2 |
1 | ||
| 86202-10050 |
KP6# |
1 | ||
| 86203-10050 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL XL-L,TYPE2 |
1 | ||
| 86202-10051 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1 |
1 | ||
| 86203-10050 |
KP62;KP61..S,SE,XL XL-L,TYPE2 |
1 | ||
| 86202-10051 |
KP62;KP61..S,SE,XL TYPE 1 |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 82061-10010 |
KP62;KP61..S,SE,XL TYPE 2,W/STEREO COMPONENT |
1 | ||
| 86203-10010 |
KP61 |
1 | ||
| 82061-10010 |
KP6# TYPE 2,W/STEREO COMPONENT |
1 | ||
| 82061-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,W/STEREO COMPONENT |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16020 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86260-16020 |
KP6# |
1 | ||
| 86260-16020 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86260-95700 |
KP6# TYPE 2 |
1 | ||
| 86260-95700 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86260-14180 |
KP61..SED..(DLX,S,SE,SI,XL) W/4-SPEAKER |
1 | ||
| 86260-95700 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86260-14170 |
KP61 W/2-SPEAKER |
1 | ||
| 86260-16020 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10090 |
KP6# TYPE 2 |
1 | ||
| 86265-10081 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP6# |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 58998-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86266-10121 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP6# |
1 | ||
| 86266-10120 |
KP61 |
1 | ||
| 86266-10130 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 58999-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86266-10130 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86266-10130 |
KP6# TYPE 2 |
1 | ||
| 86266-10121 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86201-10010 |
KP6# TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP62;KP61..S,SE,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86268-10010 |
KP61 |
1 | ||
| 86268-10020 |
KP61 |
1 | ||
| Common parts | ||||
| 90159-50028 | ||||
| 90159-50034 | ||||
| 93219-55012 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 8302 | ||||

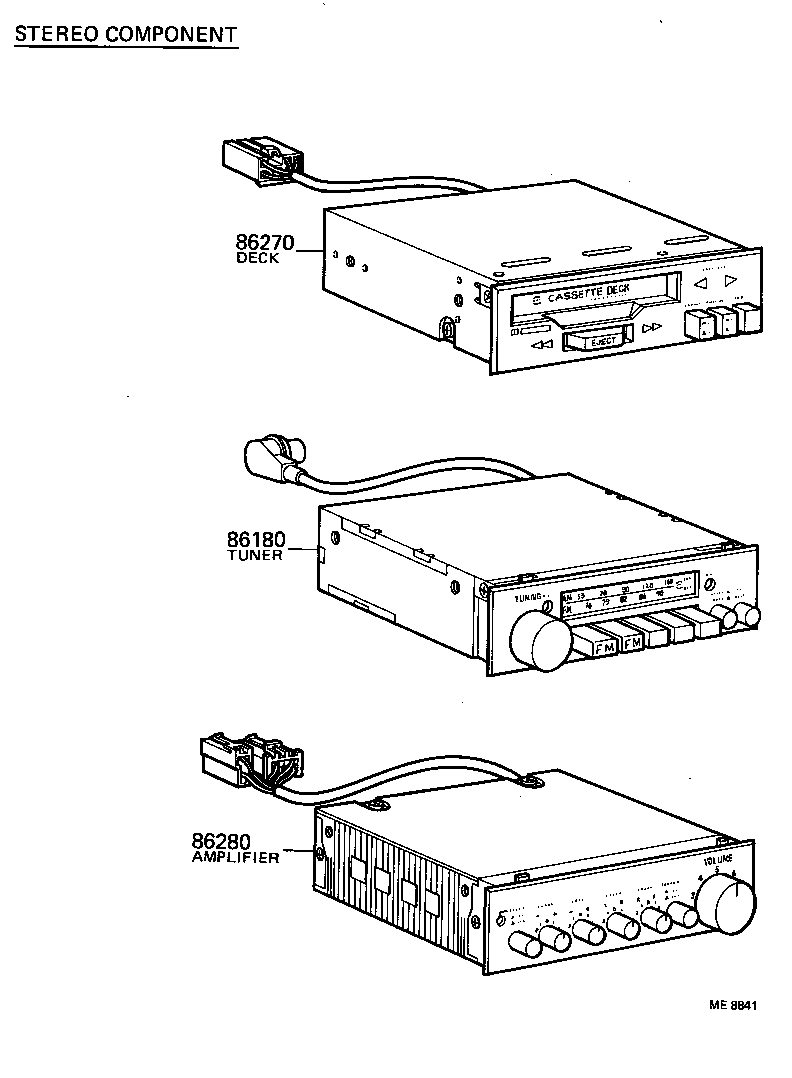

ILLUST NO. 3 OF 4(8005-8208)SED..DLX,S,SE,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86180 - TUNER ASSY, STEREO COMPONENT | ||||
| 86180-12010 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86180-12010 |
KP61..S,SE,XL |
1 | ||
| 86180-12010 |
KP61..DLX,S,SE,XL |
1 | ||
| 86270 - DECK ASSY, STEREO COMPONENT | ||||
| 86270-12010 |
KP61..DLX,S,SE,XL |
1 | ||
| 86270-12010 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86270-12010 |
KP61..S,SE,XL |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-12010 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86280-12010 |
KP61..DLX,S,SE,XL |
1 | ||
| 86280-12010 |
KP61..S,SE,XL |
1 | ||

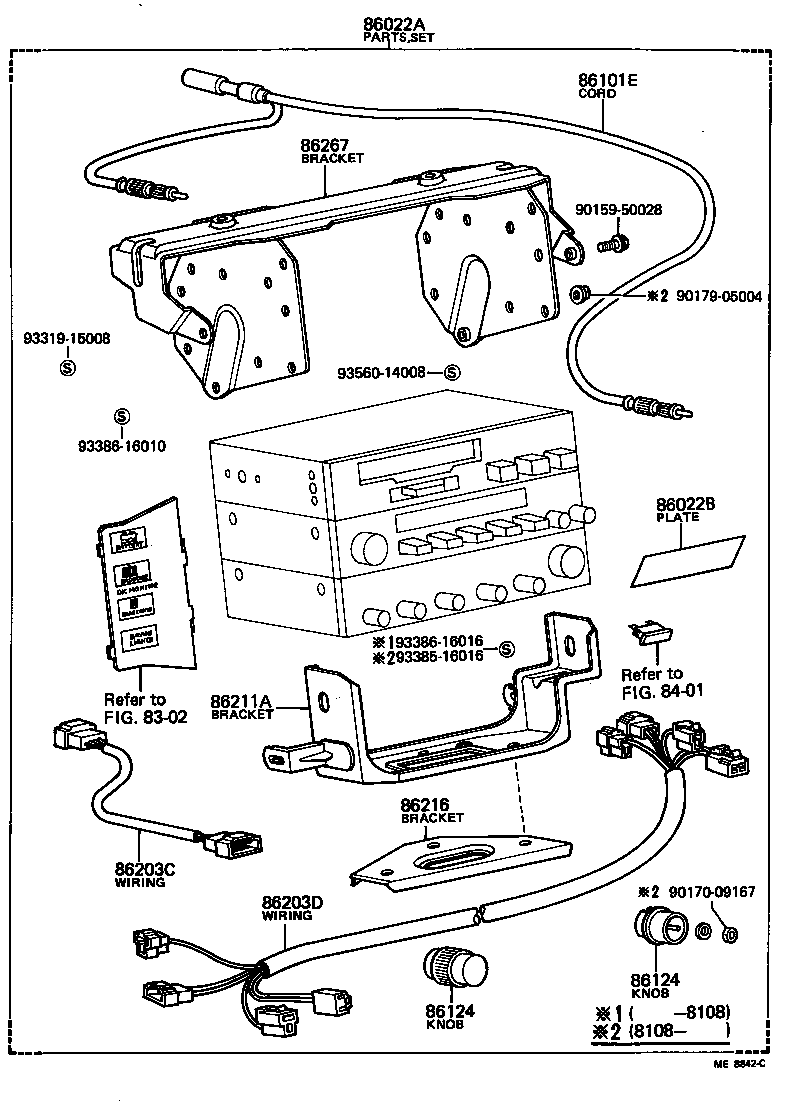

ILLUST NO. 4 OF 4(8005-8208)SED..DLX,S,SE,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022A - PARTS SET, STEREO COMPONENT SETTING | ||||
| 86022-19155 |
KP61..DLX,S,SE,XL |
1 | ||
| 86022-19156 |
KP61..S,SE,XL |
1 | ||
| 86022-19156 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86022B - PLATE, CAUTION | ||||
| 74555-10010 |
KP61..DLX,S,SE,XL |
1 | ||
| 74555-10010 |
KP61..S,SE,XL |
1 | ||
| 74555-10010 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86101E - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-10040 |
KP61..S,SE,XL |
1 | ||
| 86101-10040 |
KP61..DLX,S,SE,XL |
1 | ||
| 86101-10040 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 82061-10010 |
KP62;KP61..S,SE,XL TYPE 2,W/STEREO COMPONENT |
1 | ||
| 86203-10010 |
KP61 |
1 | ||
| 82061-10010 |
KP6# TYPE 2,W/STEREO COMPONENT |
1 | ||
| 82061-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,W/STEREO COMPONENT |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-10060 |
KP61..S,SE,XL |
1 | ||
| 86203-10060 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86203-10060 |
KP61..DLX,S,SE,XL |
1 | ||
| 86211A - BRACKET, STEREO COMPONENT, NO.1 | ||||
| 86211-10031 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 86211-10031 |
KP61..S,SE,XL |
1 | ||
| 86211-10030 |
KP61..DLX,S,SE,XL |
1 | ||
| 86216 - BRACKET, STEREO COMPONENT, NO.2 | ||||
| 58164-10020 |
KP61..SED..(DLX,S,SE,XL) |
1 | ||
| 58164-10020 |
KP61..S,SE,XL |
1 | ||
| 58164-10020 |
KP61..DLX,S,SE,XL |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86201-10010 |
KP6# TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP62;KP61..S,SE,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86268-10010 |
KP61 |
1 | ||
| 86268-10020 |
KP61 |
1 | ||
| Common parts | ||||
| 90159-50028 | ||||
| 90170-09167 | ||||
| 90179-05004 | ||||
| 93319-15008 | ||||
| 93385-16016 | ||||
| 93386-16010 | ||||
| 93386-16016 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

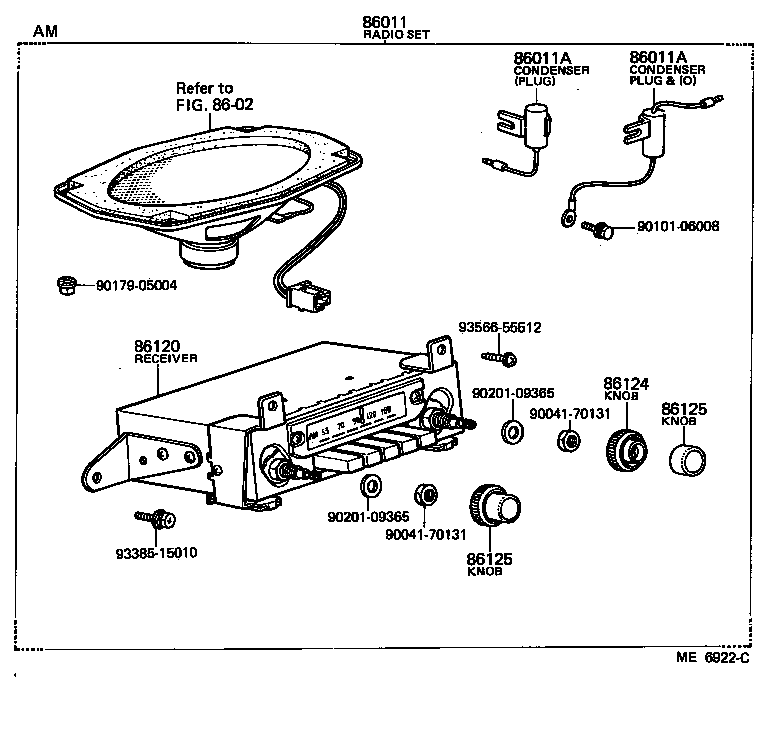

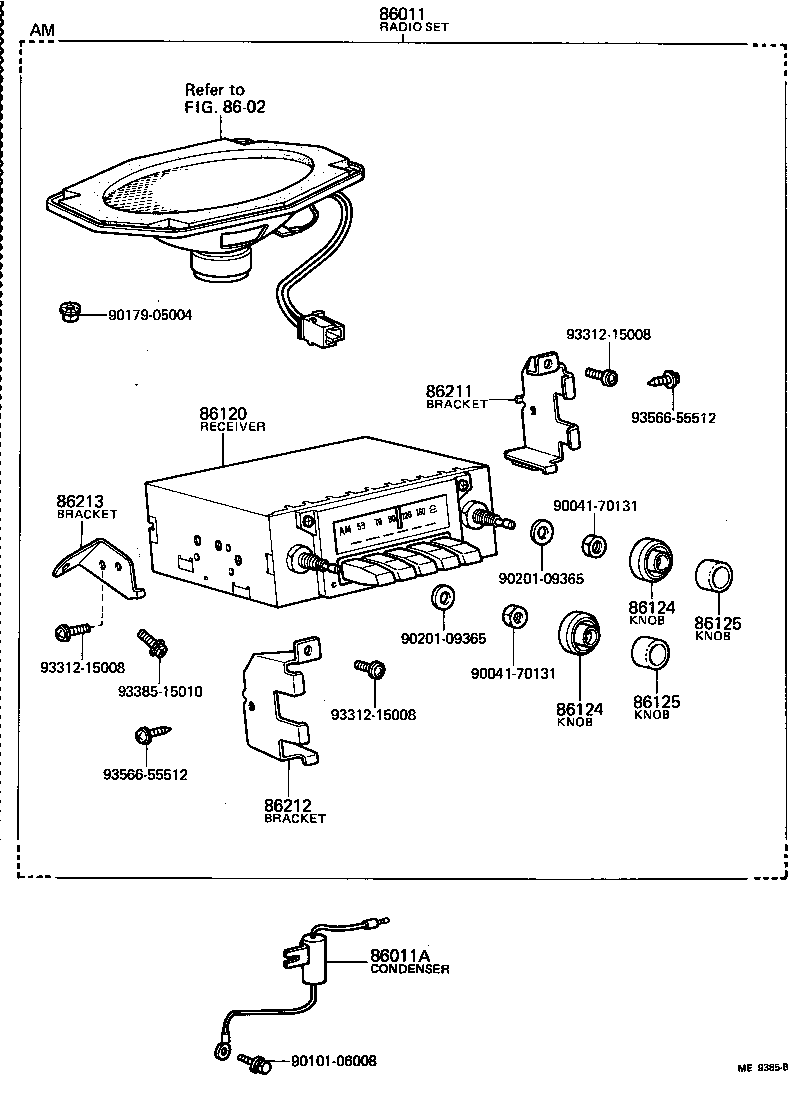

ILLUST NO. 1 OF 4(8005-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-10090 |
KP6# AM |
1 | ||
| 86011-10100 |
KP61 AM/FM |
1 | ||
| 86011-10181 |
KP61..SED..(DLX,DXA,S,SE,XL) AM |
1 | ||
| 86011-10170 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011-10180 |
KP6# AM |
1 | ||
| 86011-10102 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86011-10172 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10140 |
KP6# AM |
1 | ||
| 86120-10180 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-16140 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86120-10190 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86207-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86207-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86211-10060 |
KP61 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86208-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86208-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86212-10050 |
KP61 |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86215-10090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86215-10070 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| Common parts | ||||
| 90041-70131 | ||||
| 90101-06008 | ||||
| 90179-05004 | ||||
| 90201-09365 | ||||
| 93312-15008 | ||||
| 93385-15010 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 1 OF 4(8005-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-10090 |
KP6# AM |
1 | ||
| 86011-10100 |
KP61 AM/FM |
1 | ||
| 86011-10181 |
KP61..SED..(DLX,DXA,S,SE,XL) AM |
1 | ||
| 86011-10170 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011-10180 |
KP6# AM |
1 | ||
| 86011-10102 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86011-10172 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10140 |
KP6# AM |
1 | ||
| 86120-10180 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-16140 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86120-10190 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-10040 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86207-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86207-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86211-10060 |
KP61 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86208-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86208-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86212-10050 |
KP61 |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86215-10090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86215-10070 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| Common parts | ||||
| 90041-70131 | ||||
| 90101-06008 | ||||
| 90179-06070 | ||||
| 90201-09365 | ||||
| 93312-15008 | ||||
| 93385-15010 | ||||
| 93385-16012 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 1 OF 4(8005-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-10090 |
KP6# AM |
1 | ||
| 86011-10100 |
KP61 AM/FM |
1 | ||
| 86011-10181 |
KP61..SED..(DLX,DXA,S,SE,XL) AM |
1 | ||
| 86011-10170 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011-10180 |
KP6# AM |
1 | ||
| 86011-10102 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86011-10172 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10140 |
KP6# AM |
1 | ||
| 86120-10180 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-16140 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86120-10190 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14040 |
KP61 AM/FM : LH |
1 | ||
| 86124-10020 |
KP6# AM |
1 | ||
| 86124-14120 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-12010 |
KP61 AM/FM : RH |
1 | ||
| 86124-14110 |
KP61..DLX,S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-16050 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86124-14120 |
KP61..S,SE,XL W/STEREO COMPONENT.LH |
1 | ||
| 86124-16090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86124-16060 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN RH |
1 | ||
| 86124-14110 |
KP61..S,SE,XL W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..SED..(S,SE,XL) AM/FM : RH |
1 | ||
| 86124-14120 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.LH |
1 | ||
| 86124-14110 |
KP61..SED..(DLX,S,SE,XL) W/STEREO COMPONENT.RH |
1 | ||
| 86124-12010 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86124-14040 |
KP61..SED..(S,SE,XL) AM/FM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-10030 |
KP6# AM : RH |
1 | ||
| 86125-12011 |
KP61 AM/FM |
2 | ||
| 86125-16050 |
KP61..SED..(S,SE,XL) AM/FM & CASSTTE TAPE,TEN RH |
1 | ||
| 86125-16040 |
KP61 AM/FM & CASSETTE TAPE,TEN |
2 | ||
| 86125-12011 |
KP61..SED..(S,SE,XL) AM/FM |
2 | ||
| 86125-16080 |
KP61..S,SE,XL AM/FM & CASSETTE TAPE,TEN LH |
1 | ||
| 86125-12011 |
KP61..DLX,DXA,S,SE,XL AM |
2 | ||
| 86125-10040 |
KP6# AM : LH |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-10040 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86207-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86207-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86211-10060 |
KP61 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86208-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86208-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86212-10050 |
KP61 |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86215-10090 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86215-10070 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| Common parts | ||||
| 90041-70131 | ||||
| 90101-06008 | ||||
| 90179-06070 | ||||
| 90201-09365 | ||||
| 93312-15008 | ||||
| 93385-15010 | ||||
| 93385-16012 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8602 | ||||
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04033 |
KP6# CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04010 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG |
1 | ||
| 90980-04027 |
KP61..DLX,DXA,S,SE,XL CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04033 |
KP61..DLX,DXA,S,SE,XL CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86012 - PARTS SET, RADIO SETTING | ||||
| 86012-19035 |
KP61 |
1 | ||
| 86022 - PARTS SET, TAPE PLAYER SETTING | ||||
| 86022-19035 |
KP6# |
1 | ||
| 86022-19036 |
KP61..SED..(S,SE,XL) TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19036 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP6# TYPE 2 |
1 | ||
| 86022-19205 |
KP61..DLX,DXA,STD |
1 | ||
| 86022-19145 |
KP61..SED..(S,SE,XL) TYPE 2 |
1 | ||
| 86022-19036 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86022-19215 |
KP61..S,SE,SI,XL |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10140 |
KP6# AM |
1 | ||
| 86120-10180 |
KP61..DLX,DXA,S,SE,XL AM |
1 | ||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-16140 |
KP61..SED..(S,SE,XL) AM/FM |
1 | ||
| 86120-10190 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86207-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86207-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86211-10060 |
KP61 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86208-10020 |
KP61..SED..(S,SE,XL) AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86208-10010 |
KP61..DLX,DXA,S,SE,XL AM,AM/FM |
1 | ||
| 86212-10050 |
KP61 |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-12020 |
KP61 AM,AM/FM |
2 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-12020 |
KP61 AM,AM/FM |
2 | ||
| 86222 - FINISH, TAPE PLAYER | ||||
| 55521-10030 |
KP61..DLX,DXA,STD |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16020 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86260-16020 |
KP6# |
1 | ||
| 86260-16020 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86260-95700 |
KP6# TYPE 2 |
1 | ||
| 86260-95700 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86260-14180 |
KP61..SED..(DLX,S,SE,SI,XL) W/4-SPEAKER |
1 | ||
| 86260-95700 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86260-14170 |
KP61 W/2-SPEAKER |
1 | ||
| 86260-16020 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10090 |
KP6# TYPE 2 |
1 | ||
| 86265-10081 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP6# |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 58998-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10090 |
KP6# TYPE 2 |
1 | ||
| 86265-10081 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP6# |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 58998-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86266-10121 |
KP6# TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP6# |
1 | ||
| 86266-10120 |
KP61 |
1 | ||
| 86266-10130 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 58999-10010 |
KP61..DLX,DXA,STD |
1 | ||
| 86266-10130 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86266-10130 |
KP6# TYPE 2 |
1 | ||
| 86266-10121 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86201-10010 |
KP6# TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP62;KP61..S,SE,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86268-10010 |
KP61 |
1 | ||
| 86268-10020 |
KP61 |
1 | ||
| Common parts | ||||
| 90980-04010 | ||||
| 90980-04027 | ||||
| 90980-04033 | ||||
| 93229-15008 | ||||
| 93381-15008 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
