KP61-PHKDS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)SED..S,SE,XL ; (8108-8208)5D..DLX

Click highlighted areas on diagram

diagram 8275110010 8281910020 85033R 85310R 85330R 85345R 85348R 85371R 85373R 9004163001 9017905095
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-10080

KP61..S,SE,XL

 1
85332-20050

KP61..5D..DLX

 1
85332-20050

KP61..S,SE,XL

 1
85310R - MOTOR ASSY, REAR WASHER
85310-10070

KP61..S,SE,XL

 1
85310-20100

KP61..5D..DLX

 1
85310-20100

KP61..SED..(S,SE,XL)

 1
85330R - JAR ASSY, REAR WASHER
85330-10101

KP61..SED..(S,SE,XL)

 1
85330-10100

KP61..S,SE,XL

 1
85330-10101

KP61..5D..DLX

 1
85345R - NOZZLE, REAR WASHER
85035-10140

KP61..S,SE,XL

 1
85035-10150

KP61..SED..(S,SE,XL)

 1
85035-10150

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85035-10150

KP61..5D..DLX

 1
85035-10150

KP61..SED..(DLX,S,SE,SI,XL)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85355-10060

KP61..SED..(S,SE,XL)

 1
85355-10060

KP61..5D..DLX

 1
85355-87201

KP61..SED..(DLX,S,SE,SI,XL)

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06015

KP61..SED..(S,SE,XL)

L=1650

 1
90446-06006

KP61..S,SE,XL

*H,L=1040

 1
90446-06013

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

長さ=450,*H,L=150

 1
90446-06015

KP61..5D..DLX

L=1650

 1
90446-06013

KP61..SED..(DLX,S,SE,SI,XL)

長さ=450,*H,L=150

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

KP61..SED..(DLX,S,SE,SI,XL)

長さ=1000,*H,L=360

 1
90446-06013

KP61..5D..DLX

長さ=450,*H,L=360

 1
90099-33299

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

長さ=1000,*H,L=360

 1
90446-06013

KP61..S,SE,XL

長さ=450,*H,L=360

 1
90099-33299

KP61..5D..DLX

長さ=1000

 1
90099-33299

KP61..SED..(S,SE,XL)

長さ=1000

 1
Common parts
82751-10010
82819-10020
90041-63001
90179-05095

(8208- )

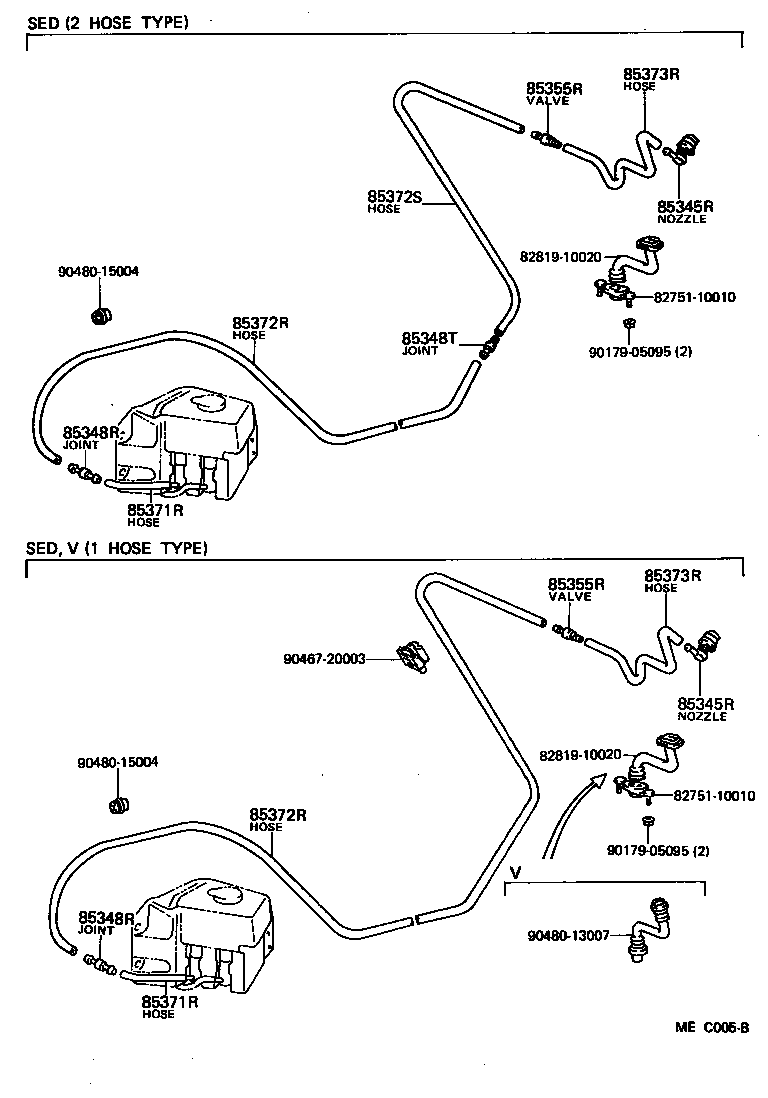

Click highlighted areas on diagram

diagram 8275110010 8275110010 8281910020 8281910020 85345R 85345R 85348R 85348R 85348T 85355R 85355R 85371R 85371R 85372R 85372R 85372S 85373R 85373R 9017905095 9017905095 9046720003 9048013007 9048015004 9048015004
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-10140

KP61..S,SE,XL

 1
85035-10150

KP61..SED..(S,SE,XL)

 1
85035-10150

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85035-10150

KP61..5D..DLX

 1
85035-10150

KP61..SED..(DLX,S,SE,SI,XL)

 1
85345R - NOZZLE, REAR WASHER
85035-10140

KP61..S,SE,XL

 1
85035-10150

KP61..SED..(S,SE,XL)

 1
85035-10150

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85035-10150

KP61..5D..DLX

 1
85035-10150

KP61..SED..(DLX,S,SE,SI,XL)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85355-10060

KP61..SED..(S,SE,XL)

 1
85355-10060

KP61..5D..DLX

 1
85355-87201

KP61..SED..(DLX,S,SE,SI,XL)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85355-10060

KP61..SED..(S,SE,XL)

 1
85355-10060

KP61..5D..DLX

 1
85355-87201

KP61..SED..(DLX,S,SE,SI,XL)

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-87201

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85355-87201

KP61..SED..(DLX,S,SE,SI,XL)

 1
85355R - VALVE, REAR WASHER HOSE
85031-14080

KP61..SED..(DLX,S,SE,SI,XL)

 1
85031-14080

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85355R - VALVE, REAR WASHER HOSE
85031-14080

KP61..SED..(DLX,S,SE,SI,XL)

 1
85031-14080

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06015

KP61..SED..(S,SE,XL)

L=1650

 1
90446-06006

KP61..S,SE,XL

*H,L=1040

 1
90446-06013

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

長さ=450,*H,L=150

 1
90446-06015

KP61..5D..DLX

L=1650

 1
90446-06013

KP61..SED..(DLX,S,SE,SI,XL)

長さ=450,*H,L=150

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06015

KP61..SED..(S,SE,XL)

L=1650

 1
90446-06006

KP61..S,SE,XL

*H,L=1040

 1
90446-06013

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

長さ=450,*H,L=150

 1
90446-06015

KP61..5D..DLX

L=1650

 1
90446-06013

KP61..SED..(DLX,S,SE,SI,XL)

長さ=450,*H,L=150

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372-10120

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

1 HOSE TYPE,L=3250

 1
85372-10120

KP61..SED..(DLX,S,SE,SI,XL)

1 HOSE TYPE,L=3250

 1
85372-10100

KP61..SED..(DLX,S,SE,SI,XL)

2 HOSE TYPE,L=2600

 1
85372-10100

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

2 HOSE TYPE,L=2600

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372-10120

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

1 HOSE TYPE,L=3250

 1
85372-10120

KP61..SED..(DLX,S,SE,SI,XL)

1 HOSE TYPE,L=3250

 1
85372-10100

KP61..SED..(DLX,S,SE,SI,XL)

2 HOSE TYPE,L=2600

 1
85372-10100

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

2 HOSE TYPE,L=2600

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-06002

KP61..SED..(DLX,S,SE,SI,XL)

2 HOSE TYPE,*H,L=1500

 1
90446-06002

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

2 HOSE TYPE,*H,L=1500

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

KP61..SED..(DLX,S,SE,SI,XL)

長さ=1000,*H,L=360

 1
90446-06013

KP61..5D..DLX

長さ=450,*H,L=360

 1
90099-33299

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

長さ=1000,*H,L=360

 1
90446-06013

KP61..S,SE,XL

長さ=450,*H,L=360

 1
90099-33299

KP61..5D..DLX

長さ=1000

 1
90099-33299

KP61..SED..(S,SE,XL)

長さ=1000

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

KP61..SED..(DLX,S,SE,SI,XL)

長さ=1000,*H,L=360

 1
90446-06013

KP61..5D..DLX

長さ=450,*H,L=360

 1
90099-33299

KP61..5D..DLX;KP61..SED..(S,SE,SI,XL)

長さ=1000,*H,L=360

 1
90446-06013

KP61..S,SE,XL

長さ=450,*H,L=360

 1
90099-33299

KP61..5D..DLX

長さ=1000

 1
90099-33299

KP61..SED..(S,SE,XL)

長さ=1000

 1
Common parts
82751-10010
82819-10020
90179-05095
90467-20003
90480-13007
90480-15004
