KP61-PHKDS (1978)
Toyota Starlet
(7802-8208)DLX,DXA,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

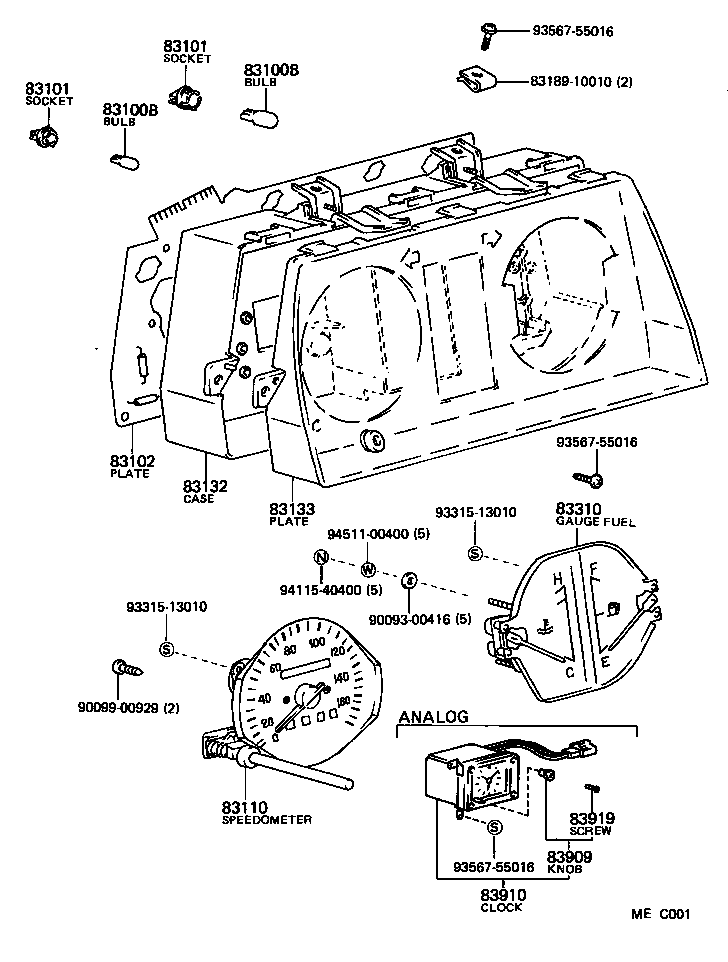

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10300 |
KP61..S,SE 4-METER |
1 | ||
| 83138-10300 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83138-10310 |
KP6#..DLX,XL 2-METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83247-10020 |
KP6#..4F..(DLX,DXA,STD) |
1 | ||
| 83247-10020 |
KP6#..DLX,STD |
1 | ||
| 83247-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83247-10010 |
KP61..S,SE 4-METER |
1 | ||
| 83247-10270 |
KP61..S,SE W/*CEW |
1 | ||
| 83247-10290 |
KP61..S |
1 | ||
| 83247-10470 |
KP61..4F..(DLX,DXA,STD) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-10060 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10330 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83241-10010 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83110-10600 |
KP61..S,SI |
1 | ||
| 83110-10570 |
KP61..DLX,XL |
1 | ||
| 83110-10590 |
KP61..SE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14820 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83132-10090 |
KP61..SE..CBR |
1 | ||
| 83132-10250 |
KP61..SED..4F..(DLX,DXA,STD) |
1 | ||
| 83132-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83132-10021 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83132-10130 |
KP61..S |
1 | ||
| 83132-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-10020 |
KP61..S W/O *OM |
1 | ||
| 83133-10031 |
KP61..S,SE W/*OM |
1 | ||
| 83133-10021 |
KP61..S W/O *OM |
1 | ||
| 83133-10040 |
KP61..DLX,STD |
1 | ||
| 83133-10030 |
KP61..S,SE,XL W/*OM,4-METER & FUEL WARNING |
1 | ||
| 83133-10041 |
KP61..(3FC,4F)..(DLX,DXA,STD) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83243-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83243-10150 |
KP61..SED..(DLX,DXA,STD,XL) |
1 | ||
| 83243-10090 |
KP61..SE |
1 | ||
| 83243-10021 |
KP61..SED..(DLX,DXA,STD,XL) 2-METER |
1 | ||
| 83243-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83243-10110 |
KP61..S,SI |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10090 |
KP61..S,SI |
1 | ||
| 83244-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83244-10070 |
KP61..SE |
1 | ||
| 83244-10012 |
KP61..S,SE 4-METER |
1 | ||
| 83244-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10022 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83244-10011 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10021 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10090 |
KP61..S,SI |
1 | ||
| 83244-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83244-10070 |
KP61..SE |
1 | ||
| 83244-10012 |
KP61..S,SE 4-METER |
1 | ||
| 83244-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10022 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83244-10011 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10021 |
KP6#..DLX,STD,XL 2-METER |
1 | ||

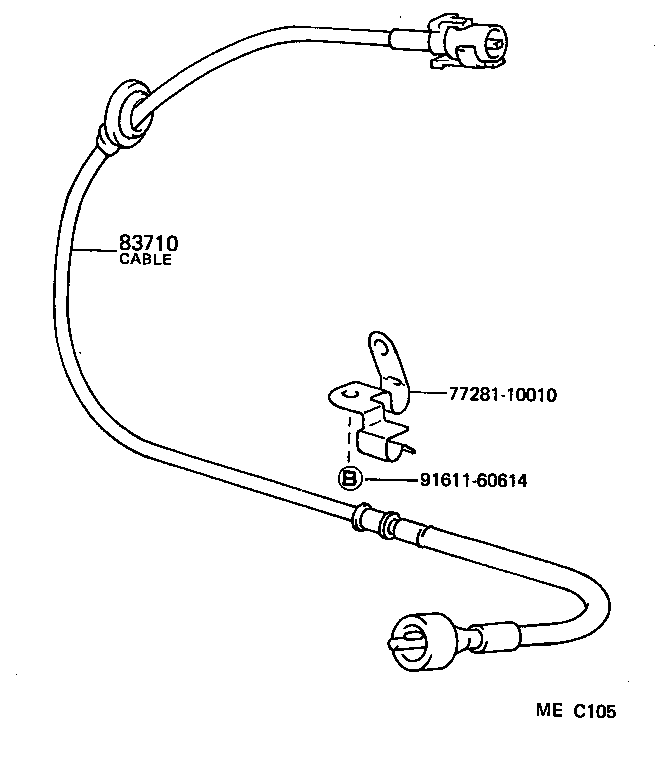

| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19446 |
KP6# L=1500 |
1 | ||
| 83710-19446 |
KP6#..MTM L=1500 |
1 | ||
| 83710-19445 |
KP6# L=1500 |
1 | ||
| 83710-10190 |
KP61 L=1500 |
1 | ||
| 83710-10191 |
KP61..MTM L=1475 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP61..S,SI,XL |
1 | ||
| 83909-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83909-12230 |
KP61..SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10090 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83910-10030 |
KP6#..DLX,S,XL |
1 | ||
| 83910-10040 |
KP61..SE |
1 | ||
| 83910-10090 |
KP61..S,SI,XL |
1 | ||
| 83910-10110 |
KP61..SE DIGITAL |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KP6#..DLX,S,SE,XL 12V 3.4W,12V 3.4W |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83919-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83919-14012 |
KP61..S,SI,XL |
1 | ||
| 83919-12230 |
KP61..SE |
1 | ||
| Common parts | ||||
| 77281-10010 | ||||
| 90092-20482 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90461-07023 | ||||
| 91611-40614 | ||||
| 91611-60614 | ||||
| 93315-14012 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
(7802-8005)S,SE,XL ; (8005-8208)S,SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10300 |
KP61..S,SE 4-METER |
1 | ||
| 83138-10300 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83138-10310 |
KP6#..DLX,XL 2-METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83247-10020 |
KP6#..4F..(DLX,DXA,STD) |
1 | ||
| 83247-10020 |
KP6#..DLX,STD |
1 | ||
| 83247-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83247-10010 |
KP61..S,SE 4-METER |
1 | ||
| 83247-10270 |
KP61..S,SE W/*CEW |
1 | ||
| 83247-10290 |
KP61..S |
1 | ||
| 83247-10470 |
KP61..4F..(DLX,DXA,STD) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-10060 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10330 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83241-10010 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83110-10600 |
KP61..S,SI |
1 | ||
| 83110-10570 |
KP61..DLX,XL |
1 | ||
| 83110-10590 |
KP61..SE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14820 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83132-10090 |
KP61..SE..CBR |
1 | ||
| 83132-10250 |
KP61..SED..4F..(DLX,DXA,STD) |
1 | ||
| 83132-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83132-10021 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83132-10130 |
KP61..S |
1 | ||
| 83132-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-10020 |
KP61..S W/O *OM |
1 | ||
| 83133-10031 |
KP61..S,SE W/*OM |
1 | ||
| 83133-10021 |
KP61..S W/O *OM |
1 | ||
| 83133-10040 |
KP61..DLX,STD |
1 | ||
| 83133-10030 |
KP61..S,SE,XL W/*OM,4-METER & FUEL WARNING |
1 | ||
| 83133-10041 |
KP61..(3FC,4F)..(DLX,DXA,STD) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10010 |
KP61..S,SE,XL |
1 | ||
| 83242-10011 |
KP61..S,SE |
1 | ||
| 83242-10070 |
KP61..SE..CBR |
1 | ||
| 83242-10110 |
KP61..S |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83243-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83243-10150 |
KP61..SED..(DLX,DXA,STD,XL) |
1 | ||
| 83243-10090 |
KP61..SE |
1 | ||
| 83243-10021 |
KP61..SED..(DLX,DXA,STD,XL) 2-METER |
1 | ||
| 83243-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83243-10110 |
KP61..S,SI |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10090 |
KP61..S,SI |
1 | ||
| 83244-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83244-10070 |
KP61..SE |
1 | ||
| 83244-10012 |
KP61..S,SE 4-METER |
1 | ||
| 83244-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10022 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83244-10011 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10021 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10090 |
KP61..S,SI |
1 | ||
| 83244-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83244-10070 |
KP61..SE |
1 | ||
| 83244-10012 |
KP61..S,SE 4-METER |
1 | ||
| 83244-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10022 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83244-10011 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10021 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19446 |
KP6# L=1500 |
1 | ||
| 83710-19446 |
KP6#..MTM L=1500 |
1 | ||
| 83710-19445 |
KP6# L=1500 |
1 | ||
| 83710-10190 |
KP61 L=1500 |
1 | ||
| 83710-10191 |
KP61..MTM L=1475 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP61..S,SI,XL |
1 | ||
| 83909-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83909-12230 |
KP61..SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10090 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83910-10030 |
KP6#..DLX,S,XL |
1 | ||
| 83910-10040 |
KP61..SE |
1 | ||
| 83910-10090 |
KP61..S,SI,XL |
1 | ||
| 83910-10110 |
KP61..SE DIGITAL |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KP6#..DLX,S,SE,XL 12V 3.4W,12V 3.4W |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83919-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83919-14012 |
KP61..S,SI,XL |
1 | ||
| 83919-12230 |
KP61..SE |
1 | ||
| Common parts | ||||
| 77281-10010 | ||||
| 90092-20482 | ||||
| 90093-00416 | ||||
| 90099-00917 | ||||
| 90461-07023 | ||||
| 91611-40614 | ||||
| 91611-60614 | ||||
| 93315-14012 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
ILLUST NO. 1 OF 2(8208- )DLX,DXA,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83247-10020 |
KP6#..4F..(DLX,DXA,STD) |
1 | ||
| 83247-10020 |
KP6#..DLX,STD |
1 | ||
| 83247-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83247-10010 |
KP61..S,SE 4-METER |
1 | ||
| 83247-10270 |
KP61..S,SE W/*CEW |
1 | ||
| 83247-10290 |
KP61..S |
1 | ||
| 83247-10470 |
KP61..4F..(DLX,DXA,STD) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10590 |
KP61..SE |
1 | ||
| 83110-10330 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83241-10010 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83110-10600 |
KP61..S,SI |
1 | ||
| 83110-10570 |
KP61..DLX,XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83132-10090 |
KP61..SE..CBR |
1 | ||
| 83132-10250 |
KP61..SED..4F..(DLX,DXA,STD) |
1 | ||
| 83132-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83132-10021 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83132-10130 |
KP61..S |
1 | ||
| 83132-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10390 |
KP61..S,SI W/*CEW |
1 | ||
| 83133-10410 |
KP61..S,SI |
1 | ||
| 83133-10350 |
KP61..SE |
1 | ||
| 83133-10530 |
KP61..DLX,XL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83243-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83243-10150 |
KP61..SED..(DLX,DXA,STD,XL) |
1 | ||
| 83243-10090 |
KP61..SE |
1 | ||
| 83243-10021 |
KP61..SED..(DLX,DXA,STD,XL) 2-METER |
1 | ||
| 83243-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83243-10110 |
KP61..S,SI |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP61..S,SI,XL |
1 | ||
| 83909-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83909-12230 |
KP61..SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10090 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83910-10030 |
KP6#..DLX,S,XL |
1 | ||
| 83910-10040 |
KP61..SE |
1 | ||
| 83910-10090 |
KP61..S,SI,XL |
1 | ||
| 83910-10110 |
KP61..SE DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83919-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83919-14012 |
KP61..S,SI,XL |
1 | ||
| 83919-12230 |
KP61..SE |
1 | ||
| Common parts | ||||
| 83189-10010 | ||||
| 90093-00416 | ||||
| 90099-00929 | ||||
| 93315-13010 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 1 OF 2(8208- )S,SE,SI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP61..S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 90981-11018 |
KP61..S,SE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83109-14030 |
KP61..S,SI 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ,12V 3.4W,W/AMBER CAP |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
KP61 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KP61..S,SE 12V 1.4W |
4 | ||
| 83101-14030 |
KP6# 12V 3.4W |
14 | ||
| 83101-14040 |
KP61..S,SE,XL 12V 1.4W |
4 | ||
| 83101-14040 |
KP61 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83247-10020 |
KP6#..4F..(DLX,DXA,STD) |
1 | ||
| 83247-10020 |
KP6#..DLX,STD |
1 | ||
| 83247-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83247-10010 |
KP61..S,SE 4-METER |
1 | ||
| 83247-10270 |
KP61..S,SE W/*CEW |
1 | ||
| 83247-10290 |
KP61..S |
1 | ||
| 83247-10470 |
KP61..4F..(DLX,DXA,STD) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10590 |
KP61..SE |
1 | ||
| 83110-10330 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83241-10010 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83110-10600 |
KP61..S,SI |
1 | ||
| 83110-10570 |
KP61..DLX,XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83132-10090 |
KP61..SE..CBR |
1 | ||
| 83132-10250 |
KP61..SED..4F..(DLX,DXA,STD) |
1 | ||
| 83132-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83132-10021 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83132-10130 |
KP61..S |
1 | ||
| 83132-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10390 |
KP61..S,SI W/*CEW |
1 | ||
| 83133-10410 |
KP61..S,SI |
1 | ||
| 83133-10350 |
KP61..SE |
1 | ||
| 83133-10530 |
KP61..DLX,XL |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10010 |
KP61..S,SE,XL |
1 | ||
| 83242-10011 |
KP61..S,SE |
1 | ||
| 83242-10070 |
KP61..SE..CBR |
1 | ||
| 83242-10110 |
KP61..S |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83243-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83243-10150 |
KP61..SED..(DLX,DXA,STD,XL) |
1 | ||
| 83243-10090 |
KP61..SE |
1 | ||
| 83243-10021 |
KP61..SED..(DLX,DXA,STD,XL) 2-METER |
1 | ||
| 83243-10011 |
KP61..S,SE 4-METER |
1 | ||
| 83243-10110 |
KP61..S,SI |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10090 |
KP61..S,SI |
1 | ||
| 83244-10020 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83244-10070 |
KP61..SE |
1 | ||
| 83244-10012 |
KP61..S,SE 4-METER |
1 | ||
| 83244-10010 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10022 |
KP6#..DLX,DXA,STD,XL 2-METER |
1 | ||
| 83244-10011 |
KP61..S,SE,XL 4-METER |
1 | ||
| 83244-10021 |
KP6#..DLX,STD,XL 2-METER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP61..S,SI,XL |
1 | ||
| 83909-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83909-12230 |
KP61..SE |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83909-14012 |
KP61..S,SI,XL |
1 | ||
| 83909-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83909-12230 |
KP61..SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10090 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83910-10030 |
KP6#..DLX,S,XL |
1 | ||
| 83910-10040 |
KP61..SE |
1 | ||
| 83910-10090 |
KP61..S,SI,XL |
1 | ||
| 83910-10110 |
KP61..SE DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10041 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83910-10090 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83910-10030 |
KP6#..DLX,S,XL |
1 | ||
| 83910-10040 |
KP61..SE |
1 | ||
| 83910-10090 |
KP61..S,SI,XL |
1 | ||
| 83910-10110 |
KP61..SE DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83919-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83919-14012 |
KP61..S,SI,XL |
1 | ||
| 83919-12230 |
KP61..SE |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
KP61..SED..DLX LISSE SPECIAL |
1 | ||
| 83919-14012 |
KP6#..DLX,S,SE,XL |
1 | ||
| 83919-14012 |
KP61..S,SI,XL |
1 | ||
| 83919-12230 |
KP61..SE |
1 | ||
| Common parts | ||||
| 83189-10010 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 93315-13010 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 2 OF 2(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19446 |
KP6# L=1500 |
1 | ||
| 83710-19446 |
KP6#..MTM L=1500 |
1 | ||
| 83710-19445 |
KP6# L=1500 |
1 | ||
| 83710-10190 |
KP61 L=1500 |
1 | ||
| 83710-10191 |
KP61..MTM L=1475 |
1 | ||
| Common parts | ||||
| 77281-10010 | ||||
| 91611-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
