KP61-PHKDS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8005)

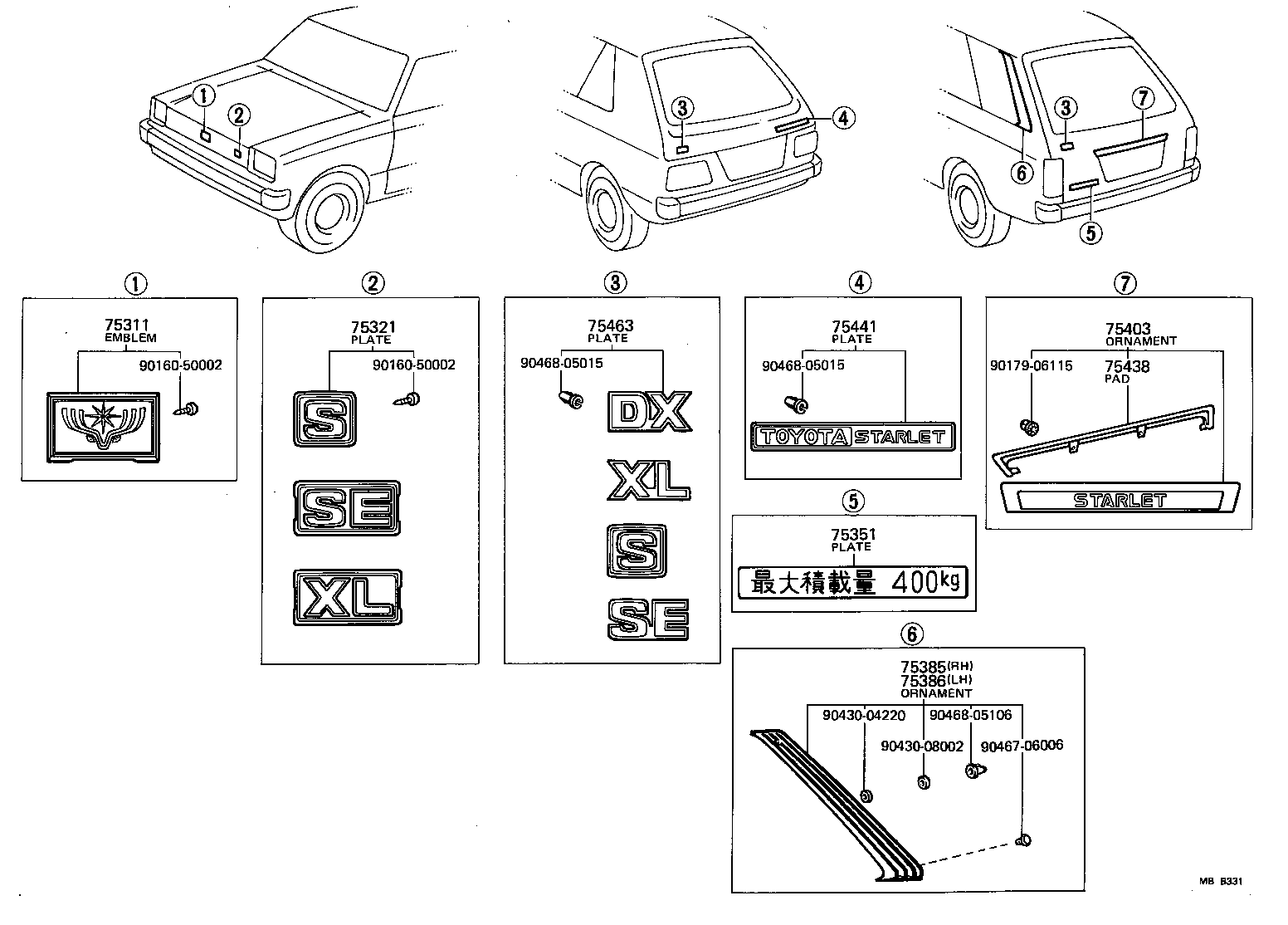

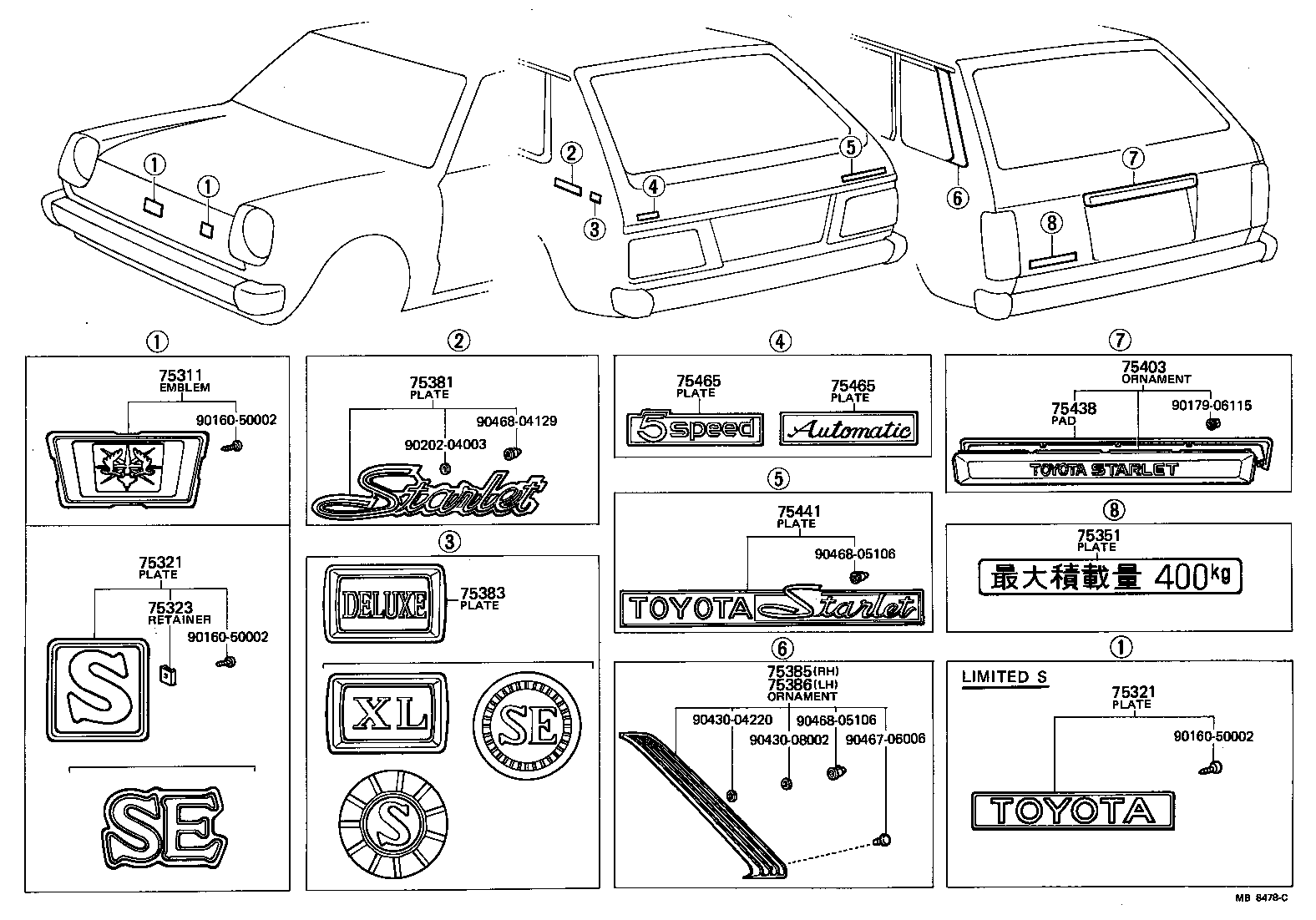

Click highlighted areas on diagram

diagram 75311 75321 75321 75323 75351 75381 75383 75385 75386 75403 75438 75441 75465 75465 9016050002 9016050002 9016050002 9017906115 9020204003 9043004220 9043008002 9046706006 9046804129 9046805106 9046805106
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19475

KP6#..DLX,STD,XL

 1
75311-19476

KP6#..DLX,DXA,STD

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-19445

KP61..SE

SE

 1
75321-19435

KP61..S

S

 1
75321-19448

KP61..SE

SE

 1
75321-19438

KP61..S

S

 1
75321-19437

KP61..S

S

 1
75321-19436

KP61..S

S

 1
75321-19705

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19447

KP61..SE

SE

 1
75321-19706

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19449

KP61..SE

SE

 1
75321-19707

KP61..SED..(DLX,DXA,STD,XL)

STARLET

 1
75321-19439

KP61..S

S

 1
75321-19446

KP61..SE

SE

 1
75321-19885

KP61..SE

SE

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-19445

KP61..SE

SE

 1
75321-19435

KP61..S

S

 1
75321-19448

KP61..SE

SE

 1
75321-19438

KP61..S

S

 1
75321-19437

KP61..S

S

 1
75321-19436

KP61..S

S

 1
75321-19705

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19447

KP61..SE

SE

 1
75321-19706

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19449

KP61..SE

SE

 1
75321-19707

KP61..SED..(DLX,DXA,STD,XL)

STARLET

 1
75321-19439

KP61..S

S

 1
75321-19446

KP61..SE

SE

 1
75321-19885

KP61..SE

SE

 1
75323 - RETAINER, RADIATOR GRILLE
75324-10010

KP61..S,SE

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-10011

KP6#

STARLET

 2
75383 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (GRADE MARK)
75382-10030

KP61..S

S

 2
75382-10040

KP61..SE

SE

 2
75382-10041

KP61..SE

SE

 2
75382-10010

KP6#..DLX

DELUXE

 2
75441 - PLATE, REAR NAME, NO.1
75441-10062

KP61

TOYOTA STARLET

 1
75441-10063

KP61..SED

TOYOTA STARLET

 1
75441-10061

KP61

TOYOTA STARLET

 1
75441-10064

KP61..SED

TOYOTA STARLET

 1
Common parts
90160-50002
90179-06115
90202-04003
90430-04220
90430-08002
90467-06006
90468-04129
90468-05106

(8005-8108)

Click highlighted areas on diagram

diagram 75311 75321 75351 75385 75386 75403 75438 75441 75463 9016050002 9016050002 9017906115 9043004220 9043008002 9046706006 9046805015 9046805015 9046805106
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19475

KP6#..DLX,STD,XL

 1
75311-19476

KP6#..DLX,DXA,STD

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-19445

KP61..SE

SE

 1
75321-19435

KP61..S

S

 1
75321-19448

KP61..SE

SE

 1
75321-19438

KP61..S

S

 1
75321-19437

KP61..S

S

 1
75321-19436

KP61..S

S

 1
75321-19705

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19447

KP61..SE

SE

 1
75321-19706

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19449

KP61..SE

SE

 1
75321-19707

KP61..SED..(DLX,DXA,STD,XL)

STARLET

 1
75321-19439

KP61..S

S

 1
75321-19446

KP61..SE

SE

 1
75321-19885

KP61..SE

SE

 1
75441 - PLATE, REAR NAME, NO.1
75441-10062

KP61

TOYOTA STARLET

 1
75441-10063

KP61..SED

TOYOTA STARLET

 1
75441-10061

KP61

TOYOTA STARLET

 1
75441-10064

KP61..SED

TOYOTA STARLET

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-10120

KP61..S

S

 1
75443-10071

KP61..SED..(DLX,DXA)

DX

 1
75443-10100

KP61..SE

SE

 1
75443-10070

KP6#..DLX,DXA

DX

 1
75443-10101

KP61..SE

SE

 1
75443-10090

KP61..S

S

 1
75443-10091

KP61..S

S

 1
Common parts
90160-50002
90179-06115
90430-04220
90430-08002
90467-06006
90468-05015
90468-05106

(8108-8208)

Click highlighted areas on diagram

diagram 75311 75321 75351 75385 75386 75403 75438 75441 75463 75485 9016050002 9016050002 9017906115 9043004220 9043008002 9046706006 9046805015 9046805015 9046805106
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19475

KP6#..DLX,STD,XL

 1
75311-19476

KP6#..DLX,DXA,STD

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-19445

KP61..SE

SE

 1
75321-19435

KP61..S

S

 1
75321-19448

KP61..SE

SE

 1
75321-19438

KP61..S

S

 1
75321-19437

KP61..S

S

 1
75321-19436

KP61..S

S

 1
75321-19705

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19447

KP61..SE

SE

 1
75321-19706

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19449

KP61..SE

SE

 1
75321-19707

KP61..SED..(DLX,DXA,STD,XL)

STARLET

 1
75321-19439

KP61..S

S

 1
75321-19446

KP61..SE

SE

 1
75321-19885

KP61..SE

SE

 1
75441 - PLATE, REAR NAME, NO.1
75441-10062

KP61

TOYOTA STARLET

 1
75441-10063

KP61..SED

TOYOTA STARLET

 1
75441-10061

KP61

TOYOTA STARLET

 1
75441-10064

KP61..SED

TOYOTA STARLET

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-10120

KP61..S

S

 1
75443-10071

KP61..SED..(DLX,DXA)

DX

 1
75443-10100

KP61..SE

SE

 1
75443-10070

KP6#..DLX,DXA

DX

 1
75443-10101

KP61..SE

SE

 1
75443-10090

KP61..S

S

 1
75443-10091

KP61..S

S

 1
Common parts
90160-50002
90179-06115
90430-04220
90430-08002
90467-06006
90468-05015
90468-05106

(8208- )

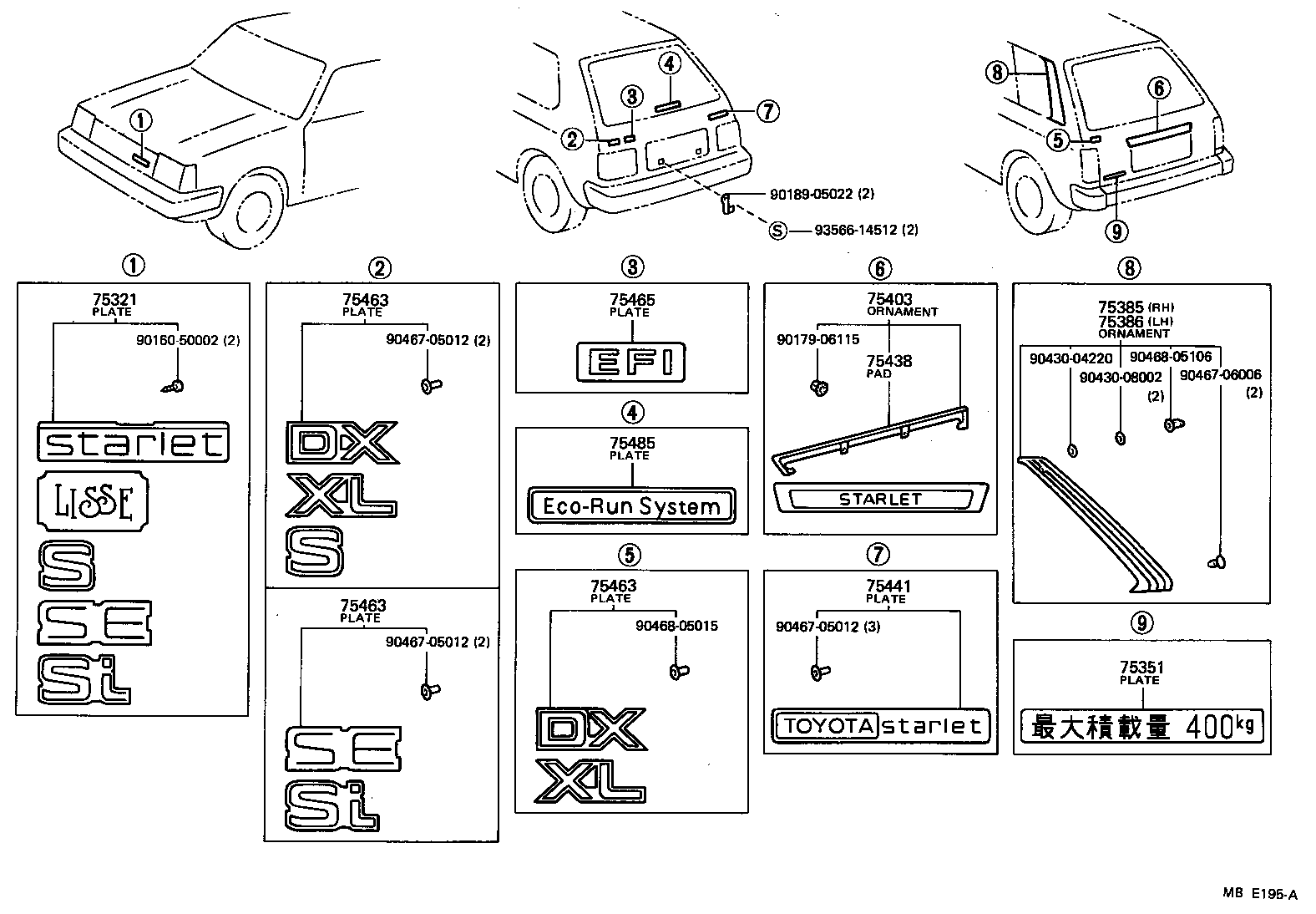

Click highlighted areas on diagram

diagram 75321 75351 75385 75386 75403 75438 75441 75463 75463 75463 75465 75485 9016050002 9017906115 9018905022 9043004220 9043008002 9046705012 9046705012 9046705012 9046706006 9046805015 9046805106 9356614512
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-19445

KP61..SE

SE

 1
75321-19435

KP61..S

S

 1
75321-19448

KP61..SE

SE

 1
75321-19438

KP61..S

S

 1
75321-19437

KP61..S

S

 1
75321-19436

KP61..S

S

 1
75321-19705

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19447

KP61..SE

SE

 1
75321-19706

KP61..DLX,DXA,STD,XL

STARLET

 1
75321-19449

KP61..SE

SE

 1
75321-19707

KP61..SED..(DLX,DXA,STD,XL)

STARLET

 1
75321-19439

KP61..S

S

 1
75321-19446

KP61..SE

SE

 1
75321-19885

KP61..SE

SE

 1
75441 - PLATE, REAR NAME, NO.1
75441-10062

KP61

TOYOTA STARLET

 1
75441-10063

KP61..SED

TOYOTA STARLET

 1
75441-10061

KP61

TOYOTA STARLET

 1
75441-10064

KP61..SED

TOYOTA STARLET

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-10120

KP61..S

S

 1
75443-10071

KP61..SED..(DLX,DXA)

DX

 1
75443-10100

KP61..SE

SE

 1
75443-10070

KP6#..DLX,DXA

DX

 1
75443-10101

KP61..SE

SE

 1
75443-10090

KP61..S

S

 1
75443-10091

KP61..S

S

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-10120

KP61..S

S

 1
75443-10071

KP61..SED..(DLX,DXA)

DX

 1
75443-10100

KP61..SE

SE

 1
75443-10070

KP6#..DLX,DXA

DX

 1
75443-10101

KP61..SE

SE

 1
75443-10090

KP61..S

S

 1
75443-10091

KP61..S

S

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-10120

KP61..S

S

 1
75443-10071

KP61..SED..(DLX,DXA)

DX

 1
75443-10100

KP61..SE

SE

 1
75443-10070

KP6#..DLX,DXA

DX

 1
75443-10101

KP61..SE

SE

 1
75443-10090

KP61..S

S

 1
75443-10091

KP61..S

S

 1
Common parts
90160-50002
90179-06115
90189-05022
90430-04220
90430-08002
90467-05012
90467-06006
90468-05015
90468-05106
93566-14512
