KP61-PHKDS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

Click highlighted areas on diagram

diagram 7101 7101 7101 7101 71305 72031 72031A 72110E 72110E 72130 72130 72140 72140 72157 72301 7246714011 7246814010 9011910048 9011910136 9011910136 9011910136 9016840045 9020208006 9020208006 9046709069 9046816002 9161560820 9161560820 9616000600 9616000600
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1401014

KP61..S,SE,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
72457-1401001

KP61..SED..(S,SE,XL)

BLACK,BLACK,TRIM2#

 1
72457-1401026

KP61..SED..(SE,XL)

LIGHT BROWN,BROWN,TRIM2#,4#

 1
72457-1401026

KP61..S,SE,XL

LIGHT BROWN,BROWN,TRIM0#,4#

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-10011

KP61..SED..(S,SE,XL)

 1
72310-10010

KP61..S,SE,XL

 1
72480-10010

KP61..S,SE,SI

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-16015

KP61..S,SE,SI

 1
90506-16015

KP61..SED..(S,SE,XL)

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-10190

KP61..DLX,DXA,S,SI,STD,XL

 1
72130-10200

KP61..S,SE,SI

*VA

 1
72130-10100

KP6#..DLX,DXA,S,STD,XL

 1
72130-10080

KP6#

 1
72130-10091

KP61..SED..(S,SE,XL)

*VA

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-10190

KP61..DLX,DXA,S,SI,STD,XL

 1
72130-10200

KP61..S,SE,SI

*VA

 1
72130-10100

KP6#..DLX,DXA,S,STD,XL

 1
72130-10080

KP6#

 1
72130-10091

KP61..SED..(S,SE,XL)

*VA

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-10130

KP61..4D,5D

 1
72140-10090

KP6#..4D,5D

 1
72140-10110

KP6#..4D,5D

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-10130

KP61..4D,5D

 1
72140-10090

KP6#..4D,5D

 1
72140-10110

KP6#..4D,5D

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-10010

KP6#..(DLX,DXA,S,STD)..05S

 1
72157-10020

KP61..S,SE,SI

W/*VA

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-10020

KP61..SED..(S,SE,XL)

*VA

 1
72301-10050

KP61..S,SE,SI

*VA

 1
Common parts
72467-14011
72468-14010
90119-10048
90119-10136
90168-40045
90202-08006
90467-09069
90468-16002
91615-60820
96160-00600
Linked diagrams
7101

(8208- )

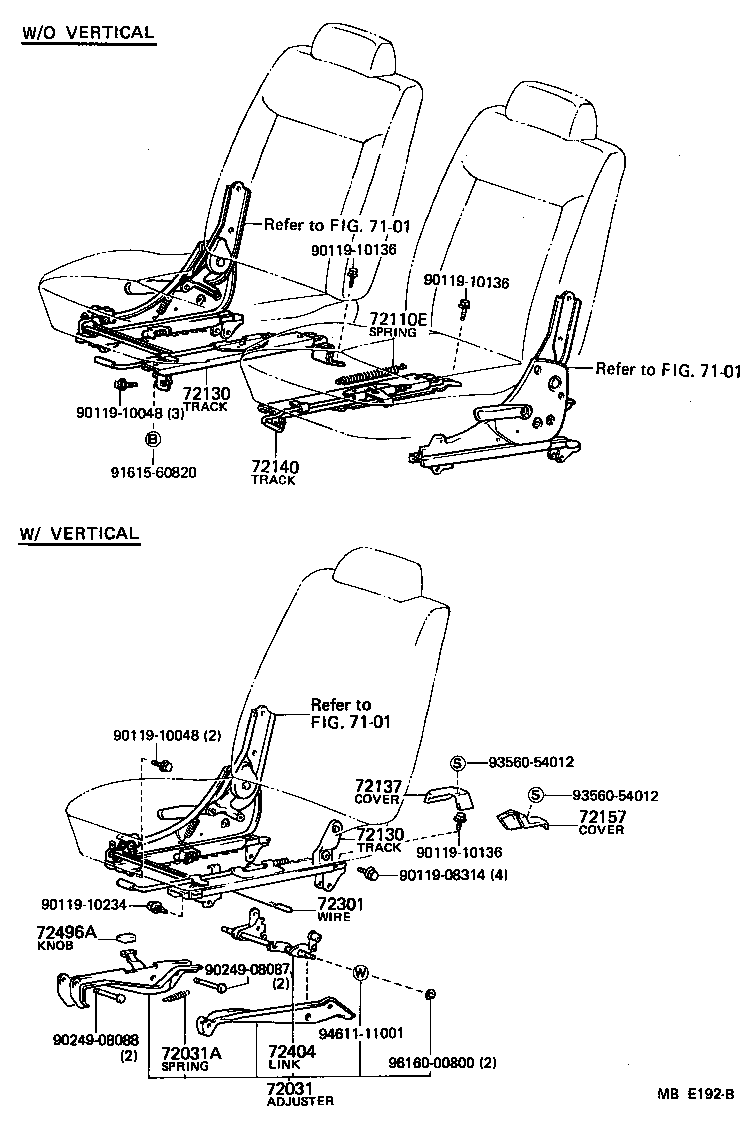

Click highlighted areas on diagram

diagram 7101 7101 7101 72031 72031A 72110E 72130 72130 72137 72140 72157 72301 72404 72496A 9011908314 9011910048 9011910048 9011910136 9011910136 9011910136 9011910234 9024908087 9024908088 9161560820 9356054012 9356054012 9461111001 9616000800
Part # Description Qty Price
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-10011

KP61..SED..(S,SE,XL)

 1
72310-10010

KP61..S,SE,XL

 1
72480-10010

KP61..S,SE,SI

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-16015

KP61..S,SE,SI

 1
90506-16015

KP61..SED..(S,SE,XL)

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-10190

KP61..DLX,DXA,S,SI,STD,XL

 1
72130-10200

KP61..S,SE,SI

*VA

 1
72130-10100

KP6#..DLX,DXA,S,STD,XL

 1
72130-10080

KP6#

 1
72130-10091

KP61..SED..(S,SE,XL)

*VA

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-10190

KP61..DLX,DXA,S,SI,STD,XL

 1
72130-10200

KP61..S,SE,SI

*VA

 1
72130-10100

KP6#..DLX,DXA,S,STD,XL

 1
72130-10080

KP6#

 1
72130-10091

KP61..SED..(S,SE,XL)

*VA

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-10020

KP61..S,SE,SI

W/*VA

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-10130

KP61..4D,5D

 1
72140-10090

KP6#..4D,5D

 1
72140-10110

KP6#..4D,5D

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-10010

KP6#..(DLX,DXA,S,STD)..05S

 1
72157-10020

KP61..S,SE,SI

W/*VA

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-10020

KP61..SED..(S,SE,XL)

*VA

 1
72301-10050

KP61..S,SE,SI

*VA

 1
72404 - LINK SUB-ASSY, VERTICAL SEAT
72406-10020

KP61..S,SE,SI

W/*VA

 1
72496A - KNOB, VERTICAL SEAT ADJUSTER, NO.2
72496-2001006

KP61..SE

W/*VA,BROWN,BROWN,TRIM4#

 1
72496-2001003

KP61..S,SE,SI

W/*VA,GRAY,GRAY,TRIM1#

 1
72496-2001002

KP61..SE

W/*VA,DARK WINE,RED/MAROON,TRIM3#

 1
Common parts
90119-08314
90119-10048
90119-10136
90119-10234
90249-08087
90249-08088
91615-60820
93560-54012
94611-11001
96160-00800
Linked diagrams
7101
