KP61-PHKDS (1978)
Toyota Starlet

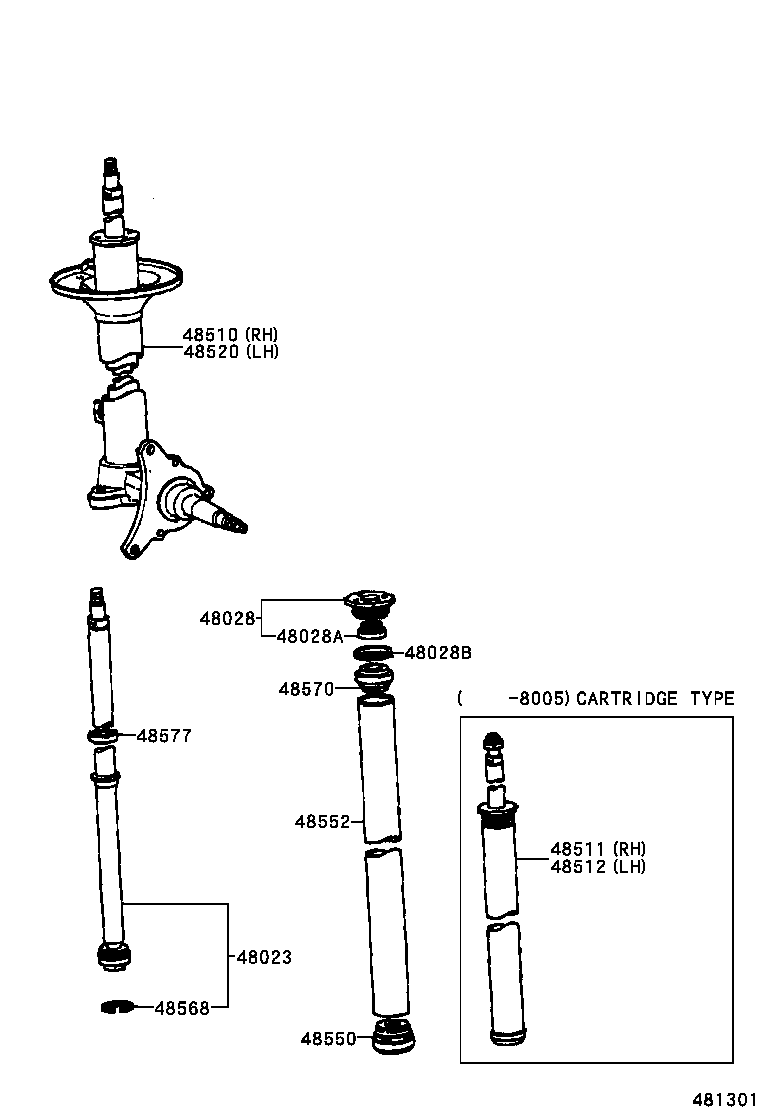

ILLUST NO. 1 OF 2(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) | ||||
| 48023-10070 |
KP61..S |
2 | ||
| 48023-10080 |
KP6#..DLX,DXA,SE,STD,XL |
2 | ||
| 48023-10090 |
KP61..S |
2 | ||
| 48023-10100 |
KP61..DLX,DXA,SE,STD,XL |
2 | ||
| 48023-10110 |
KP61..S,SI |
2 | ||
| 48023-10060 |
KP6#..DLX,SE,STD,XL |
2 | ||
| 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING | ||||
| 48028-10020 |
KP6# |
2 | ||
| 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) | ||||
| 90316-20006 |
KP6# |
2 | ||
| 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) | ||||
| 90430-36002 |
KP6# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-10070 |
KP61..S |
1 | ||
| 48510-10060 |
KP6#..DLX,SE,STD,XL |
1 | ||
| 48510-10110 |
KP61..S,SI |
1 | ||
| 48510-10090 |
KP61..S |
1 | ||
| 48510-10080 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 48510-10100 |
KP61..DLX,DXA,SE,STD,XL |
1 | ||
| 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) | ||||
| 48511-10050 |
KP61..S |
1 | ||
| 48511-10040 |
KP6#..DLX,SE,STD,XL |
1 | ||
| 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) | ||||
| 48511-10040 |
KP6#..DLX,SE,STD,XL |
1 | ||
| 48511-10050 |
KP61..S |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-10040 |
KP6#..DLX,SE,STD,XL |
1 | ||
| 48520-10060 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 48520-10070 |
KP61..S |
1 | ||
| 48520-10050 |
KP61..S |
1 | ||
| 48520-10080 |
KP61..DLX,DXA,SE,STD,XL |
1 | ||
| 48520-10090 |
KP61..S,SI |
1 | ||
| 48550 - VALVE ASSY, SHOCK ABSORBER BASE | ||||
| 48550-12019 |
KP61..S |
2 | ||
| 48550-10060 |
KP6#..DLX,SE,STD,XL |
2 | ||
| 48550-10080 |
KP61..S,SI |
2 | ||
| 48550-16010 |
KP61..DLX,DXA,SE,STD,XL |
2 | ||
| 48550-10050 |
KP6#..DLX,DXA,SE,STD,XL |
2 | ||
| 48550-10070 |
KP61..S |
2 | ||
| 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) | ||||
| 48552-10030 |
KP6# |
2 | ||
| 48568 - RING, SHOCK ABSORBER PISTON | ||||
| 48568-12021 |
KP61 |
2 | ||
| 48568-12020 |
KP61 |
2 | ||
| 48568-12010 |
KP6# |
2 | ||
| 48570 - GUIDE ASSY, SHOCK ABSORBER ROD | ||||
| 48022-10020 |
KP6# |
2 | ||
| 48577 - STOPPER, SHOCK ABSORBER REBOUND | ||||
| 48577-10010 |
KP6# |
2 | ||
ILLUST NO. 2 OF 2(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-10090 |
KP61..S |
1 | ||
| 48131-10110 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 48131-10080 |
KP6#..DLX,SE,STD,XL |
1 | ||
| 48131-10120 |
KP61..S |
1 | ||
| 48131-10190 |
KP61..S,SI |
1 | ||
| 48131-10160 |
KP61..DLX,DXA,STD,XL |
1 | ||
| 48131-10170 |
KP61..SE |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-10090 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 48132-10100 |
KP61..S |
1 | ||
| 48131-10110 |
KP61..DLX,DXA,STD,XL |
1 | ||
| 48132-10070 |
KP61..S |
1 | ||
| 48132-10060 |
KP6#..DLX,SE,STD,XL |
1 | ||
| 48131-10180 |
KP61..S,SI |
1 | ||
| 48131-10160 |
KP61..SE |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-10010 |
KP6# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-10050 |
KP6# |
2 | ||
| 48331-10040 |
KP6# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-10050 |
KP6# |
2 | ||
| 48331-10040 |
KP6# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48045-10020 |
KP6# |
2 | ||
| 48045-10010 |
KP6# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48045-10020 |
KP6# |
2 | ||
| 48045-10010 |
KP6# |
2 | ||
| 48559 - COVER, SHOCK ABSORBER, DUST | ||||
| 48559-12021 |
KP6# |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-10040 |
KP6# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
KP6# |
2 | ||
| 48680B - BOLT, SERRATION(FOR FRONT SUPPORT) | ||||
| 90114-08055 |
KP6# |
6 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
KP6# |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
KP6# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-10120 |
KP61..S |
1 | ||
| 48811-10100 |
KP61..SED..(DLX,DXA,SE,STD,XL) |
1 | ||
| 48811-10080 |
KP6# |
1 | ||
| 48811-10140 |
KP61..S,SI |
1 | ||
| 48811-10100 |
KP6#..DLX,DXA,SE,STD,XL |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-10060 |
KP61..DLX,DXA,SE,STD,XL |
2 | ||
| 48815-10070 |
KP61..S,SI |
2 | ||
| 48815-10060 |
KP6# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48674-19065 |
KP6# |
2 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02046 |
KP6# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02046 |
KP6# |
4 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-14001 |
KP6# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-10030 |
KP6# |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90206-14048 | ||||
| 90560-14001 | ||||
| 91111-71025 | ||||
| 94184-61400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
