KP61-PHKDS (1978)
Toyota Starlet
Production
Feb 1978
-
Sep 1984
Engine
4KU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )

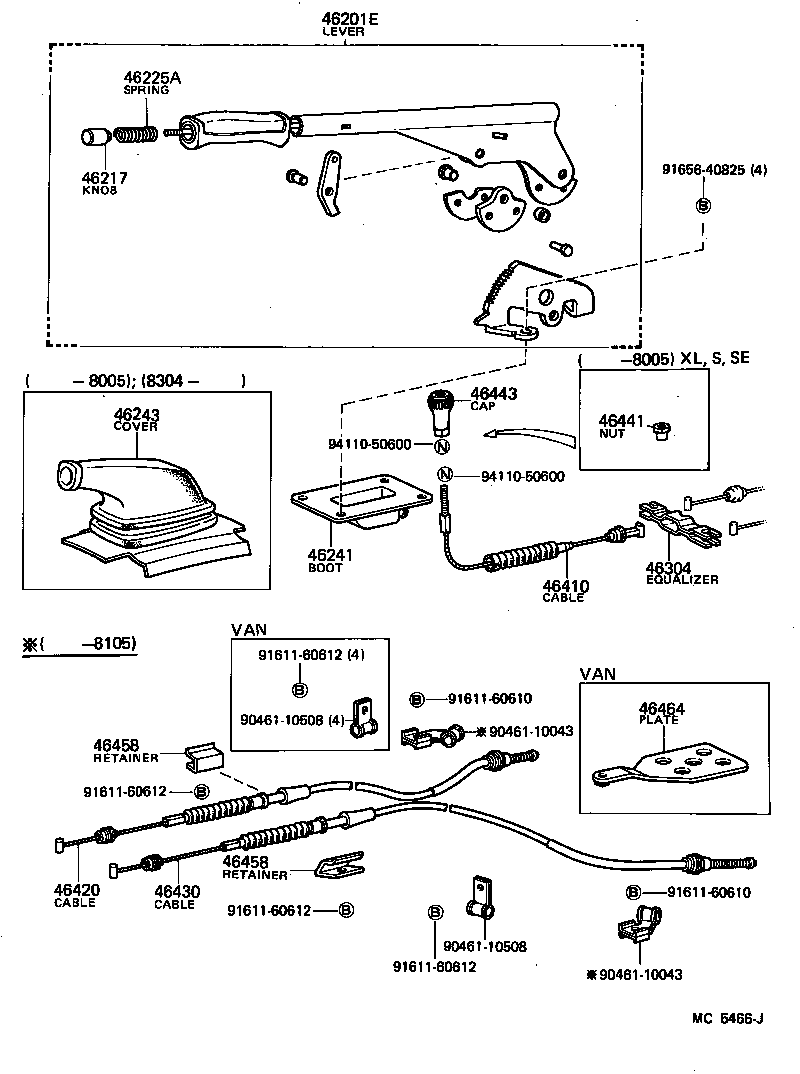

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-10050 |
KP61..SE |
1 | ||
| 46201-1004101 |
KP61 BLACK,BLACK,TRIM1# |
1 | ||
| 46201-10040 |
KP6#..DLX,DXA,S,STD,XL |
1 | ||
| 46201-1004002 |
KP61..SED..DLX LISSE SPECIAL,RED/MAROON,TRIM3# |
1 | ||
| 46201-1004001 |
KP61 BLACK,BLACK,TRIM1# |
1 | ||
| 46201-10030 |
KP6# |
1 | ||
| 46201-10040 |
KP6# |
1 | ||
| 46201-1004102 |
KP61 XL-L,DARK WINE,RED/MAROON,TRIM0# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002002 |
KP61..SED..DLX LISSE SPECIAL,RED/MAROON,TRIM3# |
1 | ||
| 46217-1002001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
KP6# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-10021 |
KP6# |
1 | ||
| 46241-10022 |
KP61 |
1 | ||
| 46241-10020 |
KP6# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-14030 |
KP6#..S,SE,XL |
1 | ||
| 46243-14031 |
KP61..DLX,DXA,STD |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-12010 |
KP6# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-10030 |
KP6# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-10051 |
KP61..SED |
1 | ||
| 46420-10050 |
KP61 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-10040 |
KP61 |
1 | ||
| 46430-10041 |
KP61..SED |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-14010 |
KP6#..S,SE,XL |
1 | ||
| 46443 - CAP, CABLE ADJUSTING | ||||
| 46443-12020 |
KP6#..DLX,DXA,STD |
1 | ||
| 46443-14010 |
KP6#..S,SE,XL |
1 | ||
| 46443-12020 |
KP61..DLX,DXA,STD |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
KP6# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
KP6# |
2 | ||
| Common parts | ||||
| 90461-10043 | ||||
| 90461-10508 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91656-40825 | ||||
| 94110-50600 | ||||
