Toyota Starlet KP61 VACUUM PIPING

KP61-PHKDS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984

Engine 4KU

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

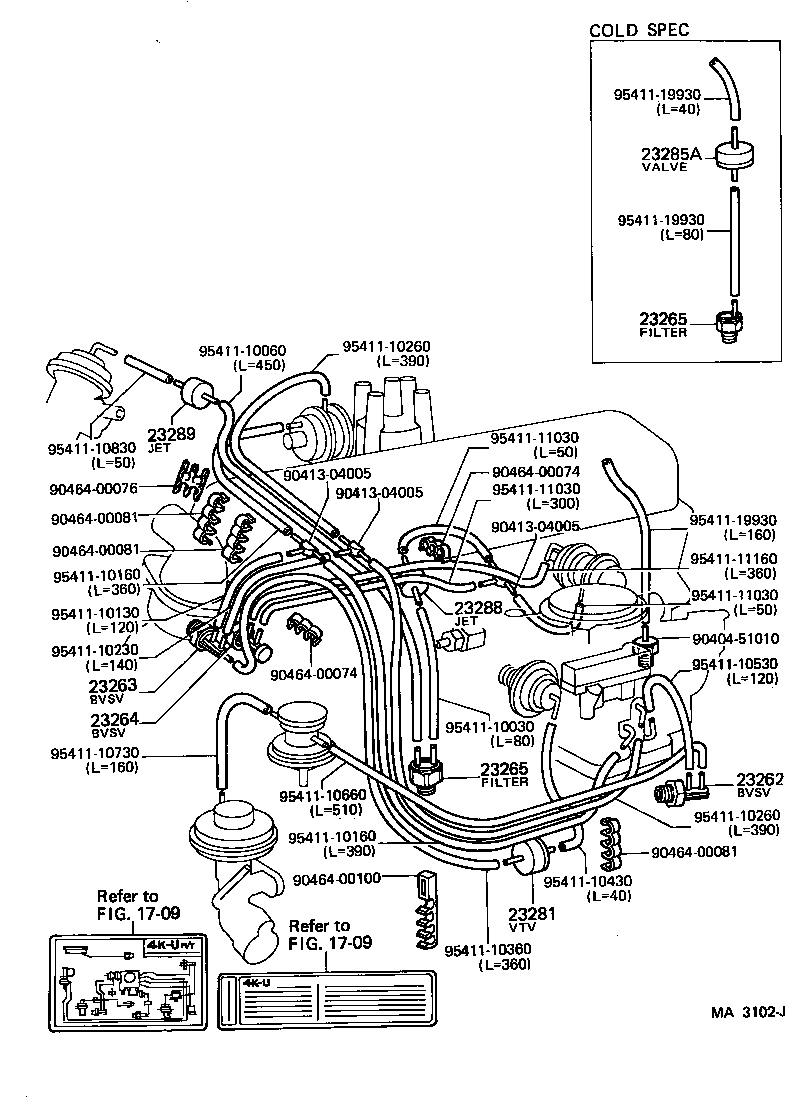

(7802-7903)4KU..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05043	4KU..KP61	02/1978 - 11/1978	1
90925-05049	4KU..KP61	11/1978 - 03/1979	1
25810-24010	4KJ,4KU..KP61	08/1981 - 09/1984	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25810-13010	4KU..KP61..MTM	02/1978 - 03/1979	1
25820-13020	4KU..KP61..MTM	03/1979 - 05/1980	1
90925-05052	4KU..KP61	05/1980 - 08/1981	1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010	4KU..KP61..MTM	02/1978 - 05/1980	1
90925-05016	4KU..KP61..MTM BLACK	05/1980 - 08/1981	1
23265 - FILTER, GAS, NO.1
90917-11024	4KJ,4KU..KP61 DENSO	08/1981 - 09/1984	1
90917-11023	4KU..KP61	02/1978 - 05/1980	1
90917-11022	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
90917-11027	4KJ,4KU..KP61 AISIN	08/1981 - 09/1984	1
23265 - FILTER, GAS, NO.1
90917-11024	4KJ,4KU..KP61 DENSO	08/1981 - 09/1984	1
90917-11023	4KU..KP61	02/1978 - 05/1980	1
90917-11022	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
90917-11027	4KJ,4KU..KP61 AISIN	08/1981 - 09/1984	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041	4KU..KP61	02/1978 - 03/1979	1
90925-01014	4KJ,4KU..KP61	08/1981 - 09/1984	1
23285A - VALVE, CHECK, NO.1
90917-10049	4KJ,4KU..KP61	08/1981 - 09/1984	2
90917-10049	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23289 - JET, NO.2
90925-04006	4KU..KP61..MTM	02/1978 - 08/1981	1
90925-04029	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	05/1983 - 09/1984	1
90925-04023	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 05/1983	1
Common parts
90404-51010
90413-04005
90464-00074
90464-00076
90464-00081
90464-00100
95411-10030
95411-10060
95411-10130
95411-10160
95411-10230
95411-10260
95411-10360
95411-10430
95411-10530
95411-10660
95411-10730
95411-10830
95411-11030
95411-11160
95411-19930
Linked diagrams
1709

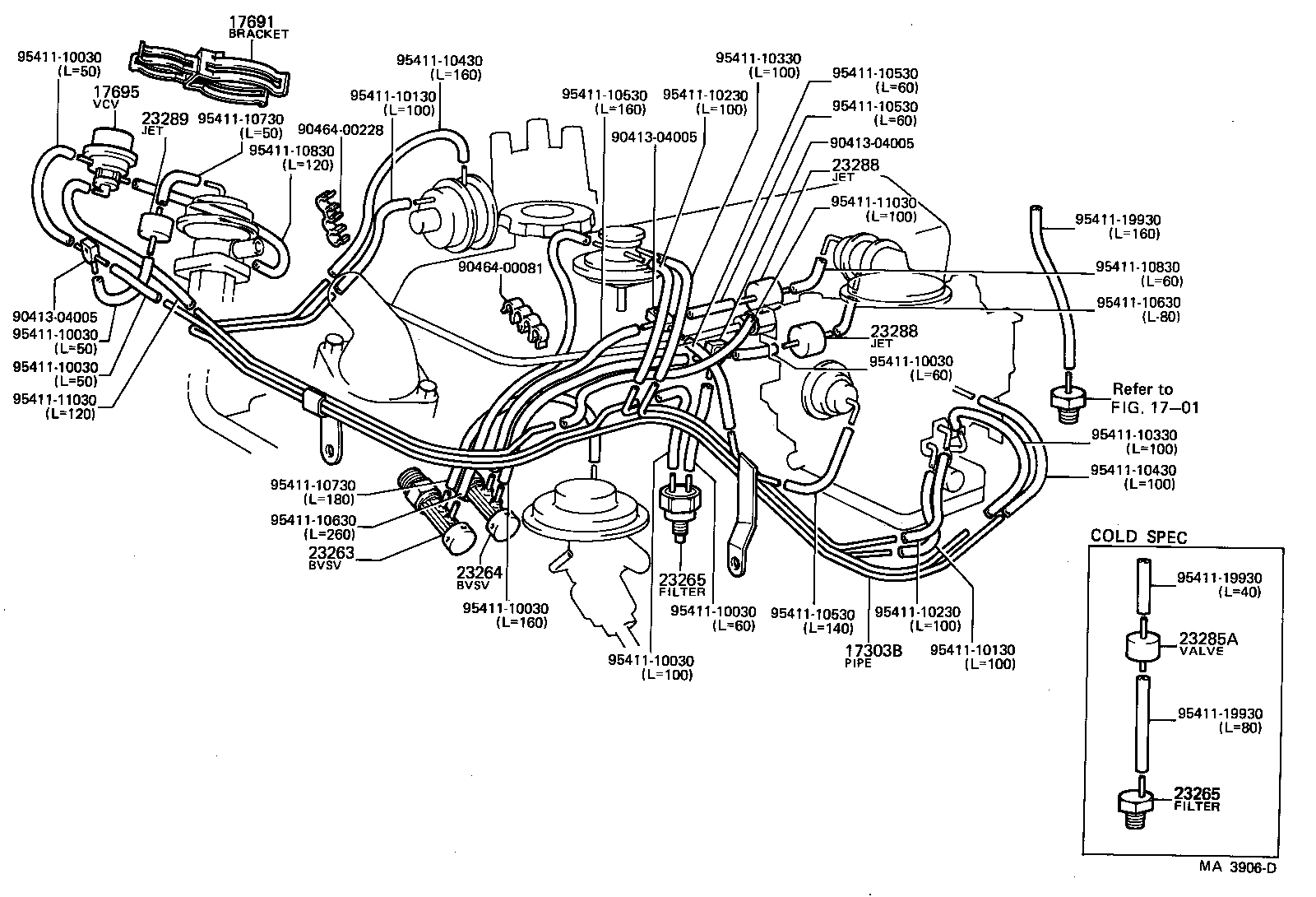

(7903-8005)4KU..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13031	4KU..KP61..MTM	05/1980 - 08/1981	1
17303-13030	4KU..KP61..MTM	03/1979 - 05/1980	1
17303-13060	4KU..KP61	08/1981 - 09/1984	1
17691 - BRACKET, VACUUM CONTROL VALVE, NO.1
17691-13010	4KU..KP61..MTM	03/1979 - 08/1981	1
17695 - VALVE ASSY, VACUUM CONTROL
90925-03082	4KU..KP61..MTM	03/1979 - 08/1981	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25810-13010	4KU..KP61..MTM	02/1978 - 03/1979	1
25820-13020	4KU..KP61..MTM	03/1979 - 05/1980	1
90925-05052	4KU..KP61	05/1980 - 08/1981	1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010	4KU..KP61..MTM	02/1978 - 05/1980	1
90925-05016	4KU..KP61..MTM BLACK	05/1980 - 08/1981	1
23265 - FILTER, GAS, NO.1
90917-11024	4KJ,4KU..KP61 DENSO	08/1981 - 09/1984	1
90917-11023	4KU..KP61	02/1978 - 05/1980	1
90917-11022	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
90917-11027	4KJ,4KU..KP61 AISIN	08/1981 - 09/1984	1
23265 - FILTER, GAS, NO.1
90917-11024	4KJ,4KU..KP61 DENSO	08/1981 - 09/1984	1
90917-11023	4KU..KP61	02/1978 - 05/1980	1
90917-11022	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
90917-11027	4KJ,4KU..KP61 AISIN	08/1981 - 09/1984	1
23285A - VALVE, CHECK, NO.1
90917-10049	4KJ,4KU..KP61	08/1981 - 09/1984	2
90917-10049	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23289 - JET, NO.2
90925-04006	4KU..KP61..MTM	02/1978 - 08/1981	1
90925-04029	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	05/1983 - 09/1984	1
90925-04023	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 05/1983	1
Common parts
90413-04005
90464-00081
90464-00228
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-11030
95411-19930
Linked diagrams
1701

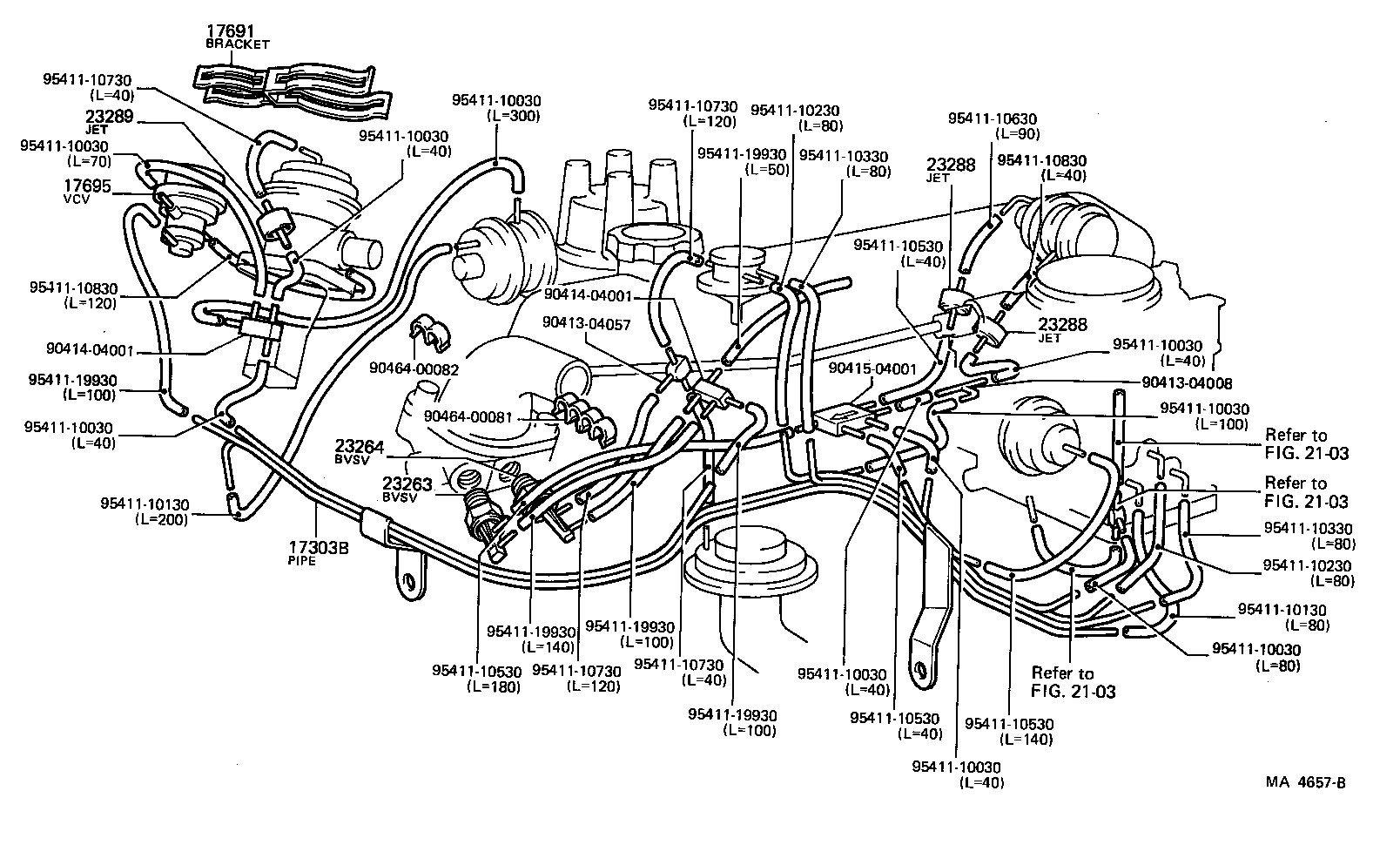

(8005-8108)4KU..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13031	4KU..KP61..MTM	05/1980 - 08/1981	1
17303-13030	4KU..KP61..MTM	03/1979 - 05/1980	1
17303-13060	4KU..KP61	08/1981 - 09/1984	1
17691 - BRACKET, VACUUM CONTROL VALVE, NO.1
17691-13010	4KU..KP61..MTM	03/1979 - 08/1981	1
17695 - VALVE ASSY, VACUUM CONTROL
90925-03082	4KU..KP61..MTM	03/1979 - 08/1981	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25810-13010	4KU..KP61..MTM	02/1978 - 03/1979	1
25820-13020	4KU..KP61..MTM	03/1979 - 05/1980	1
90925-05052	4KU..KP61	05/1980 - 08/1981	1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010	4KU..KP61..MTM	02/1978 - 05/1980	1
90925-05016	4KU..KP61..MTM BLACK	05/1980 - 08/1981	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23289 - JET, NO.2
90925-04006	4KU..KP61..MTM	02/1978 - 08/1981	1
90925-04029	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	05/1983 - 09/1984	1
90925-04023	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 05/1983	1
Common parts
90413-04008
90413-04057
90414-04001
90415-04001
90464-00081
90464-00082
95411-10030
95411-10130
95411-10230
95411-10330
95411-10530
95411-10630
95411-10730
95411-10830
95411-19930
Linked diagrams
2103

(8108- )4KU

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13031	4KU..KP61..MTM	05/1980 - 08/1981	1
17303-13030	4KU..KP61..MTM	03/1979 - 05/1980	1
17303-13060	4KU..KP61	08/1981 - 09/1984	1
17303C - PIPE SUB-ASSY, AIR, NO.2
23818-13020	4KJ,4KU..KP61	08/1981 - 09/1984	1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14084	4KJ,4KU..KP61	08/1981 - 09/1984	1
17303F - HOSE, NO.2(FOR AIR PIPE)
90910-05162	4KJ,4KU..KP61	08/1981 - 09/1984	1
17303G - HOSE, NO.3(FOR AIR PIPE)
23826-13020	4KJ,4KU..KP61	08/1981 - 09/1984	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-10030	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 09/1984	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-10030	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 09/1984	1
21381 - BIMETAL, THERMOSTATIC
21381-13010	4KJ,4KU..KP61	08/1981 - 12/1982	1
21381-13030	4KJ,4KU..KP61	12/1982 - 09/1984	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05043	4KU..KP61	02/1978 - 11/1978	1
90925-05049	4KU..KP61	11/1978 - 03/1979	1
25810-24010	4KJ,4KU..KP61	08/1981 - 09/1984	1
23265 - FILTER, GAS, NO.1
90917-11024	4KJ,4KU..KP61 DENSO	08/1981 - 09/1984	1
90917-11023	4KU..KP61	02/1978 - 05/1980	1
90917-11022	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
90917-11027	4KJ,4KU..KP61 AISIN	08/1981 - 09/1984	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041	4KU..KP61	02/1978 - 03/1979	1
90925-01014	4KJ,4KU..KP61	08/1981 - 09/1984	1
23285A - VALVE, CHECK, NO.1
90917-10049	4KJ,4KU..KP61	08/1981 - 09/1984	2
90917-10049	4KU..KP61 HOT AIR INTAKE,COLD SPEC	02/1978 - 05/1980	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23288 - JET, NO.1
90925-04005	4KU..KP61	03/1979 - 08/1981	2
90925-04005	4KU..KP61	02/1978 - 03/1979	1
90925-04005	4KJ,4KU..KP61 BLUE	08/1981 - 09/1984	1
90925-04006	4KJ,4KU..KP61 YELLOW	08/1981 - 09/1984	1
23289 - JET, NO.2
90925-04006	4KU..KP61..MTM	02/1978 - 08/1981	1
90925-04029	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	05/1983 - 09/1984	1
90925-04023	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 05/1983	1
23289 - JET, NO.2
90925-04006	4KU..KP61..MTM	02/1978 - 08/1981	1
90925-04029	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	05/1983 - 09/1984	1
90925-04023	4KU..KP61..4F..DXA;4KU..KP61..MTM..(DLX,S,SE,STD,XL)	08/1981 - 05/1983	1
Common parts
90413-04005
90413-04014
90445-09015
90464-00074
90464-00082
90464-00115
90464-00148
90464-00284
90467-13007
91611-60612
91651-40612
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-19930

(7802- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01009
90925-01011
90925-01014
90925-01015
90925-01018
90925-01019
90925-01021
90925-01027
90925-01029
90925-01032
90925-01035
90925-01036
90925-01037
90925-01038
90925-01040
90925-01041
90925-01042
90925-01043
90925-01045
90925-01046
90925-01047
90925-01052
90925-01053
90925-01055
90925-01056
90925-01058
90925-01059
90925-01060
