KP61-PHKDS (1978)
Toyota Starlet
(7802-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
4KU..KP61 |
1 | ||
| 17061-13020 |
4KJ,4KU..KP61 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13022 |
4KU..KP61 |
1 | ||
| 17700-13021 |
4KU..KP61 |
1 | ||
| 17700-13291 |
4KU..KP61 |
1 | ||
| 17700-13020 |
4KU..KP61 |
1 | ||
| 17700-13023 |
4KU..KP61..MTM |
1 | ||
| 17700-13290 |
4KU..KP61 |
1 | ||
| 17700-13160 |
4KU..KP61 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4KJ,4KU..KP61 |
1 | ||
| 90175-06003 |
3KHJ,4KU..KP6# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13011 |
4KU..KP61 |
1 | ||
| 17705-13010 |
3KHJ,4KU..KP6# |
1 | ||
| 17705-13060 |
4KJ,4KU..KP61 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13010 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
4KJ,4KU..KP61 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13010 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-31010 |
4KJ,4KU..KP61 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-13010 |
4KJ,4KU..KP61 |
1 | ||
| 17848-24010 |
4KU..KP61 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-13010 |
4KJ,4KU..KP61 |
1 | ||
| 17848-24010 |
4KU..KP61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3KHJ,4KU..KP6# L=120 |
1 | ||
| 17881-26020 |
4KJ,4KU..KP61 |
1 | ||
| 17881-13050 |
4KU..KP61 L=140 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3KHJ,4KU..KP6# L=120 |
1 | ||
| 17881-26020 |
4KJ,4KU..KP61 |
1 | ||
| 17881-13050 |
4KU..KP61 L=140 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-13020 |
4KU..KP61 |
1 | ||
| 17882-13021 |
4KU..KP61 |
1 | ||
| 17882-13040 |
4KU..KP61..4F |
1 | ||
| 17882-13040 |
4KU..KP61..4F..(DLX,SE,XL) |
1 | ||
| 17882-13022 |
4K#..KP61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01023 |
4K#..KP61 |
1 | ||
| 90460-47036 |
4KU..KP61 |
1 | ||
| 53294-10030 |
4KU..KP61..4F..(DLX,SE,XL) NO.3 HOSE SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F..(DLX,SE,XL) AIR CLEANER SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F AIR CLEANER SIDE |
1 | ||
| 53294-10030 |
4KU..KP61..4F NO.3 HOSE SIDE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 17895-13010 |
4KU..KP61 |
1 | ||
| 17167-13020 |
4KU..KP61 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 17895-13010 |
4KU..KP61 |
1 | ||
| 17167-13020 |
4KU..KP61 |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13020 |
4KU..KP61 COLD SPEC |
1 | ||
| 17168-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90210-06023 | ||||
| 91611-60610 | ||||
| 92122-40814 | ||||
| 94110-40600 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1709 | ||||

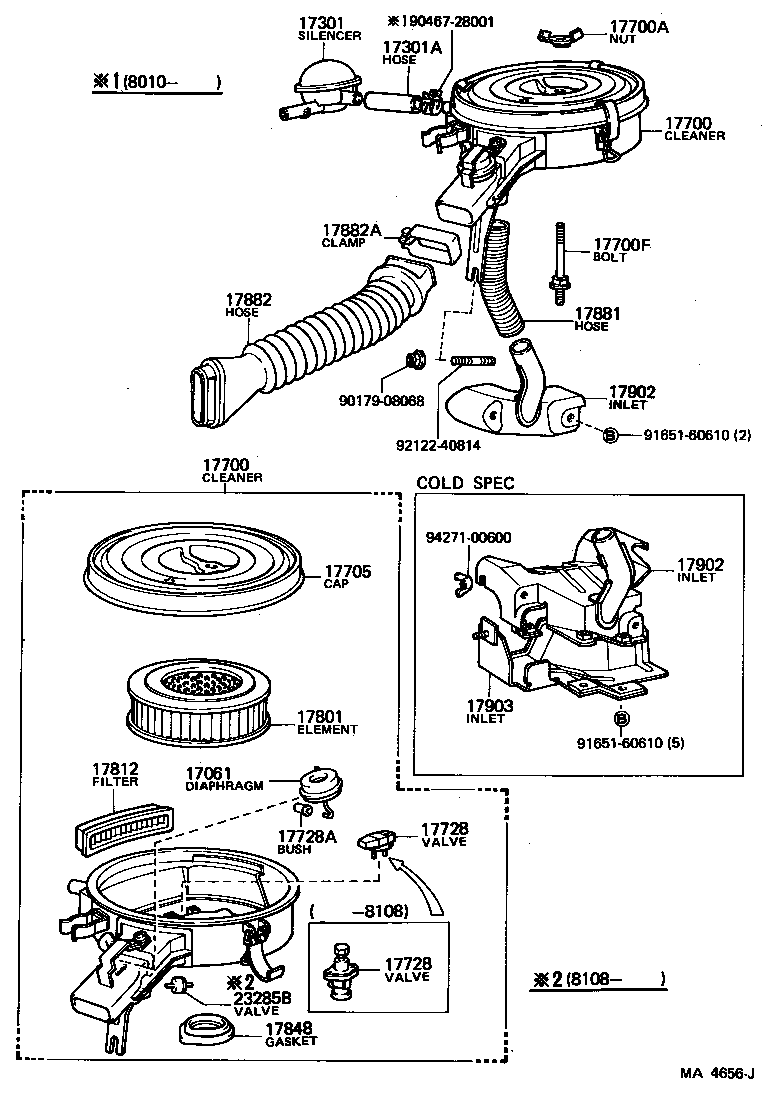

(8005-8208)4KU ; (8208-8304)4KU..3FC ; (8208-8304)4KU..DXA,STD ; (8304- )4KU..3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
4KU..KP61 |
1 | ||
| 17061-13020 |
4KJ,4KU..KP61 |
1 | ||
| 17301 - SILENCER SUB-ASSY, AIR SUCTION | ||||
| 17301-13010 |
4KU..KP61 |
1 | ||
| 17301-13020 |
4KJ,4KU..KP61 |
1 | ||
| 17301A - HOSE(FOR AIR CLEANER TO SILENCER) | ||||
| 90910-05154 |
4KJ,4KU..KP61 |
1 | ||
| 90445-31014 |
4K#..KP61 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13022 |
4KU..KP61 |
1 | ||
| 17700-13021 |
4KU..KP61 |
1 | ||
| 17700-13291 |
4KU..KP61 |
1 | ||
| 17700-13020 |
4KU..KP61 |
1 | ||
| 17700-13023 |
4KU..KP61..MTM |
1 | ||
| 17700-13290 |
4KU..KP61 |
1 | ||
| 17700-13160 |
4KU..KP61 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13022 |
4KU..KP61 |
1 | ||
| 17700-13021 |
4KU..KP61 |
1 | ||
| 17700-13291 |
4KU..KP61 |
1 | ||
| 17700-13020 |
4KU..KP61 |
1 | ||
| 17700-13023 |
4KU..KP61..MTM |
1 | ||
| 17700-13290 |
4KU..KP61 |
1 | ||
| 17700-13160 |
4KU..KP61 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4KJ,4KU..KP61 |
1 | ||
| 90175-06003 |
3KHJ,4KU..KP6# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13011 |
4KU..KP61 |
1 | ||
| 17705-13010 |
3KHJ,4KU..KP6# |
1 | ||
| 17705-13060 |
4KJ,4KU..KP61 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13010 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13010 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
4KJ,4KU..KP61 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13010 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-31010 |
4KJ,4KU..KP61 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-13010 |
4KJ,4KU..KP61 |
1 | ||
| 17848-24010 |
4KU..KP61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3KHJ,4KU..KP6# L=120 |
1 | ||
| 17881-26020 |
4KJ,4KU..KP61 |
1 | ||
| 17881-13050 |
4KU..KP61 L=140 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-13020 |
4KU..KP61 |
1 | ||
| 17882-13021 |
4KU..KP61 |
1 | ||
| 17882-13040 |
4KU..KP61..4F |
1 | ||
| 17882-13040 |
4KU..KP61..4F..(DLX,SE,XL) |
1 | ||
| 17882-13022 |
4K#..KP61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01023 |
4K#..KP61 |
1 | ||
| 90460-47036 |
4KU..KP61 |
1 | ||
| 53294-10030 |
4KU..KP61..4F..(DLX,SE,XL) NO.3 HOSE SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F..(DLX,SE,XL) AIR CLEANER SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F AIR CLEANER SIDE |
1 | ||
| 53294-10030 |
4KU..KP61..4F NO.3 HOSE SIDE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 17895-13010 |
4KU..KP61 |
1 | ||
| 17167-13020 |
4KU..KP61 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 17895-13010 |
4KU..KP61 |
1 | ||
| 17167-13020 |
4KU..KP61 |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13020 |
4KU..KP61 COLD SPEC |
1 | ||
| 17168-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 23285B - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KU..KP61 |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 90467-28001 | ||||
| 91651-60610 | ||||
| 92122-40814 | ||||
| 94271-00600 | ||||

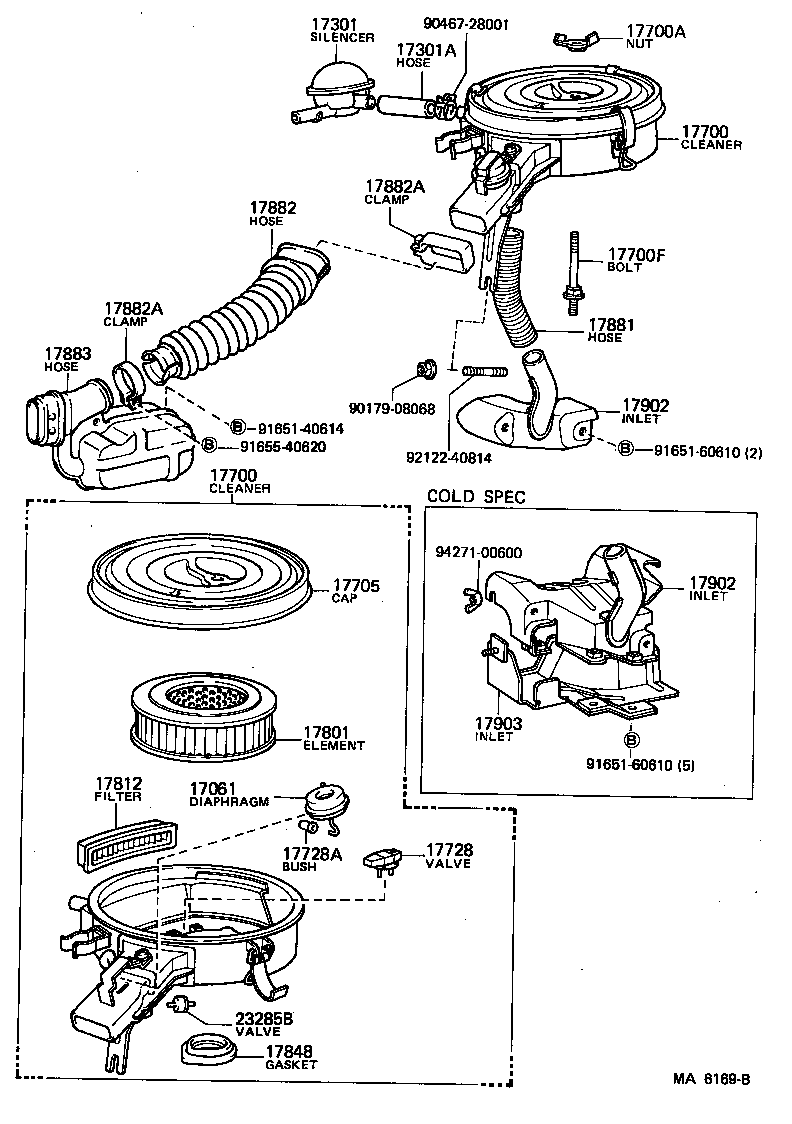

(8208-8304)4KU..4F..DLX,SE,XL ; (8304- )4KU..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
4KU..KP61 |
1 | ||
| 17061-13020 |
4KJ,4KU..KP61 |
1 | ||
| 17301 - SILENCER SUB-ASSY, AIR SUCTION | ||||
| 17301-13010 |
4KU..KP61 |
1 | ||
| 17301-13020 |
4KJ,4KU..KP61 |
1 | ||
| 17301A - HOSE(FOR AIR CLEANER TO SILENCER) | ||||
| 90910-05154 |
4KJ,4KU..KP61 |
1 | ||
| 90445-31014 |
4K#..KP61 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13022 |
4KU..KP61 |
1 | ||
| 17700-13021 |
4KU..KP61 |
1 | ||
| 17700-13291 |
4KU..KP61 |
1 | ||
| 17700-13020 |
4KU..KP61 |
1 | ||
| 17700-13023 |
4KU..KP61..MTM |
1 | ||
| 17700-13290 |
4KU..KP61 |
1 | ||
| 17700-13160 |
4KU..KP61 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13022 |
4KU..KP61 |
1 | ||
| 17700-13021 |
4KU..KP61 |
1 | ||
| 17700-13291 |
4KU..KP61 |
1 | ||
| 17700-13020 |
4KU..KP61 |
1 | ||
| 17700-13023 |
4KU..KP61..MTM |
1 | ||
| 17700-13290 |
4KU..KP61 |
1 | ||
| 17700-13160 |
4KU..KP61 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4KJ,4KU..KP61 |
1 | ||
| 90175-06003 |
3KHJ,4KU..KP6# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13011 |
4KU..KP61 |
1 | ||
| 17705-13010 |
3KHJ,4KU..KP6# |
1 | ||
| 17705-13060 |
4KJ,4KU..KP61 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-13010 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728-24011 |
4KU..KP61 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
4KJ,4KU..KP61 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13010 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-31010 |
4KJ,4KU..KP61 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-13010 |
4KJ,4KU..KP61 |
1 | ||
| 17848-24010 |
4KU..KP61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3KHJ,4KU..KP6# L=120 |
1 | ||
| 17881-26020 |
4KJ,4KU..KP61 |
1 | ||
| 17881-13050 |
4KU..KP61 L=140 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-13020 |
4KU..KP61 |
1 | ||
| 17882-13021 |
4KU..KP61 |
1 | ||
| 17882-13040 |
4KU..KP61..4F |
1 | ||
| 17882-13040 |
4KU..KP61..4F..(DLX,SE,XL) |
1 | ||
| 17882-13022 |
4K#..KP61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01023 |
4K#..KP61 |
1 | ||
| 90460-47036 |
4KU..KP61 |
1 | ||
| 53294-10030 |
4KU..KP61..4F..(DLX,SE,XL) NO.3 HOSE SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F..(DLX,SE,XL) AIR CLEANER SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F AIR CLEANER SIDE |
1 | ||
| 53294-10030 |
4KU..KP61..4F NO.3 HOSE SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01023 |
4K#..KP61 |
1 | ||
| 90460-47036 |
4KU..KP61 |
1 | ||
| 53294-10030 |
4KU..KP61..4F..(DLX,SE,XL) NO.3 HOSE SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F..(DLX,SE,XL) AIR CLEANER SIDE |
1 | ||
| 90460-01023 |
4KU..KP61..4F AIR CLEANER SIDE |
1 | ||
| 53294-10030 |
4KU..KP61..4F NO.3 HOSE SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-13010 |
4KU..KP61..4F |
1 | ||
| 17883-13010 |
4KU..KP61..4F..(DLX,SE,XL) |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 17895-13010 |
4KU..KP61 |
1 | ||
| 17167-13020 |
4KU..KP61 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 17895-13010 |
4KU..KP61 |
1 | ||
| 17167-13020 |
4KU..KP61 |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13020 |
4KU..KP61 COLD SPEC |
1 | ||
| 17168-13010 |
4KU..KP61 COLD SPEC |
1 | ||
| 23285B - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KU..KP61 |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 90467-28001 | ||||
| 91651-40614 | ||||
| 91651-60610 | ||||
| 91655-40620 | ||||
| 92122-40814 | ||||
| 94271-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
