KP61-PHHSS (1982)
Toyota Starlet

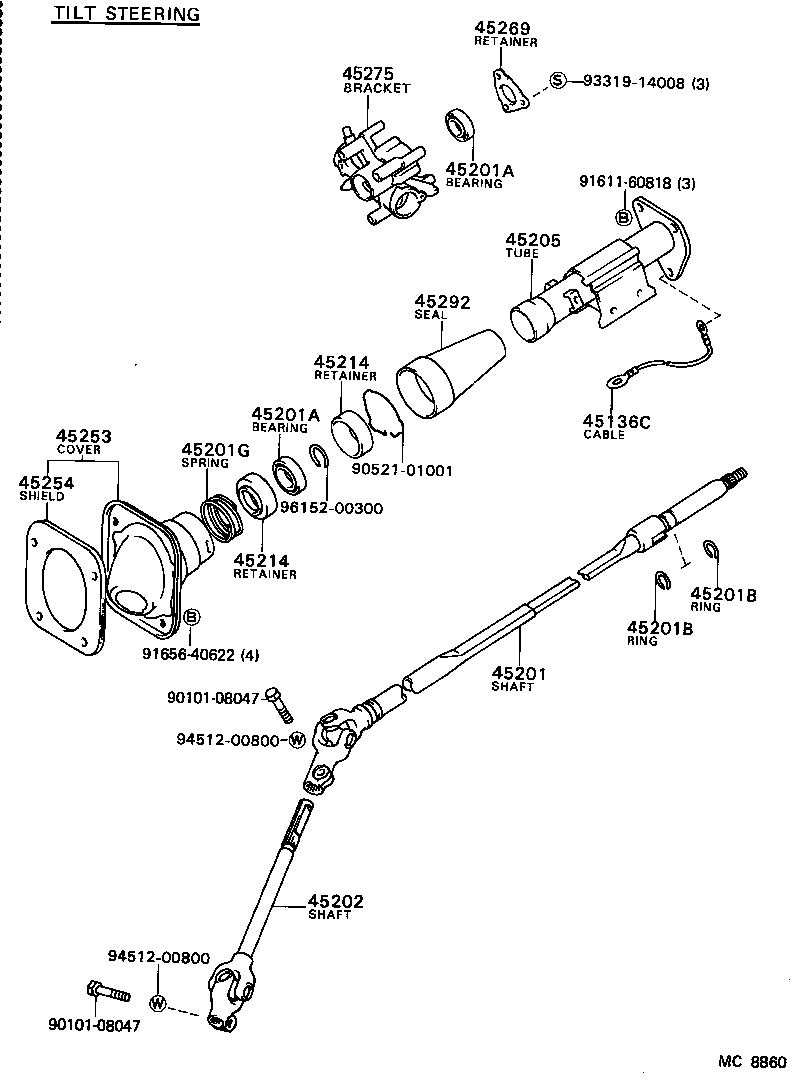

ILLUST NO. 1 OF 3(8208- )S,SE,SI ; (8208- )SED..XL..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07204 |
KP61 |
1 | ||
| 90980-07129 |
KP6# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-10041 |
KP61..SED |
1 | ||
| 45210-10020 |
KP6# COLLAPSIBLE |
1 | ||
| 45210-10040 |
KP61..SED |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
KP61 LWR |
1 | ||
| 90363-18038 |
KP6# UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
KP61 LWR |
1 | ||
| 90363-18038 |
KP6# UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP6# 厚さ=1.35−1.45,T=1.35-1.45 |
2 | ||
| 90520-17042 |
KP6# 厚さ=1.20,T=1.15-1.25 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP6# 厚さ=1.35−1.45,T=1.35-1.45 |
2 | ||
| 90520-17042 |
KP6# 厚さ=1.20,T=1.15-1.25 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
KP6# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-10010 |
KP6# |
1 | ||
| 45202-10011 |
KP61 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10110 |
KP61..S,SE,SI;KP61..SED..XL..CBR W/TILT STEERING |
1 | ||
| 45205-10030 |
KP6# COLLAPSIBLE |
1 | ||
| 45205-10070 |
KP61..SED..(DLX,DXA,S,SI,STD,XL) COLLAPSIBLE |
1 | ||
| 45205-10111 |
KP61..S,SE,SI;KP61..SED..XL..CBR W/TILT STEERING |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP6# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP6# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-10010 |
KP6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-10011 |
KP6# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KP61 |
1 | ||
| 45269-35010 |
KP61 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-10010 |
KP61 |
1 | ||
| 45275-10020 |
KP6# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
KP6# |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90521-01001 | ||||
| 91611-60818 | ||||
| 91656-40622 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||

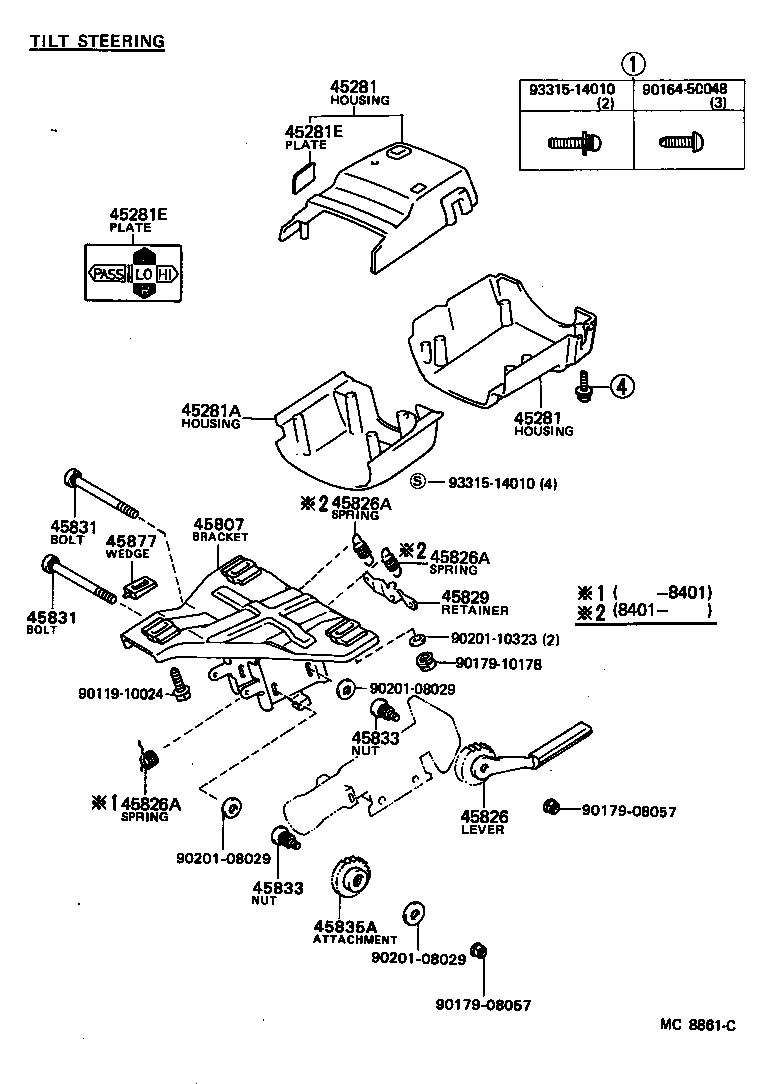

ILLUST NO. 2 OF 3(8208- )S,SE,SI ; (8208- )SED..XL..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1004005 |
KP6#..DLX,S,SE,XL LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45023-1001005 |
KP6#..DLX,S,SE,XL UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45023-1001001 |
KP6# UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1004004 |
KP6#..DLX,DXA,S,SE,XL LWR,BLUE,BLUE,TRIM2#,4#,8# |
1 | ||
| 45023-1001004 |
KP6#..DLX,DXA,S,SE,XL UPR,BLUE,BLUE,TRIM2#,4#,8# |
1 | ||
| 45023-1003001 |
KP61..S,SE,SI W/TILT STRG,UPR,BLACK,BLACK,TRIM1# |
1 | ||
| 45023-1002001 |
KP61..DLX,DXA,S,SI,STD,XL UPR,BLACK,BLACK,TRIM1# |
1 | ||
| 45287-1004001 |
KP6# LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45023-1003002 |
KP61..SE W/TILT STRG,UPR,DARK WINE,RED/MAROON,TRIM0# |
1 | ||
| 45287-1009002 |
KP61..SE W/TILT STRG,LWR,DARK WINE,RED/MAROON,TRIM0# |
1 | ||
| 45287-1006001 |
KP61..DLX,DXA,S,SI,STD,XL LWR,BLACK,BLACK,TRIM1# |
1 | ||
| 45287-1009006 |
KP61..SE W/TILT STRG,LWR,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1009001 |
KP61..S,SE,SI W/TILT STRG,LWR,BLACK,BLACK,TRIM1# |
1 | ||
| 45023-1003006 |
KP61..SE W/TILT STRG,UPR,BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1004005 |
KP6#..DLX,S,SE,XL LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45023-1001005 |
KP6#..DLX,S,SE,XL UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45023-1001001 |
KP6# UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1004004 |
KP6#..DLX,DXA,S,SE,XL LWR,BLUE,BLUE,TRIM2#,4#,8# |
1 | ||
| 45023-1001004 |
KP6#..DLX,DXA,S,SE,XL UPR,BLUE,BLUE,TRIM2#,4#,8# |
1 | ||
| 45023-1003001 |
KP61..S,SE,SI W/TILT STRG,UPR,BLACK,BLACK,TRIM1# |
1 | ||
| 45023-1002001 |
KP61..DLX,DXA,S,SI,STD,XL UPR,BLACK,BLACK,TRIM1# |
1 | ||
| 45287-1004001 |
KP6# LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45023-1003002 |
KP61..SE W/TILT STRG,UPR,DARK WINE,RED/MAROON,TRIM0# |
1 | ||
| 45287-1009002 |
KP61..SE W/TILT STRG,LWR,DARK WINE,RED/MAROON,TRIM0# |
1 | ||
| 45287-1006001 |
KP61..DLX,DXA,S,SI,STD,XL LWR,BLACK,BLACK,TRIM1# |
1 | ||
| 45287-1009006 |
KP61..SE W/TILT STRG,LWR,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1009001 |
KP61..S,SE,SI W/TILT STRG,LWR,BLACK,BLACK,TRIM1# |
1 | ||
| 45023-1003006 |
KP61..SE W/TILT STRG,UPR,BROWN,BROWN,TRIM4# |
1 | ||
| 45281A - HOUSING, STEERING COLUMN, NO.2 | ||||
| 45289-1003001 |
KP61..S,SE,SI BLACK,BLACK,TRIM1# |
1 | ||
| 45289-1003006 |
KP61..SE BROWN,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
KP6# |
1 | ||
| 45283-12010 |
KP61 |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
KP6# |
1 | ||
| 45283-12010 |
KP61 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-10010 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
1 | ||
| 45082-10011 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-10021 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
1 | ||
| 45804-10022 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
1 | ||
| 45804-10020 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-29014 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 90506-14045 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-29014 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 90506-14045 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-29014 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 90506-14045 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 45829 - RETAINER, TILT STEERING RETURN SPRING | ||||
| 45829-16020 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45832-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR LWR |
1 | ||
| 45831-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR UPR |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45832-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR LWR |
1 | ||
| 45831-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR UPR |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR UPR |
1 | ||
| 45834-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR LWR |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR UPR |
1 | ||
| 45834-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR LWR |
1 | ||
| 45835A - ATTACHMENT, TILT LEVER SERRATION | ||||
| 45835-16010 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 45835-16011 |
KP61..S,SE,SI;KP61..SED..XL..CBR |
2 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
KP6# |
1 | ||
| Common parts | ||||
| 90119-10024 | ||||
| 90164-50048 | ||||
| 90179-08057 | ||||
| 90179-10178 | ||||
| 90201-08029 | ||||
| 90201-10323 | ||||
| 93315-14010 | ||||
