KP61-PHHSS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8208- )

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16442 16443 16451 16452 16462 16463 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-13240

4KU..KP61..3FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

4K#..KP61

 1
90910-09054

3KHJ,4K#..KP6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

3KHJ,4KU..KP6#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

4K#..KP61

 1
16401-36010

4KU..KP61

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-13280

3KHJ,4KU,4KEU..KP6#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-26330

3KHJ,4K#..KP6#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-13351

4K#..KP61

 2
16443-26330

3KHJ,4K#..KP6#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-26330

3KHJ,4K#..KP6#

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-26330

3KHJ,4K#..KP6#

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-26330

3KHJ,4K#..KP6#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-26330

3KHJ,4K#..KP6#

 1
16463-13350

4K#..KP61

 1
16491 - COOLER, OIL(FOR ATM)
16491-13240

4KU..KP61..3FC

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-35080

4KU..KP61..3FC

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-15130

4KU..KP61..3FC

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-15130

4KU..KP61..3FC

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-15130

4KU..KP61..3FC

 2
16495 - NUT, FLARE(FOR ATM OIL COOLER)
16495-15130

4KU..KP61..3FC

 2

ILLUST NO. 1 OF 2(8208- )4KJ,4KU

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16363 16381 16400 16470 16470A 16470B 16470B 16470C 16471 16472 16533 16533 16571 16571A 16571A 16572 16572A 16572A 16701 9009902133 9009902134 9009902135 9011908023 9033907001 9046015001 9046713128 9161160822 9161160822 9165140612 9165640818 9166140616 9166160614 9331514010 9411540500
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-13010

3KHJ,4KU,4KJ..KP6#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-15001

3KHJ,4KU,4KJ..KP6#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-15001

3KHJ,4KU,4KJ..KP6#

 2
16331 - OUTLET, WATER
16331-13040

4K#..KP61

 1
16331-13020

3KHJ,4K#..KP6#

 1
16331A - THERMOSTAT
90916-03037

3KHJ,4KU..KP6#

*WAX 82-95,KUZEH

 1
90916-03034

3KHJ,4KU..KP6#

*WAX 82-95,*(F)

 1
90916-03036

3KHJ,4KU..KP6#

COLD SPEC,*WAX 88-100,*(F)

 1
90916-03055

4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL

*WAX 88−100,COLD SPEC,*WAX 88-100

 1
90916-03054

4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL

*WAX 82−95,*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16333-13012

4KU..KP61

 1
16341 - GASKET, WATER OUTLET
16341-13010

3KHJ,4KU..KP6#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-22010

3KHJ,4KU..KP6#

 1
16361 - FAN
16361-13040

4KU..KP61..3FC

 1
16361-13020

4KU..KP61..ATM

4 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

4KJ,4KU..KP61

L=885

 1
99521-10839

4KU..KP61

L=839

 1
99321-00870

4KJ,4KU..KP61

L=870

 1
16363 - MOTOR, COOLING FAN
16363-13060

4KU..KP61..3FC

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

3KHJ,4K#..KP6#

 1
16400 - RADIATOR ASSY
16400-13240

4KU..KP61..3FC

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-13020

4KU..KP61..S,SE,XL

W/LEVEL WARNING

 1
16480-13010

4KU..KP61..DLX,S,STD,XL

 1
16470-13020

4K#..KP61

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12073

4K#..KP61

長さ=420

 1
90445-12066

3KHJ,4KU..KP6#

長さ=770

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3KHJ,4K#..KP6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3KHJ,4K#..KP6#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-12020

4K#..KP61

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-13010

3KHJ,4KU..KP6#

 1
16405-13020

4K#..KP61

 1
16472 - HOSE, BREATHER
85338-95A01

4K#..KP61

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-13010

4K#..KP61

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-13010

4K#..KP61

 2
16571 - HOSE, RADIATOR, INLET
90916-01152

3KHJ,4KU..KP6#

 1
16572-13090

4K#..KP61

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3KHJ,4KU..KP6#

WATER OUTLET SIDE

 1
96111-10430

3KHJ,4KU..KP6#

RADIATOR SIDE

 1
90467-31001

4K#..KP61

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3KHJ,4KU..KP6#

WATER OUTLET SIDE

 1
96111-10430

3KHJ,4KU..KP6#

RADIATOR SIDE

 1
90467-31001

4K#..KP61

 2
16572 - HOSE, RADIATOR, OUTLET
16571-13010

3KHJ,4KU..KP6#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

3KHJ,4K#..KP6#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

3KHJ,4K#..KP6#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-13180

4KU..KP61..3FC

 1
Common parts
90099-02133
90099-02134
90099-02135
90119-08023
90339-07001
90460-15001
90467-13128
91611-60822
91651-40612
91656-40818
91661-40616
91661-60614
93315-14010
94115-40500

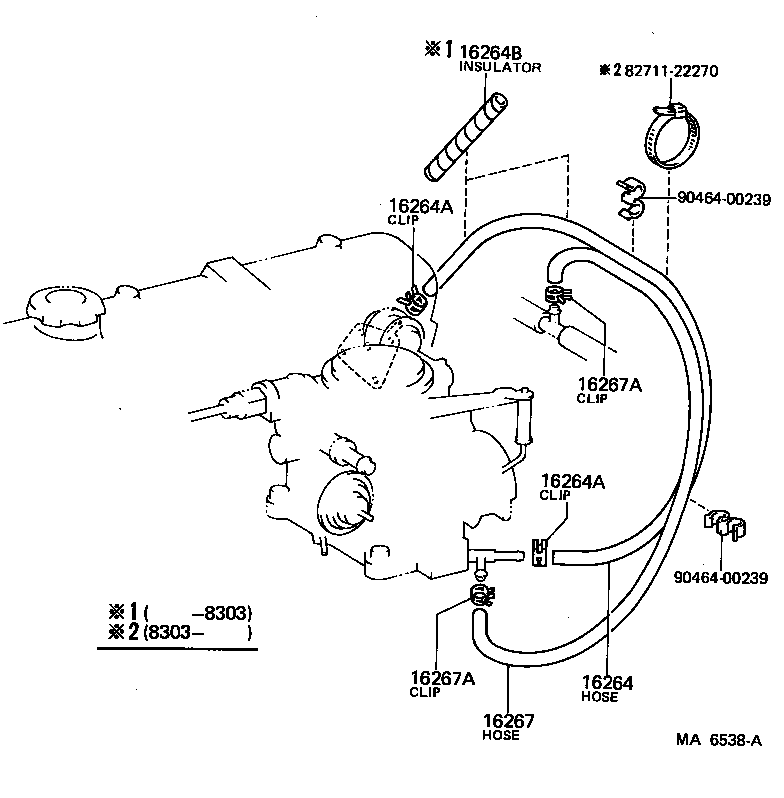

(8301- )4KU

Click highlighted areas on diagram

diagram 16264 16264A 16264A 16264B 16267 16267A 16267A 8271122270 9046400239 9046400239
Part # Description Qty Price
16264 - HOSE, WATER BY-PASS, NO.2
99553-00500

4KU..KP61

 1
90447-12042

4KU..KP61

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

4KU..KP61

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

4KU..KP61

 2
16264B - INSULATOR(FOR WATER BY-PASS HOSE)
88714-10010

4KU..KP61

 2
16267 - HOSE, WATER BY-PASS, NO.3
90445-12131

4KU..KP61

 1
99553-00500

4KU..KP61

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

4KU..KP61

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

4KU..KP61

 2
Common parts
82711-22270
90464-00239
