KP61-PHHGS (1981)
Toyota Starlet
(8208- )

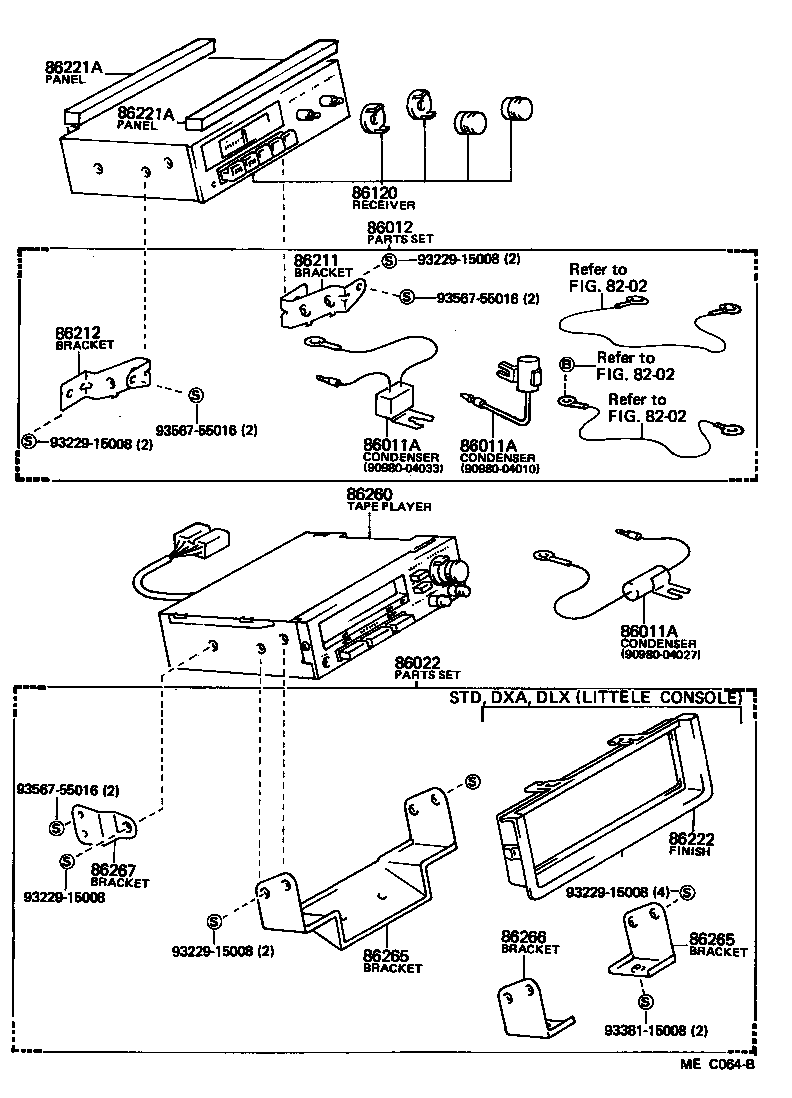

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04027 |
KP6# CONNECTOR : PLUG&(O),TEN |
1 | ||
| 90980-04010 |
KP6# CONNECTOR : PLUG |
1 | ||
| 90980-04033 |
KP61 CONNECTOR: PLUG&(O),MATSUSHITA |
1 | ||
| 90980-04010 |
KP61..CBR CONNECTOR : PLUG |
1 | ||
| 86012 - PARTS SET, RADIO SETTING | ||||
| 86012-19035 |
KP61 |
1 | ||
| 86022 - PARTS SET, TAPE PLAYER SETTING | ||||
| 86022-19036 |
KP61..SED..(S,SE,XL) TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19036 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86022-19145 |
KP61..SED..(S,SE,XL) TYPE 2 |
1 | ||
| 86022-19145 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86022-19215 |
KP61..S,SE,SI,XL |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14470 |
KP61..SED..(DLX,S,SE,SI,XL) AM/FM,W/4-SPEAKER |
1 | ||
| 86120-10070 |
KP61 AM/FM |
1 | ||
| 86120-10230 |
KP61..S,SE,SI FUJITSU TEN,AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-10150 |
KP61 AM/FM & CASSETTE TAPE,TEN |
1 | ||
| 86120-14440 |
KP61..SED..(S,SE,SI,XL) AM/FM |
1 | ||
| 86120-14421 |
KP61 AM |
1 | ||
| 86120-10060 |
KP6# AM |
1 | ||
| 86120-14420 |
KP61 AM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-10060 |
KP61 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-10050 |
KP61 |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-12020 |
KP61 AM,AM/FM |
2 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-12020 |
KP61 AM,AM/FM |
2 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16020 |
KP6# |
1 | ||
| 86260-16020 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86260-95700 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86260-14180 |
KP61..SED..(DLX,S,SE,SI,XL) W/4-SPEAKER |
1 | ||
| 86260-95700 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86260-14170 |
KP61 W/2-SPEAKER |
1 | ||
| 86260-16020 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-10080 |
KP61 |
1 | ||
| 86265-10081 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10081 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86265-10090 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86265-10100 |
KP61..S,SE,SI,XL |
1 | ||
| 86265-10090 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86266-10120 |
KP61 |
1 | ||
| 86266-10130 |
KP62;KP61..S,SE,XL TYPE 2 |
1 | ||
| 86266-10130 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2 |
1 | ||
| 86266-10121 |
KP62;KP61..S,SE,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86266-10121 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 1,EXCL/XL-L |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86201-10010 |
KP62;KP61..S,SE,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86201-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL TYPE 2,STEREO COMPONENT |
1 | ||
| 86268-10010 |
KP61 |
1 | ||
| 86268-10020 |
KP61 |
1 | ||
| Common parts | ||||
| 90980-04010 | ||||
| 90980-04027 | ||||
| 90980-04033 | ||||
| 93229-15008 | ||||
| 93381-15008 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
