KP61-PHHGS (1981)
Toyota Starlet
Production
Aug 1981
-
Sep 1984
Engine
4KU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

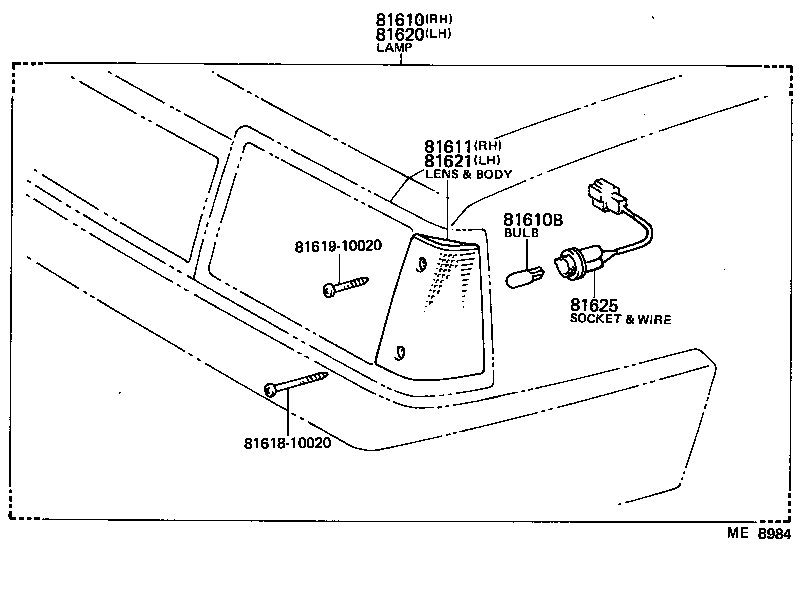

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-10020 |
KP61 |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
KP61 12V 5W,12V 5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-10020 |
KP61 |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-10010 |
KP61 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-10010 |
KP61 |
1 | ||
| 81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP | ||||
| 81615-10020 |
KP61 |
1 | ||
| Common parts | ||||
| 81618-10020 | ||||
| 81619-10020 | ||||
