KP61-PHHDS (1981)

Toyota Starlet

Production Aug 1981 - Aug 1982
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

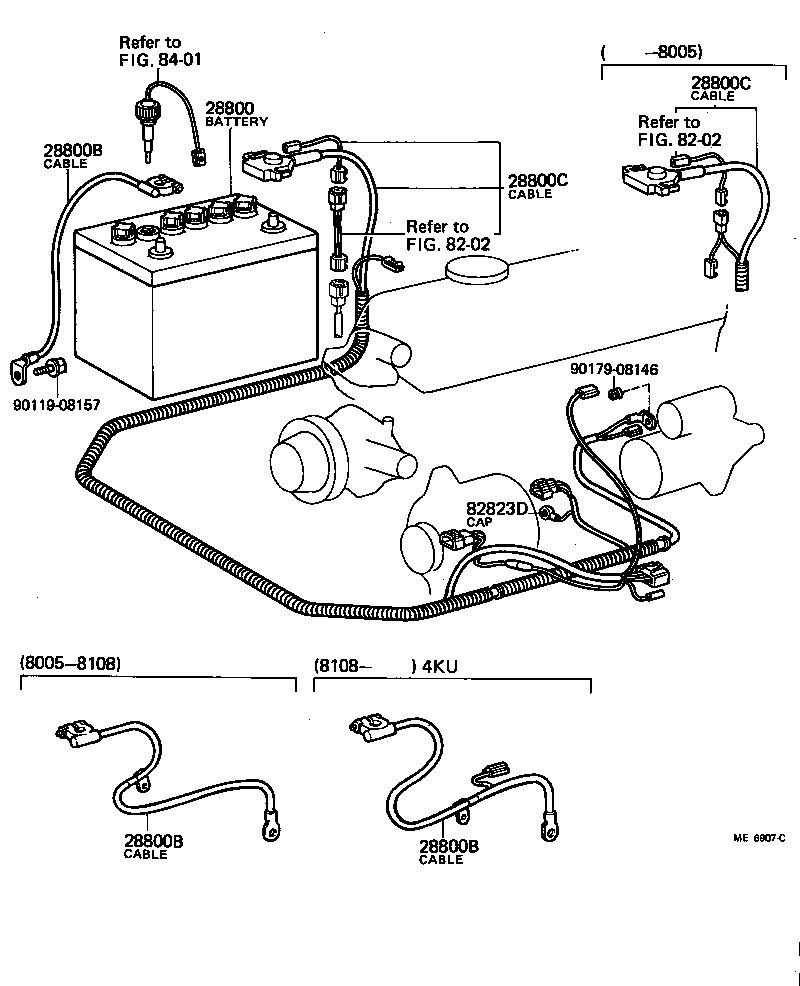

Click highlighted areas on diagram

diagram 28800 28800B 28800B 28800B 28800C 28800C 8202 8202 82823D 8401 9011908157 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-50010

3KHJ,4KU..KP6#

46B24L,NS60L(12V 45AH-20HR)

 1
28800-10021

3KHJ,4KU..KP6#

NS40L(12V 30AH-20HR)

 1
28800B - CABLE, BATTERY TO GROUND
90982-02148

3KHJ,4KU..KP6#

 1
82046-10050

4KU..KP61

 1
28800B - CABLE, BATTERY TO GROUND
90982-02148

3KHJ,4KU..KP6#

 1
82046-10050

4KU..KP61

 1
28800B - CABLE, BATTERY TO GROUND
90982-02148

3KHJ,4KU..KP6#

 1
82046-10050

4KU..KP61

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82250-10122

4KU..KP61..4F..DXA;4KU..KP61..DLX,S,SE,STD,XL

 1
82250-10162

4KU..KP61

COLD SPEC

 1
82250-10120

3KHJ,4KU..KP6#

 1
82250-10160

4KU..KP61

COLD SPEC

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82250-10122

4KU..KP61..4F..DXA;4KU..KP61..DLX,S,SE,STD,XL

 1
82250-10162

4KU..KP61

COLD SPEC

 1
82250-10120

3KHJ,4KU..KP6#

 1
82250-10160

4KU..KP61

COLD SPEC

 1
Common parts
90119-08157
90179-08146
Linked diagrams
8202
8401
