KP61-PHHDS (1981)

Toyota Starlet

Production Aug 1981 - Aug 1982
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )3FC

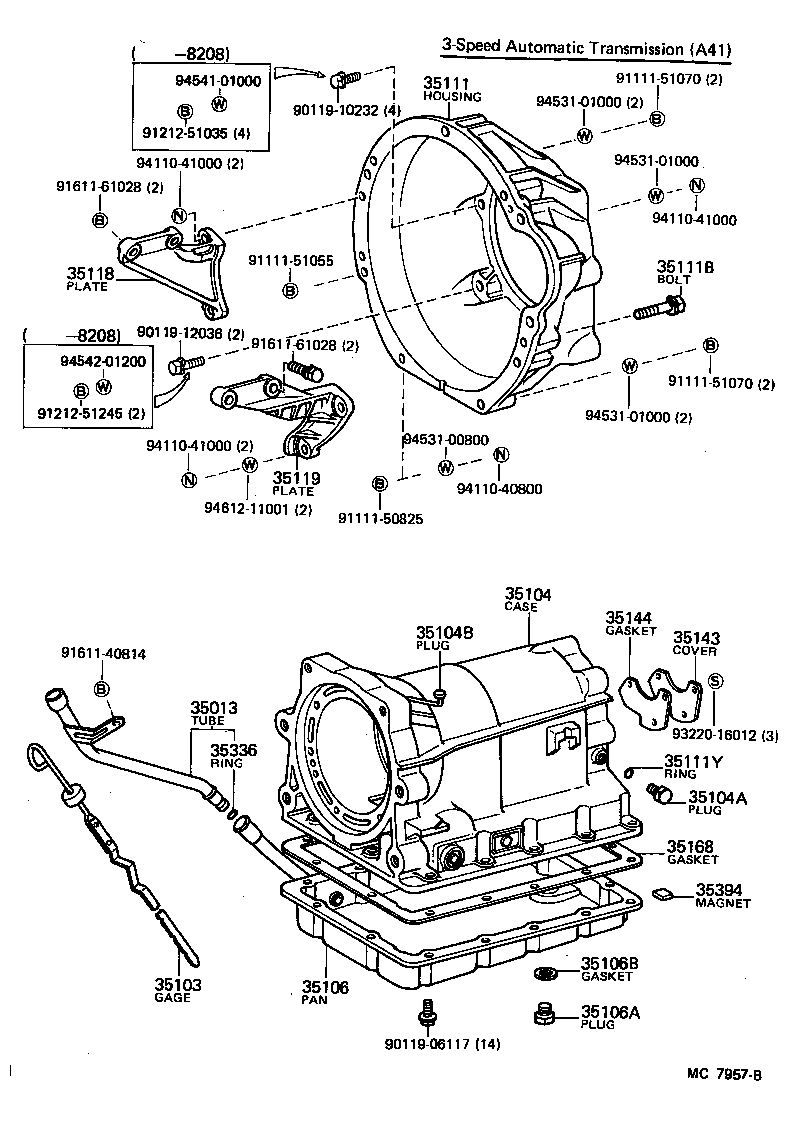

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111B 35111Y 35118 35119 35143 35144 35168 35336 35394 9011906117 9011910232 9011912036 9111150825 9111151055 9111151070 9111151070 9121251035 9121251245 9161140814 9161161028 9161161028 9322016012 9411040800 9411041000 9411041000 9411041000 9453100800 9453101000 9453101000 9453101000 9454101000 9454201200 9461211001
Part # Description Qty Price
35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)
90119-12004

KP61..ATM

 4
35118 - PLATE, STIFENER, RH (ATM)
33118-12050

KP61..ATM

W/AIR CONDITIONING

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-12021

KP61..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

KP61..ATM

 1
Common parts
90119-06117
90119-10232
90119-12036
91111-50825
91111-51055
91111-51070
91212-51035
91212-51245
91611-40814
91611-61028
93220-16012
94110-40800
94110-41000
94531-00800
94531-01000
94541-01000
94542-01200
94612-11001
