KP61-PHHDS (1981)
Toyota Starlet
Production
Aug 1981
-
Aug 1982
Engine
4KU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )4KU

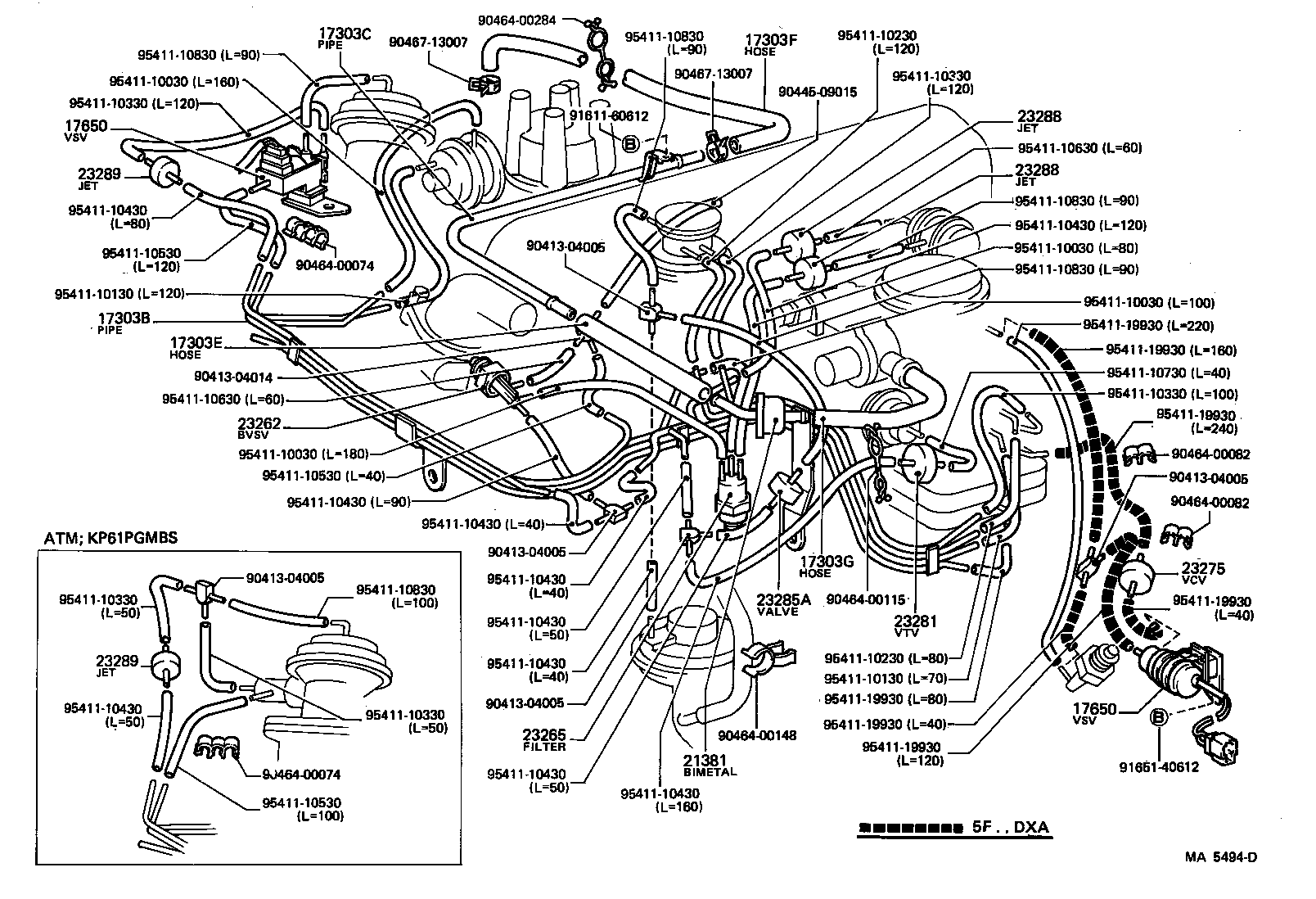

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05043 |
4KU..KP61 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4KU..KP61 |
1 | ||
| 90917-11022 |
4KU..KP61 HOT AIR INTAKE,COLD SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
4KU..KP61 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KU..KP61 HOT AIR INTAKE,COLD SPEC |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
4KU..KP61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
4KU..KP61 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90413-04014 | ||||
| 90445-09015 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00115 | ||||
| 90464-00148 | ||||
| 90464-00284 | ||||
| 90467-13007 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10730 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
