KP61-PHCNS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

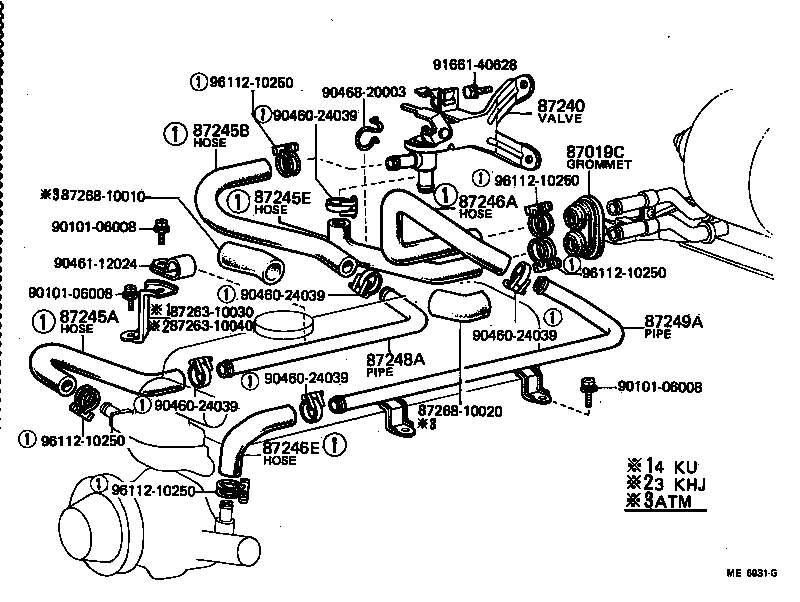

ILLUST NO. 1 OF 2(7802-8208)

Click highlighted areas on diagram

diagram 87019C 87240 87245A 87245B 87245E 87246A 87246E 87248A 87249A 8726310030 8726310040 8726810010 8726810020 9010106008 9010106008 9010106008 9046024039 9046024039 9046024039 9046024039 9046024039 9046112024 9046820003 9166140628 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01067

KP6#

 1
87240 - VALVE ASSY, HEATER WATER
87240-10091

KP6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KP6#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-10123

KP6#

 1
87245-10121

KP6#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-10091

KP6#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-10112

KP6#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-10101

KP6#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-10093

KP6#

 1
87248-10091

KP6#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-10081

KP6#

 1
Common parts
87263-10030
87263-10040
87268-10010
87268-10020
90101-06008
90460-24039
90461-12024
90468-20003
91661-40628
96112-10250

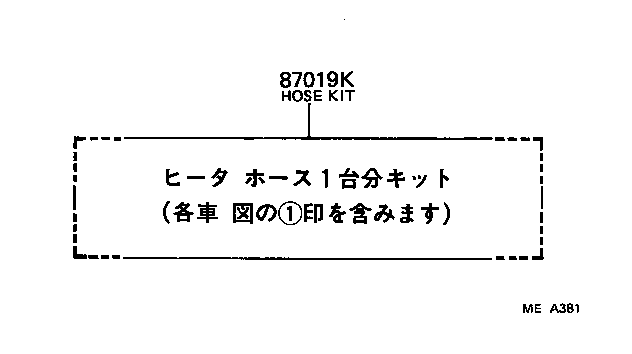

ILLUST NO. 2 OF 2(7802-8208)

Click highlighted areas on diagram

diagram 87019K
Part # Description Qty Price
87019K - HOSE KIT, HEATER
87019-10150

KP6#

 1
