KP61-PHCNS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1981
Engine
4KU
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

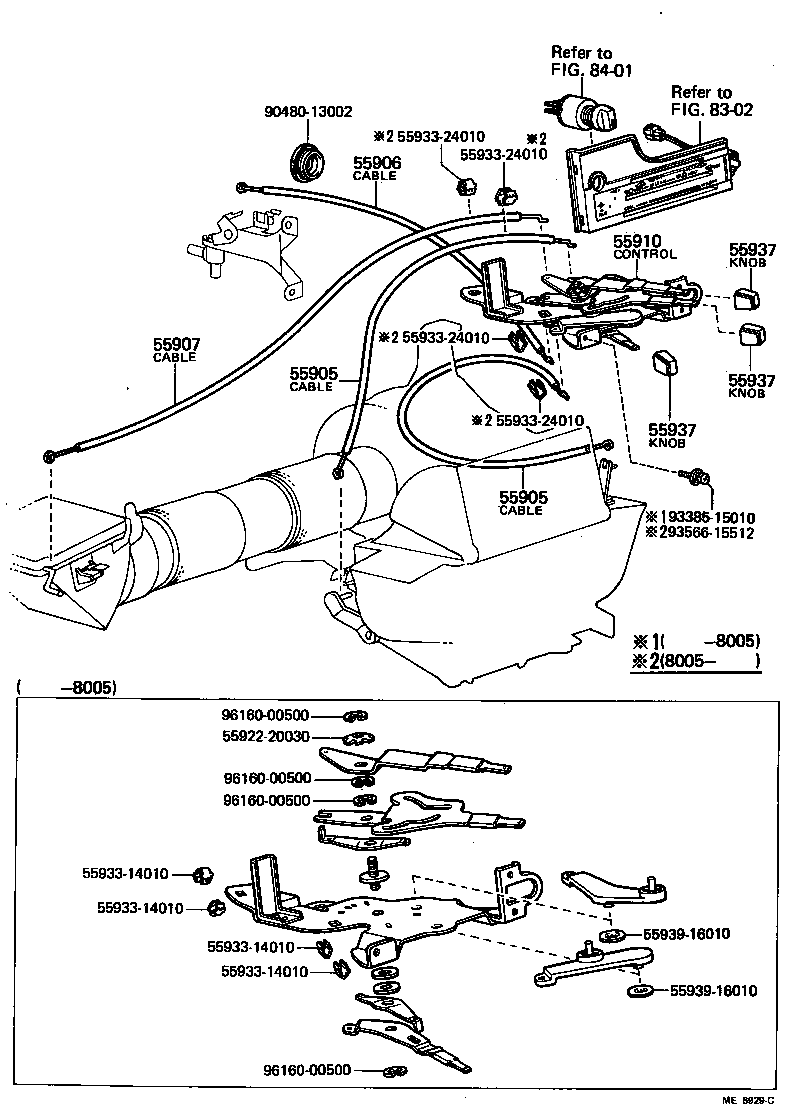

ILLUST NO. 1 OF 2(7802-8208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55906-10100 |
KP6# L=560 |
1 | ||
| 55909-10030 |
KP6# L=670 |
1 | ||
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55906-10100 |
KP6# L=560 |
1 | ||
| 55909-10030 |
KP6# L=670 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55907-10040 |
KP6# L=465 |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55908-10040 |
KP6# L=790 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-10920 |
KP6# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22050 |
KP6# |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22050 |
KP6# |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22050 |
KP6# |
3 | ||
| Common parts | ||||
| 55922-20030 | ||||
| 55933-14010 | ||||
| 55933-24010 | ||||
| 55939-16010 | ||||
| 90480-13002 | ||||
| 93385-15010 | ||||
| 93566-15512 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

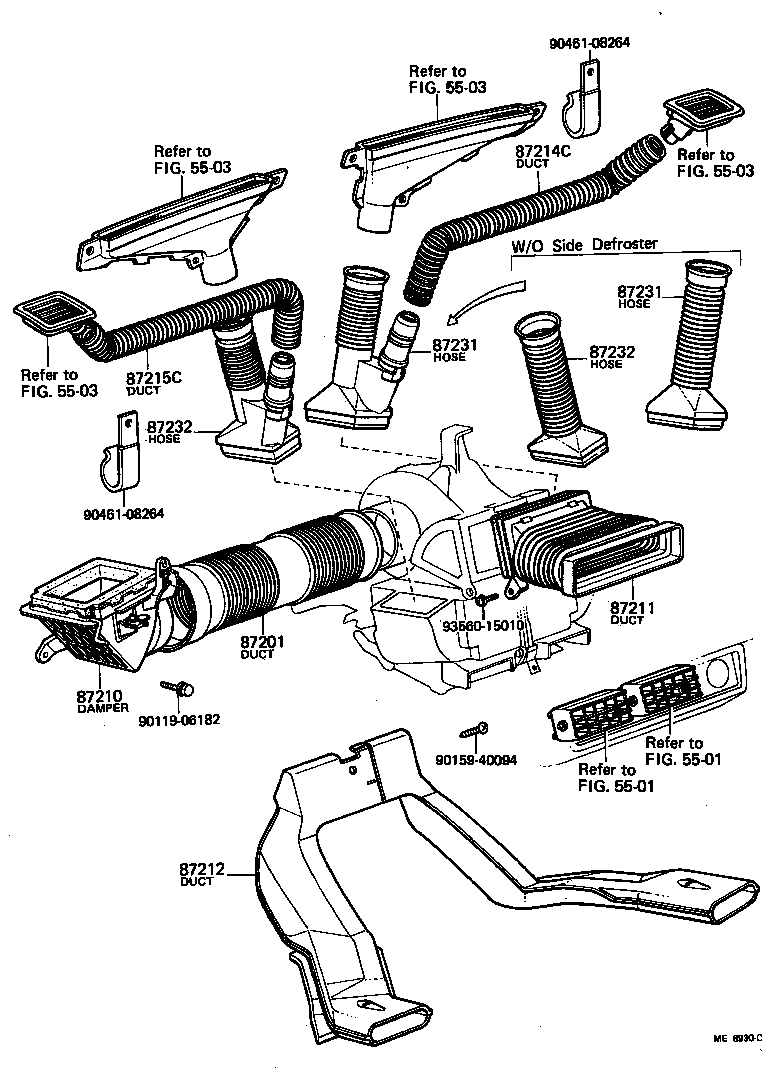

ILLUST NO. 2 OF 2(7802-8005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-10070 |
KP6# |
1 | ||
| 87211-10070 |
KP6# HEAVY DUTY |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-10010 |
KP6# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 55086-10010 |
KP6# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-10020 |
KP61 |
1 | ||
| 87202-10010 |
KP6# |
1 | ||
| 87214C - DUCT, AIR, SIDE NO.4 RH | ||||
| 55971-10020 |
KP6# |
1 | ||
| 87215C - DUCT, AIR, SIDE NO.4 LH | ||||
| 55971-10020 |
KP6# |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87232-10110 |
KP6# W/SIDE DEFROSTER |
1 | ||
| 87231-12051 |
KP6#..DLX,STD,XL |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87232-10110 |
KP6# W/SIDE DEFROSTER |
1 | ||
| 87231-12051 |
KP6#..DLX,STD,XL |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-10110 |
KP6# W/SIDE DEFROSTER |
1 | ||
| 87231-12051 |
KP61..STD,XL |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-10110 |
KP6# W/SIDE DEFROSTER |
1 | ||
| 87231-12051 |
KP61..STD,XL |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90159-40094 | ||||
| 90461-08264 | ||||
| 93560-15010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 5503 | ||||
