KP61-PHCGS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

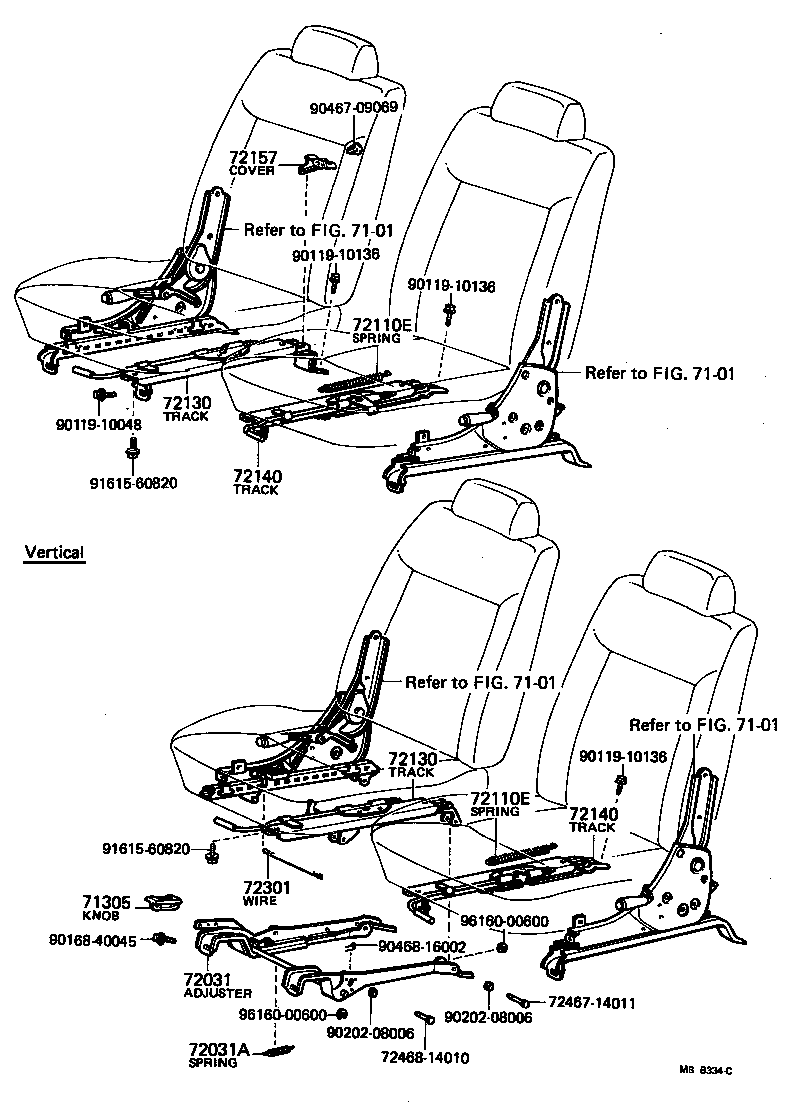

Click highlighted areas on diagram

diagram 7101 7101 7101 7101 71305 72031 72031A 72110E 72110E 72130 72130 72140 72140 72157 72301 7246714011 7246814010 9011910048 9011910136 9011910136 9011910136 9016840045 9020208006 9020208006 9046709069 9046816002 9161560820 9161560820 9616000600 9616000600
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1401014

KP61..S,SE,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
72457-1401026

KP61..S,SE,XL

LIGHT BROWN,BROWN,TRIM0#,4#

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-10010

KP61..S,SE,XL

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-10080

KP6#

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-10080

KP6#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-10090

KP6#..4D,5D

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-10090

KP6#..4D,5D

 1
Common parts
72467-14011
72468-14010
90119-10048
90119-10136
90168-40045
90202-08006
90467-09069
90468-16002
91615-60820
96160-00600
Linked diagrams
7101
