KP61-PHCGS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )SED

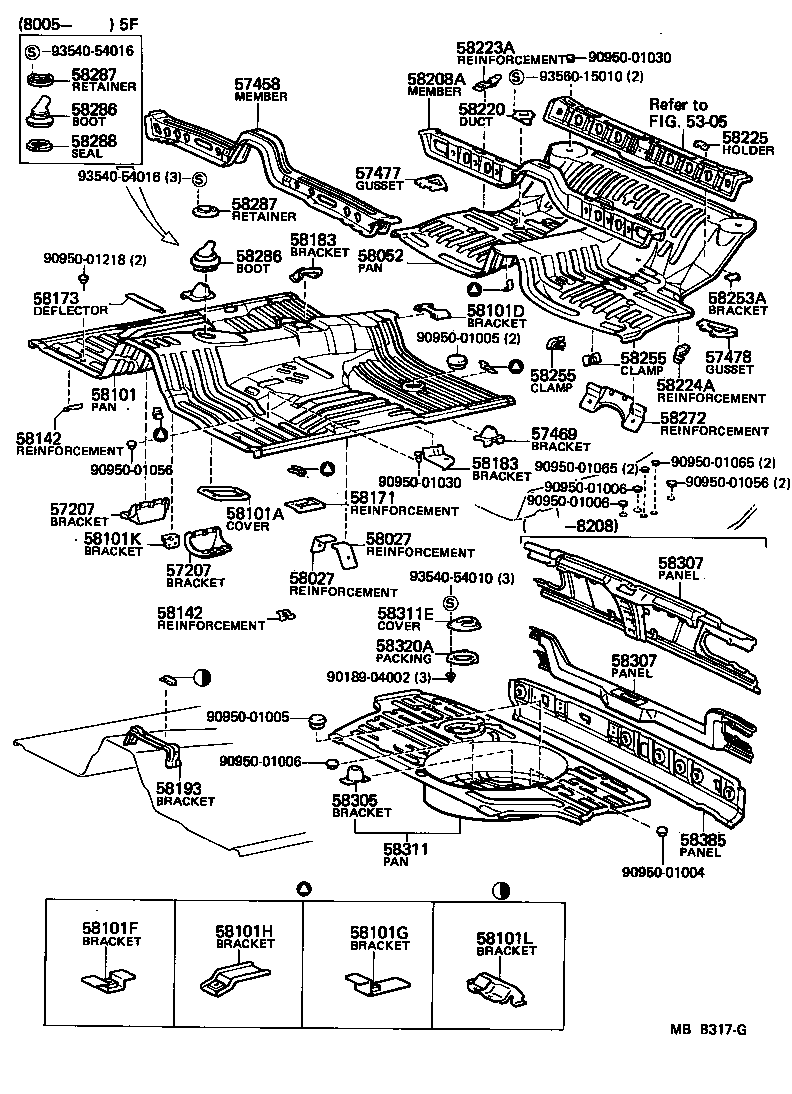

Click highlighted areas on diagram

diagram 5305 57207 57207 57458 57469 57477 57478 58027 58027 58052 58101 58101A 58101D 58101F 58101G 58101H 58101K 58101L 58142 58142 58171 58173 58183 58183 58193 58208A 58220 58223A 58224A 58225 58253A 58255 58255 58272 58286 58286 58287 58287 58288 58305 58307 58307 58311 58311E 58320A 58385 9018904002 9095001004 9095001005 9095001005 9095001006 9095001006 9095001006 9095001030 9095001030 9095001056 9095001056 9095001065 9095001065 9095001218 9354054010 9354054016 9354054016 9356015010
Part # Description Qty Price
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-10020

KP61

LH

 1
57207-10010

KP6#

RH

 1
57208-10021

KP61

LH

 1
57207-10011

KP6#

RH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-10020

KP61

LH

 1
57207-10010

KP6#

RH

 1
57208-10021

KP61

LH

 1
57207-10011

KP6#

RH

 1
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57451-10030

KP6#

 1
57451-10031

KP6#

 1
57408-10020

KP6#

 1
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-10010

KP6#

RH

 1
57469-10010

KP6#

LH

 1
57477 - GUSSET, REAR SEAT, RH
57477-10020

KP61..5D

 1
57478 - GUSSET, REAR SEAT, LH
57478-10020

KP61..5D

 1
58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58161-10020

KP6#

 2
58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58161-10020

KP6#

 2
58052 - PAN SUB-ASSY, CENTER FLOOR
58211-10110

KP61

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-10051

KP61..2FC

 1
58111-10050

KP61..2FC

 1
58101A - COVER, TRANSMISSION AUXILIARY
58121-10020

KP61..2FC

 1
58101D - BRACKET, PARKING BRAKE CABLE GUIDE
58264-10020

KP6#

 1
58101F - BRACKET, MOUNTING, FLOOR, NO.1
58236-14010

KP61

 3
58101G - BRACKET, MOUNTING, FLOOR, NO.2
58131-10010

KP61

 1
58101H - BRACKET, MOUNTING, FLOOR, NO.3
58132-10010

KP61

 2
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-10020

KP6#

 2
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-10020

KP6#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-12030

KP6#

 1
58173 - DEFLECTOR, FRONT FLOOR STONE
58173-10020

KP6#

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-10030

KP6#

LH

 1
58183-10030

KP6#

RH

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-10030

KP6#

LH

 1
58183-10030

KP6#

RH

 1
58208A - MEMBER, CENTER FLOOR CROSS, NO.1
57461-10021

KP61

 1
58220 - DUCT ASSY, CENTER FLOOR VENT
58220-10010

KP61..SED

 1
58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH
58213-10010

KP61..SED

 1
58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH
58214-10010

KP61..SED

 1
58225 - HOLDER, REAR SEAT CUSHION
58225-10010

KP61..SED

 2
58253A - BRACKET, PARKING CABLE CLAMP
58253-10020

KP61

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58207-10060

KP61..SED

RH

 1
58208-10080

KP61..SED

LH

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58207-10060

KP61..SED

RH

 1
58208-10080

KP61..SED

LH

 1
58272 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58270-10010

KP61..SED

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

KP61..SED

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-10160

KP61..S,SE,XL

W/BIG TYPE BUMPER

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-10160

KP61..S,SE,XL

W/BIG TYPE BUMPER

 1
58311 - PAN, REAR FLOOR
58301-10070

KP61

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-10010

KP61..SED

 1
58320A - PACKING, REAR FLOOR SERVICE HOLE
58339-10020

KP61..SED

 1
58385 - PANEL, REAR VALANCE
58308-10020

KP61

 1
Common parts
90189-04002
90950-01004
90950-01005
90950-01006
90950-01030
90950-01056
90950-01065
90950-01218
93540-54010
93540-54016
93560-15010
Linked diagrams
5305
