KP61-PHCDS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )4D,5D

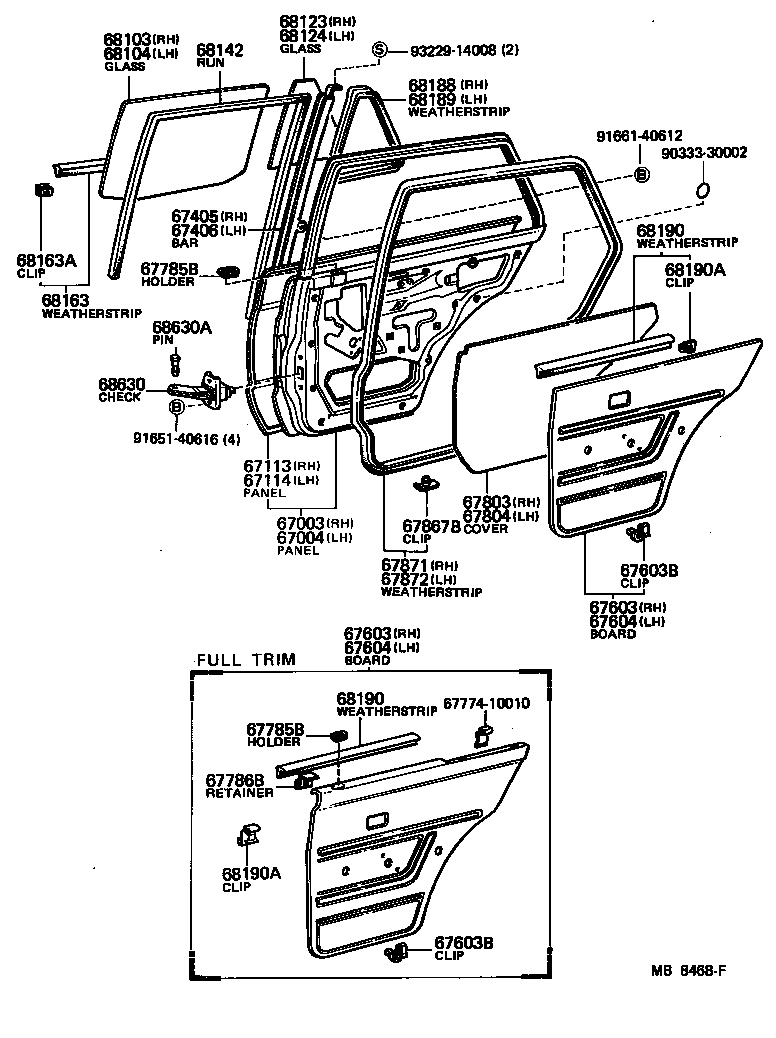

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67405 67406 67603 67603 67603B 67603B 67604 67604 6777410010 67785B 67785B 67786B 67803 67804 67867B 67871 67872 68103 68104 68123 68124 68142 68163 68163A 68188 68189 68190 68190 68190A 68190A 68630 68630A 9033330002 9165140616 9166140612 9322914008
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-10020

KP61..5D

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-10020

KP61..5D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-10020

KP6#..4D,5D

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-10020

KP6#..4D,5D

 1
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-10031

KP61..5D..SE

 1
67407-10030

KP61..5D..(DLX,S,XL)

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-10030

KP61..5D..(DLX,S,XL)

 1
67408-10031

KP61..5D..SE

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1005006

KP61..5D..(SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1006006

KP6#..(4D,5D)..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1007006

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1006004

KP6#..(4D,5D)..DLX

BLUE,BLUE,TRIM8#

 1
67630-1006001

KP6#..(4D,5D)..(DLX,STD)

BLACK,BLACK,TRIM2#

 1
67630-1006004

KP61..5D..DLX

BLUE,BLUE,TRIM8#

 1
67630-1007001

KP61..5D..S

BLACK,BLACK,TRIM2#

 1
67630-1005004

KP61..5D..(SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 1
67630-1007004

KP61..5D..S

BLUE,BLUE,TRIM8#

 1
67630-1005001

KP61..5D..(SE,XL)

BLACK,BLACK,TRIM2#

 1
67630-1007016

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1005006

KP61..5D..(SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1006006

KP6#..(4D,5D)..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1007006

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1006004

KP6#..(4D,5D)..DLX

BLUE,BLUE,TRIM8#

 1
67630-1006001

KP6#..(4D,5D)..(DLX,STD)

BLACK,BLACK,TRIM2#

 1
67630-1006004

KP61..5D..DLX

BLUE,BLUE,TRIM8#

 1
67630-1007001

KP61..5D..S

BLACK,BLACK,TRIM2#

 1
67630-1005004

KP61..5D..(SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 1
67630-1007004

KP61..5D..S

BLUE,BLUE,TRIM8#

 1
67630-1005001

KP61..5D..(SE,XL)

BLACK,BLACK,TRIM2#

 1
67630-1007016

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-11008

KP6#

 24
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-11008

KP6#

 24
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1006006

KP6#..(4D,5D)..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1006004

KP6#..(4D,5D)..DLX

BLUE,BLUE,TRIM8#

 1
67640-1005004

KP61..5D..(SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 1
67640-1006001

KP6#..(4D,5D)..(DLX,STD)

BLACK,BLACK,TRIM2#

 1
67640-1005006

KP61..5D..(SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1007006

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1005001

KP61..5D..(SE,XL)

BLACK,BLACK,TRIM2#

 1
67640-1007016

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1006004

KP61..5D..DLX

BLUE,BLUE,TRIM8#

 1
67640-1007001

KP61..5D..S

BLACK,BLACK,TRIM2#

 1
67640-1007004

KP61..5D..S

BLUE,BLUE,TRIM8#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1006006

KP6#..(4D,5D)..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1006004

KP6#..(4D,5D)..DLX

BLUE,BLUE,TRIM8#

 1
67640-1005004

KP61..5D..(SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 1
67640-1006001

KP6#..(4D,5D)..(DLX,STD)

BLACK,BLACK,TRIM2#

 1
67640-1005006

KP61..5D..(SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1007006

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1005001

KP61..5D..(SE,XL)

BLACK,BLACK,TRIM2#

 1
67640-1007016

KP61..5D..S

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1006004

KP61..5D..DLX

BLUE,BLUE,TRIM8#

 1
67640-1007001

KP61..5D..S

BLACK,BLACK,TRIM2#

 1
67640-1007004

KP61..5D..S

BLUE,BLUE,TRIM8#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-20030

KP61..5D..(DLX,S)

 2
69751-20040

KP61..5D..(SE,XL)

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-20030

KP61..5D..(DLX,S)

 2
69751-20040

KP61..5D..(SE,XL)

 2
67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67786-10010

KP61..5D..(SE,XL)

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-10020

KP6#..4D,5D

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841-10020

KP6#..4D,5D

 1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868-30040

KP6#..4D,5D

 36
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-10030

KP61..5D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-10030

KP61..5D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-10030

KP61..5D

*TT,T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-10030

KP61..5D

*TT,T=4.0

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-10030

KP61..5D

*TT,T=4.0

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-10030

KP61..5D

*TT,T=4.0

 1
68142 - RUN, REAR DOOR GLASS
68142-10020

KP61..5D

L=1828

 2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68180-10050

KP61..5D..(DLX,S,XL)

RH

 1
68230-10010

KP61..5D..(DLX,S,XL)

LH

 1
68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68211-10030

KP61..5D..(DLX,S,XL)

 8
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-10020

KP61..5D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-10020

KP61..5D

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68240-10010

KP61..5D..(DLX,S,SI)

LH

 1
68240-10020

KP61..5D..(SE,XL)

LH

 1
68190-10030

KP61..5D..(DLX,S,SI)

RH

 1
68190-10040

KP61..5D..(SE,XL)

RH

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68240-10010

KP61..5D..(DLX,S,SI)

LH

 1
68240-10020

KP61..5D..(SE,XL)

LH

 1
68190-10030

KP61..5D..(DLX,S,SI)

RH

 1
68190-10040

KP61..5D..(SE,XL)

RH

 1
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
67773-10010

KP61..5D..(SE,XL)

 8
68211-10030

KP61..5D..(DLX,S,SI)

 8
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
67773-10010

KP61..5D..(SE,XL)

 8
68211-10030

KP61..5D..(DLX,S,SI)

 8
68630 - CHECK ASSY, REAR DOOR
68630-10010

KP6#..4D,5D

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-22010

KP6#..4D,5D

 2
Common parts
67774-10010
90333-30002
91651-40616
91661-40612
93229-14008
