KP61-PHCDS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1981
Engine
4KU
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7802-8108)2FC

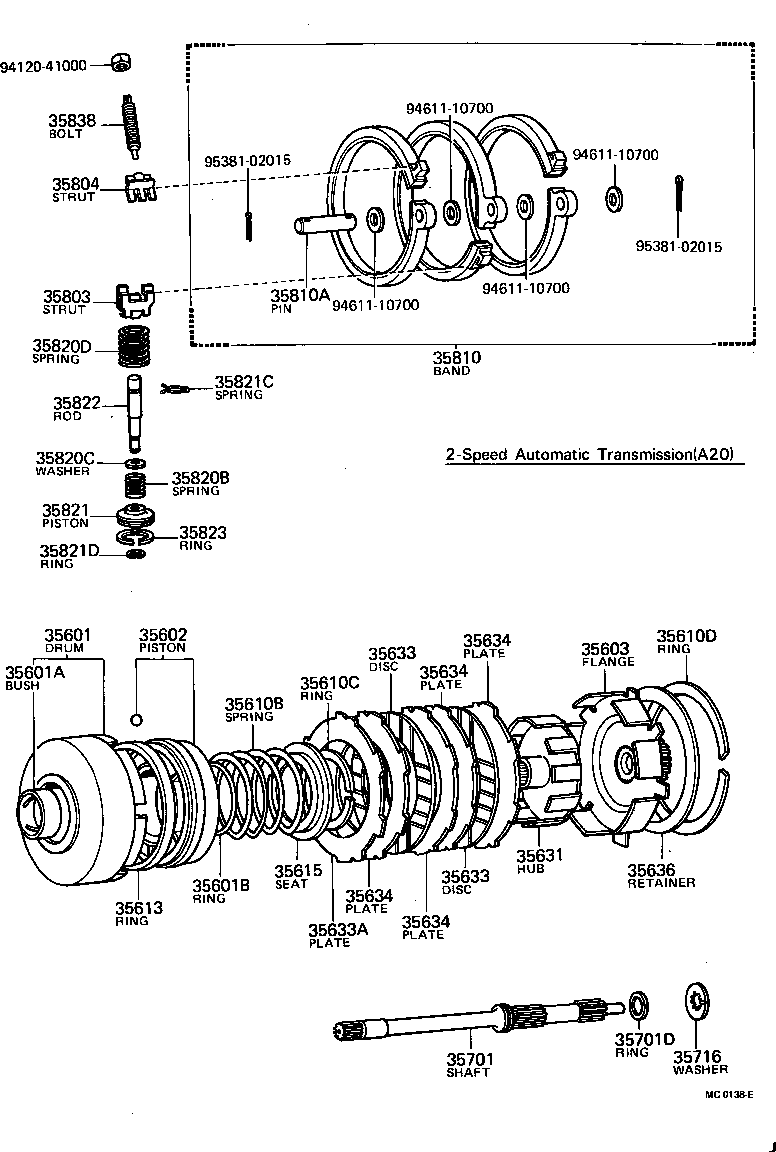

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35601 - DRUM SUB-ASSY, CLUTCH | ||||
| 35601-12010 |
KP61..2FC |
1 | ||
| 35601A - BUSH, BIMETAL FORMED (FOR CLUTCH DRUM) | ||||
| 90999-73038 |
KP61..2FC |
1 | ||
| 35601B - RING, O (FOR FRONT CLUTCH DRUM) | ||||
| 90301-47100 |
KP61..2FC |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-12020 |
KP61..2FC |
1 | ||
| 35603 - FLANGE SUB-ASSY, CLUTCH, W/LOW SUN GEAR | ||||
| 35603-12010 |
KP61..2FC |
1 | ||
| 35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) | ||||
| 90501-55620 |
KP61..2FC |
1 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-52077 |
KP61..2FC |
1 | ||
| 35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) | ||||
| 90521-99093 |
KP61..2FC |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 35653-30010 |
KP61..2FC |
1 | ||
| 35615 - SEAT, CLUTCH PISTON RETURN SPRING | ||||
| 35615-12010 |
KP61..2FC |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-12011 |
KP61..2FC |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-12011 |
KP61..2FC |
2 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-12011 |
KP61..2FC |
2 | ||
| 35633A - PLATE, FRONT CLUTCH CUSHION | ||||
| 35672-12010 |
KP61..2FC |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-12010 |
KP61..2FC |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-12010 |
KP61..2FC |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-12010 |
KP61..2FC |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-12010 |
KP61..2FC |
4 | ||
| 35636 - RETAINER, CLUTCH FLANGE | ||||
| 35636-12010 |
KP61..2FC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35711-12010 |
KP61..2FC |
1 | ||
| 35701D - RING (FOR INPUT SHAFT) | ||||
| 35712-12010 |
KP61..2FC |
1 | ||
| 35716 - WASHER, LOW SUN GEAR THRUST, NO.1 | ||||
| 35717-12010 |
KP61..2FC T=2.55-2.65 |
1 | ||
| 35716-12010 |
KP61..2FC T=1.95-2.05 |
1 | ||
| 35803 - STRUT SUB-ASSY, LOW BRAKE BAND APPLY | ||||
| 35803-12010 |
KP61..2FC |
1 | ||
| 35804 - STRUT SUB-ASSY, LOW BRAKE BAND ANCHOR | ||||
| 35804-12011 |
KP61..2FC |
1 | ||
| 35810 - BAND ASSY, TRANSMISSION BRAKE (FOR FRONT) | ||||
| 35810-12013 |
KP61..2FC |
1 | ||
| 35810A - PIN, W/HOLE STRAIGHT (FOR BRAKE BAND) | ||||
| 90255-07008 |
KP61..2FC |
1 | ||
| 35820B - SPRING, COMPRESSION (FOR LOW SERVO PISTON INNER) | ||||
| 90501-26317 |
KP61..2FC |
1 | ||
| 35820C - WASHER, PLATE (FOR LOW SERVO PISTON RETURN SPRING) | ||||
| 90201-08255 |
KP61..2FC |
1 | ||
| 35820D - SPRING, COMPRESSION (FOR LOW SERVO PISTON RETURN) | ||||
| 90501-26318 |
KP61..2FC |
1 | ||
| 35821 - PISTON, LOW SERVO | ||||
| 35821-20010 |
KP61..2FC |
1 | ||
| 35821C - SPRING, LOW SERVO PISTON SPRING LOCK RETAINER | ||||
| 90524-08010 |
KP61..2FC |
1 | ||
| 35821D - RING, E (FOR LOW SERVO PISTON SPRING LOCK) | ||||
| 96160-00400 |
KP61..2FC |
1 | ||
| 35822 - ROD, LOW SERVO PISTON | ||||
| 35822-12010 |
KP61..2FC |
1 | ||
| 35823 - RING, SERVO PISTON | ||||
| 35823-20010 |
KP61..2FC |
1 | ||
| 35838 - BOLT, BRAKE BAND ANCHOR | ||||
| 35838-12010 |
KP61..2FC |
1 | ||
| Common parts | ||||
| 94120-41000 | ||||
| 94611-10700 | ||||
| 95381-02015 | ||||
