KP61-PGMSS (1978)
Toyota Starlet

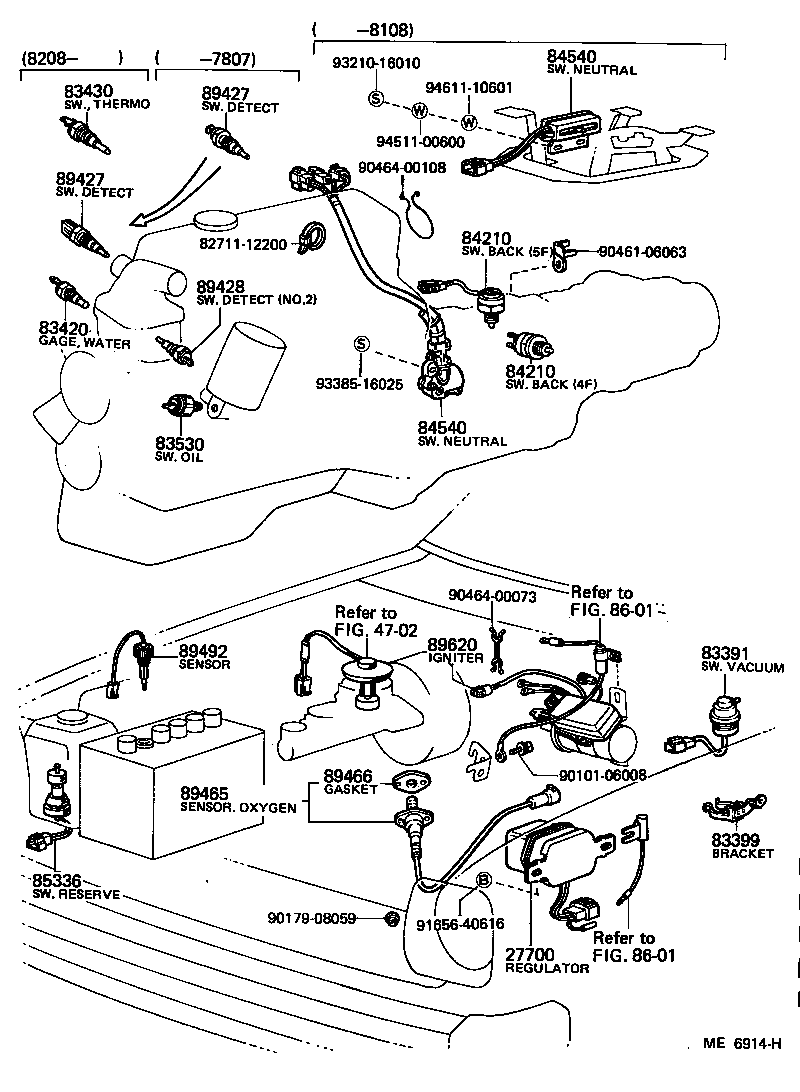

ILLUST NO. 1 OF 4(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13050 |
3KHJ,4K#..KP6# |
1 | ||
| 27700-13010 |
3KHJ,4KU..KP6# |
1 | ||
| 27700-13050 |
4KJ,4KU..KP61 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-10020 |
KP61 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-10010 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KP6# |
1 | ||
| 83420-20020 |
KP6# YAZAKI |
1 | ||
| 83420-16010 |
KP6# DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
KP6# |
1 | ||
| 83530-12040 |
KP61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10060 |
KP61..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10060 |
KP61..5F |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-10010 |
KP61..S,SE,XL |
1 | ||
| 85335-10011 |
KP61..S,SE,XL |
1 | ||
| 85335-10010 |
KP61..S,SE |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-10030 |
KP6# |
1 | ||
| 89428-13020 |
KP61 |
1 | ||
| 89428-10040 |
KP6# COLD SPEC |
1 | ||
| 89428-10031 |
KP61..4F..DXA;KP6#..(DLX,S,SE,STD,XL)..CBR |
1 | ||
| 89428-10050 |
KP6#..CBR COLD SPEC |
1 | ||
| 89428-13010 |
KP61 COLD SPEC |
1 | ||
| 89428-10031 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL |
1 | ||
| 89428-10050 |
KP61 COLD SPEC |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-10030 |
KP6# |
1 | ||
| 89428-13020 |
KP61 |
1 | ||
| 89428-10040 |
KP6# COLD SPEC |
1 | ||
| 89428-10031 |
KP61..4F..DXA;KP6#..(DLX,S,SE,STD,XL)..CBR |
1 | ||
| 89428-10050 |
KP6#..CBR COLD SPEC |
1 | ||
| 89428-13010 |
KP61 COLD SPEC |
1 | ||
| 89428-10031 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL |
1 | ||
| 89428-10050 |
KP61 COLD SPEC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19065 |
KP61..SED |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
KP61..SED |
1 | ||
| 89492 - SENSOR, ELECTROLYTE LEVEL | ||||
| 89492-20010 |
KP61..S,SE,XL |
1 | ||
| 89492-20010 |
KP61..S,SE |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10040 |
KP61 |
1 | ||
| 89620-10041 |
KP61..4F..DXA;KP61..SED..(DLX,S,SE,STD,XL) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90101-06008 | ||||
| 90179-08059 | ||||
| 90461-06063 | ||||
| 90464-00073 | ||||
| 90464-00108 | ||||
| 91656-40616 | ||||
| 93210-16010 | ||||
| 93385-16025 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8601 | ||||

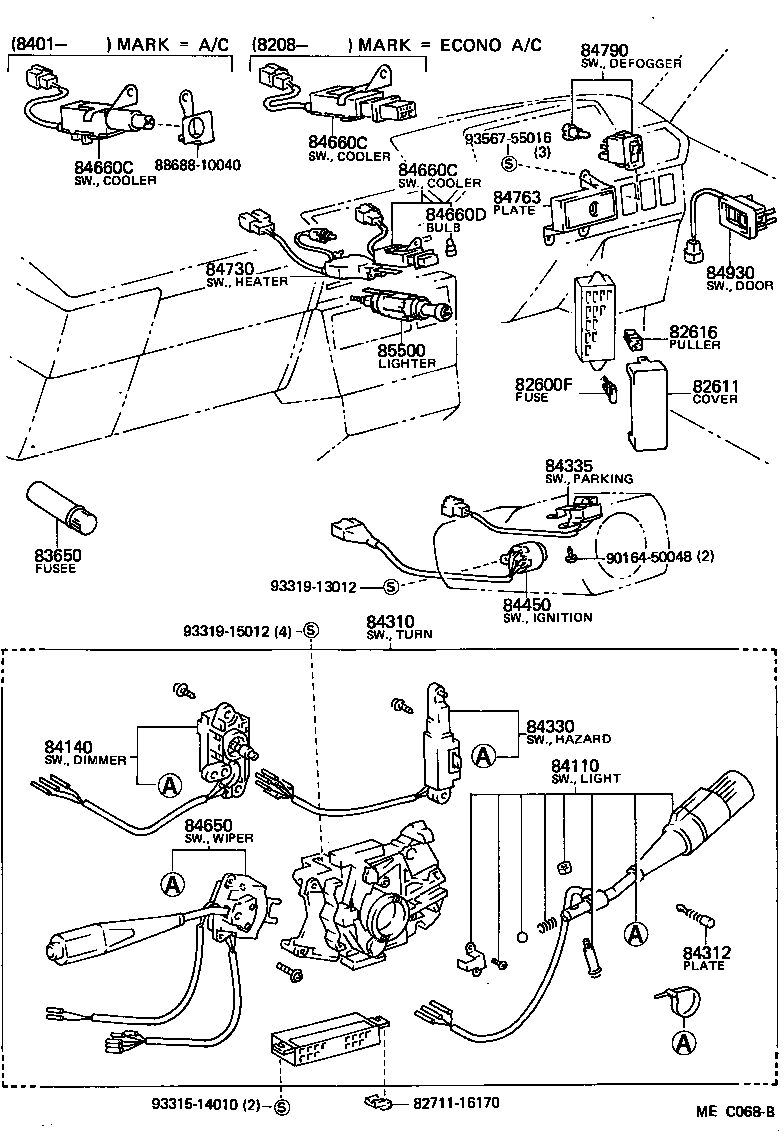

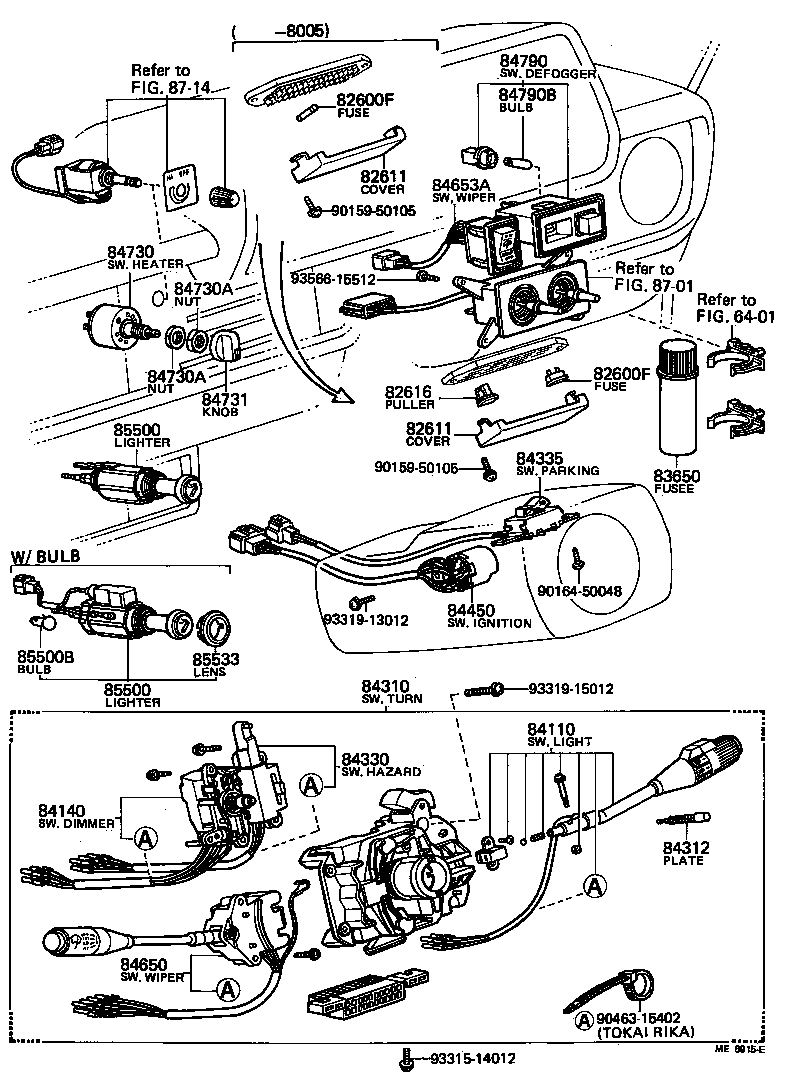

ILLUST NO. 2 OF 4(7802-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KP6# 10A,10A |
5 | ||
| 99118-62920 |
KP6# 20A,20A |
1 | ||
| 90982-07010 |
KP61..S,SE,XL 7.5A,W/STEREO COMPONENT |
1 | ||
| 99118-62005 |
KP6# 5A |
2 | ||
| 99118-62915 |
KP6# 15A,15A |
7 | ||
| 90982-09004 |
KP6# 20A,黄,20A |
1 | ||
| 90982-09005 |
KP61 7.5A,7.5A |
1 | ||
| 90982-09003 |
KP6# 15A,15A |
5 | ||
| 90982-07010 |
KP61..SED..(DLX,S,SE,XL) 7.5A,W/STEREO COMPONENT |
1 | ||
| 90982-07010 |
KP61..DLX,S,SE,XL 7.5A,W/STEREO COMPONENT |
1 | ||
| 90982-09001 |
KP6# 5A,5A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KP6# 10A,10A |
5 | ||
| 99118-62920 |
KP6# 20A,20A |
1 | ||
| 90982-07010 |
KP61..S,SE,XL 7.5A,W/STEREO COMPONENT |
1 | ||
| 99118-62005 |
KP6# 5A |
2 | ||
| 99118-62915 |
KP6# 15A,15A |
7 | ||
| 90982-09004 |
KP6# 20A,黄,20A |
1 | ||
| 90982-09005 |
KP61 7.5A,7.5A |
1 | ||
| 90982-09003 |
KP6# 15A,15A |
5 | ||
| 90982-07010 |
KP61..SED..(DLX,S,SE,XL) 7.5A,W/STEREO COMPONENT |
1 | ||
| 90982-07010 |
KP61..DLX,S,SE,XL 7.5A,W/STEREO COMPONENT |
1 | ||
| 90982-09001 |
KP6# 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10050 |
KP6# |
1 | ||
| 82611-10080 |
KP6# FURUKAWA |
1 | ||
| 82611-10052 |
KP61 SUMITOMO |
1 | ||
| 82611-10081 |
KP61..4F..DXA;KP61..DLX,S,SE,STD,XL FURUKAWA |
1 | ||
| 82611-10081 |
KP61 FURUKAWA |
1 | ||
| 82611-10052 |
KP61..4F..DXA;KP61..DLX,S,SE,STD,XL SUMITOMO |
1 | ||
| 82611-10051 |
KP6# SUMITOMO |
1 | ||
| 82611-10052 |
KP61 SUMITOMO |
1 | ||
| 82611-10081 |
KP61 FURUKAWA |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10050 |
KP6# |
1 | ||
| 82611-10080 |
KP6# FURUKAWA |
1 | ||
| 82611-10052 |
KP61 SUMITOMO |
1 | ||
| 82611-10081 |
KP61..4F..DXA;KP61..DLX,S,SE,STD,XL FURUKAWA |
1 | ||
| 82611-10081 |
KP61 FURUKAWA |
1 | ||
| 82611-10052 |
KP61..4F..DXA;KP61..DLX,S,SE,STD,XL SUMITOMO |
1 | ||
| 82611-10051 |
KP6# SUMITOMO |
1 | ||
| 82611-10052 |
KP61 SUMITOMO |
1 | ||
| 82611-10081 |
KP61 FURUKAWA |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
KP6# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
KP6# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19365 |
KP61 MATSUSHITA |
1 | ||
| 84112-19097 |
KP6# MATSUSHITA |
1 | ||
| 84112-19096 |
KP6# MATSUSHITA |
1 | ||
| 84112-19385 |
KP61 TOKAIRIKA |
1 | ||
| 84112-19095 |
KP6# MATSUSHITA |
1 | ||
| 84112-19076 |
KP6# TOKAIRIKA |
1 | ||
| 84112-19077 |
KP6# TOKAIRIKA |
1 | ||
| 84112-19075 |
KP6# TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19016 |
KP6# TOKAIRIKA |
1 | ||
| 84140-10030 |
KP6# MATSUSHITA |
1 | ||
| 84140-10031 |
KP6# MATSUSHITA |
1 | ||
| 84140-19155 |
KP61 MATSUSHITA |
1 | ||
| 84140-19175 |
KP61 TOKAIRIKA |
1 | ||
| 84140-19015 |
KP6# TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10220 |
KP6#..DLX,S,SE,XL W/*IW |
1 | ||
| 84310-10222 |
KP6#..S,SE,XL W/*IW |
1 | ||
| 84310-10221 |
KP6#..S,SE,XL W/*IW |
1 | ||
| 84310-10331 |
KP61..S,SE,SI,XL W/RR WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
KP6# TOKAIRIKA |
1 | ||
| 84312-20020 |
KP6# MATSUSHITA |
1 | ||
| 84312-32010 |
KP61 TOKAIRIKA |
1 | ||
| 84312-32020 |
KP61 MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19125 |
KP61 MATSUSHITA |
1 | ||
| 84332-19145 |
KP61 TOKAIRIKA |
1 | ||
| 84332-19015 |
KP6# TOKAIRIKA |
1 | ||
| 84332-10080 |
KP6# MATSUSHITA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-10060 |
KP6# |
1 | ||
| 84330-10070 |
KP61 |
1 | ||
| 84330-16010 |
KP6# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
KP6# |
1 | ||
| 84450-10100 |
KP61..S,SE,SI,XL TILT STEERING |
1 | ||
| 84450-10090 |
KP61 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10100 |
KP6#..DLX,S,SE,XL MATSUSHITA,W/*IW |
1 | ||
| 84652-19145 |
KP6#..DLX,S,SE,XL TOKAIRIKA,W/*IW |
1 | ||
| 84652-10101 |
KP6#..S,SE,XL MATSUSHITA,W/*IW |
1 | ||
| 84652-19146 |
KP6#..S,SE,XL TOKAIRIKA,W/*IW |
1 | ||
| 84652-19765 |
KP61..S,SE,SI,XL TOKAIRIKA,W/RR WIPER |
1 | ||
| 84652-19815 |
KP61..S,SE,SI,XL MATSUSHITA,W/RR WIPER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-10010 |
KP6#..S,SE,XL |
1 | ||
| 84653-21030 |
KP6#..S,SE,XL |
1 | ||
| 84653-10020 |
KP6#..S,SE,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10070 |
KP61 |
1 | ||
| 84732-10040 |
KP6# |
1 | ||
| 84732-10050 |
KP6# W/COOLER |
1 | ||
| 84732-10041 |
KP6# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KP6# |
2 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KP6# |
2 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
KP6# |
1 | ||
| 84731-20030 |
KP6# W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-20040 |
KP6# W/COOLER TEMPERATURE CONTROL |
1 | ||
| 84731-16010 |
KP6# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10060 |
KP61..4F..DXA;KP6#..DLX,S,SE,XL |
1 | ||
| 84790-22040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 84790-10050 |
KP6#..DLX,S,SE,XL |
1 | ||
| 84790-24010 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,XL |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
KP6#..DLX,S,SE,XL 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 90981-11024 |
KP61..4F..DXA;KP6#..DLX,S,SE,XL 12V 1.4W,12V 1.4W |
1 | ||
| 90981-11014 |
KP6#..DLX,S,SE,XL 14V 1.4W,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16040 |
KP61..S,SE |
1 | ||
| 85500-10050 |
KP61..DLX,DXA,S,SI,STD,XL |
1 | ||
| 85500-20061 |
KP6#..S,SE,XL |
1 | ||
| 85500-10080 |
KP61..SE |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16040 |
KP61..S,SE |
1 | ||
| 85500-10050 |
KP61..DLX,DXA,S,SI,STD,XL |
1 | ||
| 85500-20061 |
KP6#..S,SE,XL |
1 | ||
| 85500-10080 |
KP61..SE |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
KP6#..S,SE,XL 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
KP6#..S,SE,XL |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90164-50048 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 8701 | ||||
| 8714 | ||||

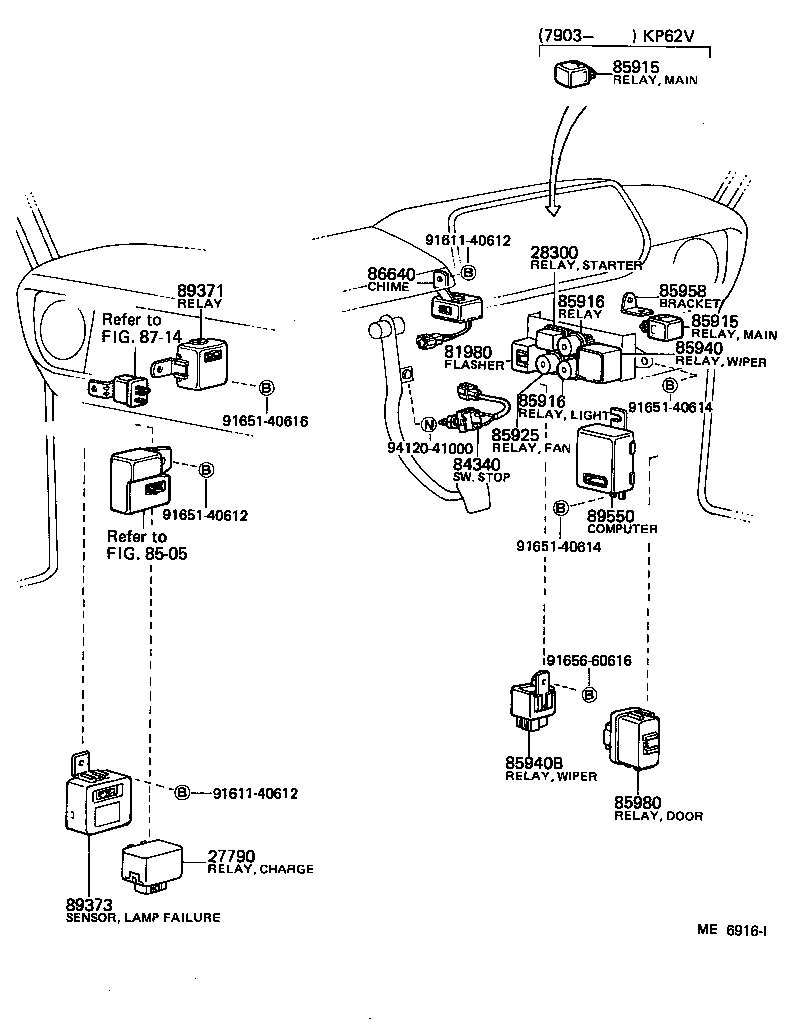

ILLUST NO. 3 OF 4(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KP6# |
1 | ||
| 81980-22070 |
KP6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
KP6# |
1 | ||
| 84340-36030 |
KP6# |
1 | ||
| 84340-32010 |
KP61 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
KP6# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
KP6# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KP6# |
2 | ||
| 90987-01003 |
KP6# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KP6# |
2 | ||
| 90987-01003 |
KP6# |
2 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
KP6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
KP61..DXA,S,SE,SI,XL |
1 | ||
| 85940-22051 |
KP6#..S,SE,XL |
1 | ||
| 85940-22051 |
KP6#..DLX,S,SE,XL |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-10010 |
KP61..5D..DLX;KP61..SED..(S,SE,SI,XL) |
1 | ||
| 85940-10010 |
KP61..SED..(DLX,S,SE,SI,XL) |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85999-10020 |
KP61 |
1 | ||
| 85999-10020 |
KP6# |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-10020 |
KP6# |
1 | ||
| 86640-10030 |
KP61 |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-10010 |
KP61..S,SE,XL |
1 | ||
| 89371-10020 |
KP61..S,SE |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-10010 |
KP61..S,SE,SI |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-10030 |
KP61 |
1 | ||
| 89550-10041 |
KP61..4F..DXA;KP61..SED..MTM..(DLX,S,SE,SI,STD,XL) |
1 | ||
| 89550-10031 |
KP61 |
1 | ||
| 89550-10040 |
KP61..4F..DXA;KP61..SED..MTM..(DLX,S,SE,STD,XL) |
1 | ||
| 89550-10042 |
KP61..4F..DXA;KP61..SED..MTM..(DLX,S,SE,SI,STD,XL) |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91656-60616 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8505 | ||||
| 8714 | ||||
ILLUST NO. 2 OF 4(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KP6# 10A,10A |
5 | ||
| 99118-62920 |
KP6# 20A,20A |
1 | ||
| 90982-07010 |
KP61..S,SE,XL 7.5A,W/STEREO COMPONENT |
1 | ||
| 99118-62005 |
KP6# 5A |
2 | ||
| 99118-62915 |
KP6# 15A,15A |
7 | ||
| 90982-09004 |
KP6# 20A,黄,20A |
1 | ||
| 90982-09005 |
KP61 7.5A,7.5A |
1 | ||
| 90982-09003 |
KP6# 15A,15A |
5 | ||
| 90982-07010 |
KP61..SED..(DLX,S,SE,XL) 7.5A,W/STEREO COMPONENT |
1 | ||
| 90982-07010 |
KP61..DLX,S,SE,XL 7.5A,W/STEREO COMPONENT |
1 | ||
| 90982-09001 |
KP6# 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10050 |
KP6# |
1 | ||
| 82611-10080 |
KP6# FURUKAWA |
1 | ||
| 82611-10052 |
KP61 SUMITOMO |
1 | ||
| 82611-10081 |
KP61..4F..DXA;KP61..DLX,S,SE,STD,XL FURUKAWA |
1 | ||
| 82611-10081 |
KP61 FURUKAWA |
1 | ||
| 82611-10052 |
KP61..4F..DXA;KP61..DLX,S,SE,STD,XL SUMITOMO |
1 | ||
| 82611-10051 |
KP6# SUMITOMO |
1 | ||
| 82611-10052 |
KP61 SUMITOMO |
1 | ||
| 82611-10081 |
KP61 FURUKAWA |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
KP6# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
KP6# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19365 |
KP61 MATSUSHITA |
1 | ||
| 84112-19097 |
KP6# MATSUSHITA |
1 | ||
| 84112-19096 |
KP6# MATSUSHITA |
1 | ||
| 84112-19385 |
KP61 TOKAIRIKA |
1 | ||
| 84112-19095 |
KP6# MATSUSHITA |
1 | ||
| 84112-19076 |
KP6# TOKAIRIKA |
1 | ||
| 84112-19077 |
KP6# TOKAIRIKA |
1 | ||
| 84112-19075 |
KP6# TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19016 |
KP6# TOKAIRIKA |
1 | ||
| 84140-10030 |
KP6# MATSUSHITA |
1 | ||
| 84140-10031 |
KP6# MATSUSHITA |
1 | ||
| 84140-19155 |
KP61 MATSUSHITA |
1 | ||
| 84140-19175 |
KP61 TOKAIRIKA |
1 | ||
| 84140-19015 |
KP6# TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10220 |
KP6#..DLX,S,SE,XL W/*IW |
1 | ||
| 84310-10222 |
KP6#..S,SE,XL W/*IW |
1 | ||
| 84310-10221 |
KP6#..S,SE,XL W/*IW |
1 | ||
| 84310-10331 |
KP61..S,SE,SI,XL W/RR WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
KP6# TOKAIRIKA |
1 | ||
| 84312-20020 |
KP6# MATSUSHITA |
1 | ||
| 84312-32010 |
KP61 TOKAIRIKA |
1 | ||
| 84312-32020 |
KP61 MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19125 |
KP61 MATSUSHITA |
1 | ||
| 84332-19145 |
KP61 TOKAIRIKA |
1 | ||
| 84332-19015 |
KP6# TOKAIRIKA |
1 | ||
| 84332-10080 |
KP6# MATSUSHITA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-10060 |
KP6# |
1 | ||
| 84330-10070 |
KP61 |
1 | ||
| 84330-16010 |
KP6# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
KP6# |
1 | ||
| 84450-10100 |
KP61..S,SE,SI,XL TILT STEERING |
1 | ||
| 84450-10090 |
KP61 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10100 |
KP6#..DLX,S,SE,XL MATSUSHITA,W/*IW |
1 | ||
| 84652-19145 |
KP6#..DLX,S,SE,XL TOKAIRIKA,W/*IW |
1 | ||
| 84652-10101 |
KP6#..S,SE,XL MATSUSHITA,W/*IW |
1 | ||
| 84652-19146 |
KP6#..S,SE,XL TOKAIRIKA,W/*IW |
1 | ||
| 84652-19765 |
KP61..S,SE,SI,XL TOKAIRIKA,W/RR WIPER |
1 | ||
| 84652-19815 |
KP61..S,SE,SI,XL MATSUSHITA,W/RR WIPER |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10010 |
KP61 MARK=ECONO A/C |
1 | ||
| 84660-10060 |
KP61 MARK=A/C |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10010 |
KP61 MARK=ECONO A/C |
1 | ||
| 84660-10060 |
KP61 MARK=A/C |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10010 |
KP61 MARK=ECONO A/C |
1 | ||
| 84660-10060 |
KP61 MARK=A/C |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
KP61 |
2 | ||
| 88607-10010 |
KP61 COOLER SWITCH MARK=ECONO A/C |
2 | ||
| 88607-14020 |
KP61 14V 1.4W,COOLER SWITCH MARK=A/C |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10070 |
KP61 |
1 | ||
| 84732-10040 |
KP6# |
1 | ||
| 84732-10050 |
KP6# W/COOLER |
1 | ||
| 84732-10041 |
KP6# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10060 |
KP61..4F..DXA;KP6#..DLX,S,SE,XL |
1 | ||
| 84790-22040 |
KP6#..DLX,S,SE,XL |
1 | ||
| 84790-10050 |
KP6#..DLX,S,SE,XL |
1 | ||
| 84790-24010 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,XL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1001006 |
KP61..SED..(SE,XL) BROWN,BROWN,TRIM1#,4# |
1 | ||
| 84930-1001003 |
KP61..SED..(SE,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 84930-1001002 |
KP61..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16040 |
KP61..S,SE |
1 | ||
| 85500-10050 |
KP61..DLX,DXA,S,SI,STD,XL |
1 | ||
| 85500-20061 |
KP6#..S,SE,XL |
1 | ||
| 85500-10080 |
KP61..SE |
1 | ||
| Common parts | ||||
| 82711-16170 | ||||
| 88688-10040 | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||

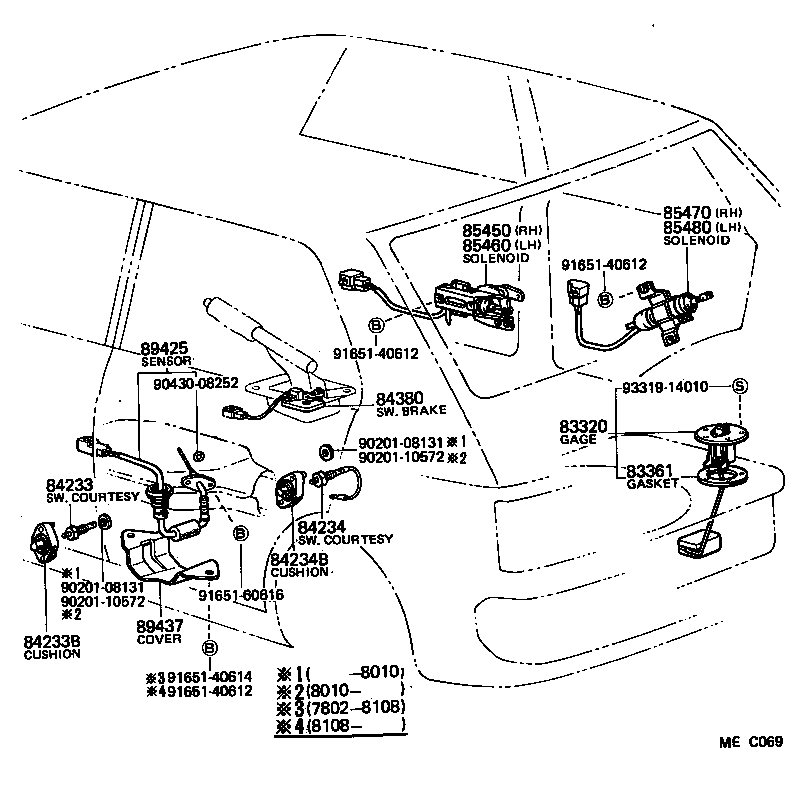

ILLUST NO. 4 OF 4(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19346 |
KP61..S,SE,SI W/FUEL WARNING |
1 | ||
| 83320-19345 |
KP61..S,SE,XL W/FUEL WARNING |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KP6# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
KP6#..DLX,S,SE,XL |
2 | ||
| 84230-20110 |
KP6#..DLX,DXA,S,SE,XL |
2 | ||
| 84231-20060 |
KP6#..DLX,DXA,S,SE,XL |
2 | ||
| 84231-20080 |
KP61..DLX,DXA,S,SE,SI,XL |
2 | ||
| 84231-20080 |
KP61..DLX,DXA,S,SE,XL |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
KP6#..DLX,DXA,S,SE,XL |
2 | ||
| 84234-20010 |
KP6#..DLX,S,SE,XL |
2 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-10020 |
KP6# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19095 |
KP61 |
1 | ||
| 89425-19096 |
KP61..SED |
1 | ||
| 89425-19097 |
KP61..SED |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-10030 |
KP61 |
1 | ||
| Common parts | ||||
| 90201-08131 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
