KP61-PGMSE (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
4KEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

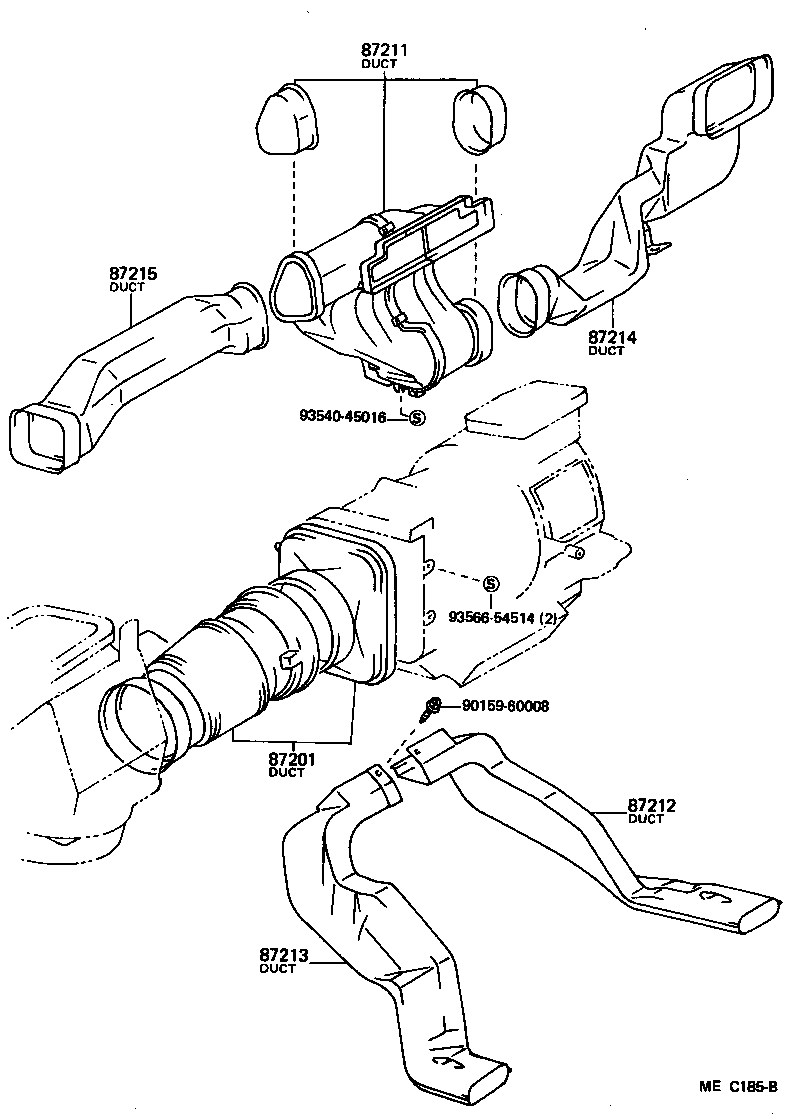

ILLUST NO. 2 OF 2(8208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-10070 |
KP6# |
1 | ||
| 87201-10010 |
KP61 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 55086-10010 |
KP6# |
1 | ||
| 87201-10030 |
KP61 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-10080 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL |
1 | ||
| 87202-10010 |
KP6# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-10070 |
KP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88566-10030 |
KP61 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88566-10040 |
KP61 |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 93540-45016 | ||||
| 93566-54514 | ||||

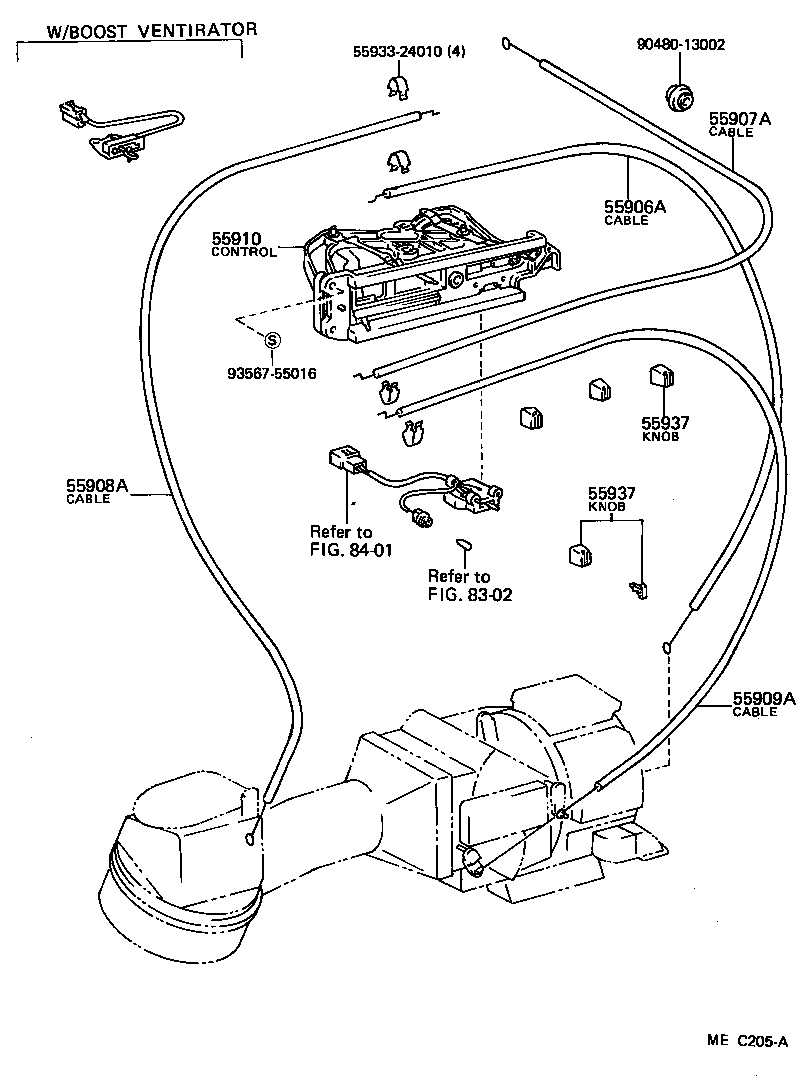

ILLUST NO. 1 OF 2(8208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-10140 |
KP61 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-10060 |
KP61 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-10050 |
KP61 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-10040 |
KP61 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-10190 |
KP61 |
1 | ||
| 55910-10920 |
KP6# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22050 |
KP6# |
3 | ||
| 55905-12060 |
KP61 |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22050 |
KP6# |
3 | ||
| 55905-12060 |
KP61 |
4 | ||
| Common parts | ||||
| 55933-24010 | ||||
| 90480-13002 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
