KP61-PGMSE (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4KEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

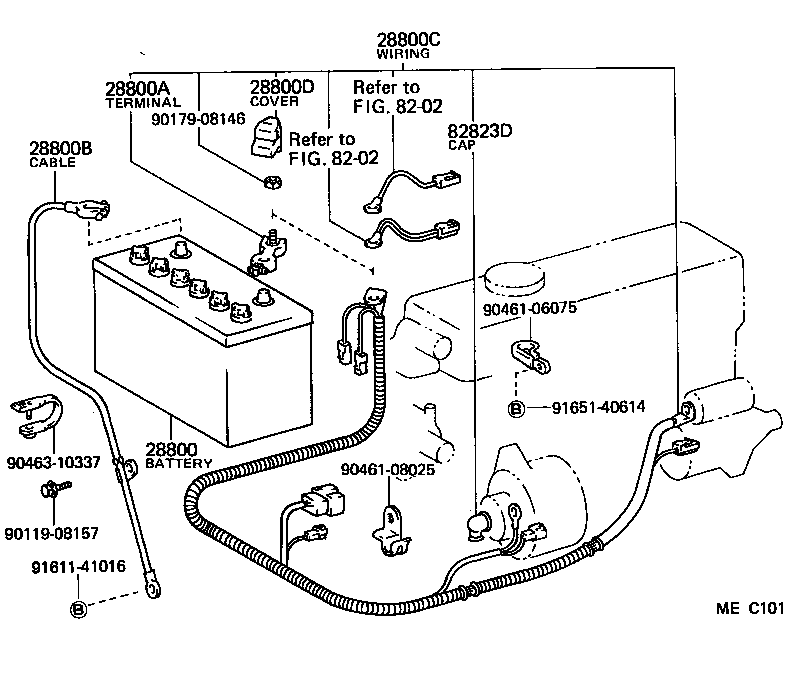

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 8202 8202 82823D 9011908157 9017908146 9046106075 9046108025 9046310337 9161141016 9165140614
Part # Description Qty Price
28800 - BATTERY
28800-24030

4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL

34B19R,NS40ZA(12V 33AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05020

4K#..KP61

 1
28800B - CABLE, BATTERY TO GROUND
90982-02246

4KEU,4KJ..KP61

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82250-10270

4KEU..KP61

STARTER=12V 0.8KW

 1
82250-10280

4KEU..KP61

STARTER=12V 1.0KW

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

4K#..KP61

 1
Common parts
90119-08157
90179-08146
90461-06075
90461-08025
90463-10337
91611-41016
91651-40614
Linked diagrams
8202
