KP61-PGMSE (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
4KEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )4KJ,4KU ; (8305- )4KEU..SE,SI

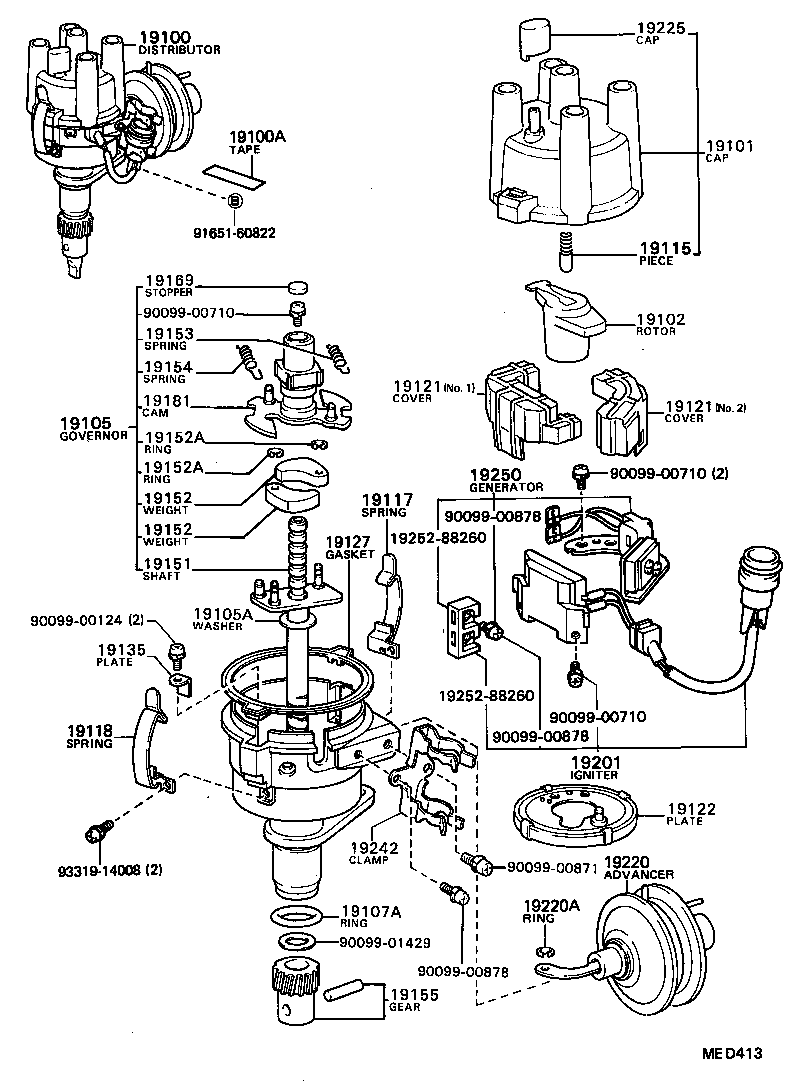

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19060-13060 |
4KEU..KP61..SE,SI |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
3KHJ,4K#..KP6# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-25070 |
4K#..KP61 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
4K#..KP61 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-13060 |
4KEU..KP61..SE,SI |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01385 |
4K#..KP61 厚さ=2.5,T=2.5 |
1 | ||
| 90099-01386 |
4K#..KP61 厚さ=2.7,T=2.7 |
1 | ||
| 90099-01412 |
4K#..KP61 厚さ=2.3,T=2.3 |
1 | ||
| 90099-01387 |
4K#..KP61 厚さ=2.9,T=2.9 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
3KHJ,4K#..KP6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
3KHJ,4K#..KP6# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
4K#..KP61 |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19117-24080 |
4K#..KP61 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-88260 |
4KEU..KP61..SE,SI NO.2 |
1 | ||
| 19121-88261 |
4KEU..KP61..SE,SI NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-88260 |
4KEU..KP61..SE,SI NO.2 |
1 | ||
| 19121-88261 |
4KEU..KP61..SE,SI NO.1 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88263 |
4K#..KP61 |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 19135-24080 |
4K#..KP61 |
2 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-24081 |
4K#..KP61 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
4K#..KP61 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
4K#..KP61 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13060 |
4KEU..KP61..SE,SI |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-13060 |
4KEU..KP61..SE,SI |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-13060 |
4KEU..KP61 |
1 | ||
| 19195-24081 |
4K#..KP61 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
4K#..KP61 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-13060 |
4KEU..KP61..SE,SI |
1 | ||
| 19201 - IGNITER | ||||
| 89620-10070 |
4KEU..KP61..SE,SI |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-13300 |
4KEU..KP61 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-25070 |
4K#..KP61 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-13150 |
4K#..KP61 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-13020 |
4KEU..KP61..SE,SI |
1 | ||
| 19250-13040 |
4KEU..KP61..SE,SI |
1 | ||
| Common parts | ||||
| 19252-88260 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 91651-60822 | ||||
| 93319-14008 | ||||
