KP61-PGMNS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
4KU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802-8208)

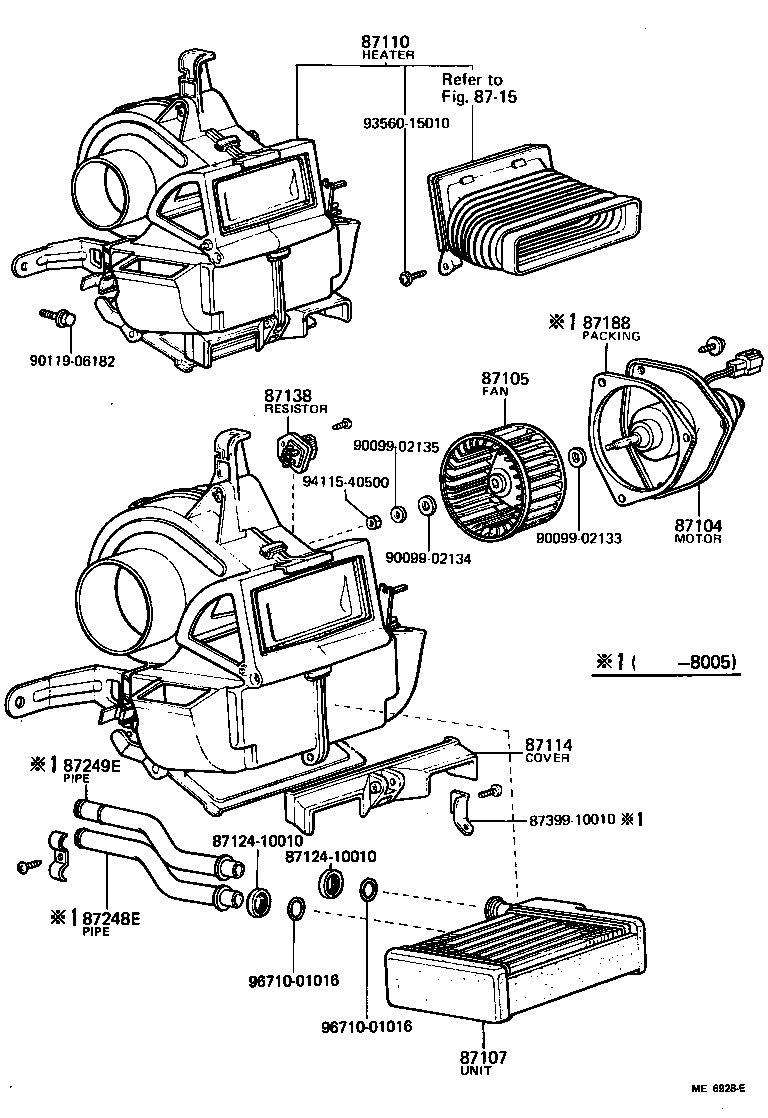

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 88550-87701 |
KP6# COOLER |
1 | ||
| 87104-10090 |
KP6# |
1 | ||
| 87104-95403 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL HEAVY DUTY |
1 | ||
| 88550-87701 |
KP6# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12030 |
KP6# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-10110 |
KP6# |
1 | ||
| 87107-10100 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL HEAVY DUTY |
1 | ||
| 87107-10100 |
KP6# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-10151 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL HEAVY DUTY |
1 | ||
| 87110-10130 |
KP6# |
1 | ||
| 87110-10151 |
KP61..SED HEAVY DUTY |
1 | ||
| 87110-10150 |
KP6# HEAVY DUTY |
1 | ||
| 87110-10131 |
KP6# |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-10010 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL HEAVY DUTY |
1 | ||
| 87114-10020 |
KP6# |
1 | ||
| 87114-10020 |
KP61..SED HEAVY DUTY |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-16010 |
KP6# |
1 | ||
| 87138-16020 |
KP61..4F..DXA;KP6#..DLX,S,SE,STD,XL HEAVY DUTY |
1 | ||
| 87138-14020 |
KP6# |
1 | ||
| 87138-14020 |
KP6# COOLER |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
KP6# |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87291-10100 |
KP6# |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87291-10090 |
KP6# |
1 | ||
| Common parts | ||||
| 87124-10010 | ||||
| 87399-10010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90119-06182 | ||||
| 93560-15010 | ||||
| 94115-40500 | ||||
| 96710-01016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
