KP61-PGMNE (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
4KEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )EFI

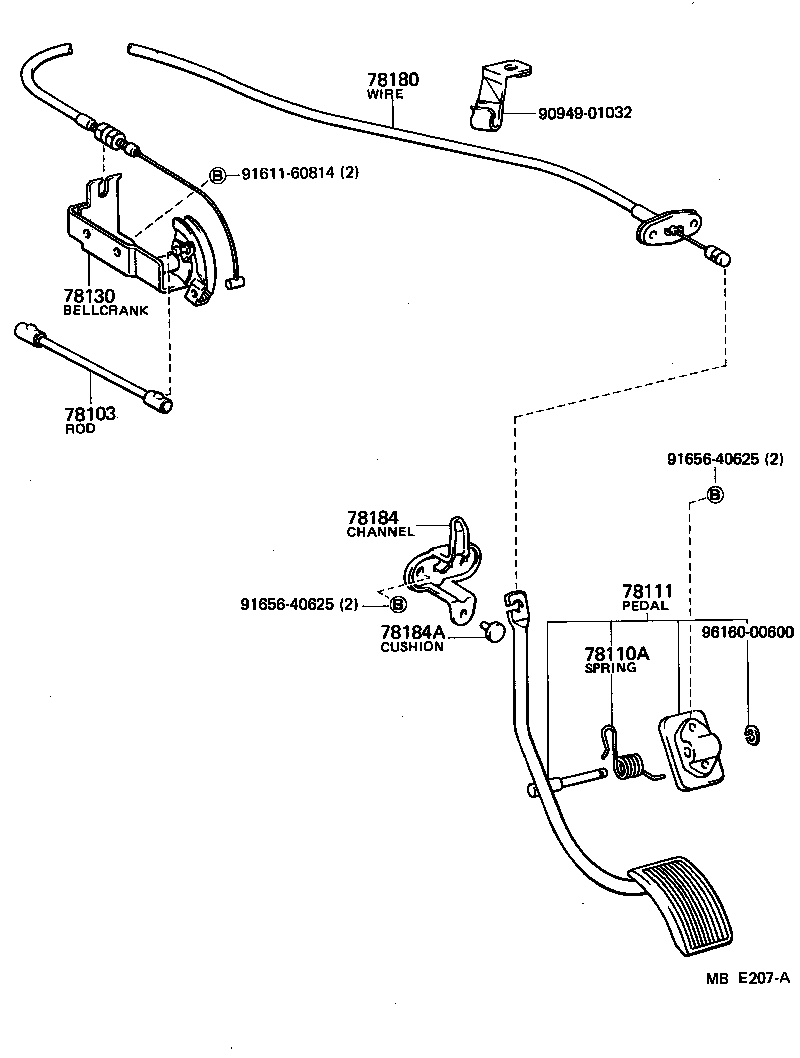

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-10030 |
KP61..EFI |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
KP61 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-10010 |
KP61 |
1 | ||
| 78010-10080 |
KP61..EFI |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78160-10010 |
KP61..EFI |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10200 |
KP61..EFI |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-10060 |
KP6# |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KP6# |
1 | ||
| Common parts | ||||
| 90949-01032 | ||||
| 91611-60814 | ||||
| 91656-40625 | ||||
| 96160-00600 | ||||
