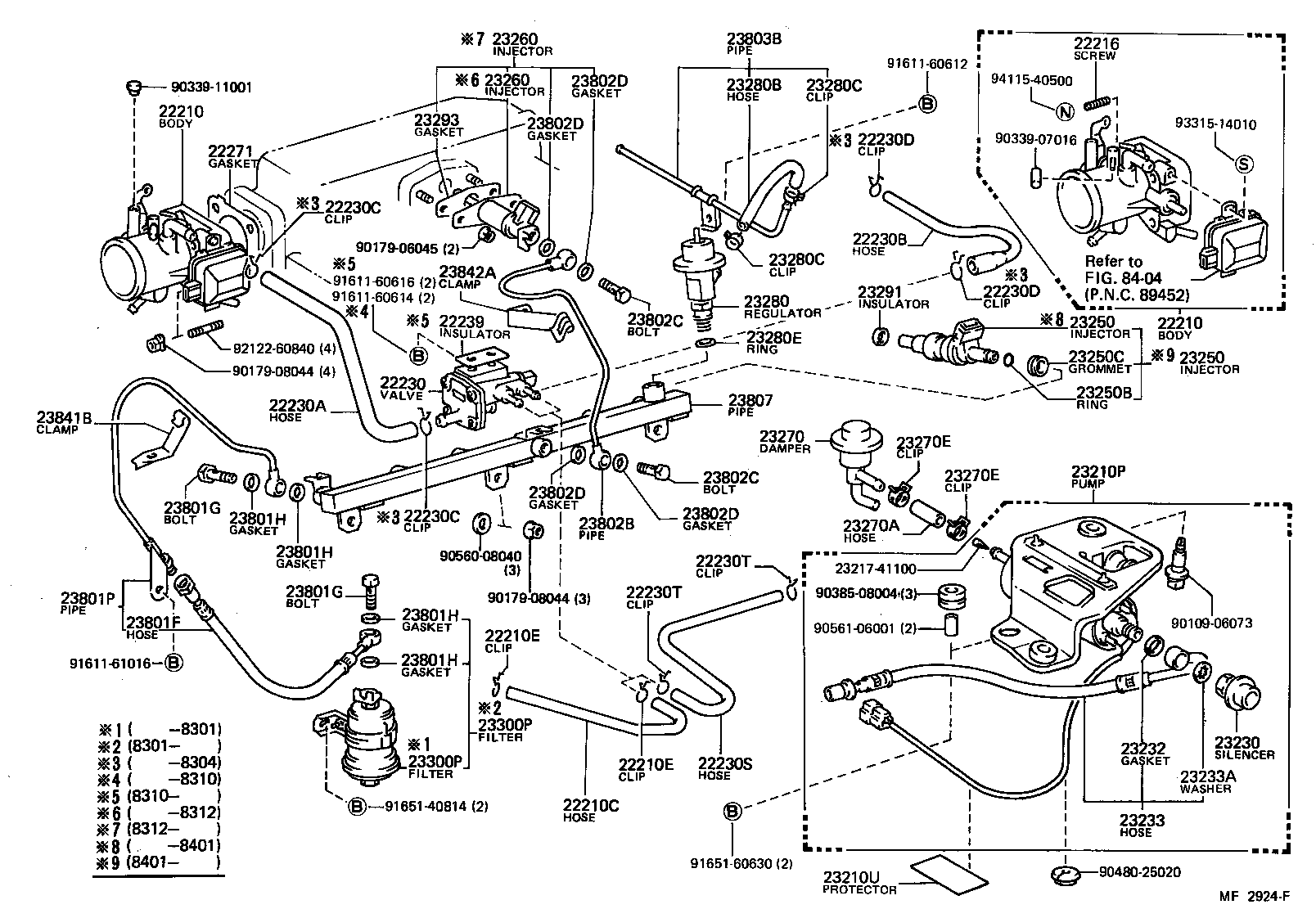

KP61-PGMNE (1982)
Toyota Starlet
(8208- )4KEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-13020 |
4KEU..KP61..SE,SI |
1 | ||
| 22210-13030 |
4KEU..KP61..XL |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-13020 |
4KEU..KP61..SE,SI |
1 | ||
| 22210-13030 |
4KEU..KP61..XL |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-13010 |
4KEU..KP61 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
4KEU..KP61 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
4KEU..KP61 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4KEU..KP61 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-13010 |
4KEU..KP61 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-13010 |
4KEU..KP61 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-13010 |
4KEU..KP61 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-18003 |
4KEU..KP61 AIR VALVE SIDE |
1 | ||
| 90467-17126 |
4KEU..KP61 THROTTLE BODY SIDE |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-18003 |
4KEU..KP61 AIR VALVE SIDE |
1 | ||
| 90467-17126 |
4KEU..KP61 THROTTLE BODY SIDE |
1 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-18003 |
4KEU..KP61 AIR VALVE SIDE |
1 | ||
| 90467-15120 |
4KEU..KP61 SURGE TANK SIDE |
1 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-18003 |
4KEU..KP61 AIR VALVE SIDE |
1 | ||
| 90467-15120 |
4KEU..KP61 SURGE TANK SIDE |
1 | ||
| 22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE) | ||||
| 16267-13010 |
4KEU..KP61 |
1 | ||
| 22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS) | ||||
| 90467-13001 |
4KEU..KP61 |
2 | ||
| 22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS) | ||||
| 90467-13001 |
4KEU..KP61 |
2 | ||
| 22239 - INSULATOR, AUXILIARY AIR VALVE HEAT | ||||
| 22239-13010 |
4KEU..KP61 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-13010 |
4KEU..KP61 |
1 | ||
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-13010 |
4KEU..KP61 |
1 | ||
| 23210U - PROTECTOR,WIRING HARNESS | ||||
| 82817-22170 |
4KEU..KP61 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-26080 |
4KEU..KP61 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
4KEU..KP61 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90999-99095 |
4KEU..KP61 |
1 | ||
| 23233A - WASHER(FOR FUEL PUMP HOSE) | ||||
| 90099-01496 |
4KEU..KP61 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-13010 |
4KEU..KP61 |
4 | ||
| 23250-13010 |
4KEU..KP61 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-13010 |
4KEU..KP61 |
4 | ||
| 23250-13010 |
4KEU..KP61 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4KEU..KP61 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4KEU..KP61 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-19015 |
4KEU..KP61 |
1 | ||
| 23260-13010 |
4KEU..KP61 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-19015 |
4KEU..KP61 |
1 | ||
| 23260-13010 |
4KEU..KP61 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-13010 |
4KEU..KP61 |
1 | ||
| 23270A - HOSE(FOR PULSATION DAMPER) | ||||
| 95332-12005 |
4KEU..KP61 |
1 | ||
| 23270E - CLIP(FOR PULSATION DAMPER HOSE) | ||||
| 90467-18001 |
4KEU..KP61 |
2 | ||
| 23270E - CLIP(FOR PULSATION DAMPER HOSE) | ||||
| 90467-18001 |
4KEU..KP61 |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-13010 |
4KEU..KP61 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 95332-06020 |
4KEU..KP61 *H,L=130 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11009 |
4KEU..KP61 |
2 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11009 |
4KEU..KP61 |
2 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-09002 |
4KEU..KP61 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4KEU..KP61 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-70010 |
4KEU..KP61 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-13010 |
4KEU..KP61 |
1 | ||
| 23300-19035 |
4KEU..KP61 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-13010 |
4KEU..KP61 |
1 | ||
| 23300-19035 |
4KEU..KP61 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01270 |
4KEU..KP61 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
4KEU..KP61 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
4KEU..KP61 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
4KEU..KP61 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
4KEU..KP61 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
4KEU..KP61 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
4KEU..KP61 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-13080 |
4KEU..KP61 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23812-13010 |
4KEU..KP61 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-10008 |
4KEU..KP61 |
2 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-10008 |
4KEU..KP61 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-10204 |
4KEU..KP61 |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-10204 |
4KEU..KP61 |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-10204 |
4KEU..KP61 |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-10204 |
4KEU..KP61 |
4 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-13010 |
4KEU..KP61 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-13011 |
4KEU..KP61 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-13010 |
4KEU..KP61 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-13010 |
4KEU..KP61 |
1 | ||
| Common parts | ||||
| 23217-41100 | ||||
| 90109-06073 | ||||
| 90179-06045 | ||||
| 90179-08044 | ||||
| 90339-07016 | ||||
| 90339-11001 | ||||
| 90385-08004 | ||||
| 90480-25020 | ||||
| 90560-08040 | ||||
| 90561-06001 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91611-61016 | ||||
| 91651-40814 | ||||
| 91651-60630 | ||||
| 92122-60840 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
