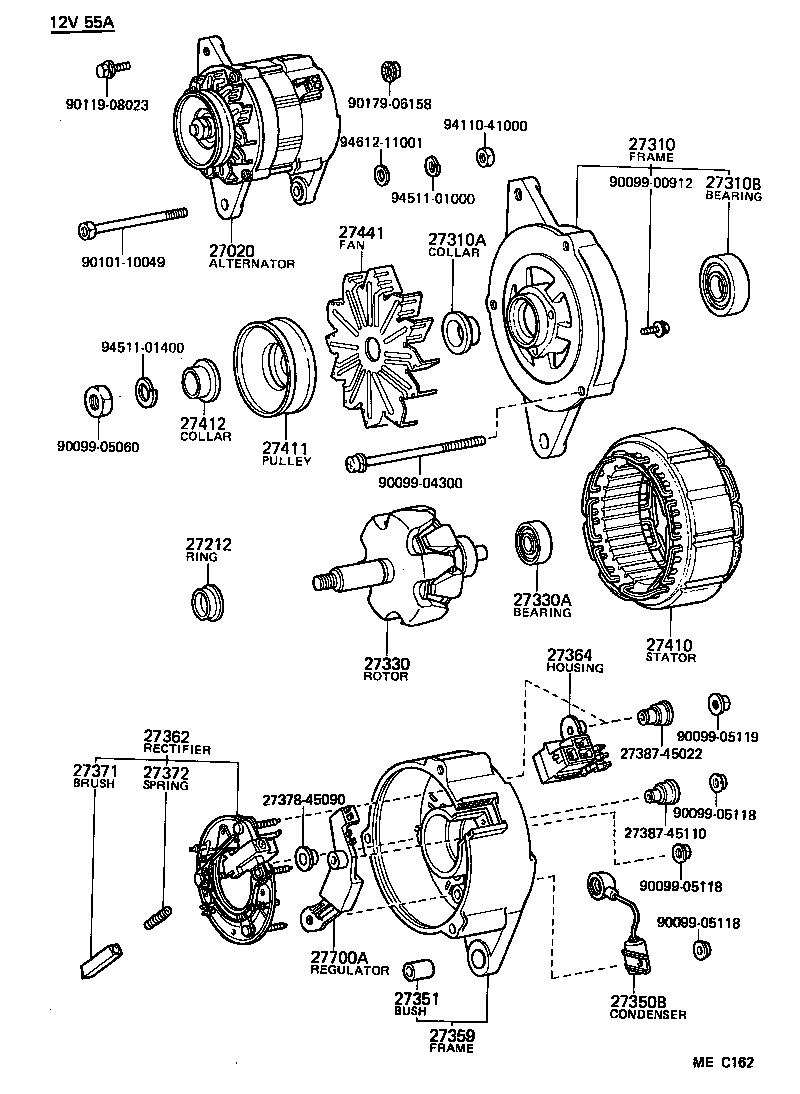

Toyota Starlet KP61 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-13020	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070	4KEU,4KU..KP61 12V 50A,55A	08/1982 - 09/1984	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-24090	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	3KHJ,4K#..KP6# 12V 40A,45A,50A,55A	02/1978 - 09/1984	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27350B - CONDENSER, ALTERNATOR
90099-52065	4K#..KP61 12V 40A,45A,50A,55A	08/1982 - 09/1984	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13150	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-13150	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27364 - HOUSING, CONNECTOR MALE
27364-13150	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27371 - BRUSH, ALTERNATOR
27371-31011	4KEU,4KJ..KP61 12V 45A,55A	08/1982 - 09/1984	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	4KEU,4KJ..KP61 12V 45A,55A	08/1982 - 09/1984	2
27410 - STATOR ASSY, ALTERNATOR
27410-72040	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27411 - PULLEY, ALTERNATOR
27411-26111	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44031	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27441 - FAN, ALTERNATOR
27441-34111	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
27700A - REGULATOR ASSY, GENERATOR
27700-13070	4KEU..KP61 12V 55A	08/1982 - 09/1984	1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08023
90179-06158
94110-41000
94511-01000
94511-01400
94612-11001

KP61-PGMNE (1982)

(8208- )4KEU
