KP61-PGMNE (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4KEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )4KEU

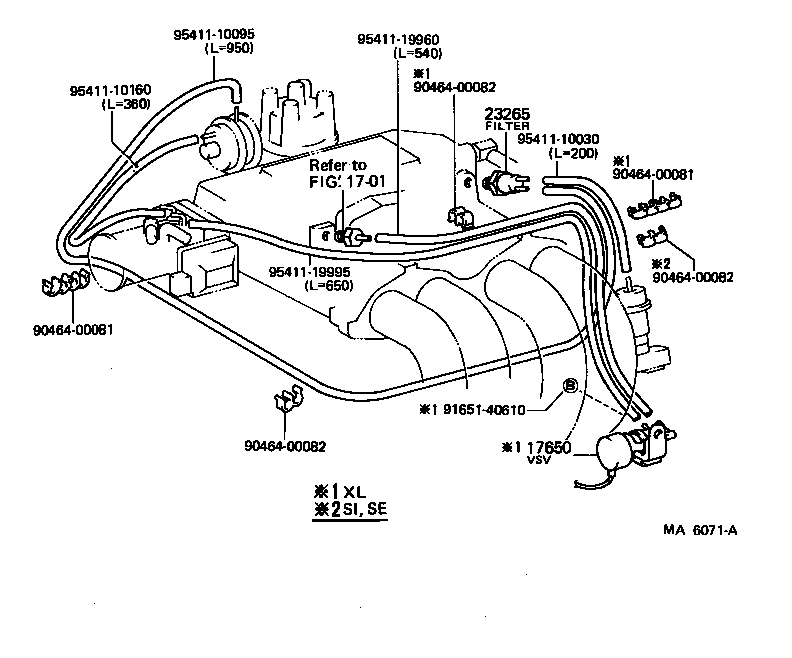

Click highlighted areas on diagram

diagram 1701 17650 23265 9046400081 9046400081 9046400082 9046400082 9046400082 9165140610 9541110030 9541110095 9541110160 9541119960 9541119995
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-13010

4KEU..KP61..XL

 1
23265 - FILTER, GAS, NO.1
90917-11023

4KEU..KP61

 1
Common parts
90464-00081
90464-00082
91651-40610
95411-10030
95411-10095
95411-10160
95411-19960
95411-19995
Linked diagrams
1701
