KP61-PGMGS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

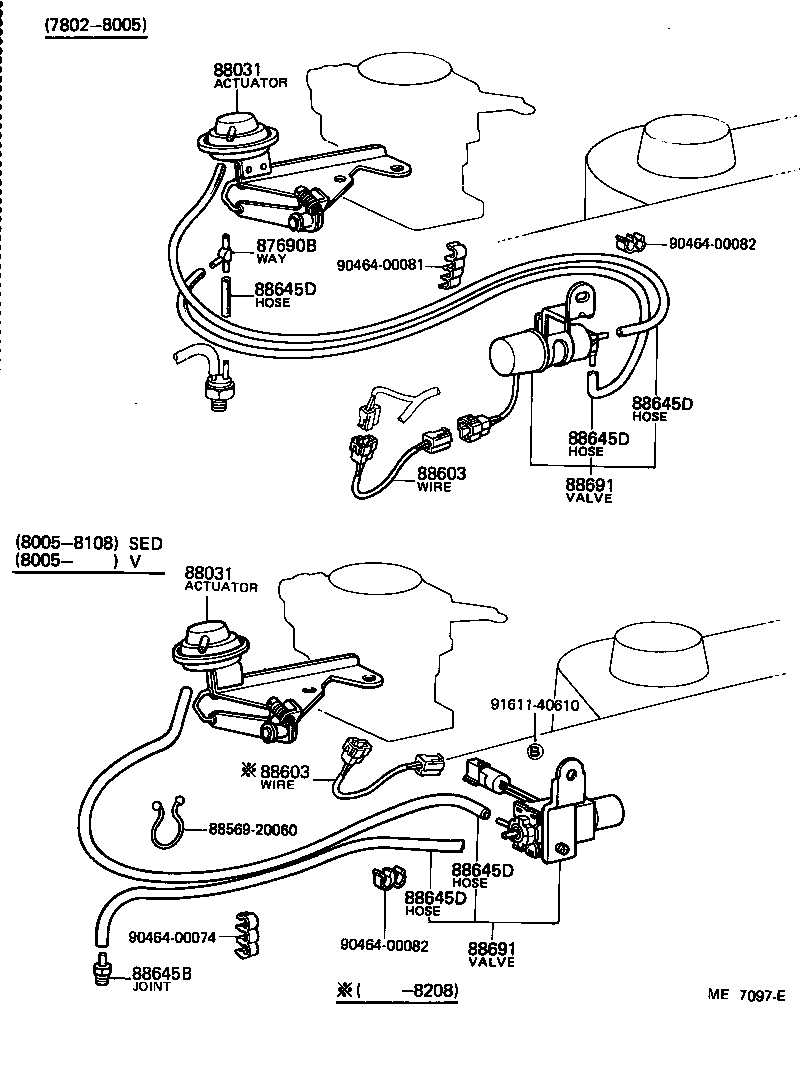

(7802-8108)KP61 ; (7810- )4D

Click highlighted areas on diagram

diagram 87690B 88031 88031 8856920060 88603 88603 88645B 88645D 88645D 88645D 88645D 88645D 88691 88691 9046400074 9046400081 9046400082 9046400082 9161140610
Part # Description Qty Price
87690B - WAY, 3
90413-04001

KP6#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12080

KP6#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12080

KP6#

 1
88603 - WIRE, IDLE UP DEVICE
88648-10120

KP6#

 1
88648-10150

KP61..SED

 1
88648-10050

KP6#

 1
88603 - WIRE, IDLE UP DEVICE
88648-10120

KP6#

 1
88648-10150

KP61..SED

 1
88648-10050

KP6#

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10090

KP6#

 1
88690-10100

KP61

 1
88690-10120

KP6#

 1
88690-10140

KP61..SED

NO.2

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10090

KP6#

 1
88690-10100

KP61

 1
88690-10120

KP6#

 1
88690-10140

KP61..SED

NO.2

 1
Common parts
88569-20060
90464-00074
90464-00081
90464-00082
91611-40610

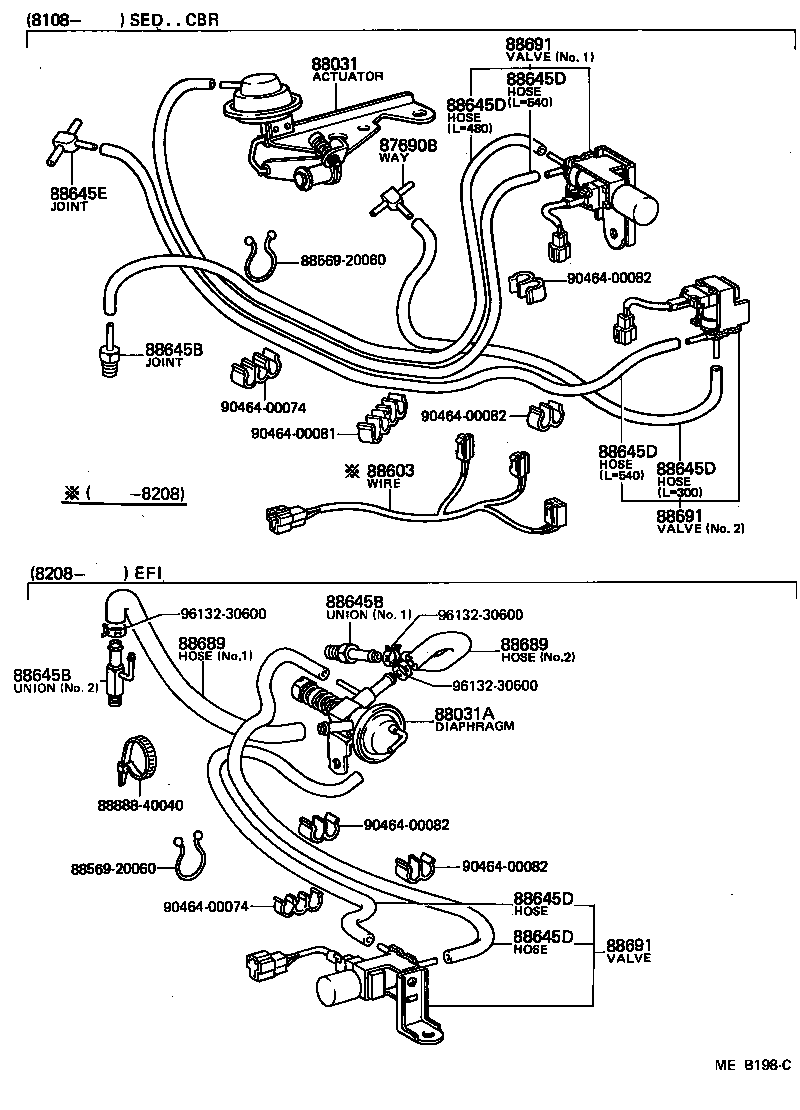

(8108- )SED

Click highlighted areas on diagram

diagram 87690B 88031 88031A 8856920060 8856920060 88603 88645B 88645B 88645B 88645D 88645D 88645D 88645D 88645D 88645D 88645E 88689 88689 88691 88691 88691 8888840040 9046400074 9046400074 9046400081 9046400082 9046400082 9046400082 9046400082 9613230600 9613230600 9613230600
Part # Description Qty Price
87690B - WAY, 3
90413-04001

KP6#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12080

KP6#

 1
88603 - WIRE, IDLE UP DEVICE
88648-10120

KP6#

 1
88648-10150

KP61..SED

 1
88648-10050

KP6#

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

KP6#

*H,L=600,ﾏｰｸ=#*,*H,L=450,MARK=#*

 1
95411-10060

KP61

*H,L=600,ﾏｰｸ=#0,*H,L=510

 1
95411-10030

KP6#

長さ=300,ﾏｰｸ=#0,*H,L=50

 1
95411-19960

KP61

*H,L=600,ﾏｰｸ=#*,*H,L=510

 1
95411-10060

KP6#

*H,L=600,ﾏｰｸ=#0,*H,L=480,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10090

KP6#

 1
88690-10100

KP61

 1
88690-10120

KP6#

 1
88690-10140

KP61..SED

NO.2

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10090

KP6#

 1
88690-10100

KP61

 1
88690-10120

KP6#

 1
88690-10140

KP61..SED

NO.2

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10090

KP6#

 1
88690-10100

KP61

 1
88690-10120

KP6#

 1
88690-10140

KP61..SED

NO.2

 1
Common parts
88569-20060
88888-40040
90464-00074
90464-00081
90464-00082
96132-30600
