KP61-PGMGS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
4KU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )MTM

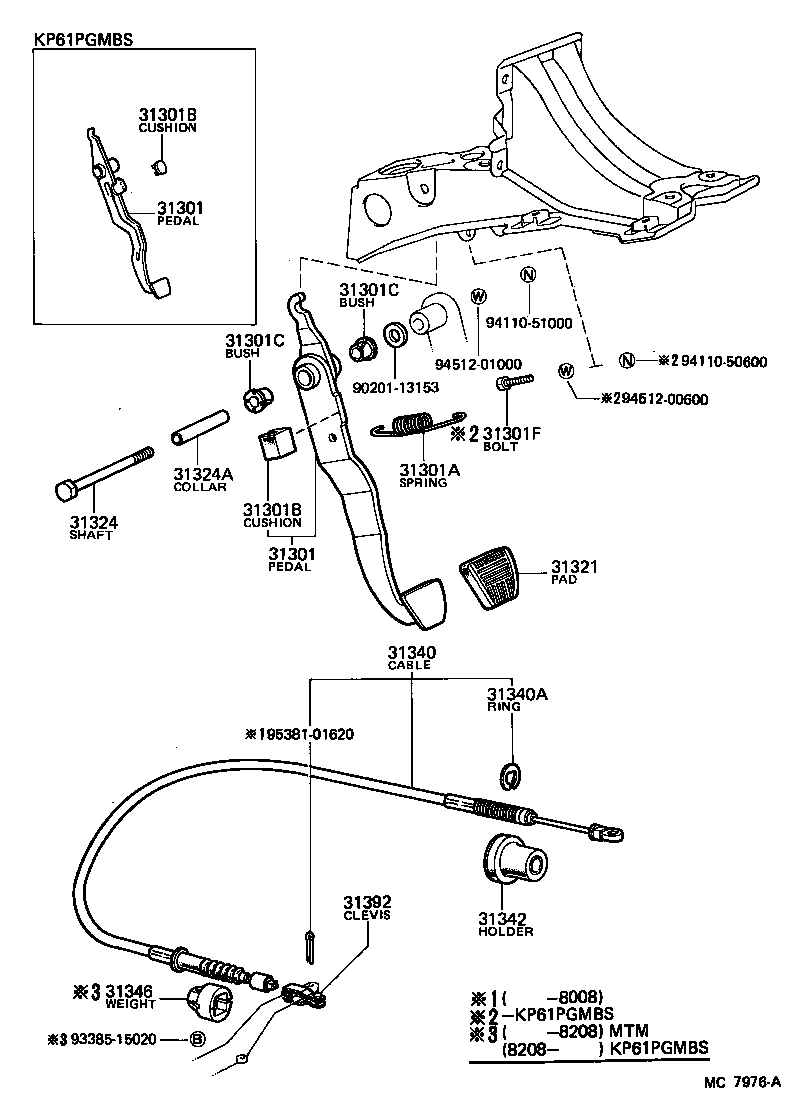

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-10100 |
KP6#..MTM |
1 | ||
| 31301-10080 |
KP6#..MTM |
1 | ||
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-10100 |
KP6#..MTM |
1 | ||
| 31301-10080 |
KP6#..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14002 |
KP6#..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10010 |
KP61..4F..DXA;KP6#..MTM..(DLX,S,SE,SI,STD,XL) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10010 |
KP61..4F..DXA;KP6#..MTM..(DLX,S,SE,SI,STD,XL) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KP6#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KP6#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-06400 |
KP61..4F..DXA;KP6#..MTM..(DLX,S,SE,SI,STD,XL) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14010 |
KP6#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10490 |
KP6#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10022 |
KP6#..MTM |
1 | ||
| 31340 - CABLE ASSY, CLUTCH RELEASE | ||||
| 31340-19185 |
KP6#..MTM |
1 | ||
| 31340A - RING, E(FOR CLUTCH RELEASE CABLE) | ||||
| 96160-01200 |
KP6#..MTM |
1 | ||
| 31342 - HOLDER, CLUTCH CABLE, INNER | ||||
| 31342-12901 |
KP6#..MTM |
1 | ||
| 31346 - WEIGHT, CLUTCH CABLE | ||||
| 31346-10020 |
KP6#..MTM |
1 | ||
| 31392 - CLEVIS, CLUTCH CABLE | ||||
| 31392-10010 |
KP6#..MTM |
1 | ||
| Common parts | ||||
| 90201-13153 | ||||
| 93385-15020 | ||||
| 94110-50600 | ||||
| 94110-51000 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 95381-01620 | ||||
