KP61-PGKSS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
4KU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

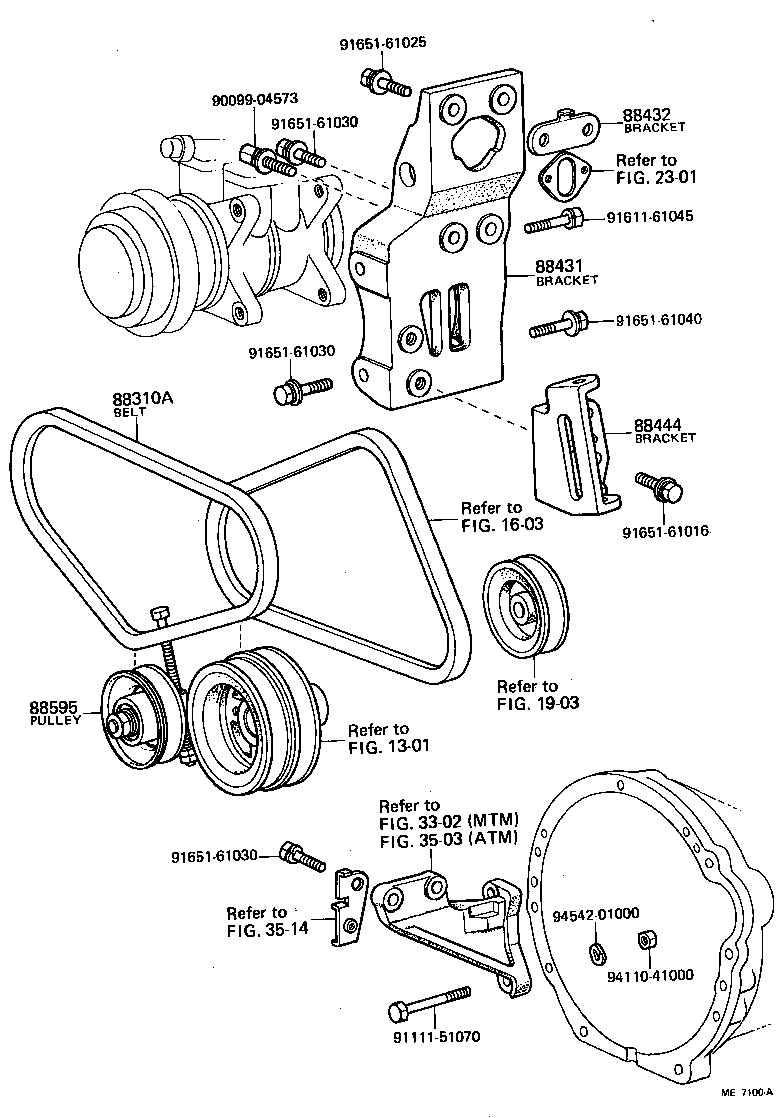

ILLUST NO. 2 OF 2(7802-8005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50900 |
KP61 |
1 | ||
| 99322-50870 |
KP6# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-10010 |
KP6# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-10010 |
KP6# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-10010 |
KP6# |
1 | ||
| 88440-10030 |
KP6# |
1 | ||
| Common parts | ||||
| 90099-04573 | ||||
| 91111-51070 | ||||
| 91611-61045 | ||||
| 91651-61016 | ||||
| 91651-61025 | ||||
| 91651-61030 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94542-01000 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
| 1903 | ||||
| 2301 | ||||
| 3302 | ||||
| 3503 | ||||
| 3514 | ||||

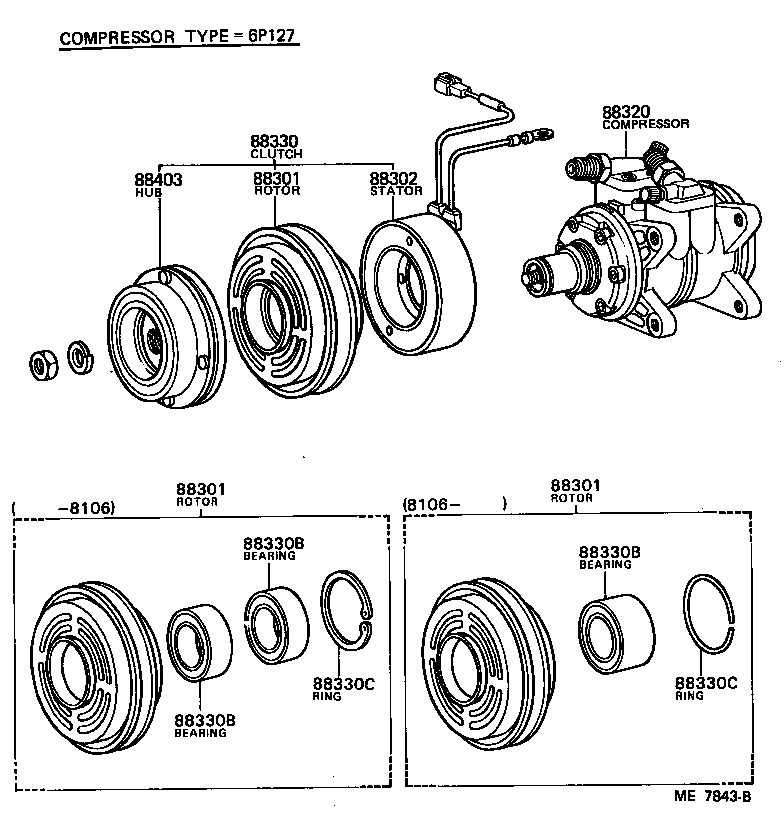

ILLUST NO. 1 OF 2(7802- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12040 |
KP6# |
1 | ||
| 88412-20060 |
KP6# |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12040 |
KP6# |
1 | ||
| 88412-20060 |
KP6# |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12040 |
KP6# |
1 | ||
| 88412-20060 |
KP6# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14020 |
KP6# |
1 | ||
| 88411-22040 |
KP6# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-10030 |
KP6# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-12080 |
KP6# |
1 | ||
| 88410-20130 |
KP6# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KP6# |
1 | ||
| 90099-10117 |
KP6# |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KP6# |
1 | ||
| 90099-10117 |
KP6# |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KP6# |
1 | ||
| 90099-10117 |
KP6# |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
KP6# |
1 | ||
| 90099-07114 |
KP6# |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
KP6# |
1 | ||
| 90099-07114 |
KP6# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-26030 |
KP6# |
1 | ||
| 88403-22030 |
KP6# |
1 | ||

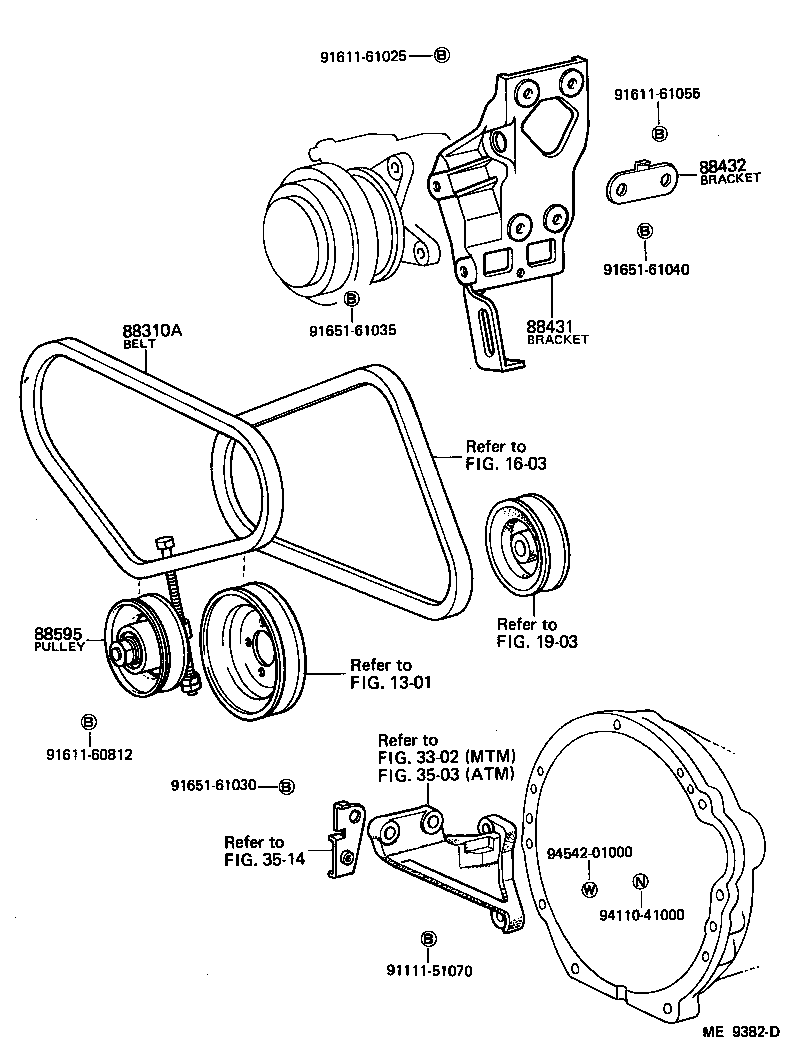

ILLUST NO. 2 OF 2(8005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50900 |
KP61 |
1 | ||
| 99322-50870 |
KP6# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-10010 |
KP6# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-10010 |
KP6# |
1 | ||
| 88440-10030 |
KP6# |
1 | ||
| Common parts | ||||
| 91111-51070 | ||||
| 91611-60812 | ||||
| 91611-61025 | ||||
| 91611-61055 | ||||
| 91651-61030 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94542-01000 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
| 1903 | ||||
| 3302 | ||||
| 3503 | ||||
| 3514 | ||||
