KP61-PGKRS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

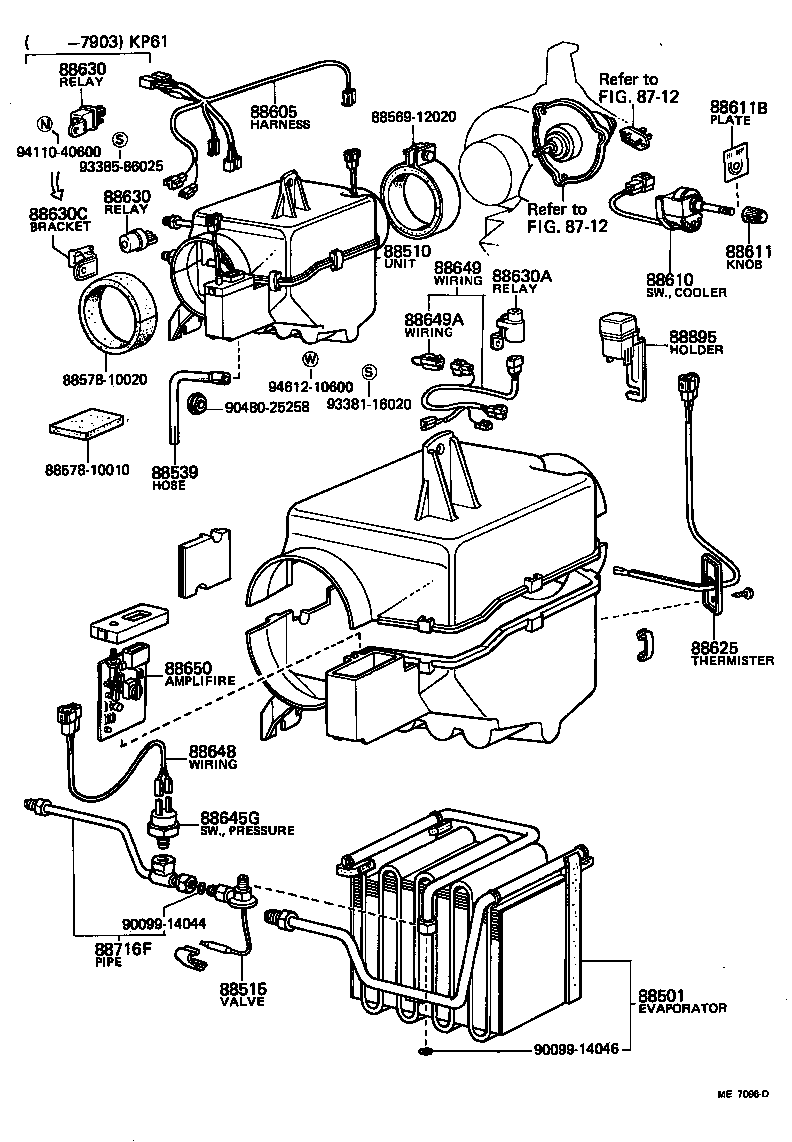

Click highlighted areas on diagram

diagram 8712 8712 88501 88510 88515 88539 8856912020 8857810010 8857810020 88605 88610 88611 88611B 88625 88630 88630 88630A 88630C 88645G 88648 88649 88649A 88650 88716F 88895 9009914044 9009914046 9048025258 9338116020 9338586025 9411040600 9461210600
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10031

KP6#

 1
88501-10050

KP61

OKINAWA SPEC

 1
88501-10050

KP6#

 1
88501-10070

KP61

 1
88510 - UNIT ASSY, COOLER
88510-10032

KP61

 1
88510-10030

KP6#

 1
88510-10050

KP61

OKINAWA SPEC

 1
88510-10031

KP6#

 1
88510-10090

KP61..CBR

 1
88515 - VALVE, COOLER EXPANSION
88515-16020

KP61..CBR

 1
88515-20040

KP6#

 1
88515-16030

KP61

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10060

KP61

 1
88539-10030

KP6#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10070

KP61

 1
88605-10040

KP61

 1
88605-10080

KP61..MTM

 1
88605-10081

KP61..SED

 1
88605-10190

KP61..SED..CBR

COOLER SWITCH MARK=A/C

 1
88605-10080

KP61

 1
88605-10130

KP61..SED..CBR

COOLER SWITCH MARK=ECONO A/C

 1
88610 - SWITCH ASSY, COOLER CONTROL
88610-10010

KP6#

 1
88611 - KNOB, COOLER CONTROL SWITCH
88611-10010

KP6#

 1
88611B - PLATE, COOLER CONTROL SWITCH
88895-10090

KP6#

 1
88895-10050

KP6#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

KP6#

 1
88625-12070

KP61

 1
88630 - RELAY ASSY, COOLER
88630-10010

KP61

 1
90987-02001

KP61

 1
88630 - RELAY ASSY, COOLER
88630-10010

KP61

 1
90987-02001

KP61

 1
88630A - RELAY ASSY, COOLER
88630-10020

KP6#

 1
88630-10030

KP61

 2
88630C - BRACKET, COOLER RELAY
85999-26010

KP61

 1
88645G - SWITCH, PRESSURE
88645-22020

KP6#

 1
88645-12020

KP61

 1
88648 - WIRING, COOLER, NO.1
88648-10160

KP61

 1
88648-12110

KP6#

 1
88648-10070

KP6#

 1
88648-10070

KP6#

 1
88649 - WIRING, COOLER, NO.2
88648-10100

KP61

 1
88648-10100

KP61..MTM

 1
88648-10170

KP61..SED..CBR

 1
88648-10100

KP61..SED

 1
88649A - WIRING, COOLER, NO.3
88648-10110

KP6#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10010

KP6#

 1
88650-16010

KP61

 1
88650-10011

KP6#

 1
88650-10030

KP61..CBR

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-10270

KP6#

 1
88716-10150

KP6#

 1
88716-10360

KP61

 1
88895 - HOLDER, FUSE
88895-10060

KP61

 1
Common parts
88569-12020
88578-10010
88578-10020
90099-14044
90099-14046
90480-25258
93381-16020
93385-86025
94110-40600
94612-10600
Linked diagrams
8712

(8208- )

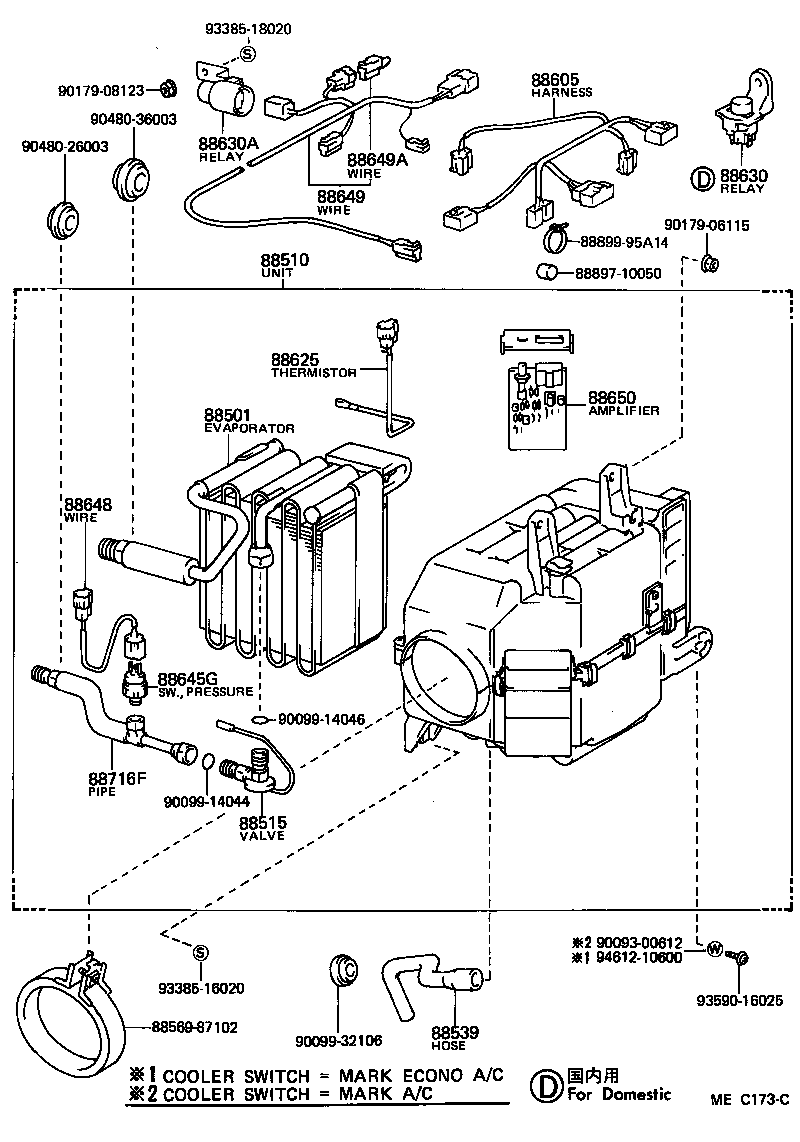

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 8856987102 88605 88625 88630 88630A 88645G 88648 88649 88649A 88650 88716F 8889710050 8889995A14 9009300612 9009914044 9009914046 9009932106 9017906115 9017908123 9048026003 9048036003 9338516020 9338518020 9359016025 9461210600
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10031

KP6#

 1
88501-10050

KP61

OKINAWA SPEC

 1
88501-10050

KP6#

 1
88501-10070

KP61

 1
88510 - UNIT ASSY, COOLER
88510-10032

KP61

 1
88510-10030

KP6#

 1
88510-10050

KP61

OKINAWA SPEC

 1
88510-10031

KP6#

 1
88510-10090

KP61..CBR

 1
88515 - VALVE, COOLER EXPANSION
88515-16020

KP61..CBR

 1
88515-20040

KP6#

 1
88515-16030

KP61

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10060

KP61

 1
88539-10030

KP6#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10070

KP61

 1
88605-10040

KP61

 1
88605-10080

KP61..MTM

 1
88605-10081

KP61..SED

 1
88605-10190

KP61..SED..CBR

COOLER SWITCH MARK=A/C

 1
88605-10080

KP61

 1
88605-10130

KP61..SED..CBR

COOLER SWITCH MARK=ECONO A/C

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

KP6#

 1
88625-12070

KP61

 1
88630 - RELAY ASSY, COOLER
88630-10010

KP61

 1
90987-02001

KP61

 1
88630A - RELAY ASSY, COOLER
88630-10020

KP6#

 1
88630-10030

KP61

 2
88645G - SWITCH, PRESSURE
88645-22020

KP6#

 1
88645-12020

KP61

 1
88648 - WIRING, COOLER, NO.1
88648-10160

KP61

 1
88648-12110

KP6#

 1
88648-10070

KP6#

 1
88648-10070

KP6#

 1
88649 - WIRING, COOLER, NO.2
88648-10100

KP61

 1
88648-10100

KP61..MTM

 1
88648-10170

KP61..SED..CBR

 1
88648-10100

KP61..SED

 1
88649A - WIRING, COOLER, NO.3
88648-10110

KP6#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10010

KP6#

 1
88650-16010

KP61

 1
88650-10011

KP6#

 1
88650-10030

KP61..CBR

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-10270

KP6#

 1
88716-10150

KP6#

 1
88716-10360

KP61

 1
Common parts
88569-87102
88897-10050
88899-95A14
90093-00612
90099-14044
90099-14046
90099-32106
90179-06115
90179-08123
90480-26003
90480-36003
93385-16020
93385-18020
93590-16025
94612-10600
