KP61-PGKRS (1978)
Toyota Starlet

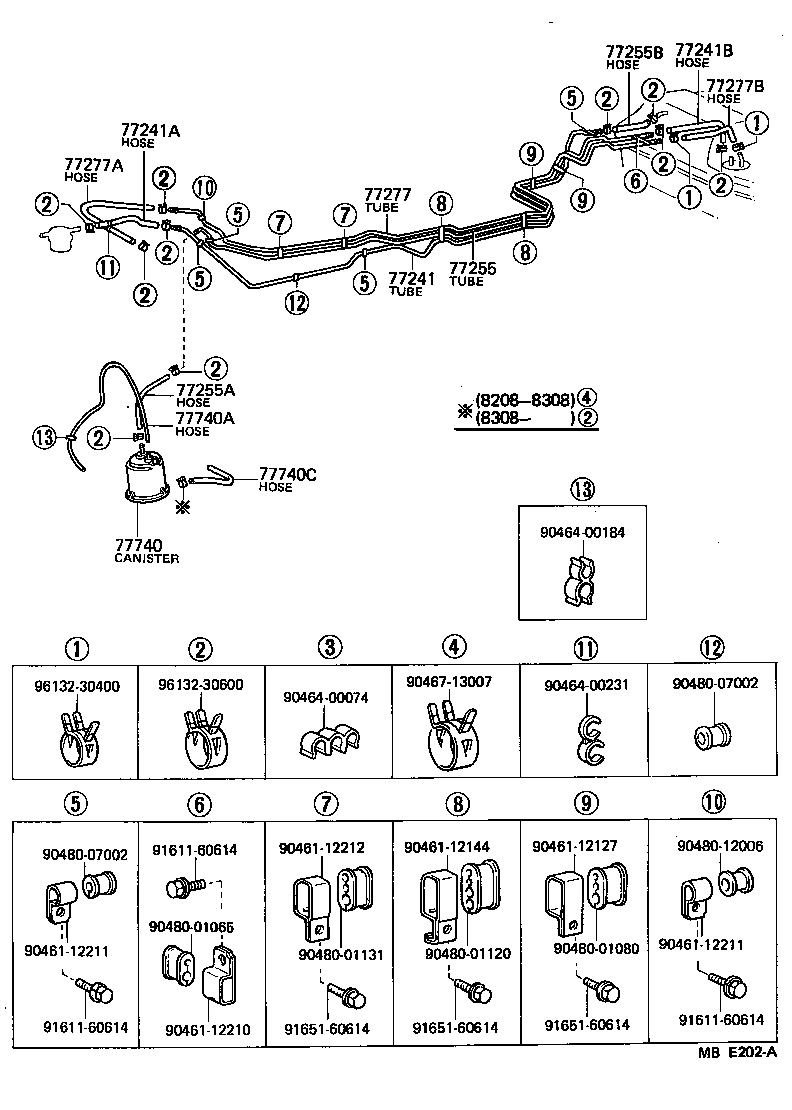

ILLUST NO. 2 OF 2(7802-8005)KP61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-10060 |
KP61..SED..CBR |
1 | ||
| 77251-10050 |
KP61 |
1 | ||
| 77251-10150 |
KP61..SED..CBR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KP6# *H,L=110 |
1 | ||
| 95332-06011 |
KP6# *H,L=110 |
1 | ||
| 95332-06020 |
KP6#..CBR *H,L=130 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06022 |
KP61 *H,L=220 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 95332-06030 |
KP61 *H,L=220 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77262-10010 |
KP6# |
1 | ||
| 77262-10020 |
KP6# |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
KP6# *H,L=200 |
1 | ||
| 95332-06020 |
KP6# *H,L=170 |
1 | ||
| 95332-06020 |
KP6# *H,L=150 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77261-10030 |
KP61 |
1 | ||
| 77261-10040 |
KP61 |
1 | ||
| 77261-10060 |
KP61..SED..CBR |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06013 |
KP6# *H,L=130 |
1 | ||
| 95332-06020 |
KP6# *H,L=120 |
1 | ||
| 95332-06020 |
KP61..CBR *H,L=200 |
1 | ||
| 95332-06020 |
KP6# *H,L=130 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06015 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-10080 |
KP61..SED..CBR |
1 | ||
| 77255-10060 |
KP61 |
1 | ||
| 77255-10050 |
KP61 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04040 |
KP61 *H,L=400 |
1 | ||
| 95332-04060 |
KP61..CBR *H,L=420 |
1 | ||
| 95332-04046 |
KP61 *H,L=460 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04014 |
KP61 *H,L=140 |
1 | ||
| 95332-04020 |
KP61..SED..CBR *H,L=140 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-10050 |
KP6# |
1 | ||
| 77740-10030 |
KP6# |
1 | ||
| 77704-10090 |
KP61..CBR |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-10020 |
KP6# |
1 | ||
| 77264-10030 |
KP6# |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90461-06768 | ||||
| 90461-08774 | ||||
| 90461-12127 | ||||
| 90463-15617 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00231 | ||||
| 90464-00234 | ||||
| 90467-12058 | ||||
| 90480-01080 | ||||
| 90480-07002 | ||||
| 90480-13290 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96224-20956 | ||||

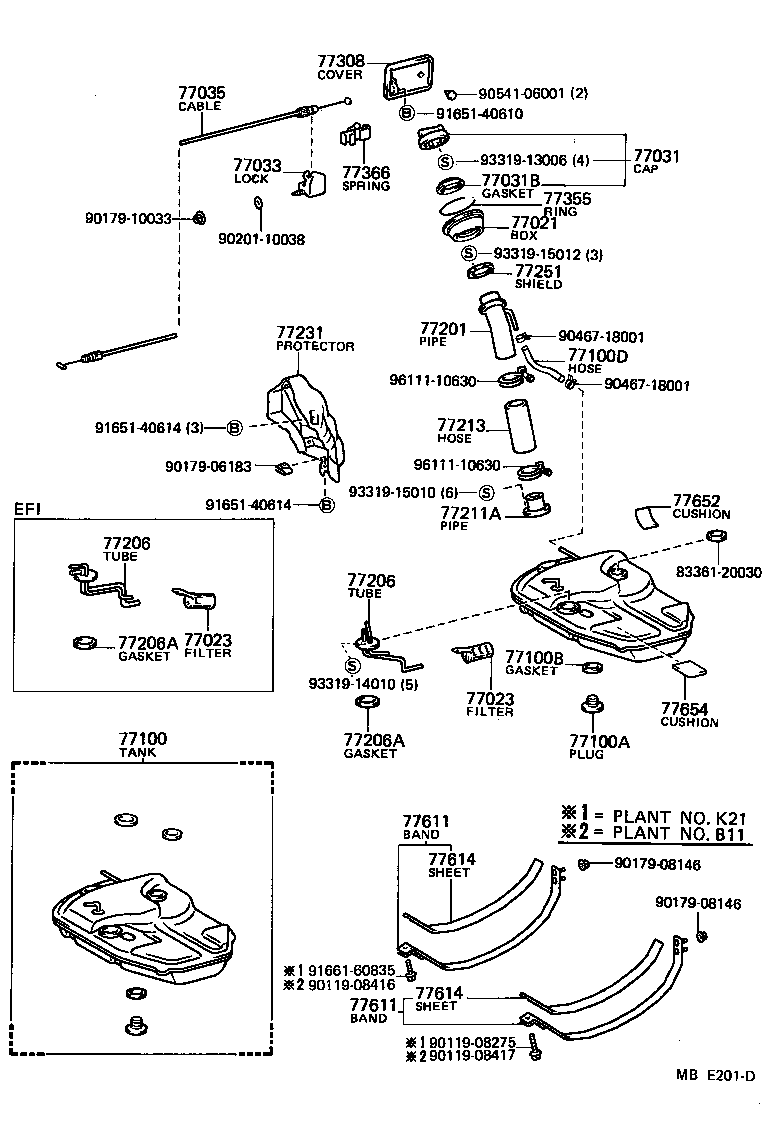

ILLUST NO. 1 OF 2(7802-8005)KP61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77292-10020 |
KP61..SED |
1 | ||
| 77292-10010 |
KP61 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
KP6#..CBR |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
KP6# |
1 | ||
| 77310-12090 |
KP6# |
1 | ||
| 77310-12100 |
KP6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
KP6# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-10902 |
KP61..SED |
1 | ||
| 77001-10900 |
KP61 |
1 | ||
| 77001-19165 |
KP61..SED..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
KP6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
KP6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18039 |
KP61 |
1 | ||
| 90445-18020 |
KP61..SED |
1 | ||
| 90445-18039 |
KP61..SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10060 |
KP61 |
1 | ||
| 77201-10070 |
KP61..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77209-10070 |
KP61..SED..CBR |
1 | ||
| 77209-10020 |
KP61 |
1 | ||
| 77209-10040 |
KP61..SED |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
KP61..SED |
1 | ||
| 77211A - PIPE, FUEL TANK FILLER, LOWER | ||||
| 77011-10020 |
KP61..SED |
1 | ||
| 77011-10010 |
KP61 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-10030 |
KP61 |
1 | ||
| 77213-10040 |
KP61..SED |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77661-10030 |
KP61..SED |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-22010 |
KP61 |
1 | ||
| 77291-22010 |
KP6# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-10010 |
KP61..SED |
1 | ||
| 77350-10021 |
KP61..SED |
1 | ||
| 77355 - RING, INLET BOX | ||||
| 77371-10010 |
KP61 |
1 | ||
| 77371-10020 |
KP61..SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77610-10010 |
KP61 RH |
1 | ||
| 77620-10020 |
KP61..SED LH |
1 | ||
| 77620-10010 |
KP61 LH |
1 | ||
| 77610-10020 |
KP61..SED RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77610-10010 |
KP61 RH |
1 | ||
| 77620-10020 |
KP61..SED LH |
1 | ||
| 77620-10010 |
KP61 LH |
1 | ||
| 77610-10020 |
KP61..SED RH |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-10020 |
KP61 |
2 | ||
| 77651-10030 |
KP61..SED PLANT NO.B11 |
2 | ||
| 77651-10040 |
KP61..SED PLANT NO.K21 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-10040 |
KP61..SED PLANT NO.B11 |
3 | ||
| 77652-10030 |
KP61 |
3 | ||
| 77652-10050 |
KP61..SED PLANT NO.K21 |
3 | ||
| Common parts | ||||
| 90119-08155 | ||||
| 90179-06183 | ||||
| 90179-08146 | ||||
| 90467-18001 | ||||
| 90541-06001 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 96111-10630 | ||||
ILLUST NO. 1 OF 2(8005-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77292-10020 |
KP61..SED |
1 | ||
| 77292-10010 |
KP61 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
KP6#..CBR |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
KP6# |
1 | ||
| 77310-12090 |
KP6# |
1 | ||
| 77310-12100 |
KP6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
KP6# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-10902 |
KP61..SED |
1 | ||
| 77001-10900 |
KP61 |
1 | ||
| 77001-19165 |
KP61..SED..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
KP6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
KP6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18039 |
KP61 |
1 | ||
| 90445-18020 |
KP61..SED |
1 | ||
| 90445-18039 |
KP61..SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10060 |
KP61 |
1 | ||
| 77201-10070 |
KP61..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77209-10070 |
KP61..SED..CBR |
1 | ||
| 77209-10020 |
KP61 |
1 | ||
| 77209-10040 |
KP61..SED |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
KP61..SED |
1 | ||
| 77211A - PIPE, FUEL TANK FILLER, LOWER | ||||
| 77011-10020 |
KP61..SED |
1 | ||
| 77011-10010 |
KP61 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-10030 |
KP61 |
1 | ||
| 77213-10040 |
KP61..SED |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77661-10030 |
KP61..SED |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-22010 |
KP61 |
1 | ||
| 77291-22010 |
KP6# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-10010 |
KP61..SED |
1 | ||
| 77350-10021 |
KP61..SED |
1 | ||
| 77355 - RING, INLET BOX | ||||
| 77371-10010 |
KP61 |
1 | ||
| 77371-10020 |
KP61..SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77610-10010 |
KP61 RH |
1 | ||
| 77620-10020 |
KP61..SED LH |
1 | ||
| 77620-10010 |
KP61 LH |
1 | ||
| 77610-10020 |
KP61..SED RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77610-10010 |
KP61 RH |
1 | ||
| 77620-10020 |
KP61..SED LH |
1 | ||
| 77620-10010 |
KP61 LH |
1 | ||
| 77610-10020 |
KP61..SED RH |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-10020 |
KP61 |
2 | ||
| 77651-10030 |
KP61..SED PLANT NO.B11 |
2 | ||
| 77651-10040 |
KP61..SED PLANT NO.K21 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-10040 |
KP61..SED PLANT NO.B11 |
3 | ||
| 77652-10030 |
KP61 |
3 | ||
| 77652-10050 |
KP61..SED PLANT NO.K21 |
3 | ||
| Common parts | ||||
| 83361-20030 | ||||
| 90119-08275 | ||||
| 90179-06183 | ||||
| 90179-08146 | ||||
| 90467-18001 | ||||
| 90541-06001 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91661-60835 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 96111-10630 | ||||
ILLUST NO. 2 OF 2(8005-8108)KP61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-10060 |
KP61..SED..CBR |
1 | ||
| 77251-10050 |
KP61 |
1 | ||
| 77251-10150 |
KP61..SED..CBR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KP6# *H,L=110 |
1 | ||
| 95332-06011 |
KP6# *H,L=110 |
1 | ||
| 95332-06020 |
KP6#..CBR *H,L=130 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06022 |
KP61 *H,L=220 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 95332-06030 |
KP61 *H,L=220 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77262-10010 |
KP6# |
1 | ||
| 77262-10020 |
KP6# |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
KP6# *H,L=200 |
1 | ||
| 95332-06020 |
KP6# *H,L=170 |
1 | ||
| 95332-06020 |
KP6# *H,L=150 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77261-10030 |
KP61 |
1 | ||
| 77261-10040 |
KP61 |
1 | ||
| 77261-10060 |
KP61..SED..CBR |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06013 |
KP6# *H,L=130 |
1 | ||
| 95332-06020 |
KP6# *H,L=120 |
1 | ||
| 95332-06020 |
KP61..CBR *H,L=200 |
1 | ||
| 95332-06020 |
KP6# *H,L=130 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06015 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-10080 |
KP61..SED..CBR |
1 | ||
| 77255-10060 |
KP61 |
1 | ||
| 77255-10050 |
KP61 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04040 |
KP61 *H,L=400 |
1 | ||
| 95332-04060 |
KP61..CBR *H,L=420 |
1 | ||
| 95332-04046 |
KP61 *H,L=460 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04014 |
KP61 *H,L=140 |
1 | ||
| 95332-04020 |
KP61..SED..CBR *H,L=140 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-10050 |
KP6# |
1 | ||
| 77740-10030 |
KP6# |
1 | ||
| 77704-10090 |
KP61..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
KP6# *H,L=450,ﾏｰｸ=#* |
1 | ||
| 95411-19995 |
KP61..SED..CBR *H,L=650,ﾏｰｸ=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12121 |
KP61 長さ=200 |
1 | ||
| 95332-08020 |
KP6# *H,L=110,内径=7.6 |
1 | ||
| 95332-08020 |
KP61 *H,L=200,内径=7.6 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-10020 |
KP6# |
1 | ||
| 77264-10030 |
KP6# |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90461-12127 | ||||
| 90461-12144 | ||||
| 90461-12210 | ||||
| 90461-12211 | ||||
| 90461-12212 | ||||
| 90464-00231 | ||||
| 90467-13007 | ||||
| 90480-01065 | ||||
| 90480-01080 | ||||
| 90480-01120 | ||||
| 90480-01131 | ||||
| 90480-07002 | ||||
| 90480-12006 | ||||
| 90480-13290 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
ILLUST NO. 2 OF 2(8108-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-10060 |
KP61..SED..CBR |
1 | ||
| 77251-10050 |
KP61 |
1 | ||
| 77251-10150 |
KP61..SED..CBR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KP6# *H,L=110 |
1 | ||
| 95332-06011 |
KP6# *H,L=110 |
1 | ||
| 95332-06020 |
KP6#..CBR *H,L=130 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06022 |
KP61 *H,L=220 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 95332-06030 |
KP61 *H,L=220 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77261-10030 |
KP61 |
1 | ||
| 77261-10040 |
KP61 |
1 | ||
| 77261-10060 |
KP61..SED..CBR |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06013 |
KP6# *H,L=130 |
1 | ||
| 95332-06020 |
KP6# *H,L=120 |
1 | ||
| 95332-06020 |
KP61..CBR *H,L=200 |
1 | ||
| 95332-06020 |
KP6# *H,L=130 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06015 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-10080 |
KP61..SED..CBR |
1 | ||
| 77255-10060 |
KP61 |
1 | ||
| 77255-10050 |
KP61 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04040 |
KP61 *H,L=400 |
1 | ||
| 95332-04060 |
KP61..CBR *H,L=420 |
1 | ||
| 95332-04046 |
KP61 *H,L=460 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04014 |
KP61 *H,L=140 |
1 | ||
| 95332-04020 |
KP61..SED..CBR *H,L=140 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-10050 |
KP6# |
1 | ||
| 77740-10030 |
KP6# |
1 | ||
| 77704-10090 |
KP61..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
KP6# *H,L=450,ﾏｰｸ=#* |
1 | ||
| 95411-19995 |
KP61..SED..CBR *H,L=650,ﾏｰｸ=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12121 |
KP61 長さ=200 |
1 | ||
| 95332-08020 |
KP6# *H,L=110,内径=7.6 |
1 | ||
| 95332-08020 |
KP61 *H,L=200,内径=7.6 |
1 | ||
| Common parts | ||||
| 90461-12127 | ||||
| 90461-12144 | ||||
| 90461-12210 | ||||
| 90461-12211 | ||||
| 90461-12212 | ||||
| 90464-00074 | ||||
| 90464-00184 | ||||
| 90464-00231 | ||||
| 90480-01065 | ||||
| 90480-01080 | ||||
| 90480-01120 | ||||
| 90480-01131 | ||||
| 90480-07002 | ||||
| 90480-12006 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
ILLUST NO. 1 OF 2(8208- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77292-10020 |
KP61..SED |
1 | ||
| 77292-10010 |
KP61 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
KP6#..CBR |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
KP6#..CBR |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
KP6# |
1 | ||
| 77310-12090 |
KP6# |
1 | ||
| 77310-12100 |
KP6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
KP6# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-24010 |
KP61..S,SE,SI |
1 | ||
| 77037-14010 |
KP61..S,SE,SI |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10010 |
KP61..S,SE,SI |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-10902 |
KP61..SED |
1 | ||
| 77001-10900 |
KP61 |
1 | ||
| 77001-19165 |
KP61..SED..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
KP6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
KP6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18039 |
KP61 |
1 | ||
| 90445-18020 |
KP61..SED |
1 | ||
| 90445-18039 |
KP61..SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10060 |
KP61 |
1 | ||
| 77201-10070 |
KP61..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77209-10070 |
KP61..SED..CBR |
1 | ||
| 77209-10020 |
KP61 |
1 | ||
| 77209-10040 |
KP61..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77209-10070 |
KP61..SED..CBR |
1 | ||
| 77209-10020 |
KP61 |
1 | ||
| 77209-10040 |
KP61..SED |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
KP61..SED |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
KP61..SED |
1 | ||
| 77211A - PIPE, FUEL TANK FILLER, LOWER | ||||
| 77011-10020 |
KP61..SED |
1 | ||
| 77011-10010 |
KP61 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-10030 |
KP61 |
1 | ||
| 77213-10040 |
KP61..SED |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77661-10030 |
KP61..SED |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-22010 |
KP61 |
1 | ||
| 77291-22010 |
KP6# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-10010 |
KP61..SED |
1 | ||
| 77350-10021 |
KP61..SED |
1 | ||
| 77355 - RING, INLET BOX | ||||
| 77371-10010 |
KP61 |
1 | ||
| 77371-10020 |
KP61..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
KP61..SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77610-10010 |
KP61 RH |
1 | ||
| 77620-10020 |
KP61..SED LH |
1 | ||
| 77620-10010 |
KP61 LH |
1 | ||
| 77610-10020 |
KP61..SED RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77610-10010 |
KP61 RH |
1 | ||
| 77620-10020 |
KP61..SED LH |
1 | ||
| 77620-10010 |
KP61 LH |
1 | ||
| 77610-10020 |
KP61..SED RH |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77654-10020 |
KP61 60X30 |
2 | ||
| 77616-10030 |
KP61..SED 37X610 |
2 | ||
| 77616-10010 |
KP61 RH,41X565 |
1 | ||
| 77616-10020 |
KP61 LH,37X525 |
1 | ||
| 77616-10010 |
KP61 41X565 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-10020 |
KP61 |
2 | ||
| 77651-10030 |
KP61..SED PLANT NO.B11 |
2 | ||
| 77651-10040 |
KP61..SED PLANT NO.K21 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-10040 |
KP61..SED PLANT NO.B11 |
3 | ||
| 77652-10030 |
KP61 |
3 | ||
| 77652-10050 |
KP61..SED PLANT NO.K21 |
3 | ||
| Common parts | ||||
| 83361-20030 | ||||
| 90119-08275 | ||||
| 90119-08416 | ||||
| 90119-08417 | ||||
| 90179-06183 | ||||
| 90179-08146 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90467-18001 | ||||
| 90541-06001 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91661-60835 | ||||
| 93319-13006 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 96111-10630 | ||||
ILLUST NO. 2 OF 2(8208- )SED..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-10060 |
KP61..SED..CBR |
1 | ||
| 77251-10050 |
KP61 |
1 | ||
| 77251-10150 |
KP61..SED..CBR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KP6# *H,L=110 |
1 | ||
| 95332-06011 |
KP6# *H,L=110 |
1 | ||
| 95332-06020 |
KP6#..CBR *H,L=130 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06022 |
KP61 *H,L=220 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 95332-06030 |
KP61 *H,L=220 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77261-10030 |
KP61 |
1 | ||
| 77261-10040 |
KP61 |
1 | ||
| 77261-10060 |
KP61..SED..CBR |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06013 |
KP6# *H,L=130 |
1 | ||
| 95332-06020 |
KP6# *H,L=120 |
1 | ||
| 95332-06020 |
KP61..CBR *H,L=200 |
1 | ||
| 95332-06020 |
KP6# *H,L=130 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06015 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61 *H,L=150 |
1 | ||
| 95332-06020 |
KP61..SED..CBR *H,L=180 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-10080 |
KP61..SED..CBR |
1 | ||
| 77255-10060 |
KP61 |
1 | ||
| 77255-10050 |
KP61 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04040 |
KP61 *H,L=400 |
1 | ||
| 95332-04060 |
KP61..CBR *H,L=420 |
1 | ||
| 95332-04046 |
KP61 *H,L=460 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04014 |
KP61 *H,L=140 |
1 | ||
| 95332-04020 |
KP61..SED..CBR *H,L=140 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-10050 |
KP6# |
1 | ||
| 77740-10030 |
KP6# |
1 | ||
| 77704-10090 |
KP61..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
KP6# *H,L=450,ﾏｰｸ=#* |
1 | ||
| 95411-19995 |
KP61..SED..CBR *H,L=650,ﾏｰｸ=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12121 |
KP61 長さ=200 |
1 | ||
| 95332-08020 |
KP6# *H,L=110,内径=7.6 |
1 | ||
| 95332-08020 |
KP61 *H,L=200,内径=7.6 |
1 | ||
| Common parts | ||||
| 90461-12127 | ||||
| 90461-12144 | ||||
| 90461-12210 | ||||
| 90461-12211 | ||||
| 90461-12212 | ||||
| 90464-00074 | ||||
| 90464-00184 | ||||
| 90464-00231 | ||||
| 90467-13007 | ||||
| 90480-01065 | ||||
| 90480-01080 | ||||
| 90480-01120 | ||||
| 90480-01131 | ||||
| 90480-07002 | ||||
| 90480-12006 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
