KP61-PGKNS (1978)
Toyota Starlet
(7802- )

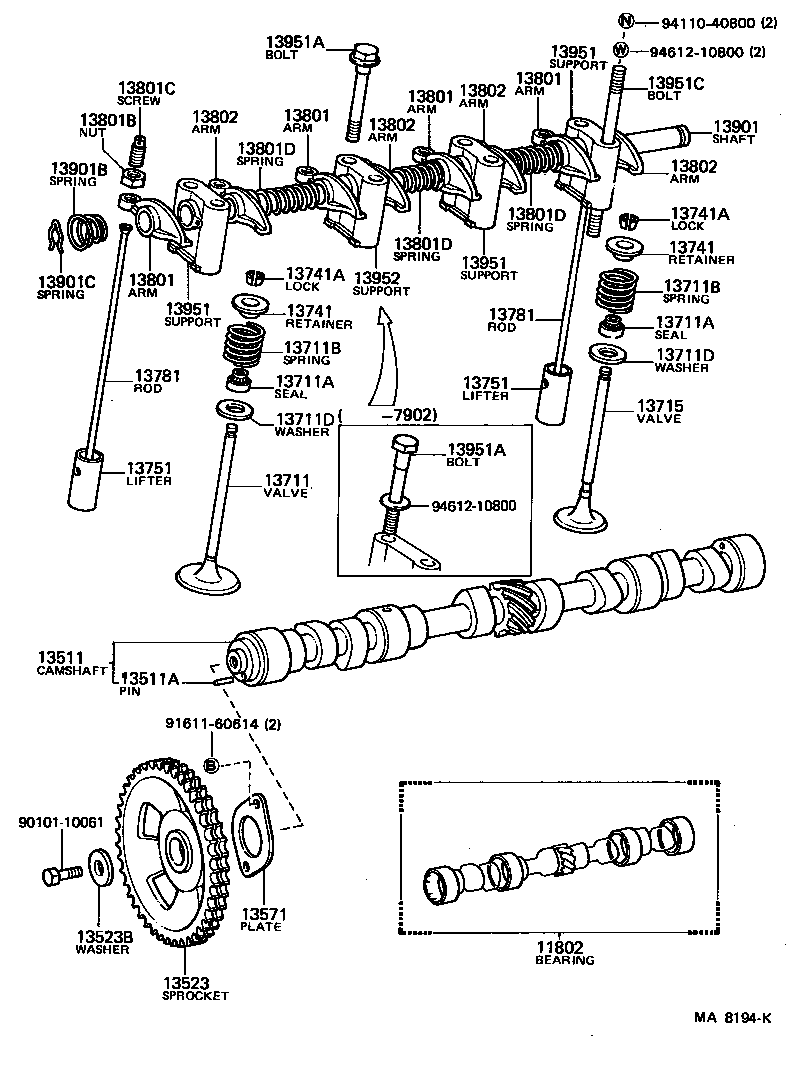

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-22010 |
3KHJ,4K#..KP6# STD |
1 | ||
| 11804-22010 |
3KHJ,4K#..KP6# U/S 0.250 |
1 | ||
| 11802-13020 |
4K#..KP61 STD |
1 | ||
| 11803-22010 |
3KHJ,4K#..KP6# U/S 0.125 |
1 | ||
| 11804-13020 |
4K#..KP61 U/S 0.250 |
1 | ||
| 11803-13020 |
4K#..KP61 U/S 0.125 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-13010 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
3KHJ,4K#..KP6# 長さ=15,外径=5,L=15,OD=5 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22010 |
3KHJ,4KU..KP6# N=36 |
1 | ||
| 13523-13030 |
3KHJ,4K#..KP6# |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-10489 |
3KHJ,4K#..KP6# |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-13010 |
3KHJ,4K#..KP6# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-24011 |
3KHJ,4K#..KP6# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02056 |
3KHJ,4KU..KP6# |
8 | ||
| 90913-02023 |
3KHJ,4KU..KP6# |
8 | ||
| 90913-02057 |
3KHJ,4K#..KP6# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02056 |
3KHJ,4KU..KP6# |
8 | ||
| 90913-02023 |
3KHJ,4KU..KP6# |
8 | ||
| 90913-02057 |
3KHJ,4K#..KP6# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-42293 |
3KHJ,4KU,4KJ..KP6# WD=4.2,CW=6.5 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-42293 |
3KHJ,4KU,4KJ..KP6# WD=4.2,CW=6.5 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16002 |
3KHJ,4K#..KP6# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16002 |
3KHJ,4K#..KP6# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-24012 |
3KHJ,4K#..KP6# |
4 | ||
| 13715-24013 |
4K#..KP61 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-24020 |
3KHJ,4K#..KP6# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-24020 |
3KHJ,4K#..KP6# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
3KHJ,4K#..KP6# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
3KHJ,4K#..KP6# |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-22014 |
4KJ,4KU..KP61 STD |
8 | ||
| 13755-22014 |
4KJ,4KU..KP61 O/S 0.05 |
8 | ||
| 13751-22013 |
3KHJ,4K#..KP6# STD |
8 | ||
| 13755-22013 |
3KHJ,4K#..KP6# O/S 0.05 |
8 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-22014 |
4KJ,4KU..KP61 STD |
8 | ||
| 13755-22014 |
4KJ,4KU..KP61 O/S 0.05 |
8 | ||
| 13751-22013 |
3KHJ,4K#..KP6# STD |
8 | ||
| 13755-22013 |
3KHJ,4K#..KP6# O/S 0.05 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-13010 |
4KU..KP61 |
8 | ||
| 13781-13040 |
4KJ,4KU..KP61 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-13010 |
4KU..KP61 |
8 | ||
| 13781-13040 |
4KJ,4KU..KP61 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08005 |
3KHJ,4K#..KP6# |
8 | ||
| 90170-08094 |
3KHJ,4KU..KP6# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
3KHJ,4K#..KP6# |
8 | ||
| 90913-05020 |
4K#..KP61 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-11008 |
3KHJ,4K#..KP6# |
3 | ||
| 90501-14064 |
4K#..KP61 |
3 | ||
| 90501-12008 |
3KHJ,4KU..KP6# |
3 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-11008 |
3KHJ,4K#..KP6# |
3 | ||
| 90501-14064 |
4K#..KP61 |
3 | ||
| 90501-12008 |
3KHJ,4KU..KP6# |
3 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-11008 |
3KHJ,4K#..KP6# |
3 | ||
| 90501-14064 |
4K#..KP61 |
3 | ||
| 90501-12008 |
3KHJ,4KU..KP6# |
3 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-22011 |
3KHJ,4K#..KP6# |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-22011 |
3KHJ,4K#..KP6# |
1 | ||
| 13901-22010 |
3KHJ,4KU..KP6# |
1 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-14022 |
3KHJ,4K#..KP6# |
2 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-13009 |
3KHJ,4K#..KP6# |
4 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-24012 |
3KHJ,4K#..KP6# |
3 | ||
| 13951-24010 |
3KHJ,4KU..KP6# |
3 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-24012 |
3KHJ,4K#..KP6# |
3 | ||
| 13951-24010 |
3KHJ,4KU..KP6# |
3 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-24012 |
3KHJ,4K#..KP6# |
3 | ||
| 13951-24010 |
3KHJ,4KU..KP6# |
3 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90105-08028 |
3KHJ,4K#..KP6# |
6 | ||
| 90910-01011 |
3KHJ,4KU..KP6# |
6 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90105-08028 |
3KHJ,4K#..KP6# |
6 | ||
| 90910-01011 |
3KHJ,4KU..KP6# |
6 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 90116-08082 |
3KHJ,4K#..KP6# L=100,S=10&54 |
2 | ||
| 90116-08127 |
3KHJ,4KU..KP6# L=96,S=10&50 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-24010 |
3KHJ,4KU..KP6# |
1 | ||
| 13952-24012 |
3KHJ,4K#..KP6# |
1 | ||
| Common parts | ||||
| 90101-10061 | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
