KP61-PGKGS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

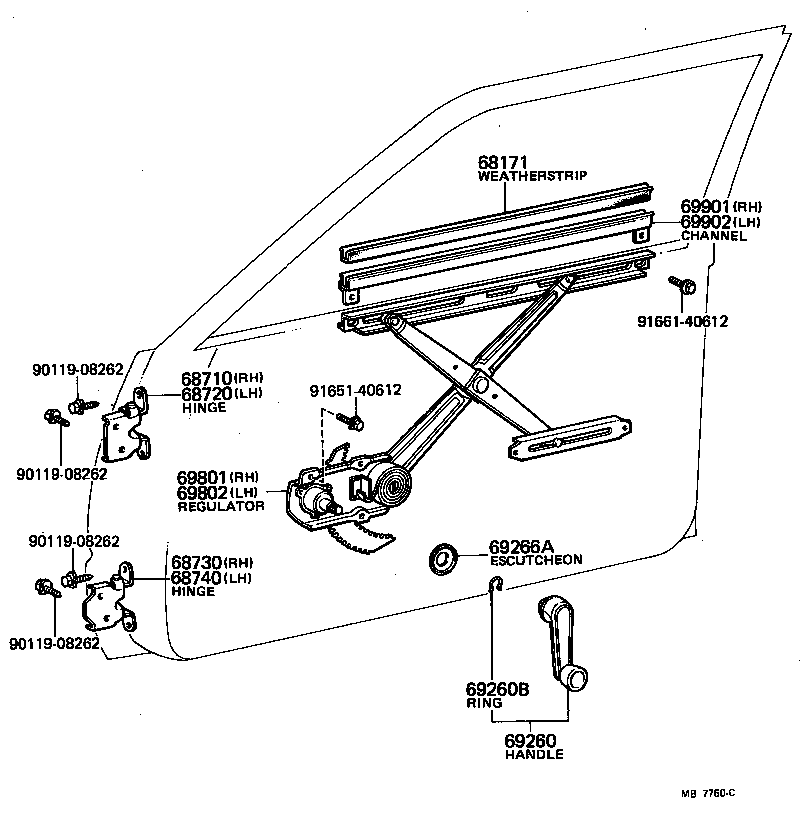

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69901 69902 9011908262 9011908262 9011908262 9011908262 9165140612 9166140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

KP6#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68750-14010

KP6#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68760-14010

KP6#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14020

KP6#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14020

KP6#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004036

KP6#..DLX,DXA,S,SE,XL

LIGHT BROWN,BROWN,TRIM0#,4#

 2
69260-1004005

KP6#..DLX,S,SE,XL

BEIGE,BEIGE,TRIM4#

 2
69260-1004036

KP6#..(DLX,DXA,SE,XL)..05S

LIGHT BROWN,BROWN,TRIM2#,4#

 2
69260-1004004

KP61..DLX,DXA,S,SE,XL

BLUE,BLUE,TRIM2#,4#,8#

 2
69260-1004001

KP6#

BLACK,BLACK,TRIM2#

 2
69260-1004004

KP6#..DLX,S,SE,XL

BLUE,BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

KP6#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-2201001

KP6#

BLACK,BLACK,TRIM2#

 2
69285-2201005

KP6#..DLX,S,SE,XL

BEIGE,BEIGE,TRIM4#

 2
69285-2201004

KP6#..DLX,S,SE,XL

BLUE,BLUE,TRIM8#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-10050

KP6#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-10050

KP61

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12080

KP6#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-12080

KP6#

 1
Common parts
90119-08262
91651-40612
91661-40612
