KP61-PGHNS (1981)

Toyota Starlet

Production Aug 1981 - Sep 1984
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8205)

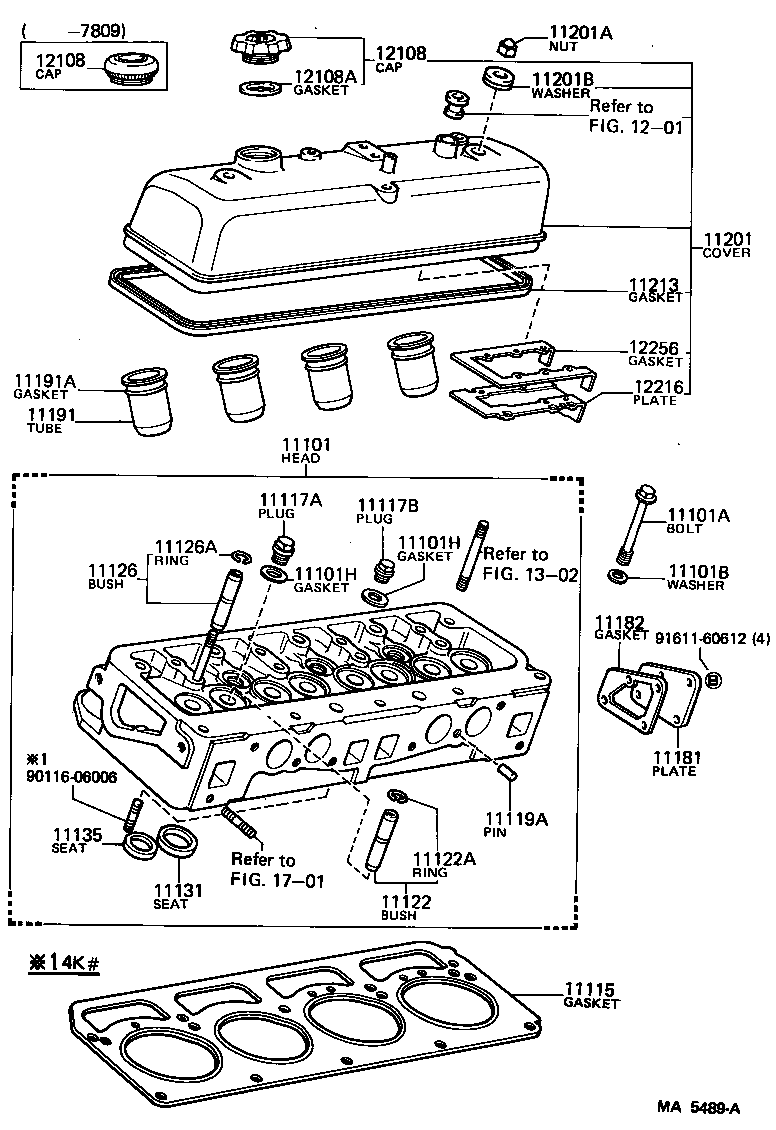

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11101H 11115 11117A 11117B 11119A 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 1201 12108 12108 12108A 12216 12256 1302 1701 9011606006 9161160612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-13062

4K#..KP61

 1
11101-19135

4K#..KP61

 1
11101-13061

4K#..KP61

 1
11101-19045

4KU..KP61

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02020

3KHJ,4KU..KP6#

*10-1.25PX100-20

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10005

3KHJ,4K#..KP6#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-15151

3KHJ,4K#..KP6#

OD=21,ID=15

 2
90430-18152

3KHJ,4K#..KP6#

OD=25,ID=18

 3
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-15151

3KHJ,4K#..KP6#

OD=21,ID=15

 2
90430-18152

3KHJ,4K#..KP6#

OD=25,ID=18

 3
11115 - GASKET, CYLINDER HEAD
11115-13031

3KHJ,4K#..KP6#

 1
11115-13010

3KHJ,4KU..KP6#

 1
11115-13030

3KHJ,4KU..KP6#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

3KHJ,4K#..KP6#

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

3KHJ,4K#..KP6#

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

3KHJ,4K#..KP6#

長さ=18,外径=8,L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-24020

3KHJ,4K#..KP6#

O/S 0.05,O/S 0.05

 4
11122-24020

3KHJ,4K#..KP6#

STD,STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

3KHJ,4K#..KP6#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-24020

3KHJ,4K#..KP6#

STD

 4
11122-24020

4K#..KP61

STD,STD

 4
11123-24020

4K#..KP61

O/S 0.05,O/S 0.05

 4
11127-24020

3KHJ,4K#..KP6#

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

3KHJ,4K#..KP6#

 4
11131 - SEAT, INTAKE VALVE
11132-24010

3KHJ,4K#..KP6#

O/S 0.03,O/S 0.03

 4
11131-24010

3KHJ,4K#..KP6#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11136-13010

3KHJ,4K#..KP6#

O/S 0.03,O/S 0.03

 4
11135-13010

3KHJ,4K#..KP6#

STD,STD

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-13030

4KU..KP61

 1
11181-24020

3KHJ,4KU,4KJ..KP6#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-24010

3KHJ,4K#..KP6#

 1
11191 - TUBE, SPARK PLUG
11191-22010

3KHJ,4K#..KP6#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

3KHJ,4K#..KP6#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-19015

4KU..KP61

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

3KHJ,4K#..KP6#

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08017

3KHJ,4KU..KP6#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

3KHJ,4K#..KP6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

4KU..KP61

 1
12180-70010

4K#..KP61

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

4KU..KP61

 1
12180-70010

4K#..KP61

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

3KHJ,4K#..KP6#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

3KHJ,4K#..KP6#

 1
Common parts
90116-06006
91611-60612
Linked diagrams
1201
1302
1701

(8205- )4KJ,4KU
